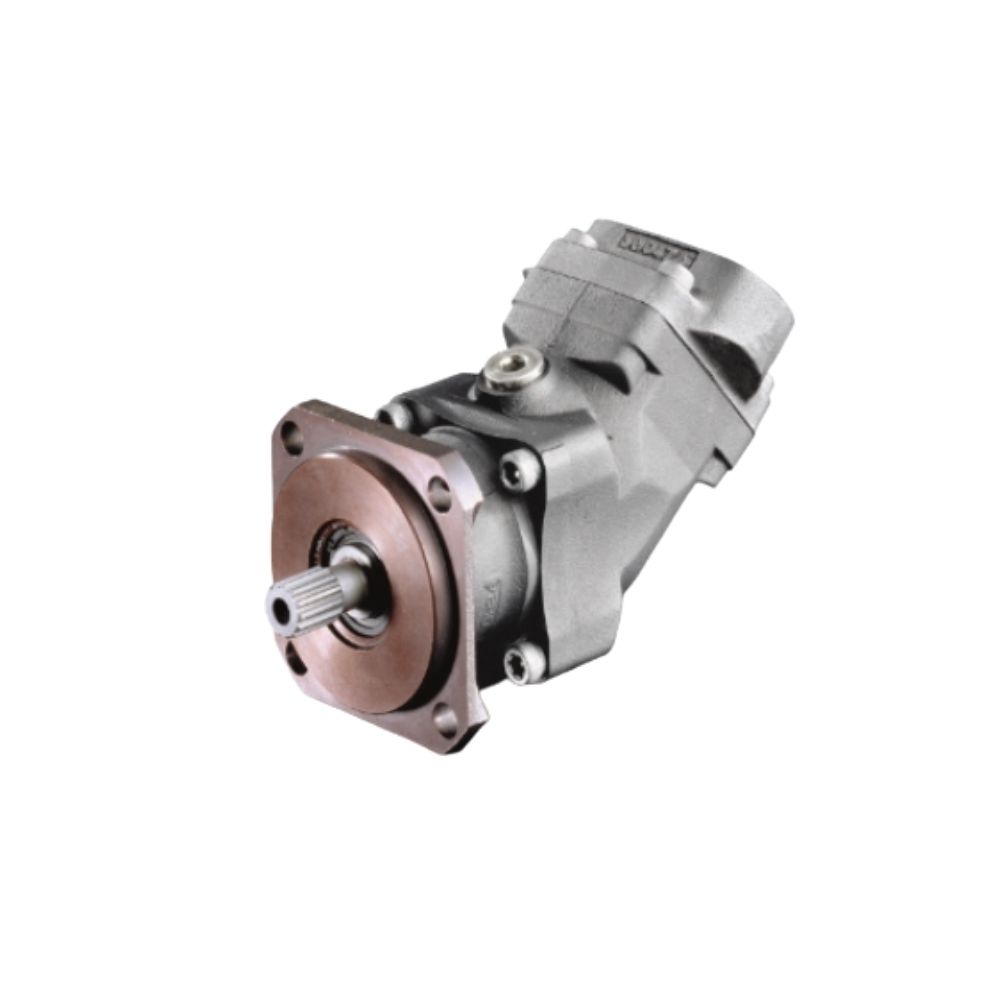

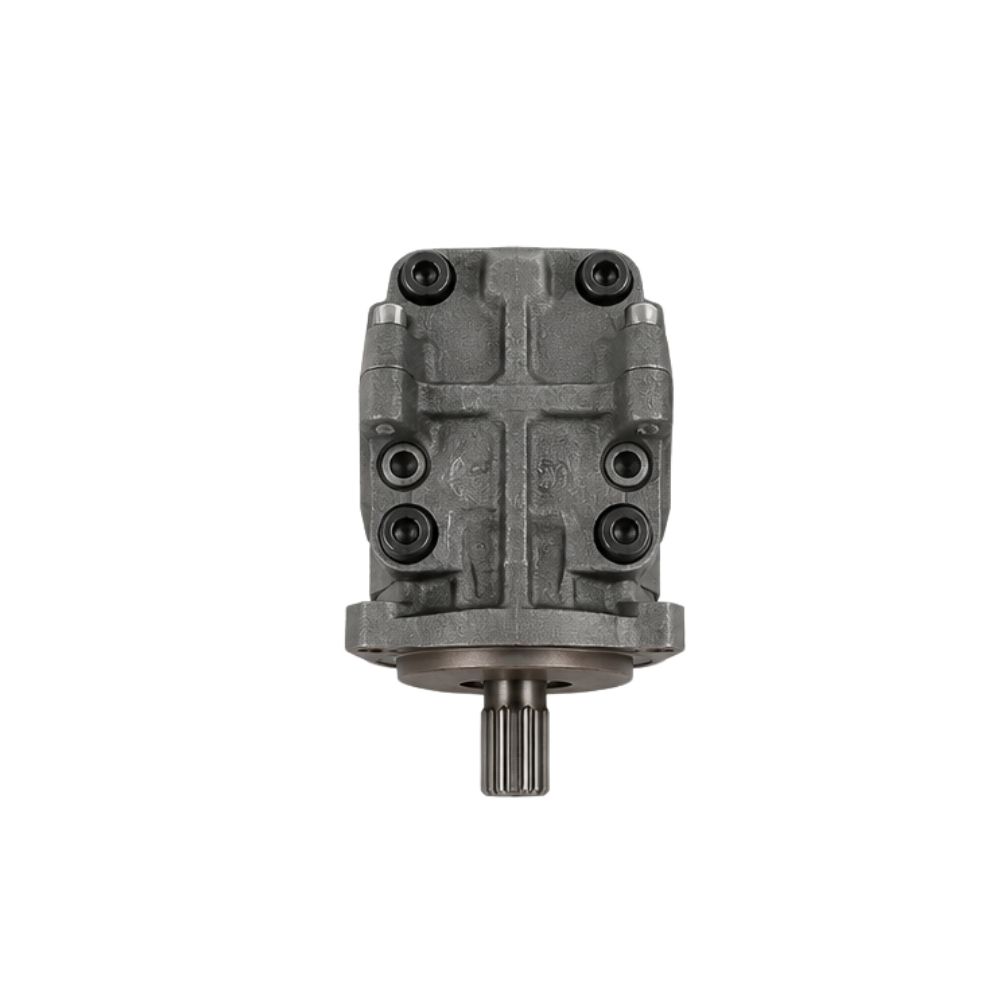

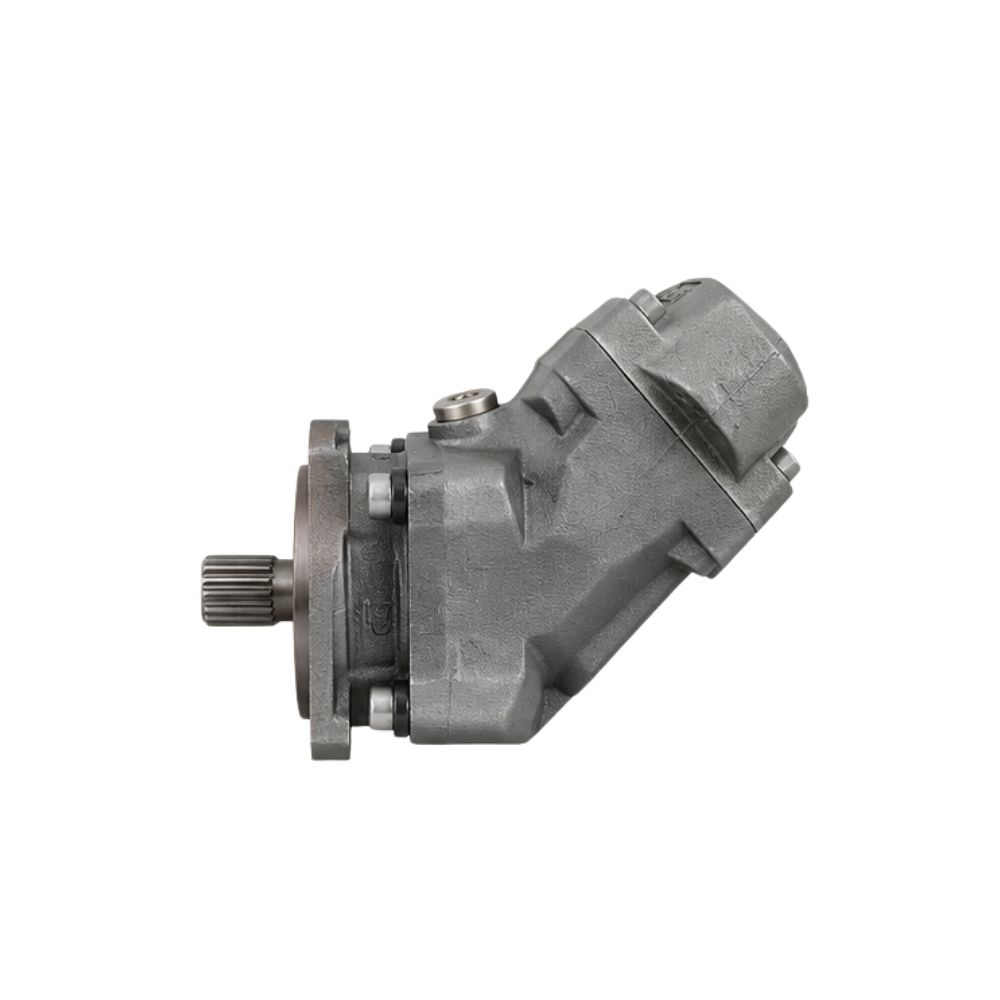

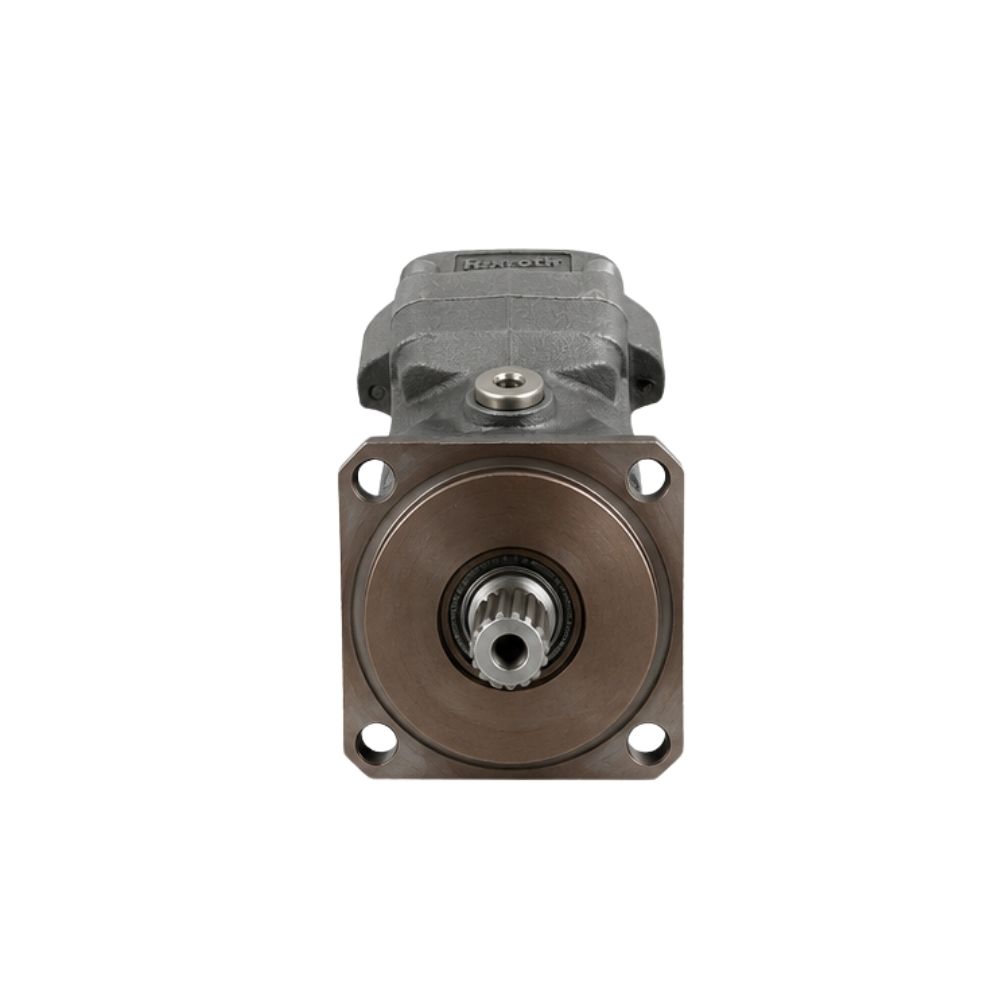

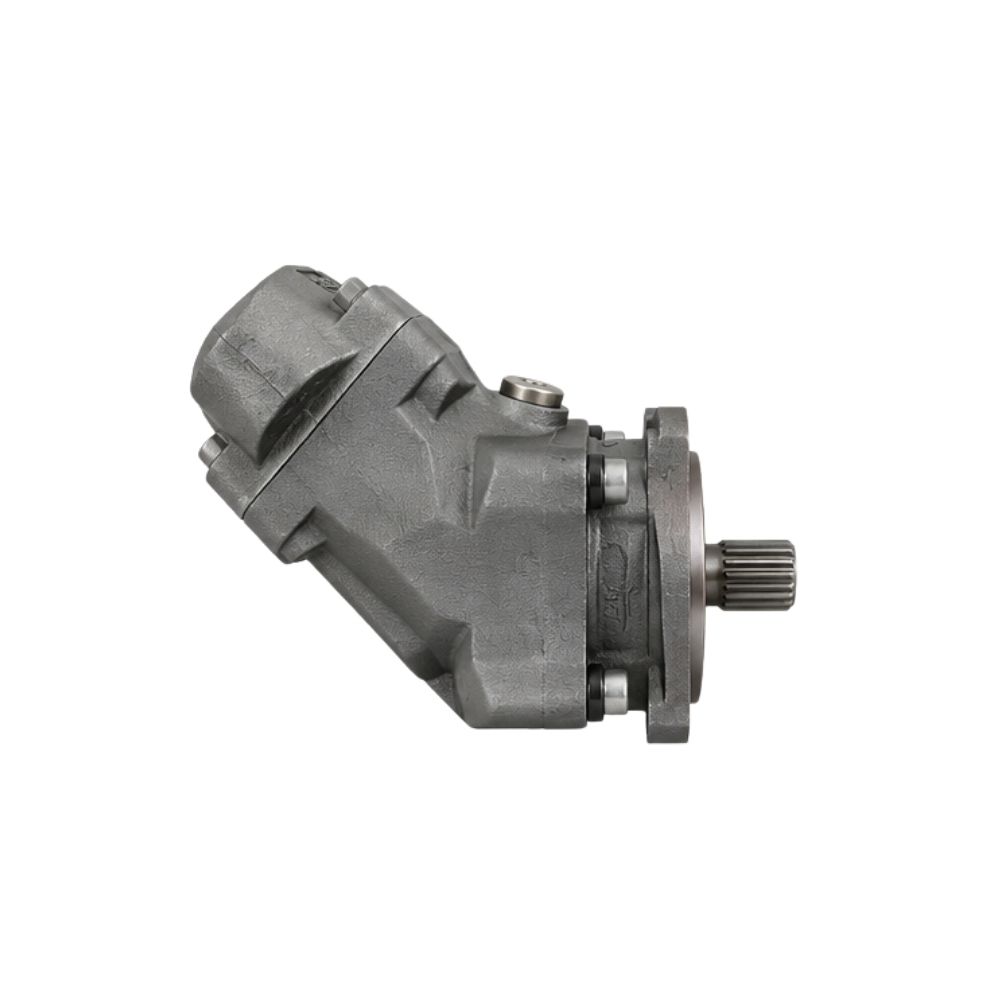

M60N – Axial piston motor
The HAWE M60N is a compact, high-pressure axial piston motor designed for heavy-duty mobile and truck hydraulics. Utilizing a 40° bent-axis design, it delivers high power density, strong starting torque, and reliable performance in both open and closed circuits at pressures up to 400 bar.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The HAWE M60N is a heavy-duty, fixed-displacement axial piston hydraulic motor engineered by HAWE Hydraulik. Operating on the bent-axis principle with spherical pistons angled at 40°, it delivers optimal power-to-weight ratios, high starting torques, and exceptionally reliable performance. It is specifically built to operate in both open and closed-circuit configurations, making it a staple choice for high-pressure mobile machinery and truck hydraulics.
| Technical Parameter | Specification Value |
|---|---|
| Motor Type | Fixed-displacement axial piston motor |
| Design Principle | Bent-axis design (40° cylinder angle) |
| Max Continuous Pressure | 350 bar (5,076 psi) |
| Max Peak Pressure | 400 bar (5,800 psi) |
| Displacement Range | Up to 130 cm3/rev |
| Rotation Direction | Bi-directional (reversible) |
| Mounting Interfaces | SAE-B, SAE-C, and SAE-D flanges |
| Shaft Types | Keyed (K) or Splined (S) |
| Circuit Suitability | Open and closed circuits |
