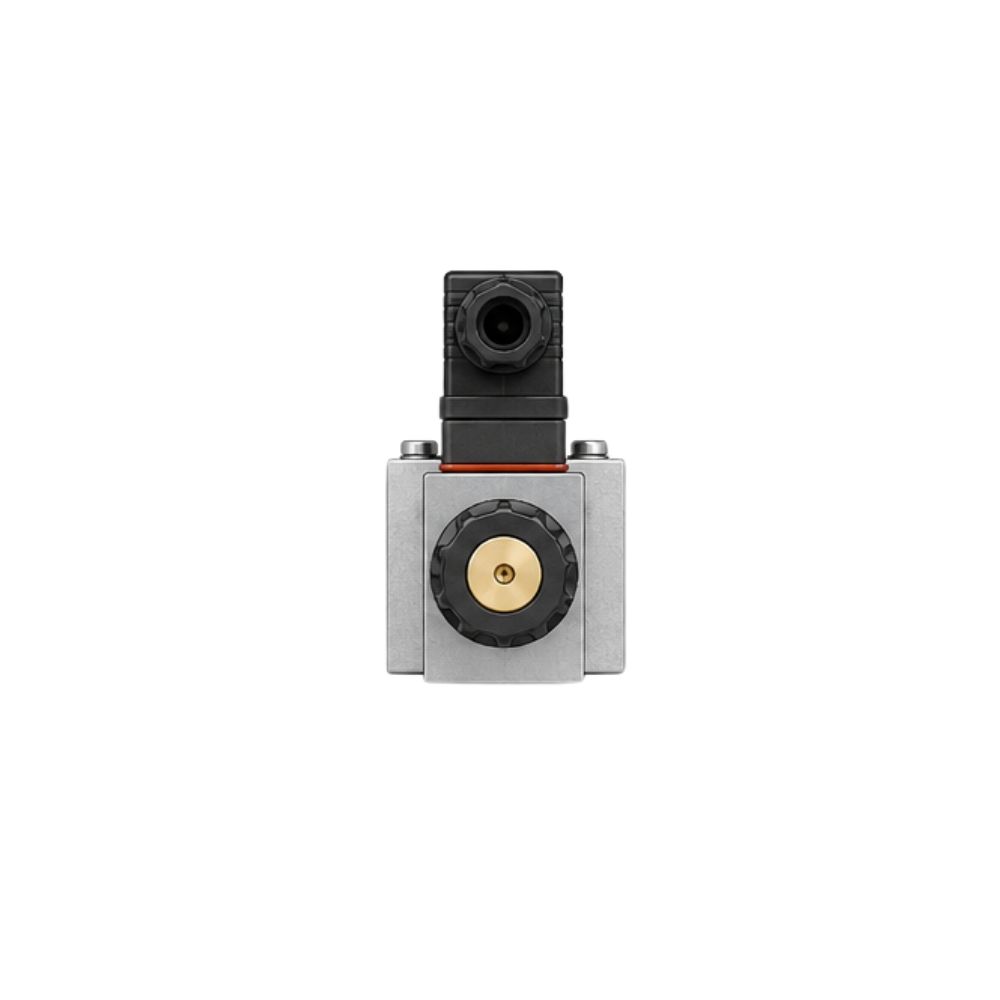

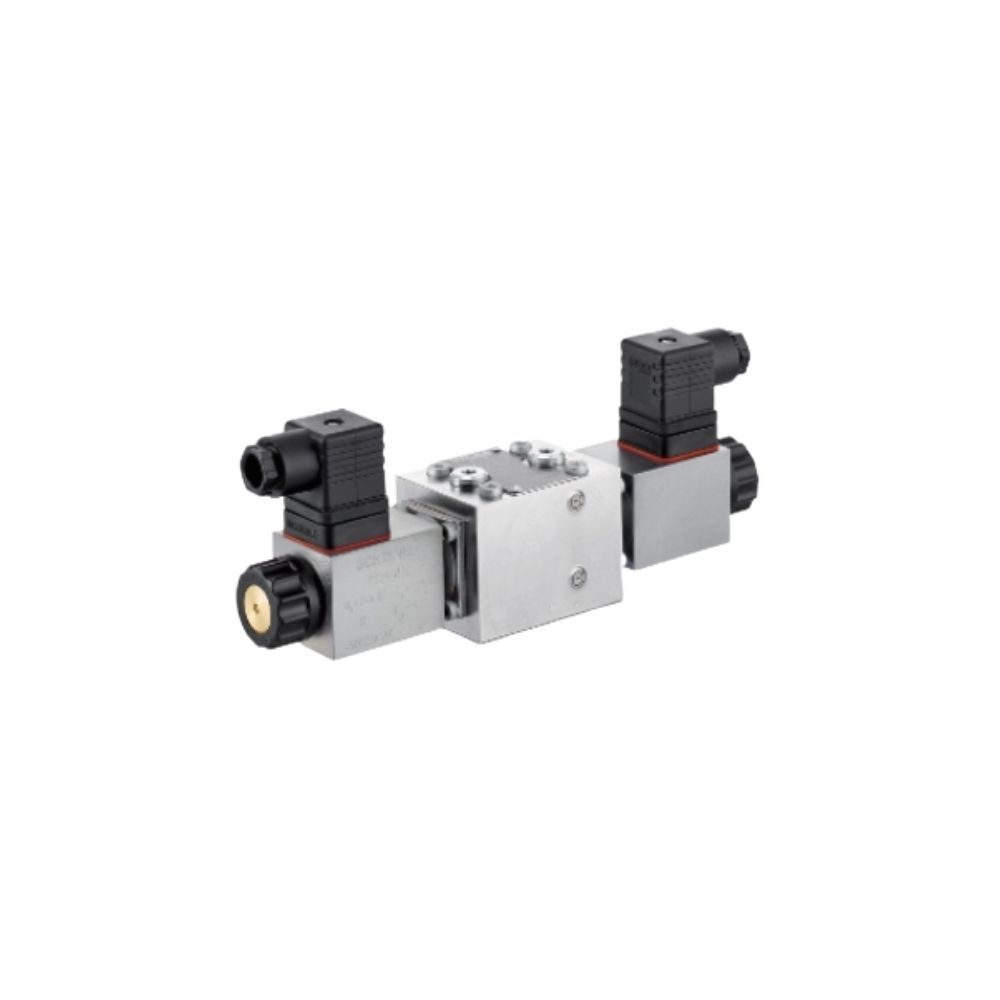

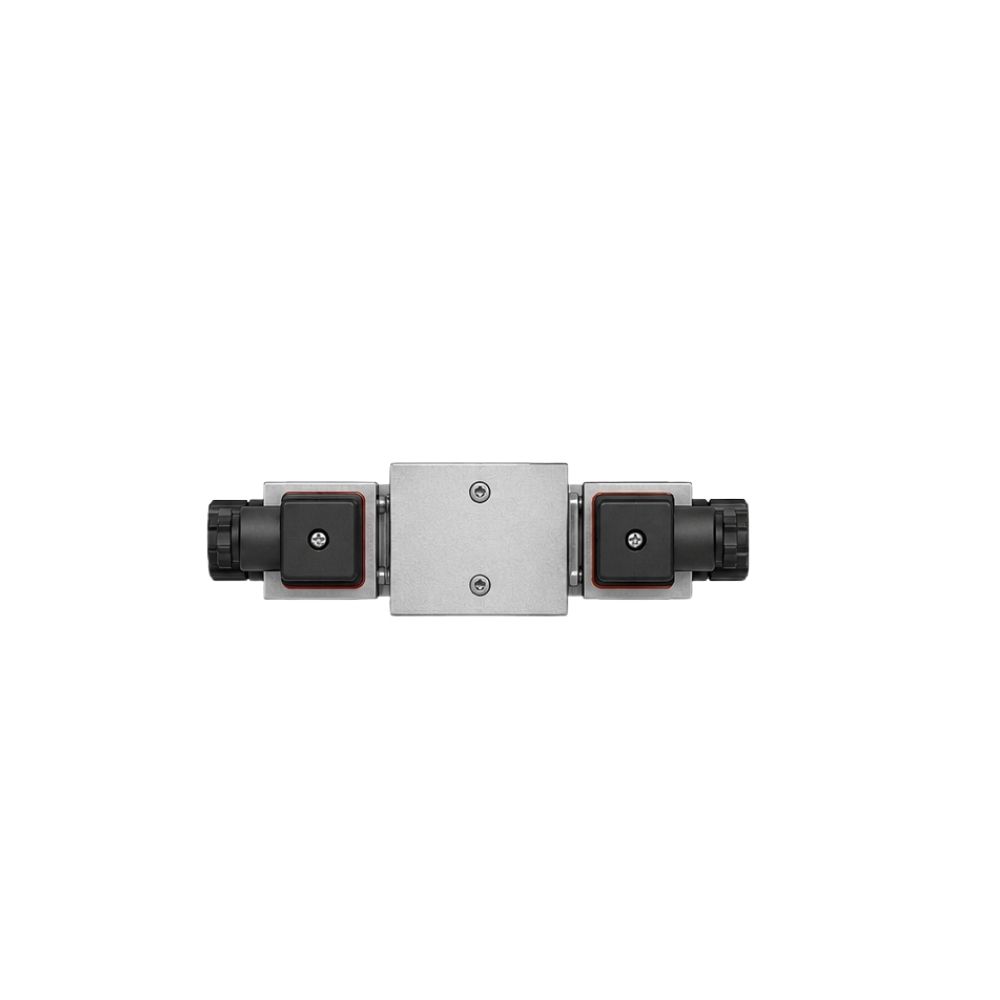

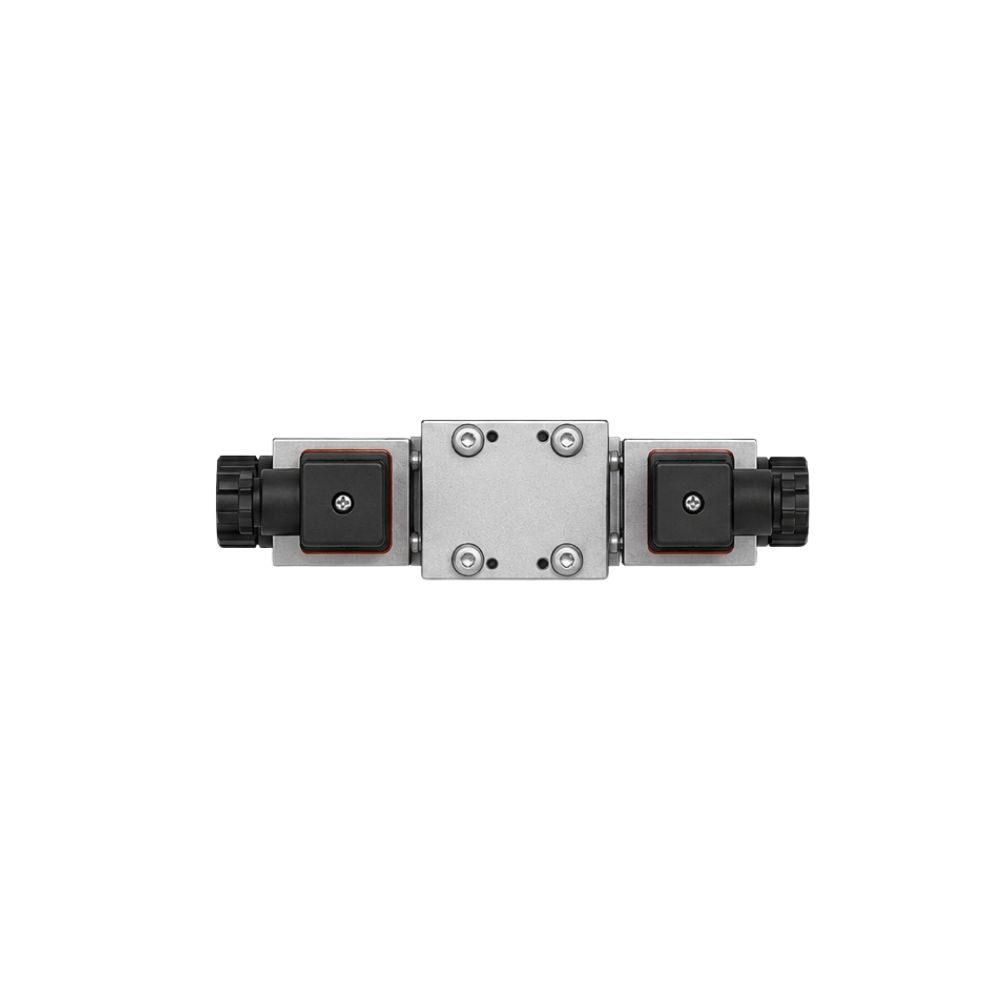

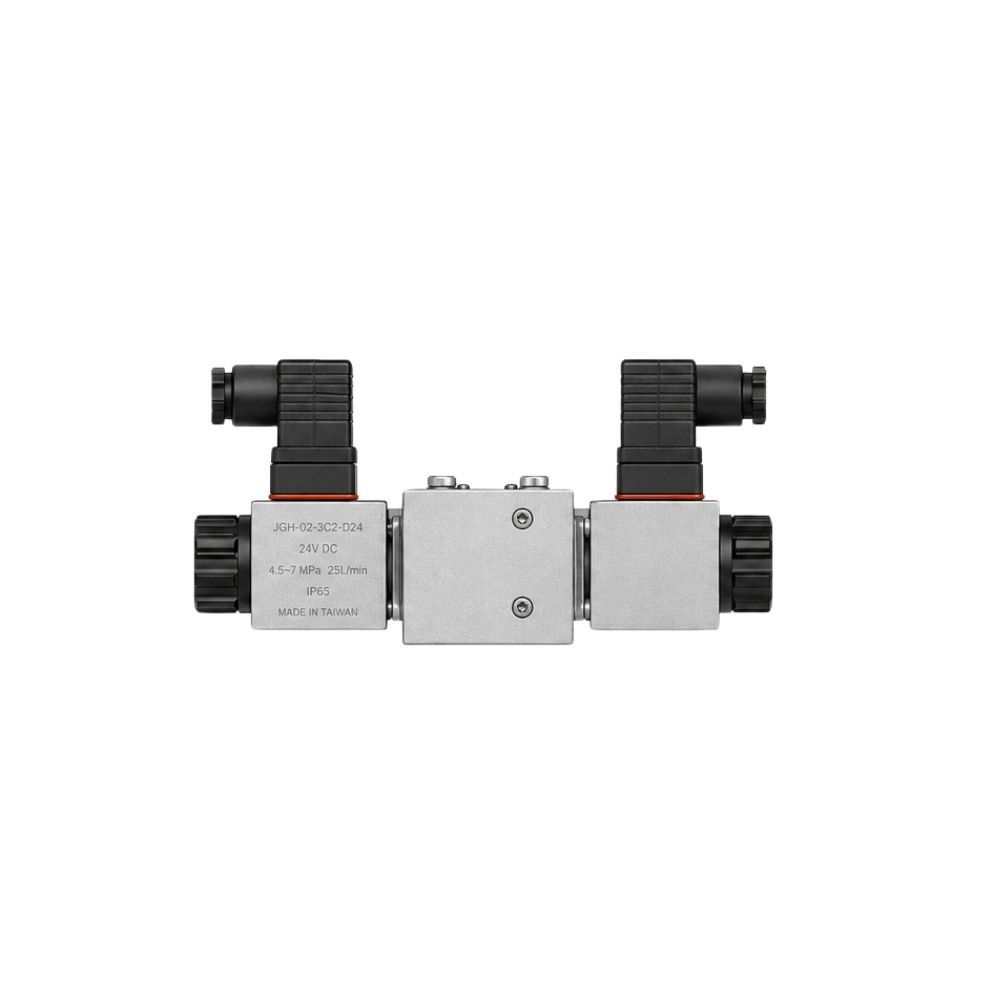

NBVP – Directional seated valve
The type NBVP is a manifold mounting valve with standard connection pattern nominal size NG 6. 2/2-, 3/2-, 3/3-, 4/2-, 4/3- and 4/4-way directional seated valves with different types of actuation are available. All listed types are cone-seated valves by design. The type NBVP is used together with other valves in the valve bank type BA to control the entire hydraulic system.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The HAWE NBVP series is a high-pressure, manifold-mounting directional cone-seated valve engineered for zero internal leakage in precision hydraulic applications. Manufactured by HAWE Hydraulik (Germany), these poppet-style valves feature a cone-on-seat construction that provides hermetic, drop-tight sealing. This prevents common issues like cylinder creep or pressure drops over long standstill periods, outperforming traditional sliding spool valves.
| Feature | Specification |
|---|---|
| Manufacturer | HAWE Hydraulik (Germany) |
| Valve Type | Directional seated valve (Poppet style) |
| Design Feature | Cone-on-seat (Zero internal leakage) |
| Nominal Size | NG 6 (Size 6 / D03 standard) |
| Max Pressure | Up to 400 bar (5,800 psi) |
| Max Flow Rate | Approx. 20 L/min (5.28 GPM) |
| Mounting Style | Sub-plate / Manifold mounting |
| Flow Options | 2/2, 3/2, 3/3, 4/2, 4/3, and 4/4-way |
| Actuation | Solenoid, hydraulic, pneumatic, or manual |
| Optional Extras | Position monitoring, ATEX explosion-proof |
