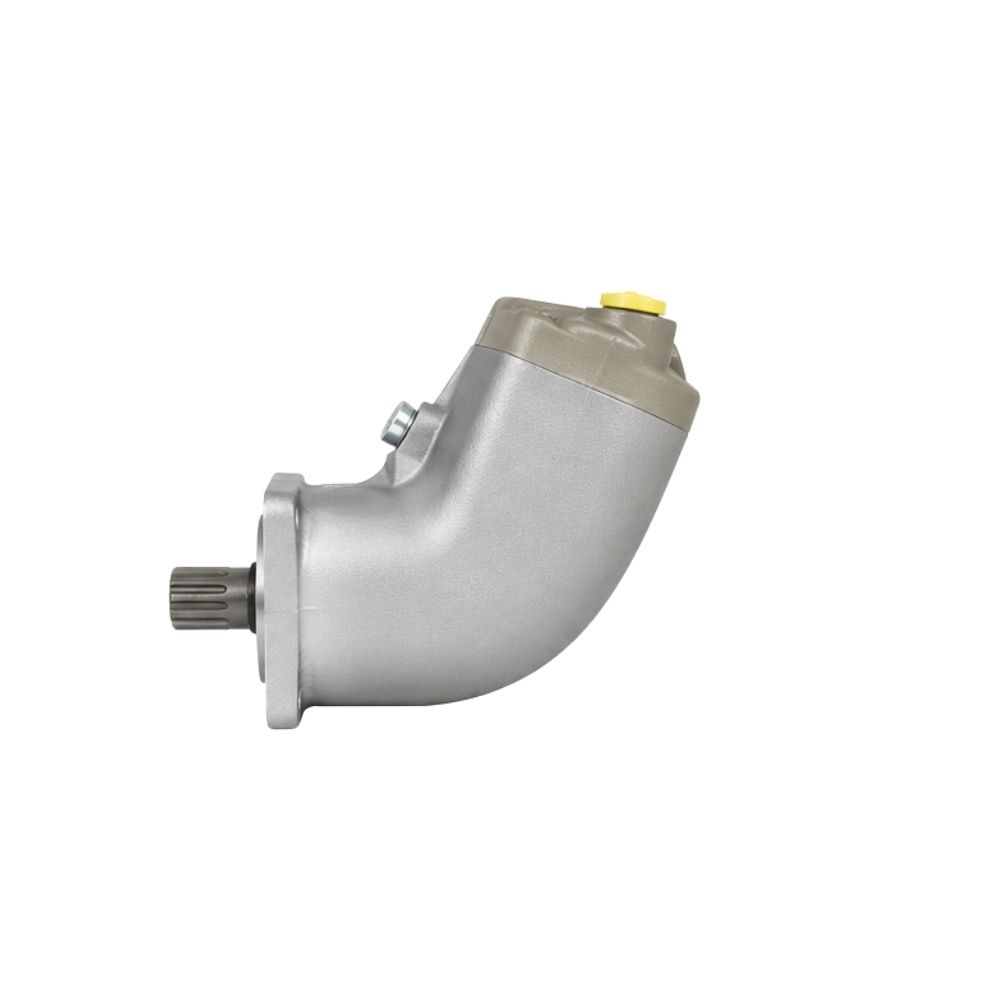

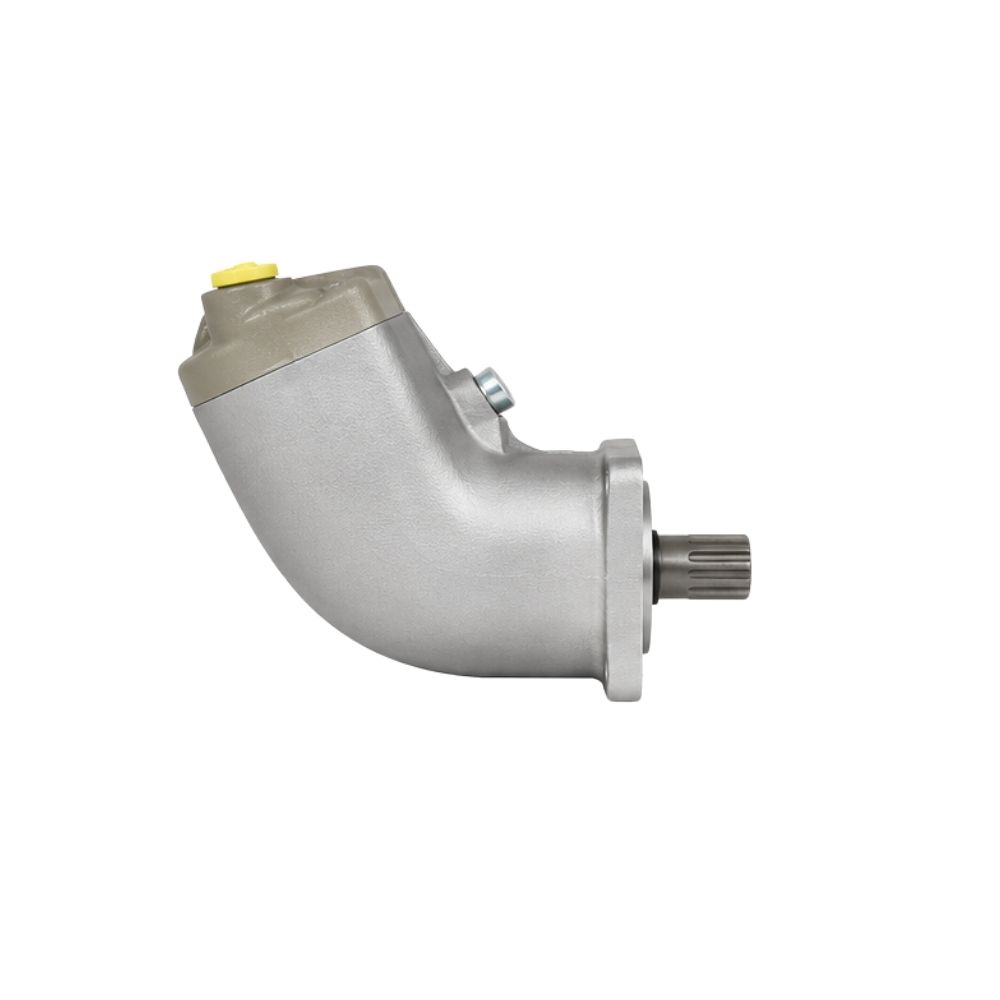

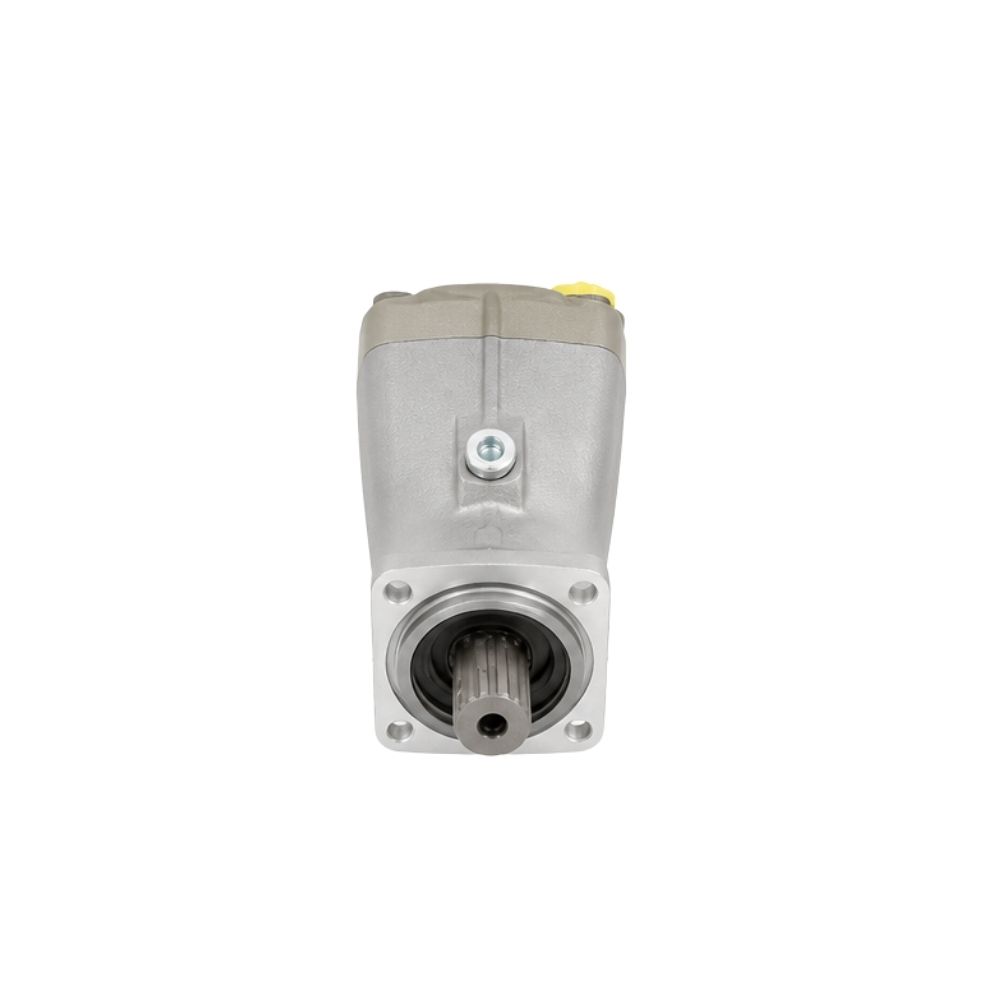

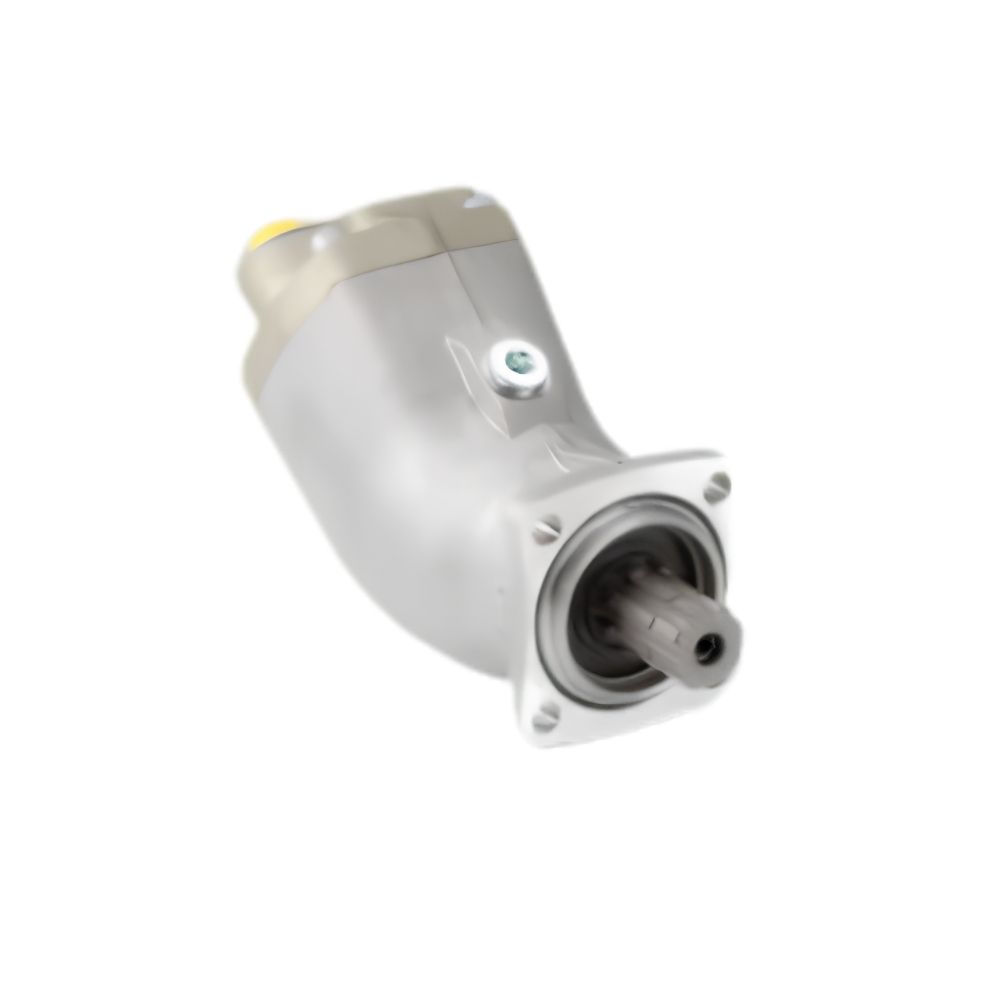

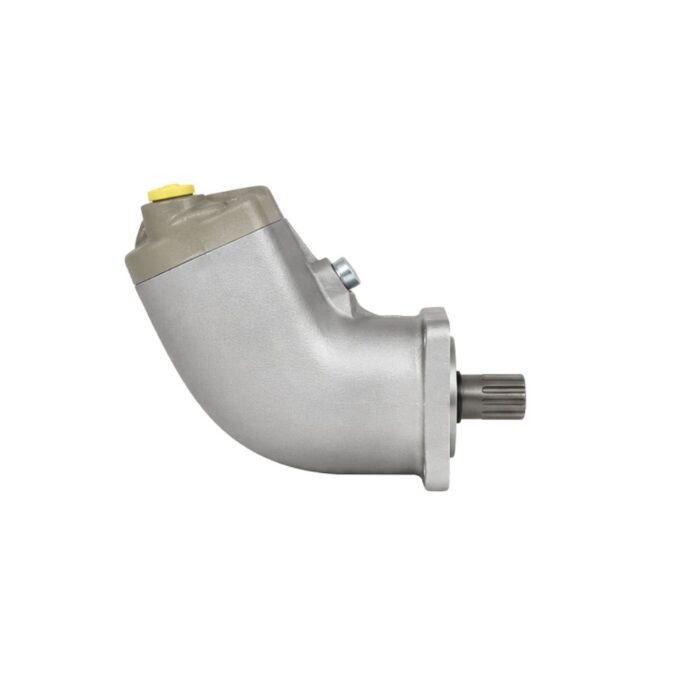

K61N – Axial piston pumps
The HAWE K61N is a heavy-duty, fixed-displacement axial piston pump designed for open hydraulic circuits in mobile applications. Operating on the bent-axis principle, this premium pump is predominantly engineered to mount directly onto the power take-off (PTO) of commercial vehicle transmissions.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The axial piston pump type K60N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions. The axial piston pump type K61N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions.
| Feature | Specification |
|---|---|
| Pump Type | Fixed-displacement axial piston pump |
| Design Principle | Bent-axis design |
| Circuit Type | Open hydraulic circuits |
| Mounting Style | Direct mounting on vehicle Power Take-Off (PTO) |
| Max Operating Pressure | Up to 400 bar (5,800 psi) |
| Max Displacement | Up to 108 cm3/rev |
| Flange Type | Standard DIN version |
| Housing Material | Aluminum casing |
| Cover Material | Cast-iron connection cover |
| Rotation Change | Reversible by rotating the connection cover 180° |
| Primary Applications | Truck cranes, aerial lifts, and dump trucks |
