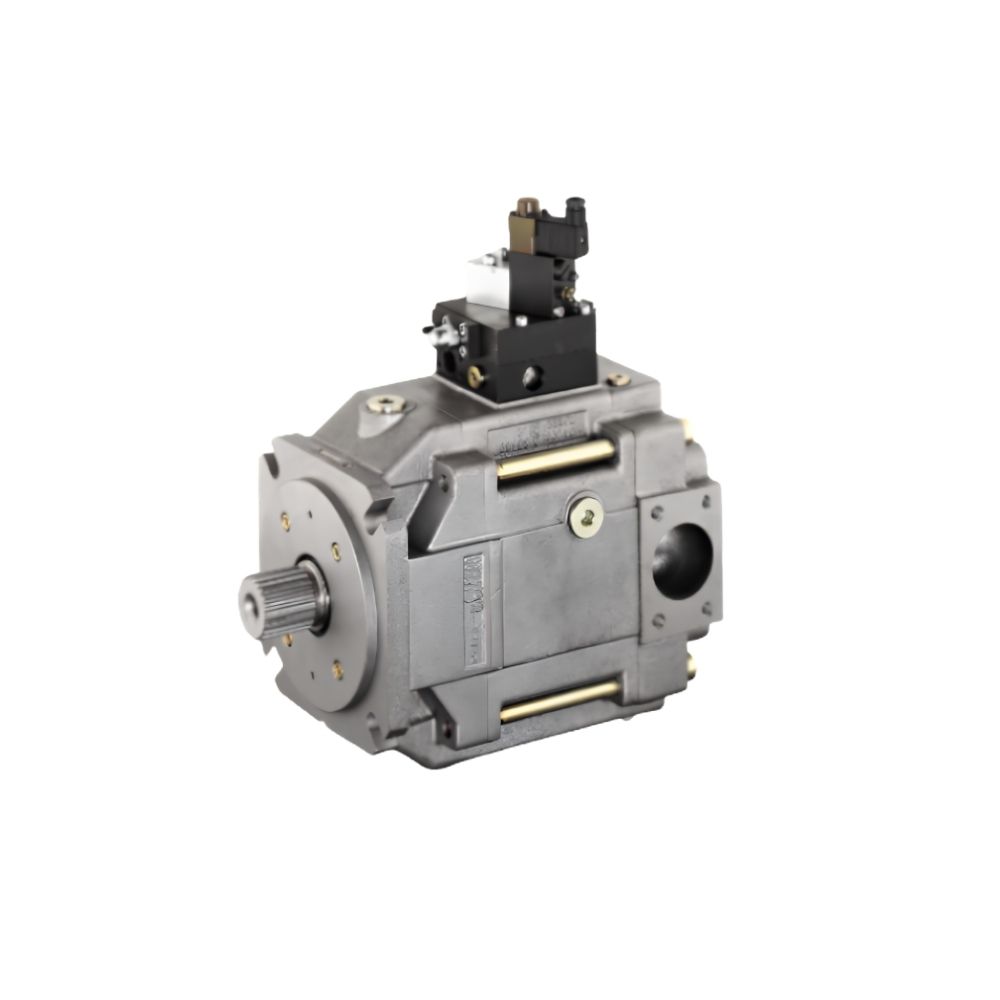

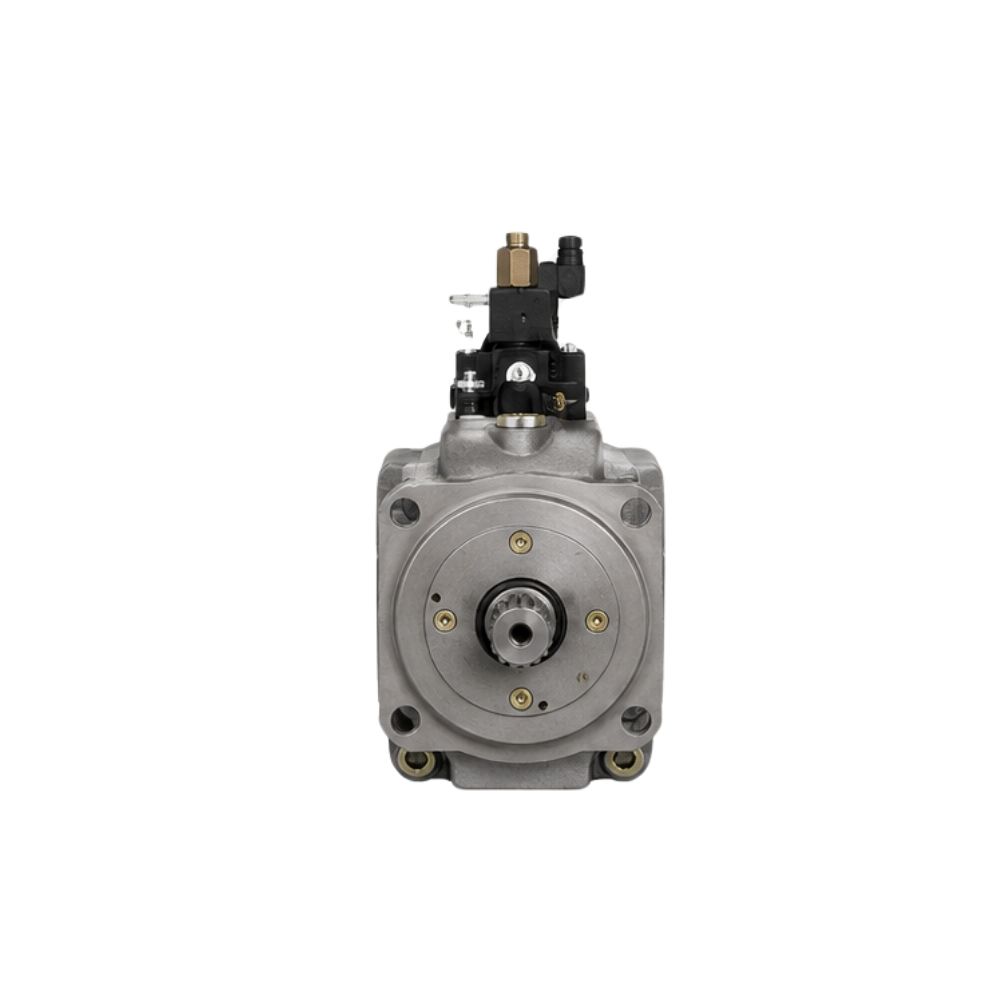

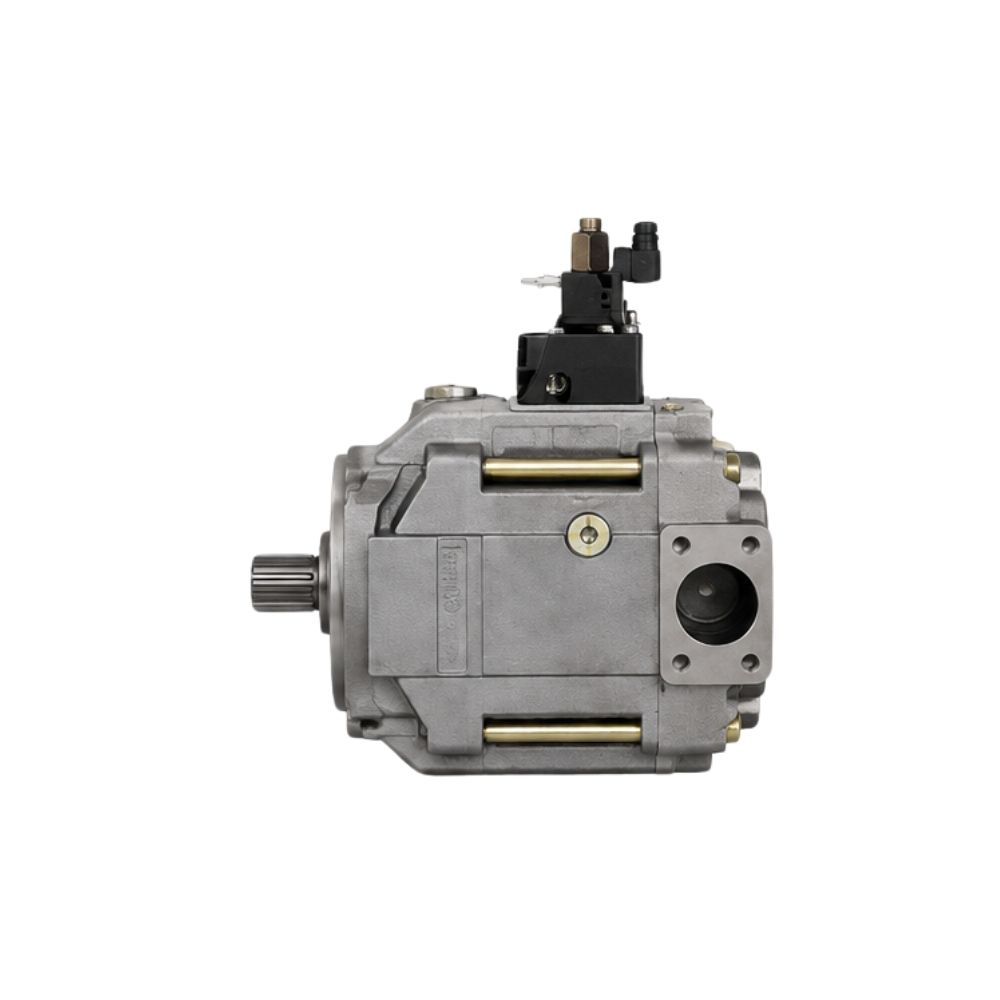

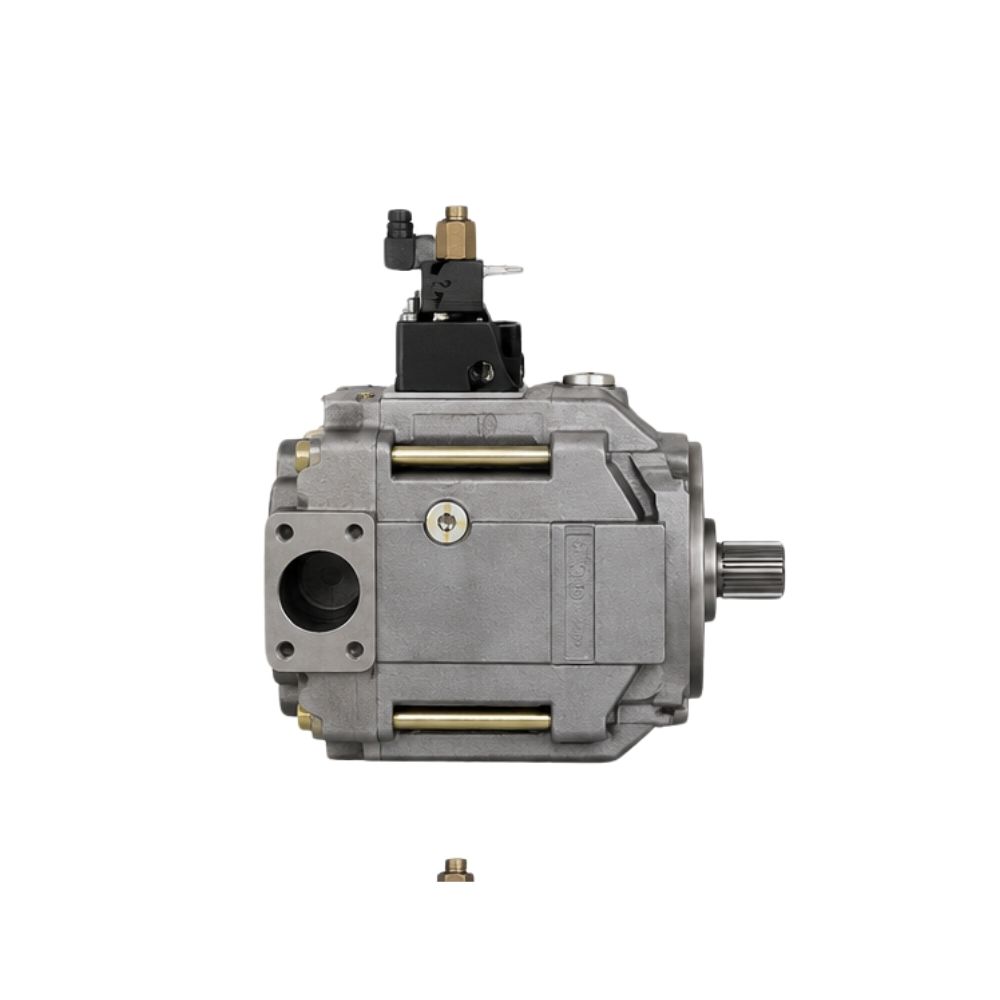

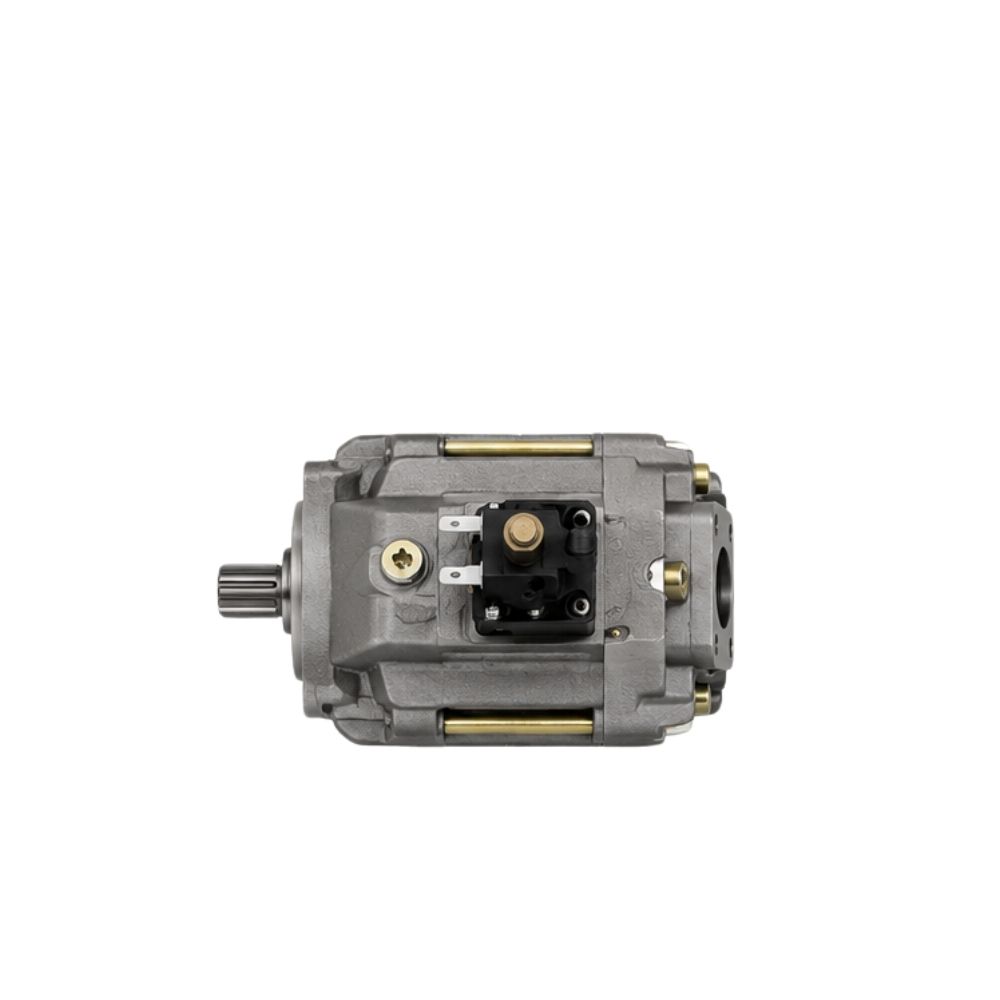

V30E – Axial piston pumps
The HAWE V30E is a robust variable displacement axial piston pump explicitly engineered for open hydraulic circuits, primarily serving heavy-duty mobile machinery. Operating on the swash plate principle, it seamlessly adjusts geometric output volume from maximum capacity down to zero to match real-time flow demands.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The variable displacement axial piston pump type V30E is designed for open circuits in mobile hydraulics and operates according to the swash plate principle. It is available with the option of a thru-shaft for operating with additional hydraulic pumps in series. The sturdy pump is particularly suitable for continuous operation in challenging applications. The range of pump controllers allows the axial piston pump to be used in a variety of applications.
| Parameter | Details |
|---|---|
| Product Type | Variable Displacement Axial Piston Pump |
| Circuit Design | Open circuit |
| Nominal Sizes | 095, 160, 270 cc/rev |
| Continuous Pressure | 350 bar (5,075 psi) |
| Peak Pressure | 420 bar (6,000 psi) |
| Maximum Flow Rate | 470 L/min (124 gpm) |
| Housing Material | Heavy-duty cast iron |
| Drive Option | Thru-shaft for tandem mounting |
| Control Types | Load-sensing, pressure, power, electronic |
