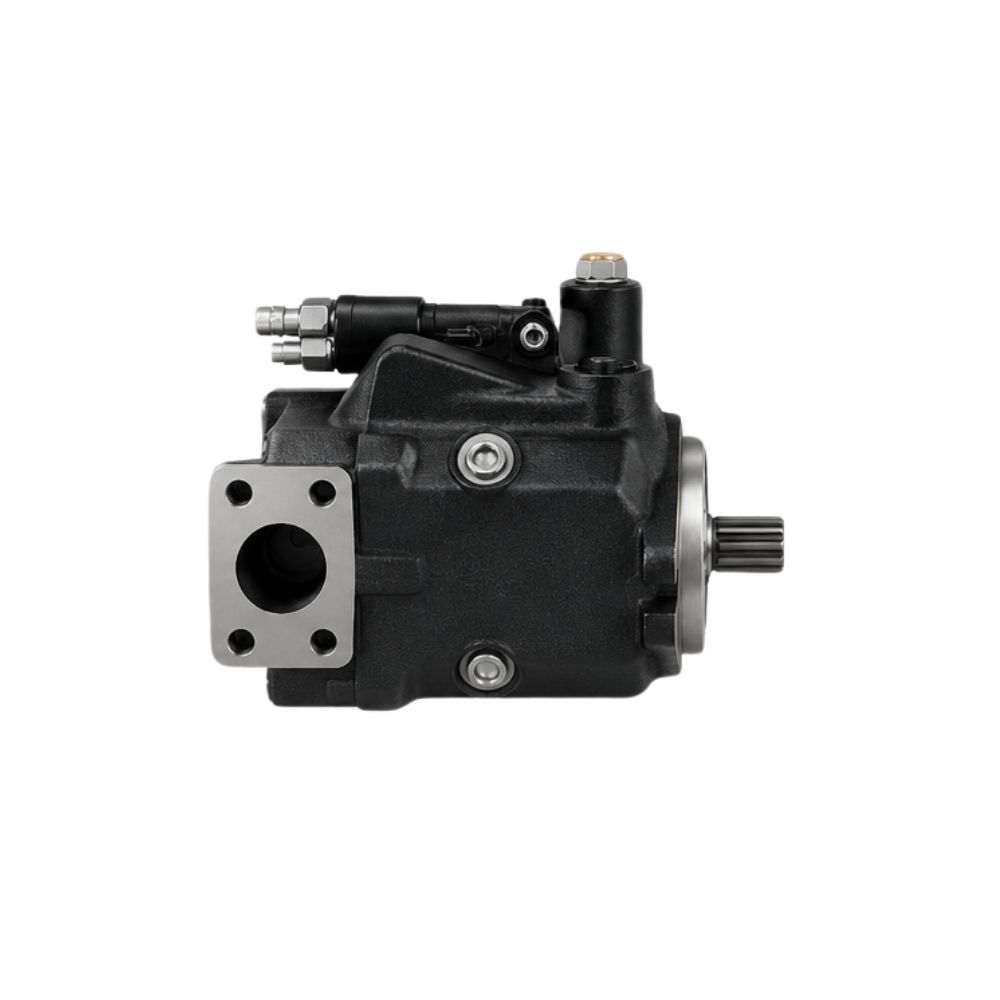

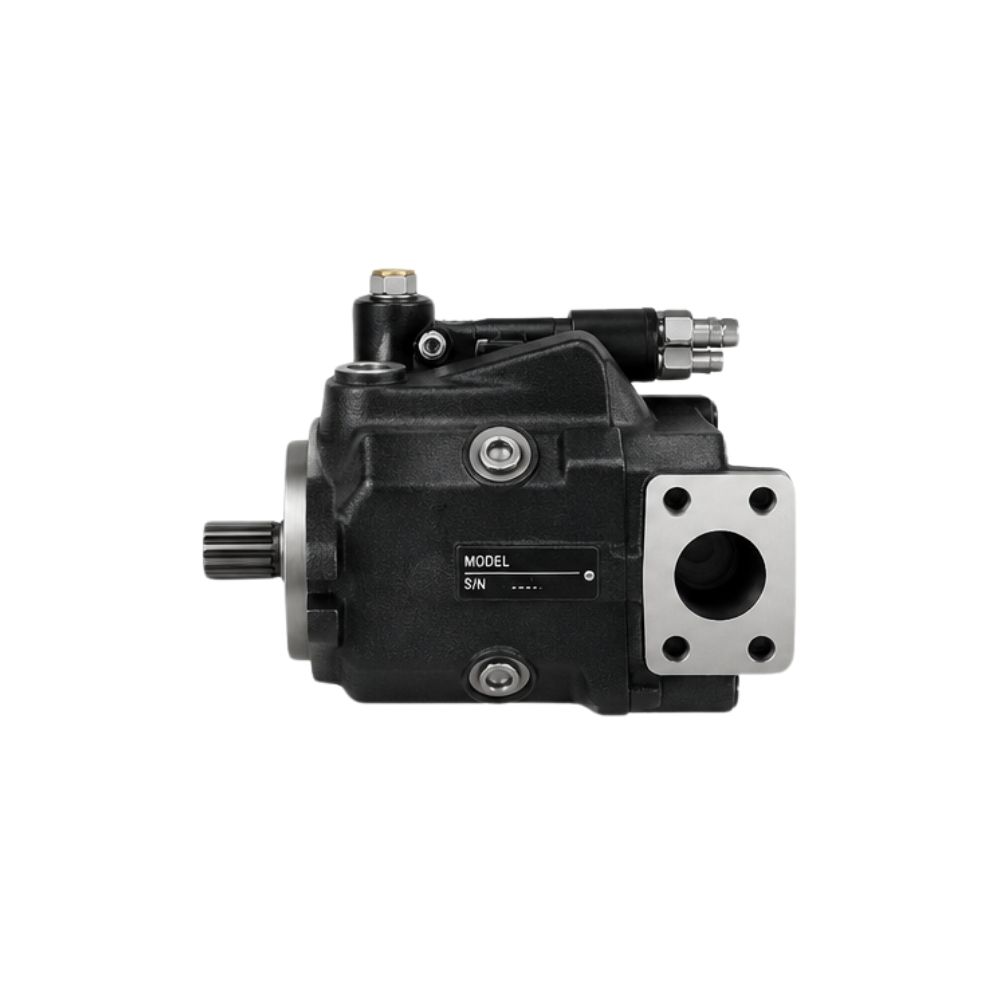

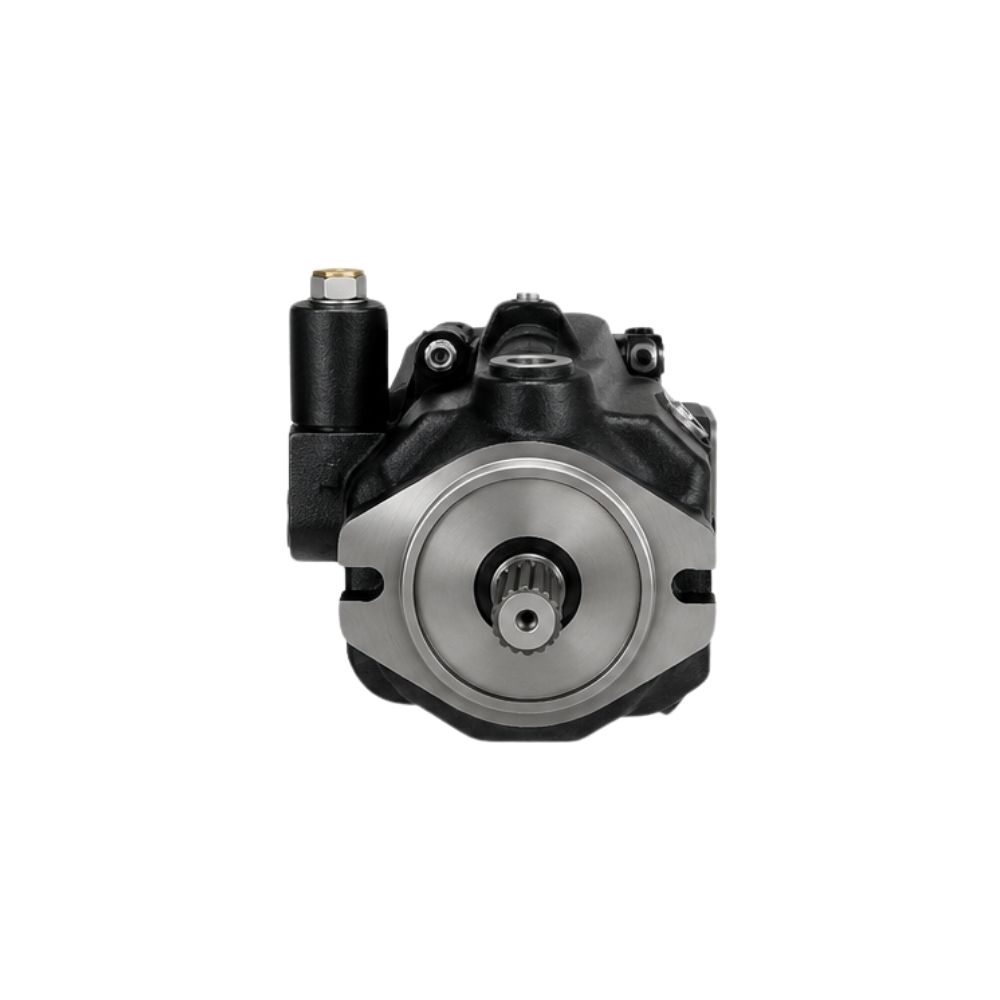

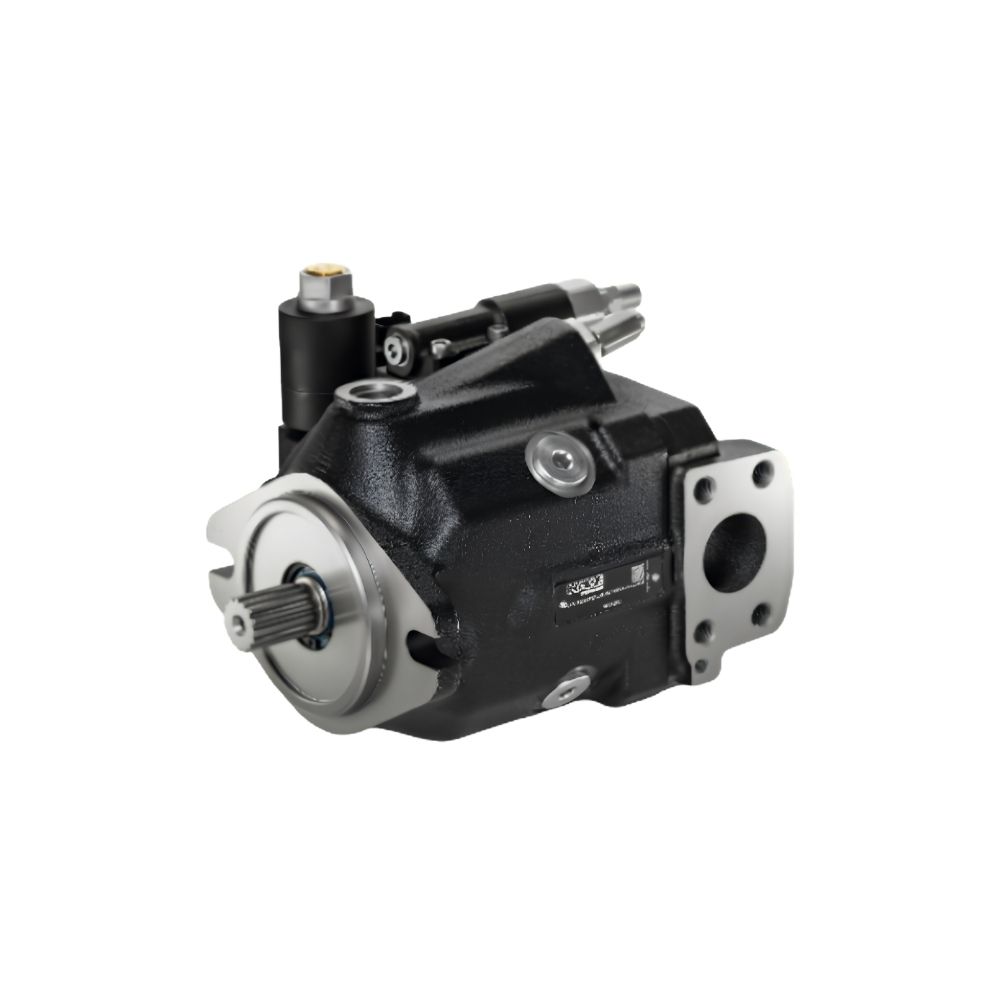

C41V – Axial piston pumps
The HAWE C41V is a variable displacement axial piston pump designed primarily for open hydraulic circuits in mobile machinery applications. Operating on the swash plate principle, this high-efficiency pump adjusts its flow rate dynamically by changing the tilt angle of its internal swash plate to match systemic load demands.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The axial piston pump type C41V is designed for open circuits in mobile hydraulics and operates on the swash plate principle. The large selection of different pump controllers allows the axial piston pump type C41V to be used in a variety of applications.
| Parameter | Specification |
|---|---|
| Product Type | Variable displacement axial piston pump |
| Circuit Type | Open circuits |
| Design Principle | Swash plate mechanism |
| Max Displacement | 85 cm3/rev |
| Max Operating Pressure | 280 bar (4,060 psi) |
| Primary Features | Thru-shaft capability, high self-suction speed, compact design |
| Control Options | Load-Sensing (LS), power controllers |
| Main Applications | Tractors, excavators, mobile cranes, telehandlers |
