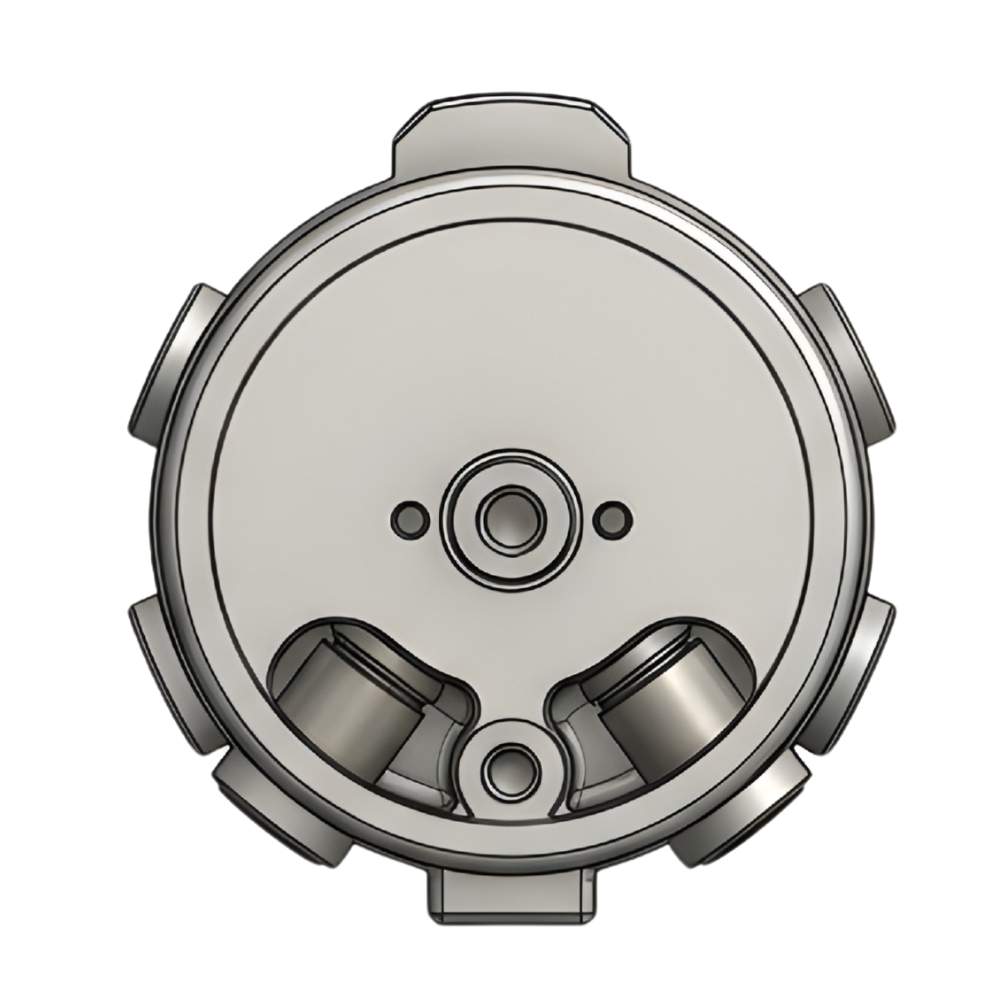

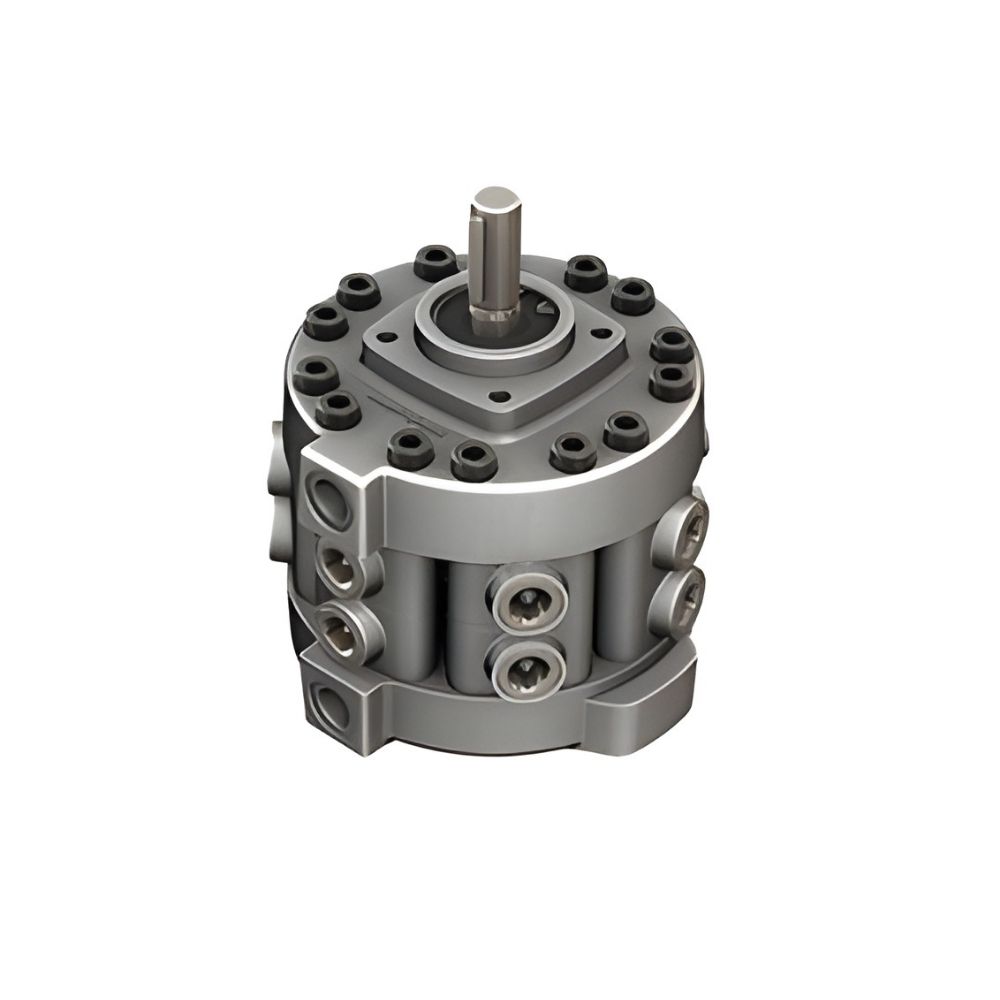

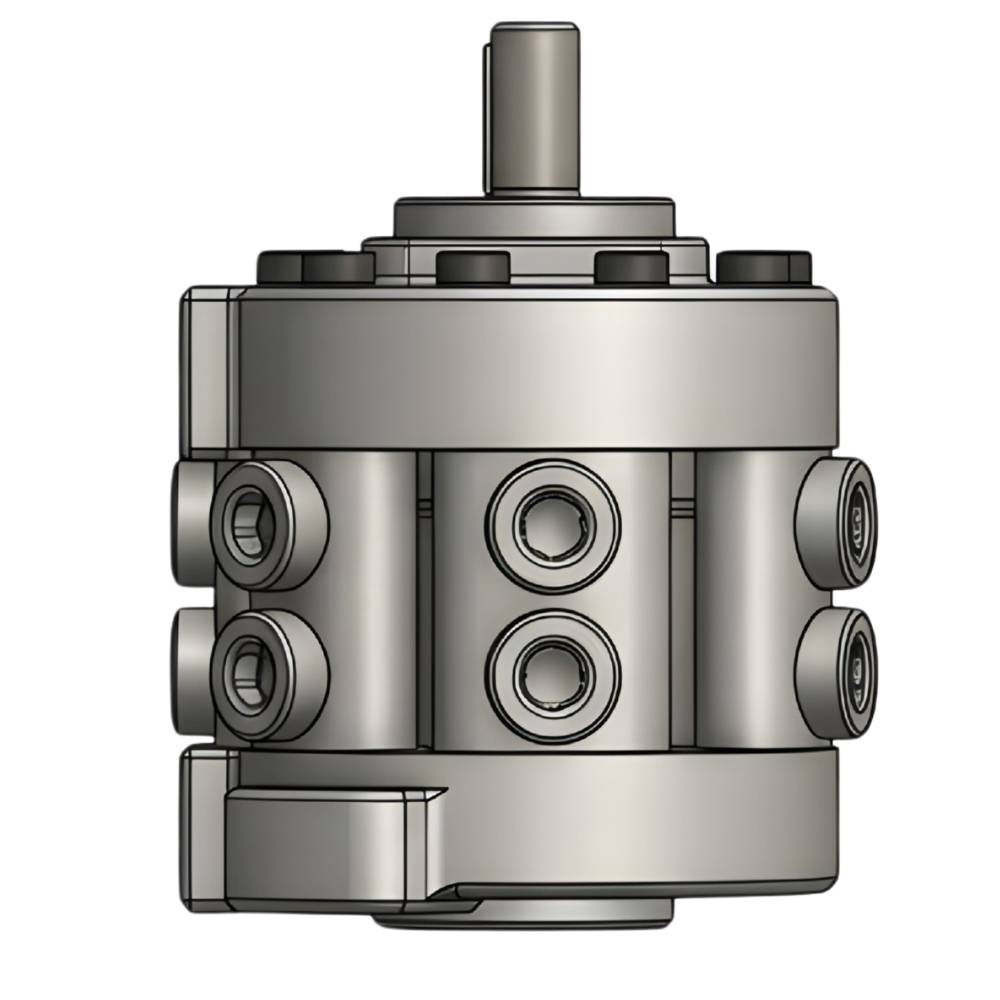

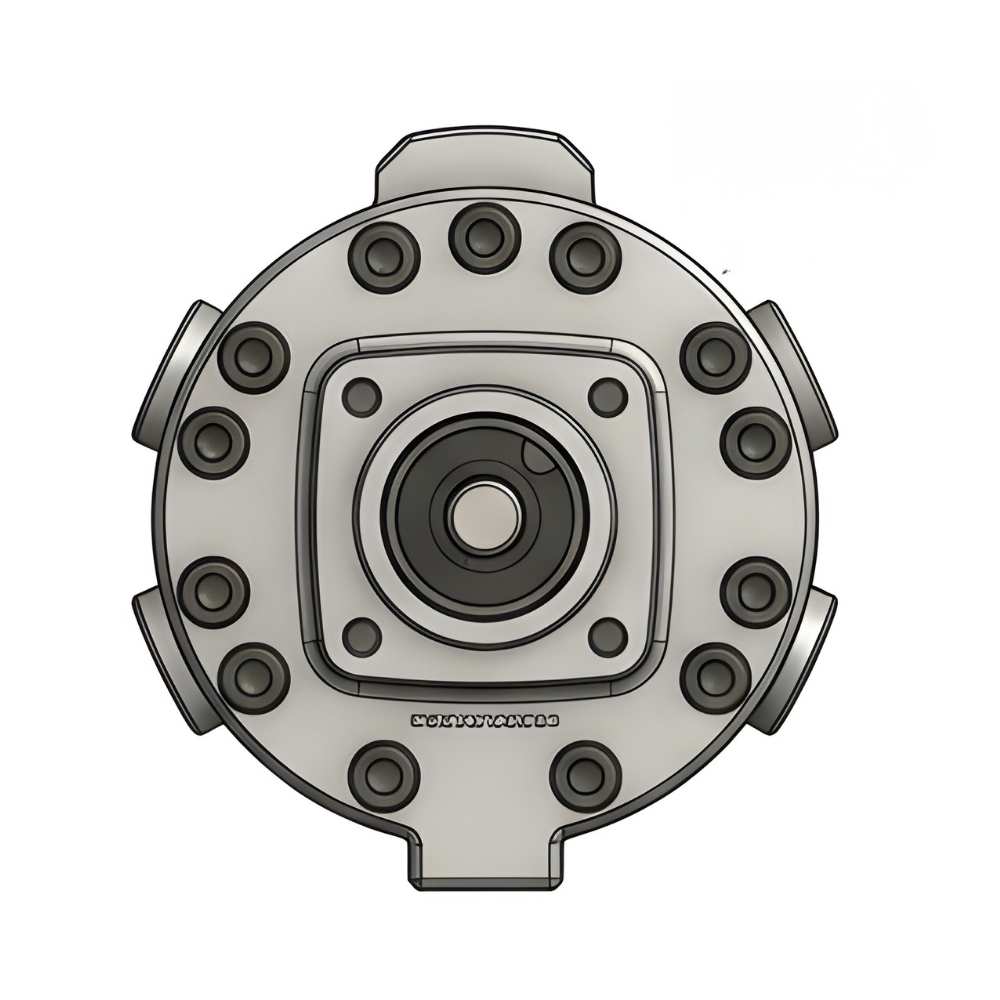

Radial Piston Pumps – 2R
The Polyhydron 2R series consists of rugged, oil-immersed radial piston double pumps designed for high-pressure industrial hydraulic systems. These pumps feature a valve-controlled design with a fixed output per revolution, allowing for bi-directional shaft rotation without affecting performance.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
Polyhydron Radial Piston Pumps in the 2RÂ series are designed with a radial piston arrangement, with 3, 5 or 7 Pumping elements each per pump section. Fixed delivery, Oil immersed type, Open execution, face mounting, Valve controlled. Bi-directional rotation of shaft. Flows can be combined internally, externally to feed one circuit or used independently to feed Two circuits
| Nominal pressure and flow ratings | |||||||
|---|---|---|---|---|---|---|---|
| Pressure (bar) | 700 | 550 | 450 | 350 | 300 | 250 | 200 |
| Number of Pumping Elements | Flow (L/min) @ 1450 rpm | ||||||
| Z | A | B | C | D | E | F | |
| 3 | 0.9 | 1.6 | 2.6 | 3.7 | 4.3 | 5.0 | 5.8 |
| 5 | 1.5 | 2.7 | 4.3 | 6.2 | 7.2 | 8.4 | 9.6 |
| 7 | 2.2 | 3.8 | 6.0 | 8.6 | 10.1 | 11.7 | 13.5 |
Key Specifications & Features
The 2R series is characterized by its valve-controlled, oil-immersed design.
-
- Pumping Elements: Available with 3, 5, or 7 pumping elements in each of the two sections.
- Operating Pressure: Models typically range from 200 bar to 700 bar depending on the specific configuration.
- Rotational Speed: Operates between a minimum of 300 RPM and a maximum of 2000 RPM.
- Flow Rate: For example, the 2R7CC-62 model offers a flow of approximately 17.2 LPM.
- Rotation: Features bi-directional shaft rotation, meaning the direction of rotation does not affect performance.
- Mounting: Standard face mounting with options for open execution or enclosed casing.
