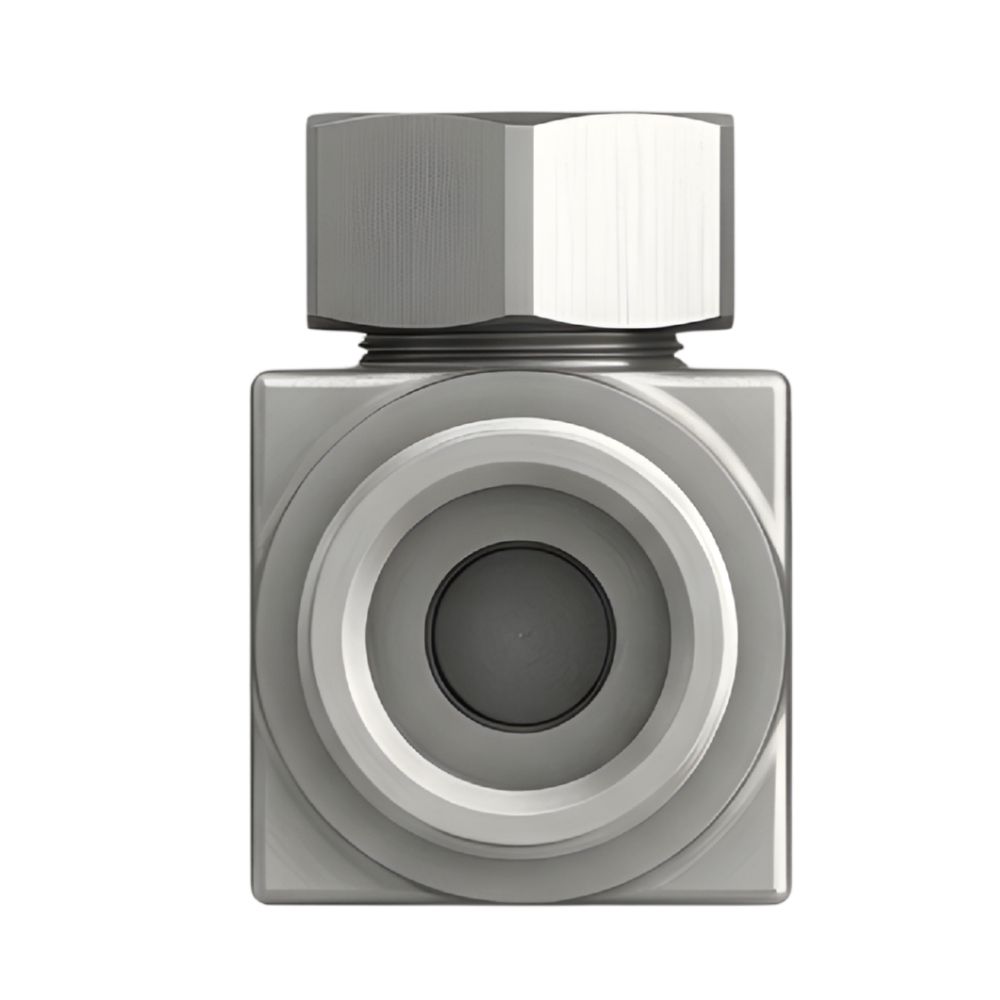

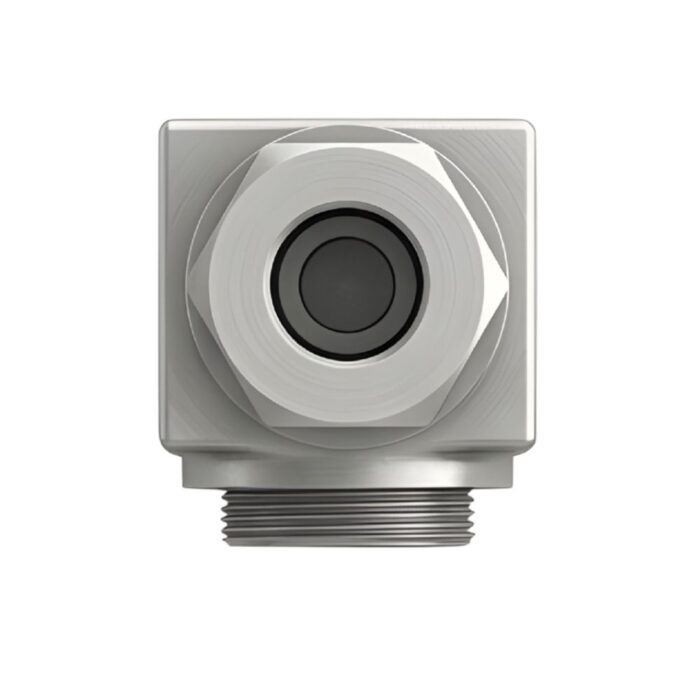

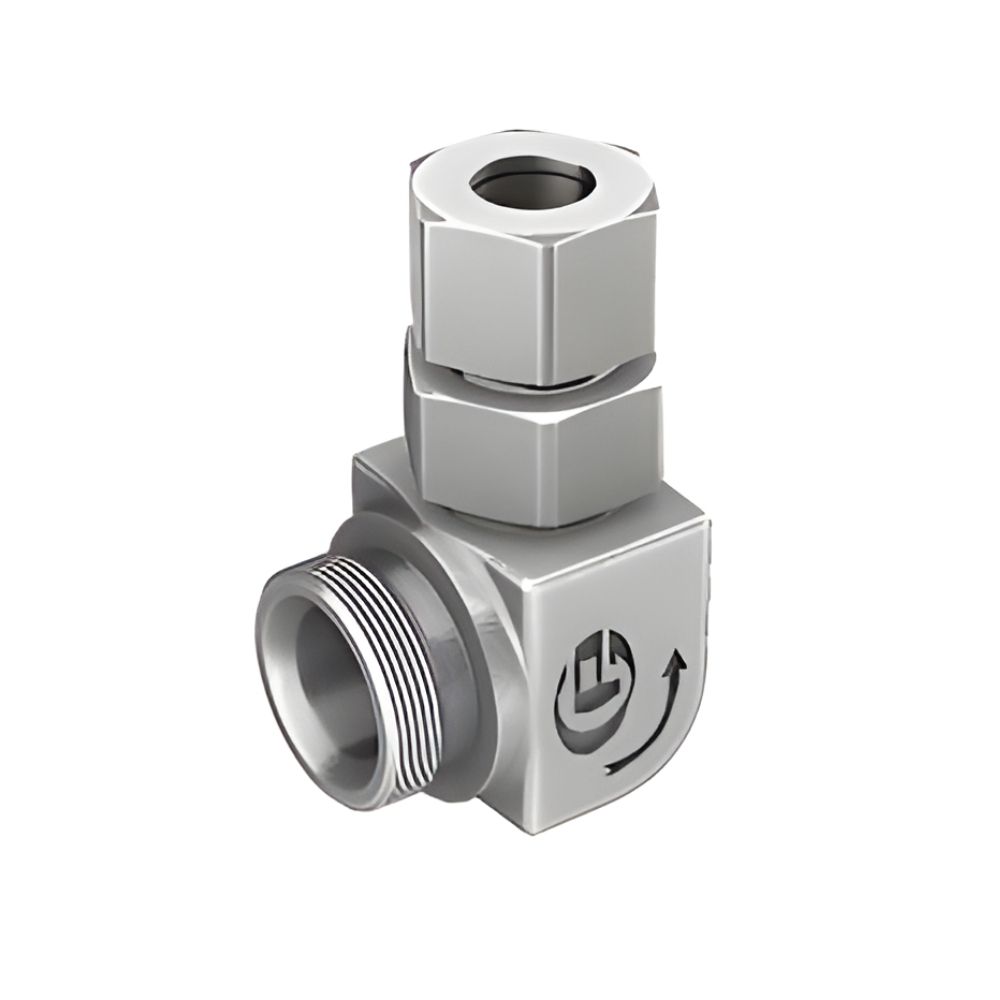

Foot Valve – FP
The Foot Valve (FP) is designed for hydraulic systems where pumps operate with a negative suction head. It ensures smooth and efficient fluid flow while minimizing pressure loss. Its compact and robust construction allows easy installation and reliable performance in demanding applications.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The FP Foot Valve is recommended for use when pumps are installed with a negative suction head. The valve threads are sized to provide approximately three times the capacity of the strainer. Please note that the strainer is not included in the scope of supply.
| Model | ||
|---|---|---|
| Max. Operating Pressure (Bar) | Pressure Range | |
| FP | 40 / 80 / 120 | Suitable for pumps installed with negative suction head. Designed for efficient suction performance with low pressure drop. |
Key Specifications
- Type: Seat-type foot valve with provision for strainer mounting
- Application: Suitable for pumps installed with negative suction head
- Construction: Compact design with minimal joints for reduced pressure loss
- Mounting Style:
- Tube end connection for suction line
- Male threaded port for strainer
- Flow Capacity: Approximately 40, 80, and 120 L/min (depending on model)
- Thread Sizing: Designed to provide ~3 times the capacity of the strainer
- Hydraulic Medium: Mineral oil
- Temperature Range: -20°C to +80°C
- Viscosity Range: 10 cSt to 380 cSt
- Fluid Cleanliness Requirement: ISO 4406 – 20/18/15 or better

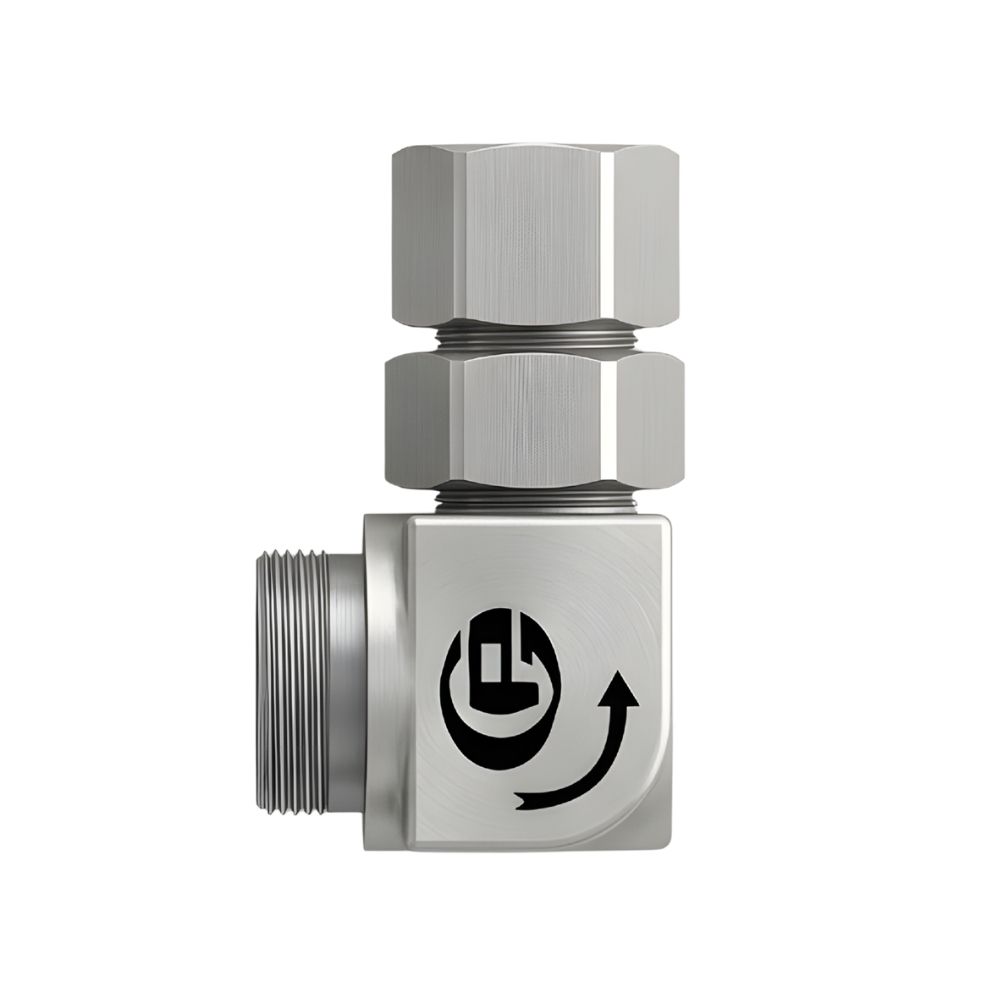

- Installation Condition: Arrow on valve body should point upward during installation
- Strainer: Not included in the scope of supply
