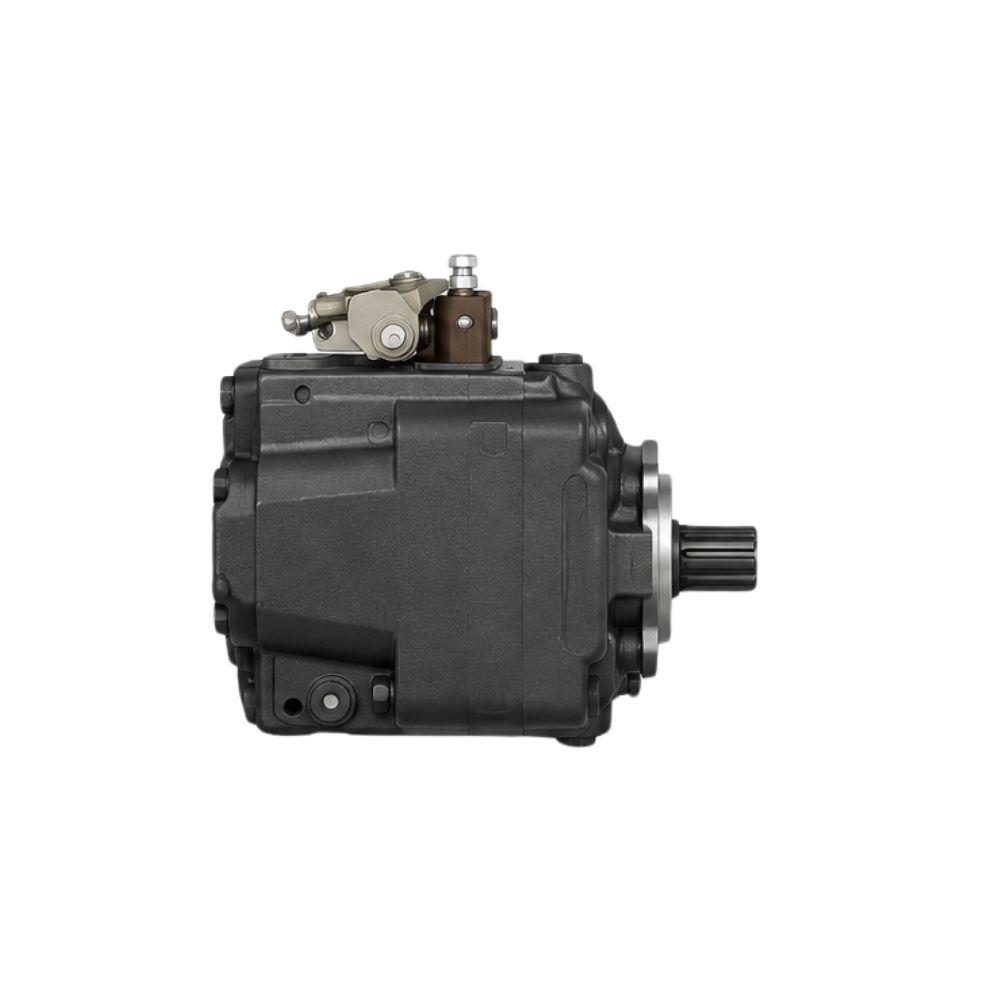

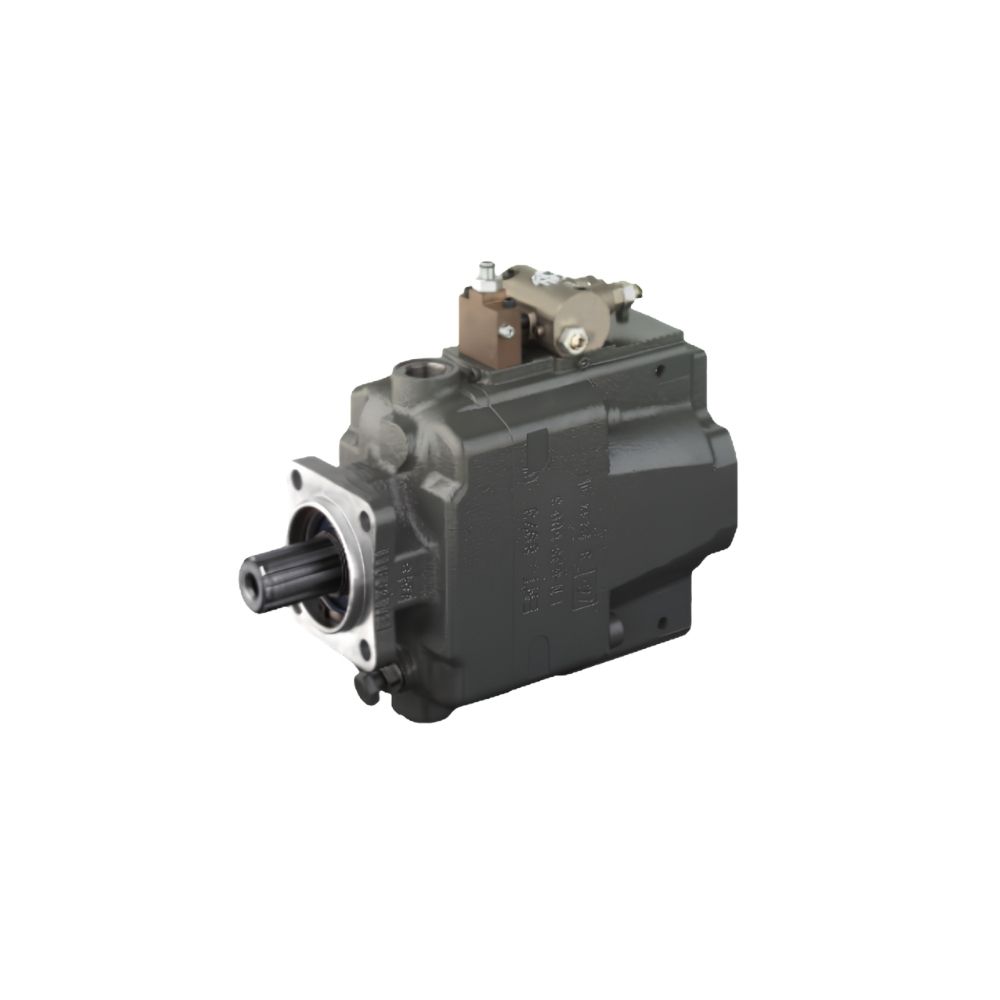

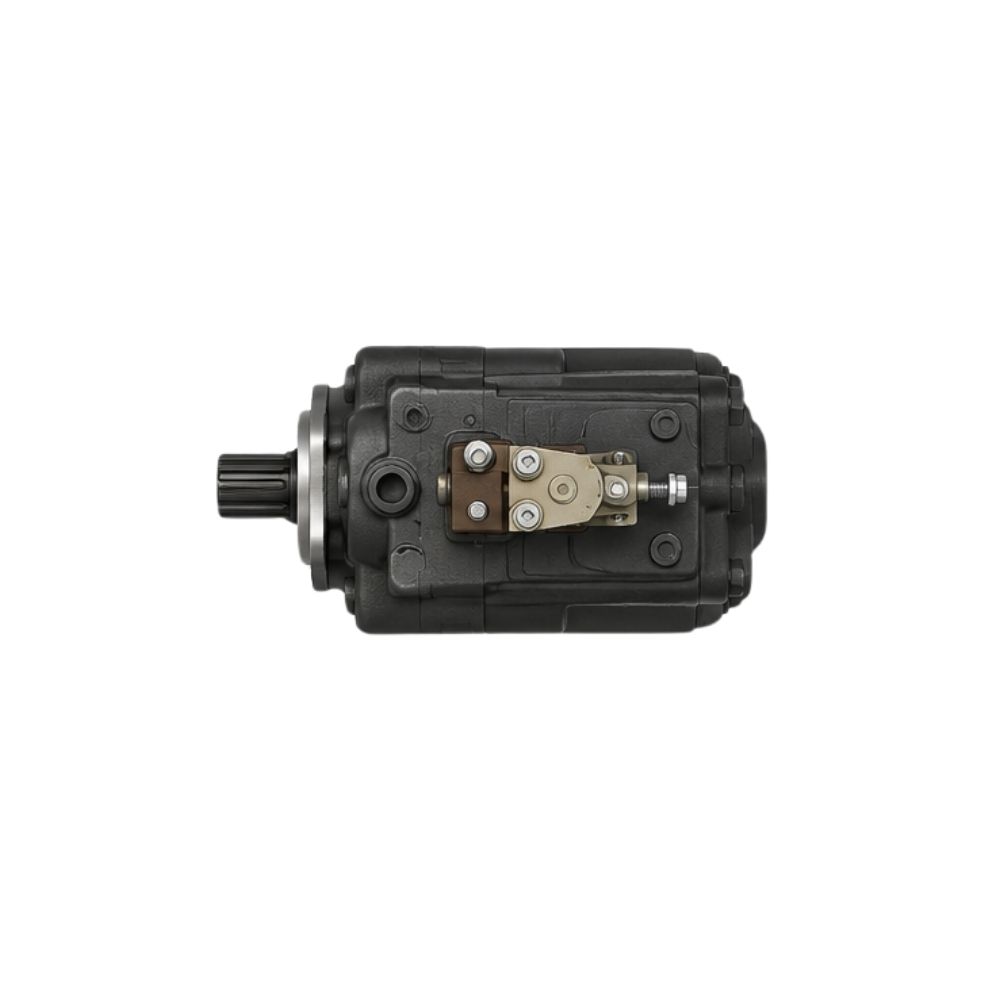

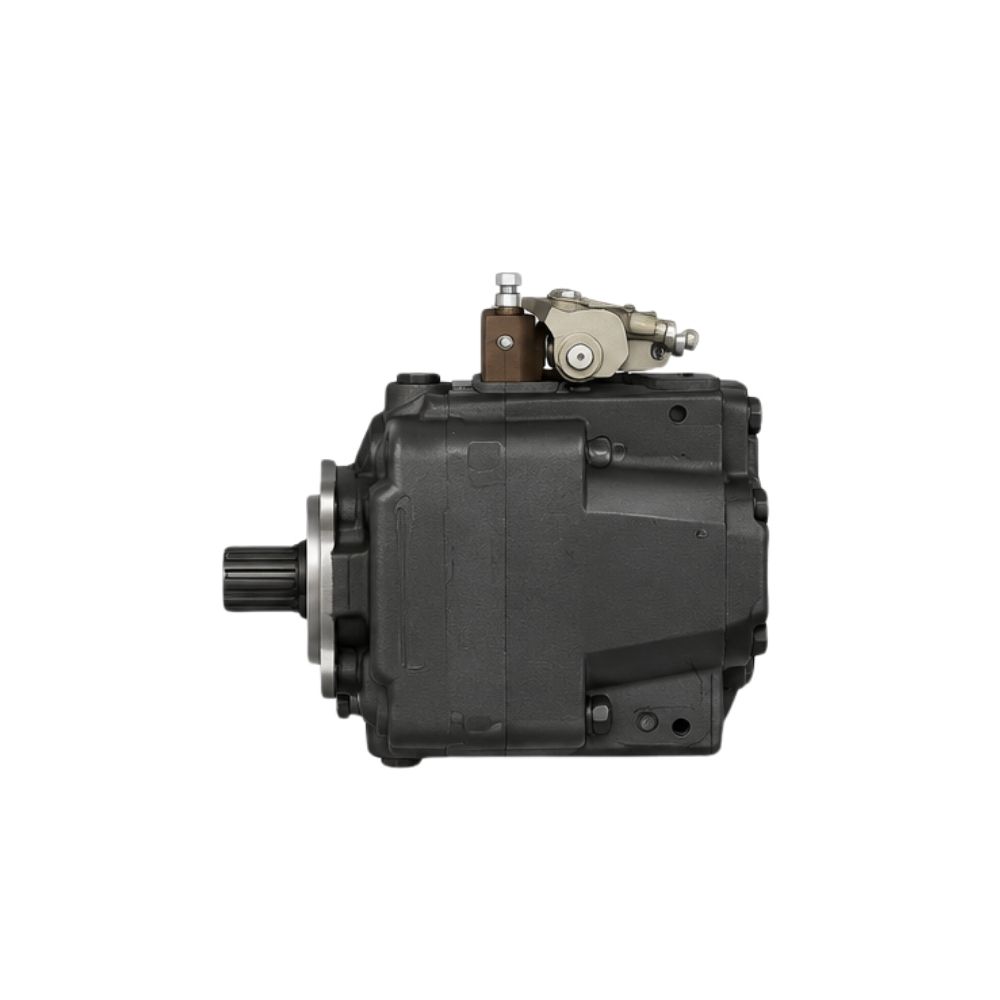

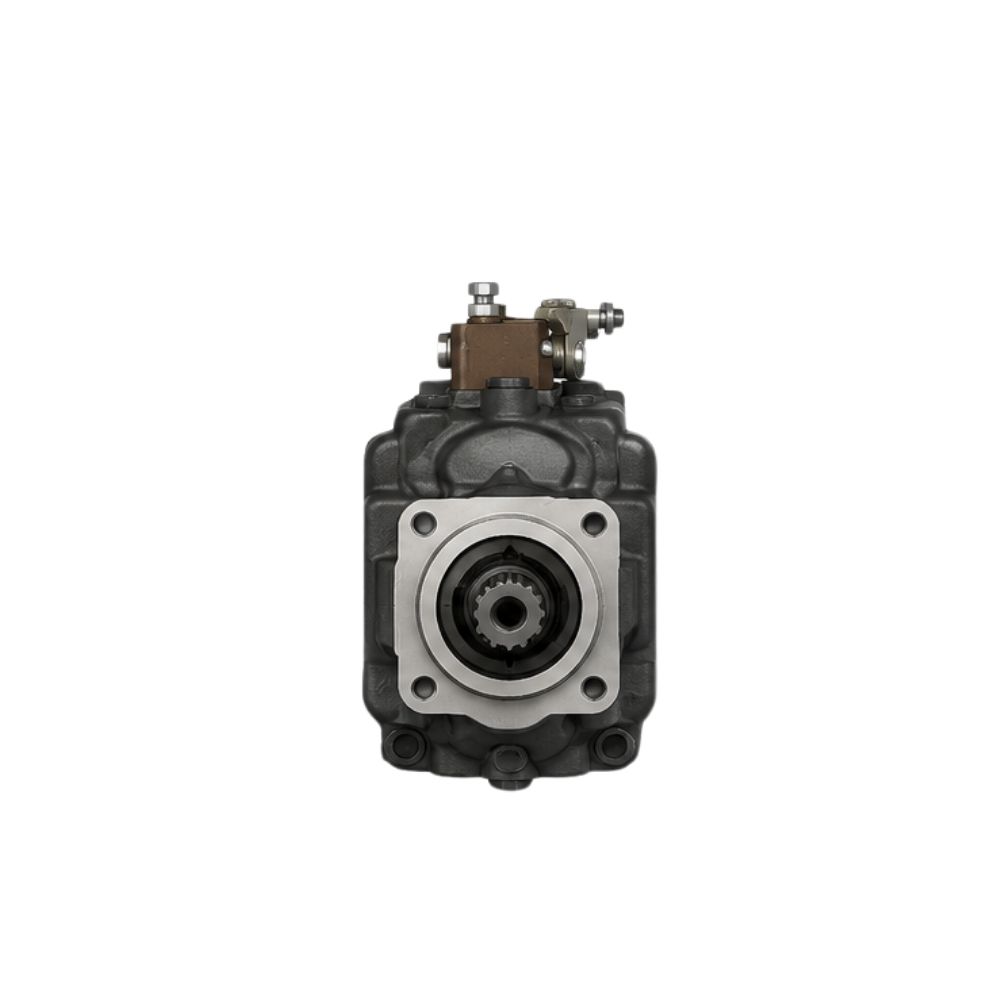

V60N – Axial piston pumps
The HAWE Type V60N is a variable displacement axial piston pump operating on the swashplate principle, designed specifically for open-circuit mobile hydraulics. It is engineered to mount directly to the power take-off (PTO) of commercial vehicle gearboxes, featuring an extremely compact design and a high power-to-weight ratio. The pump adjusts its oil flow dynamically to match current system demand, which minimizes energy losses, reduces fuel consumption, and prevents oil overheating.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The variable displacement axial piston pump type V60N is designed for open circuits in mobile hydraulics and operates according to the swash plate principle. It is available with the option of a thru-shaft for operating with additional hydraulic pumps in series. The range of pump controllers allows the axial piston pump to be used in a variety of applications.
| Model Size | Max Geometric Displacement (cm3/rev) | Max Operating Pressure (bar) | Max Peak Pressure (bar) | Max Speed (rpm) | Dry Weight (kg) |
|---|---|---|---|---|---|
| V60N-060 | 60 | 400 | 450 | 2,700 | 22 |
| V60N-090 | 90 | 400 | 450 | 2,400 | 25 |
| V60N-110 | 110 | 400 | 450 | 2,200 | 26 |
| V60N-130 | 130 | 400 | 450 | 2,100 | 28 |
