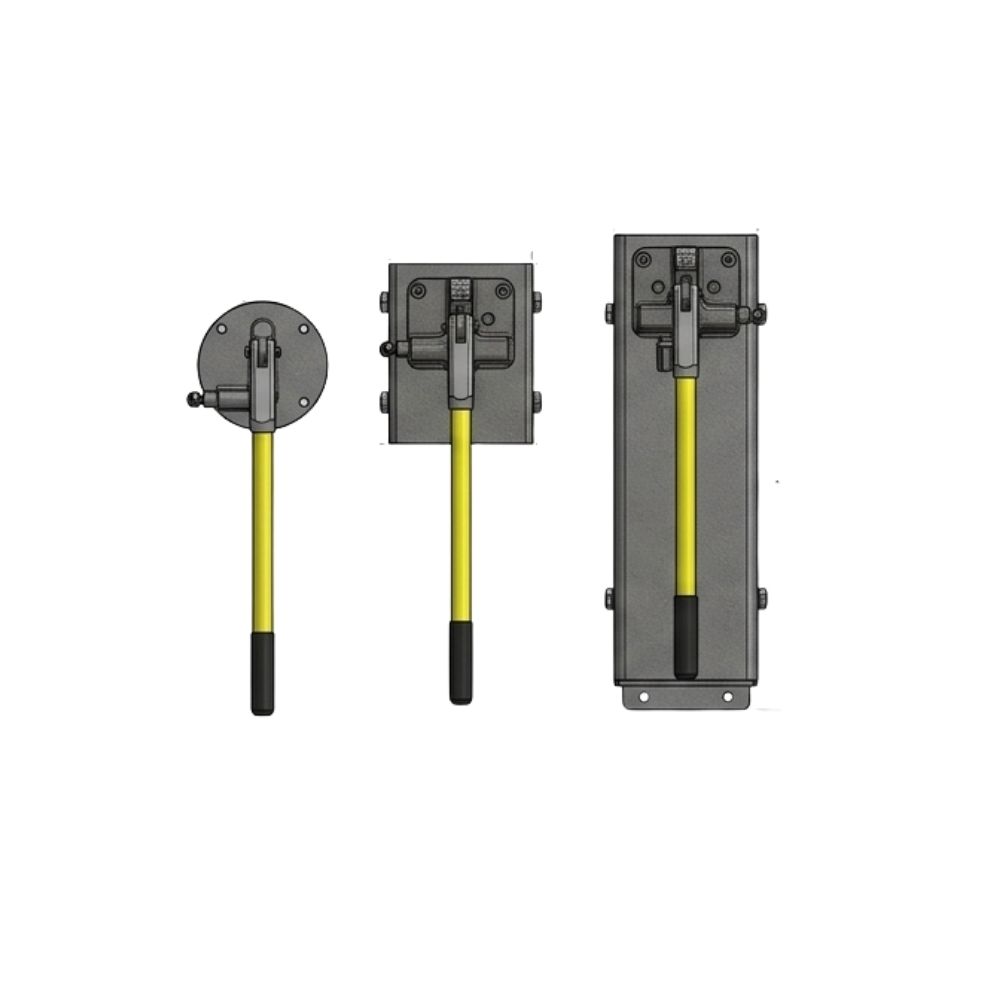

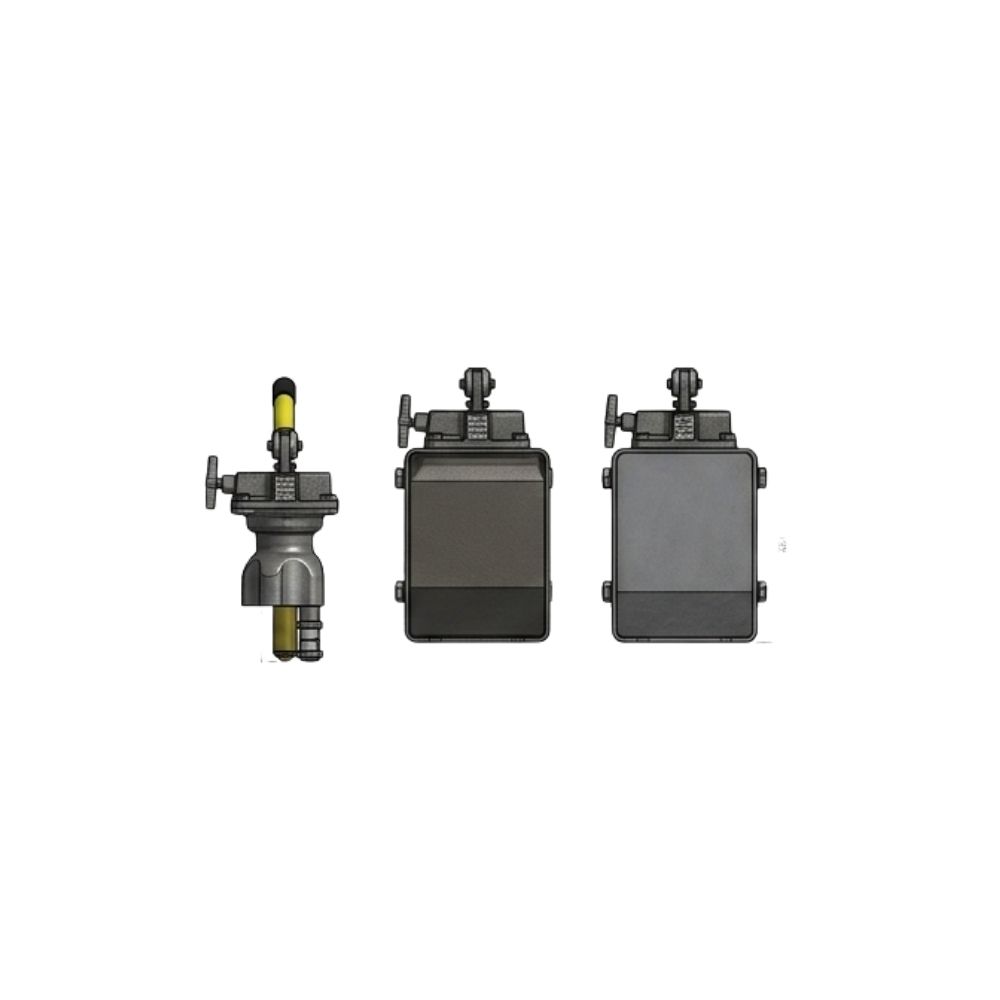

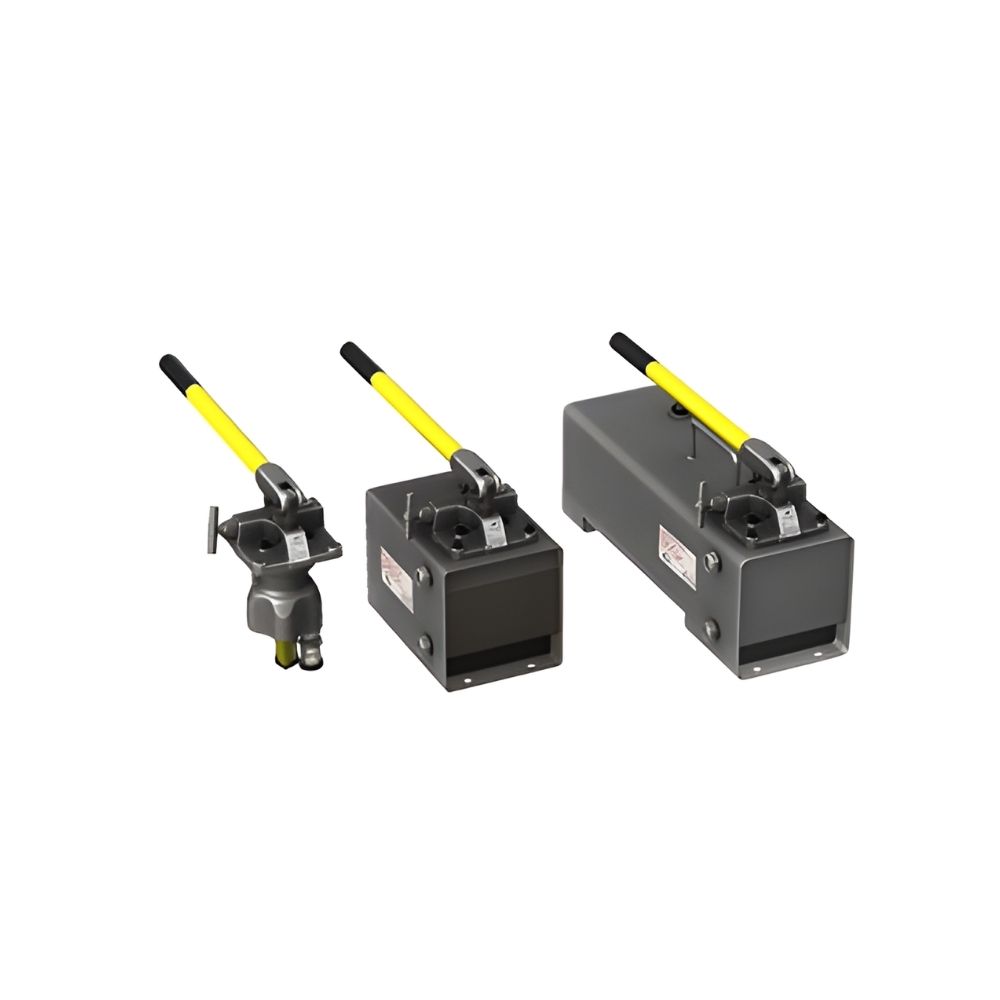

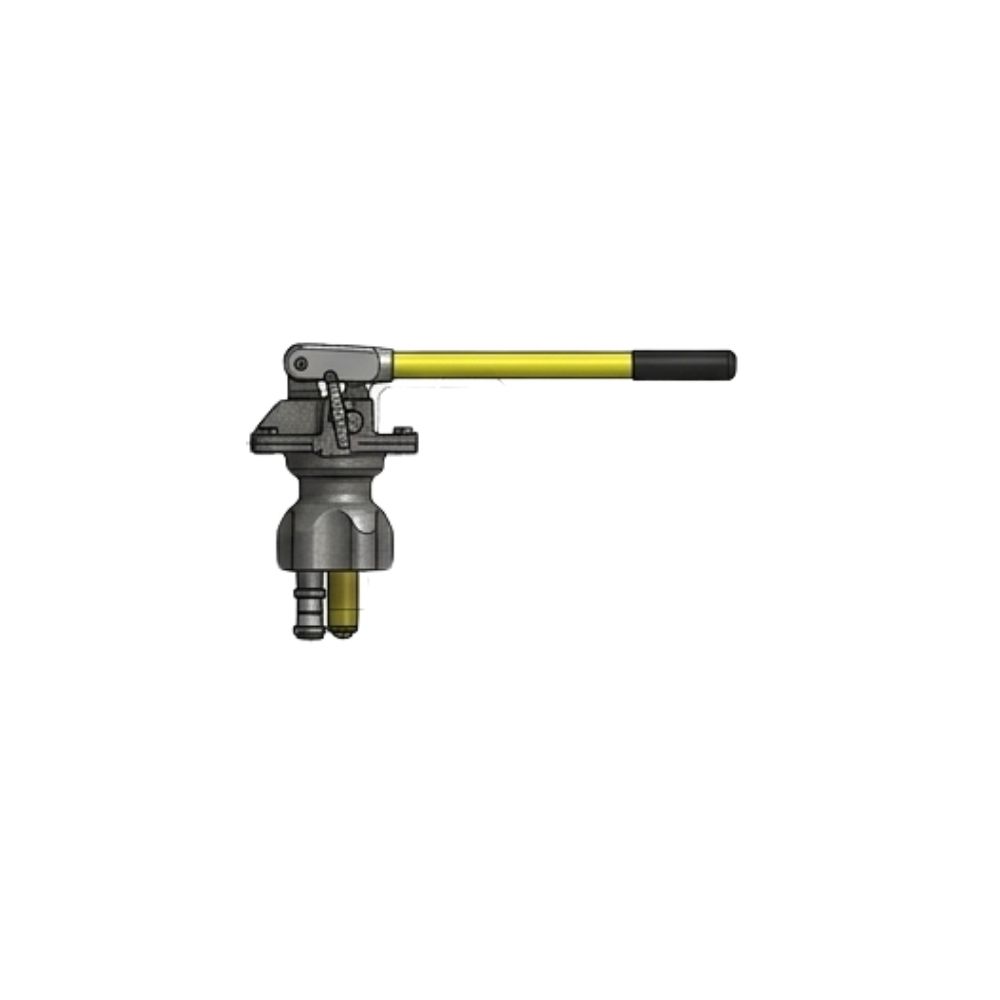

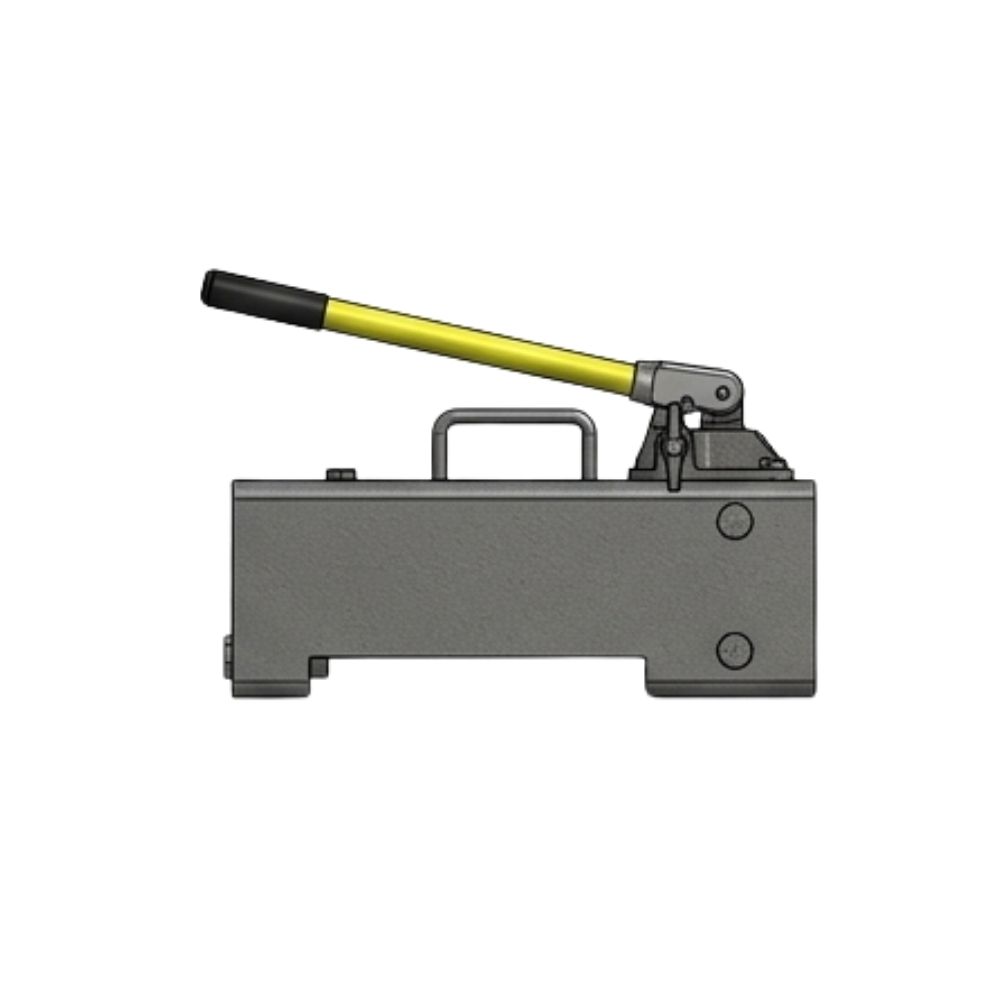

HP5012, HP5016, HP5012-ST & HP5016-ST-Feed and Power Hand Pump
The Polyhydron Feed and Power Hand Pumps (HP5012 and HP5016 series) are specialized dual-stage hydraulic pumps. They are designed for applications where an actuator (like a jack or cylinder) needs to travel a long distance under no load quickly before switching to high-pressure power for the actual work.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Feed and Power Hand Pumps (HP5012, HP5016, HP5012-ST & HP5016-ST) are designed for efficient operation with automatic changeover from high discharge at low pressure to low discharge at high pressure. They feature renewable internal parts for easy maintenance and long service life. A collapsible hand lever ensures compact size and reduced hand movement for operator convenience. For additional details, please refer to the datasheet.
| Parameters | Unit | HP5012 / HP5012-ST | HP5016 / HP5016-ST |
|---|---|---|---|
|
Max Working Pressure
|
bar | 700 | 350 |
|
Displacement (Up to 30 bar)
|
cm³/stroke | 49 | 49 |
|
Displacement (Above 30 bar)
|
cm³/stroke | 2.8 | 5.0 |
|
Hand Force (at Max Pressure)
|
N | ~385 | ~340 |
