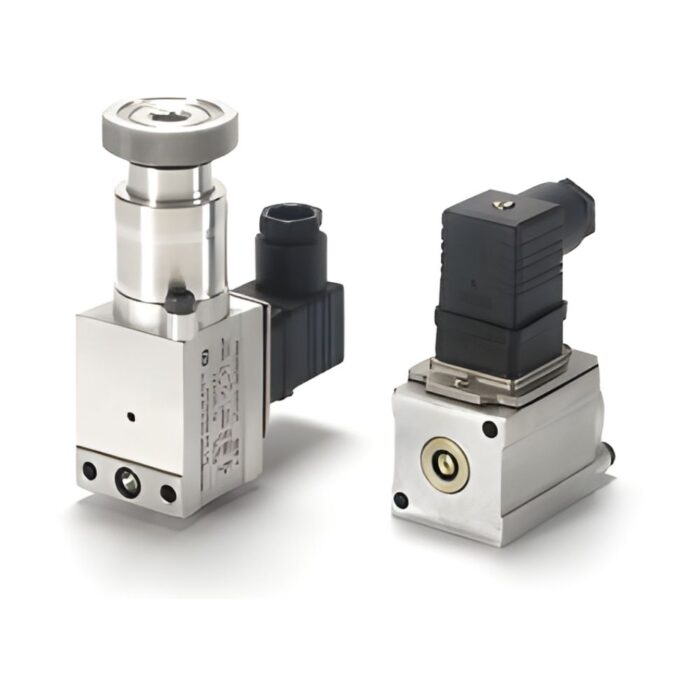

Pressure Switch – 1PS
The Polyhydron Accessories Pressure Switch-1PS is a spring-loaded, sealed-piston type hydraulic pressure switch designed to convert fluid pressure into an electrical signal. It is a rugged, industrial-grade component used to monitor and control pressure limits in hydraulic systems.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
Pressure Switch – 1PS (Non-Adjustable Differential Type)
A spring-loaded, sealed piston construction ensures reliable performance. The encapsulated design provides protection against dust and harsh environments. It is available in six pressure ranges, adjustable up to 10, 50, 100, 200, 350, and 420 bar. A transparent plug-in connector with an LED indicator is also available.
| Model | ||
|---|---|---|
| Max. Operating Pressure (Bar) | Pressure Range | |
| 1PS | 420 | Adjustable upto 10, 50, 100, 200, 350 and 420 bar. |
Key Specifications
-
- Construction:Â Spring-loaded sealed piston with an encapsulated design for dust protection.
- Pressure Ranges: Available in six adjustable ranges up to 10, 50, 100, 200, 350, and 420 bar.
- Mounting Styles: Primarily Subplate mounting, though face mounting options exist.
- Electrical Connection: Conforms to DIN 43650 / ISO 4400 standards, often featuring a transparent plug-in connector with an LED for visual status indication.
- Performance: Capable of a high switching frequency of up to 80 cycles per minute.
- Compatibility:Â Designed for use with mineral oil.
