Group 0P Pump Technical Data
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item

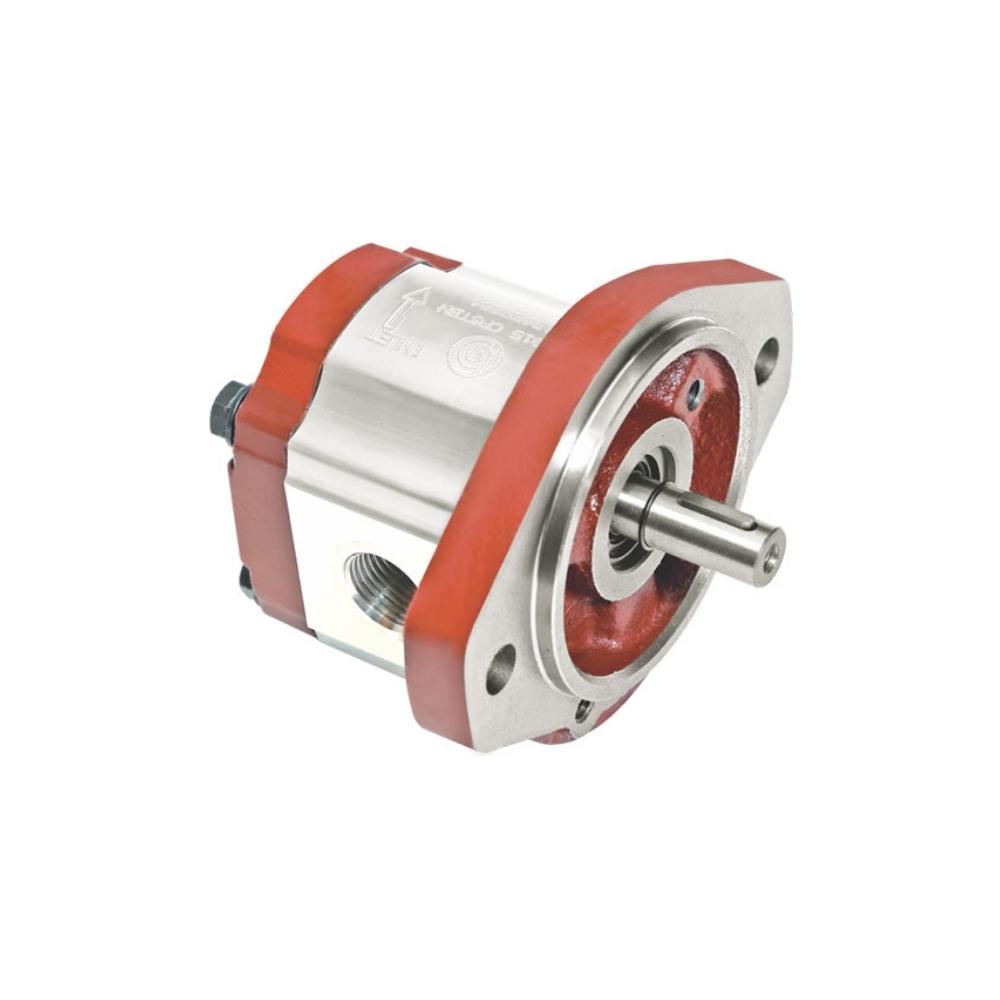

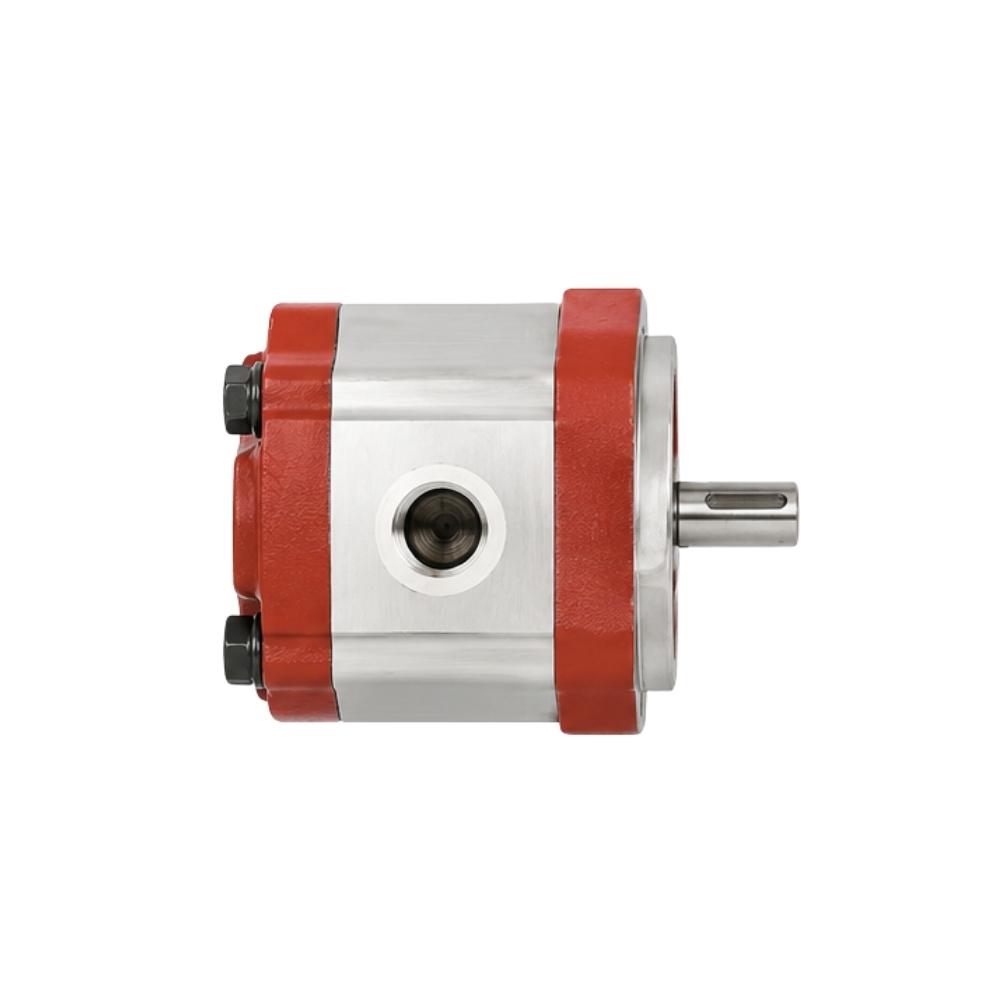

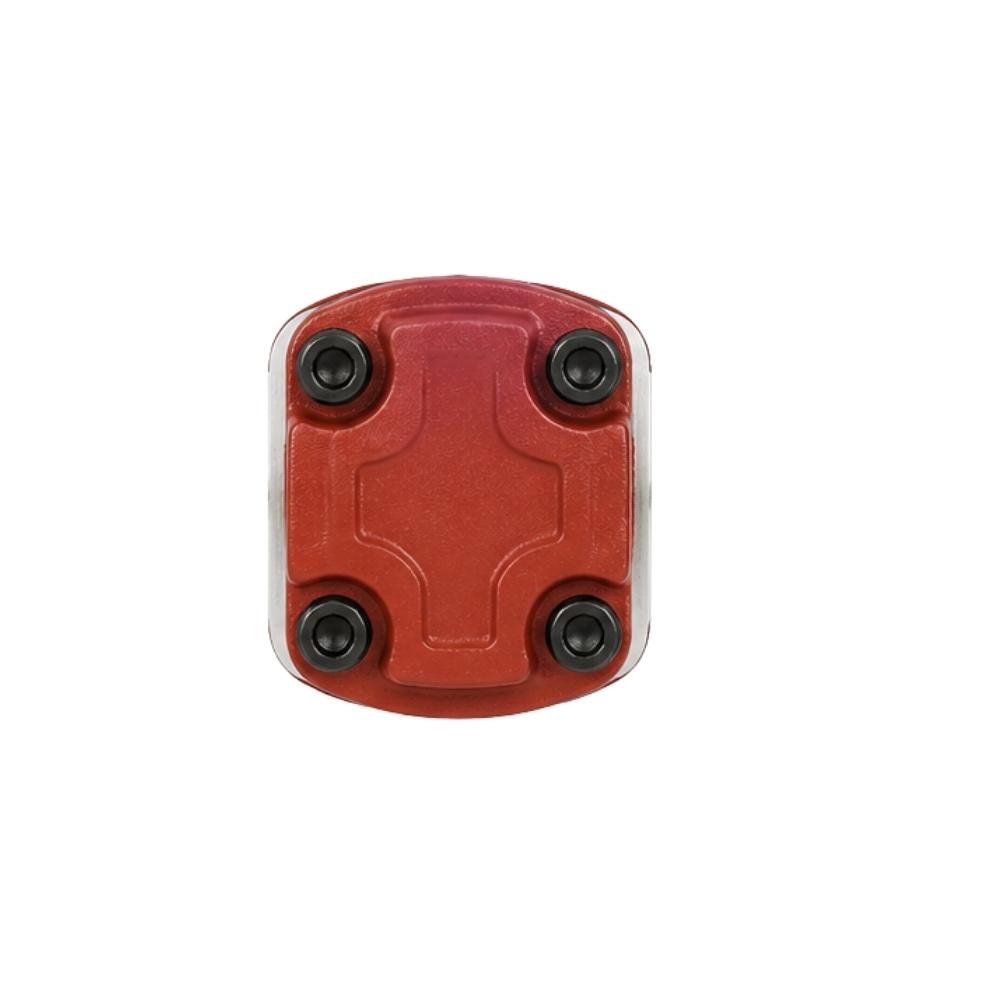

The Boss Hydraulics Group 0P Pump is a compact, high-efficiency hydraulic gear pump widely used for precision dosing, mobile hydraulics, and small-scale industrial applications. It is highly regarded for delivering consistent fluid flow and working pressures up to 200 bar (2900 PSI) under standard configurations.
| Pump Type | Nominal Delivery lpm @1500 rpm |
Pressure In Bar | Max. Speed rpm | Ports | |
|---|---|---|---|---|---|
| Suction | Delivery | ||||
| 6003 | 1.2 | 200 | 3000 | G 3/8″ | G 3/8″ |
| 6004 | 1.8 | 200 | 3000 | ||
| 6006 | 2.5 | 200 | 3000 | ||
| 6008 | 3.4 | 200 | 3000 | ||
| 6011 | 4.8 | 200 | 3000 | ||
| 6013 | 5.8 | 200 | 3000 | G 1/2″ | G 1/2″ |
| 6015 | 6.8 | 200 | 3000 | ||
