Group 00P PTO Pump Technical Data

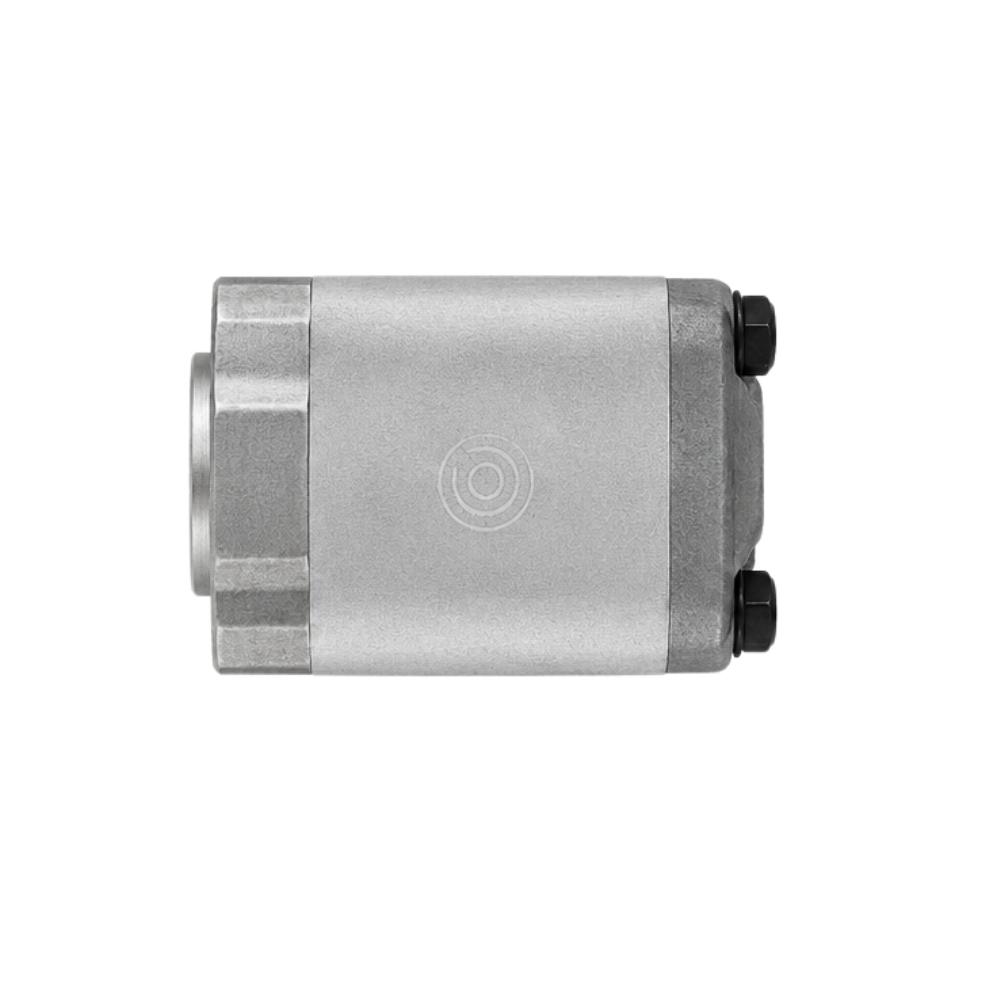

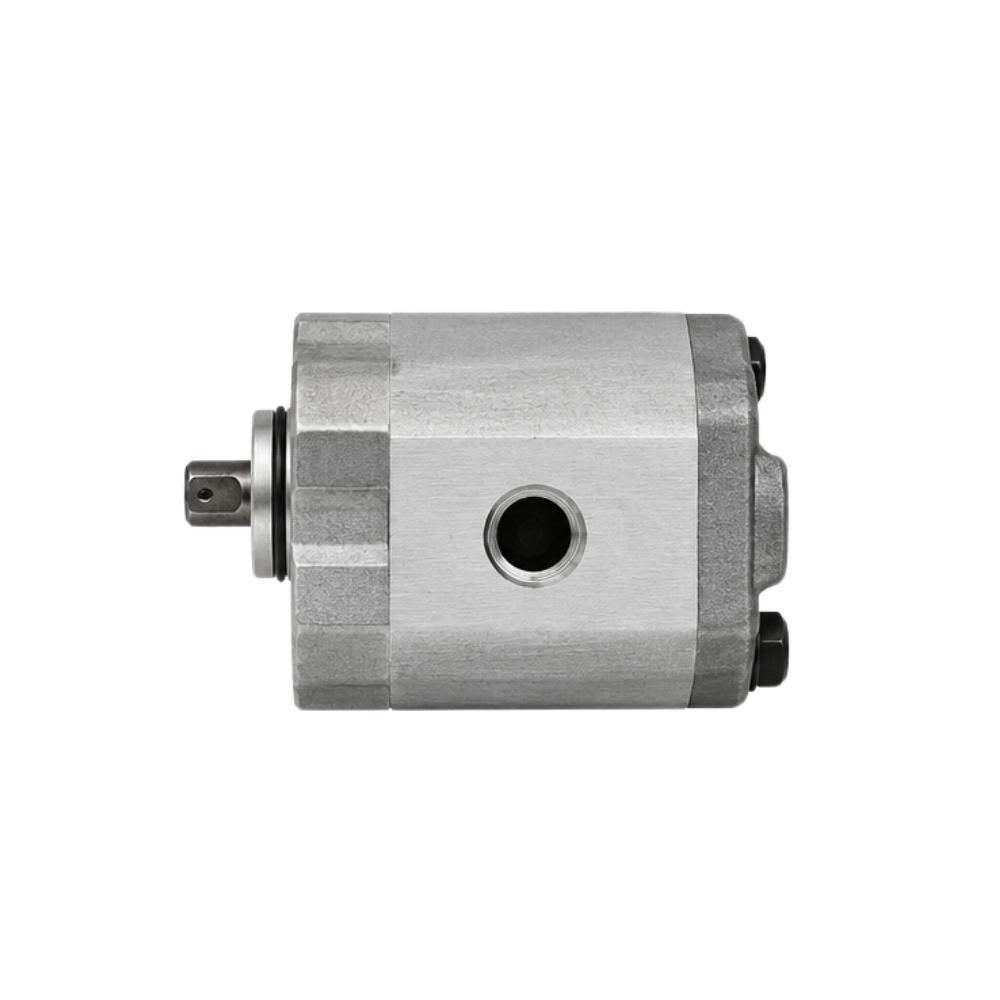

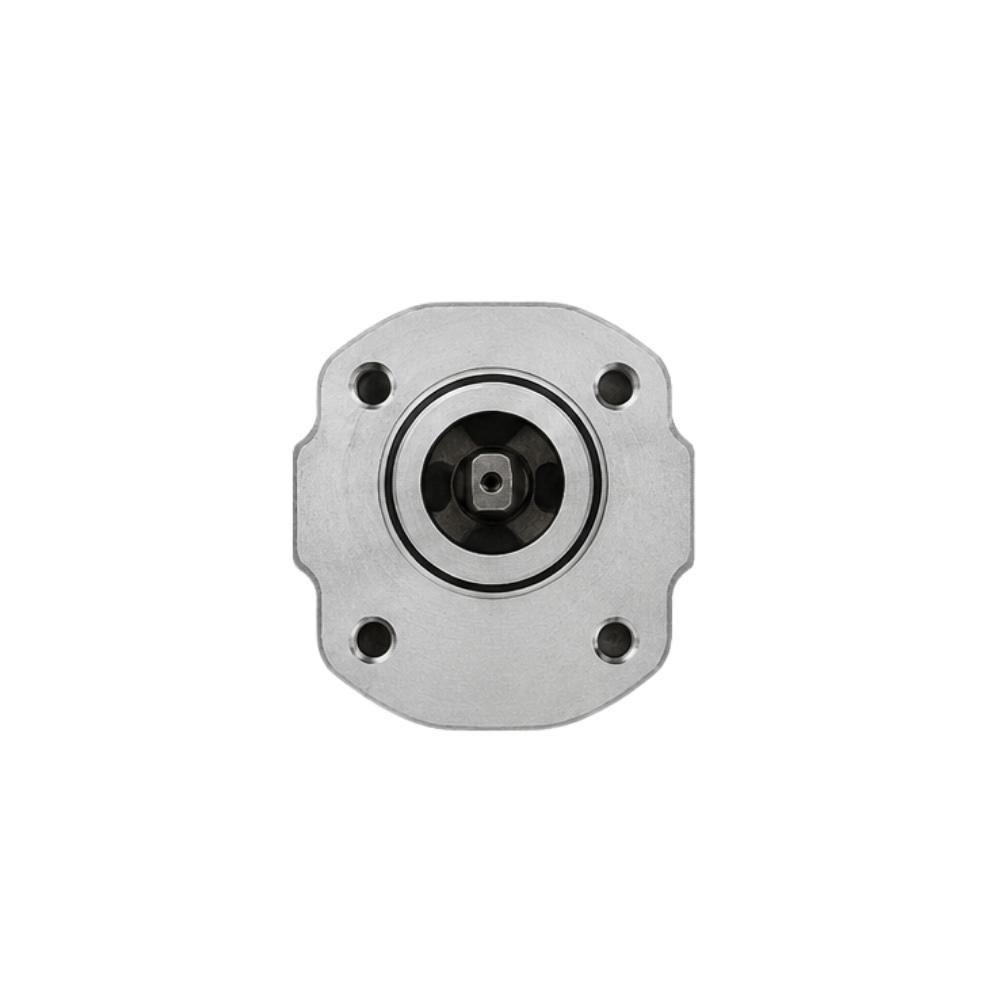

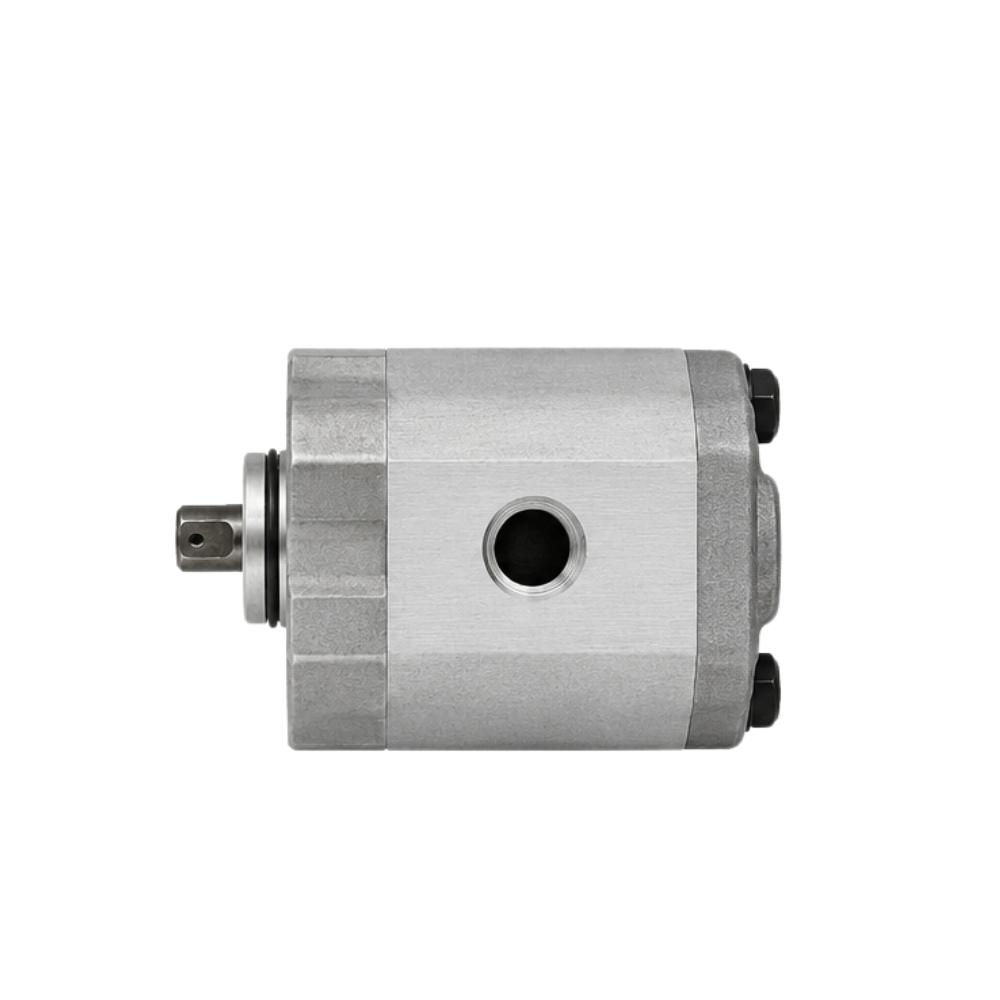

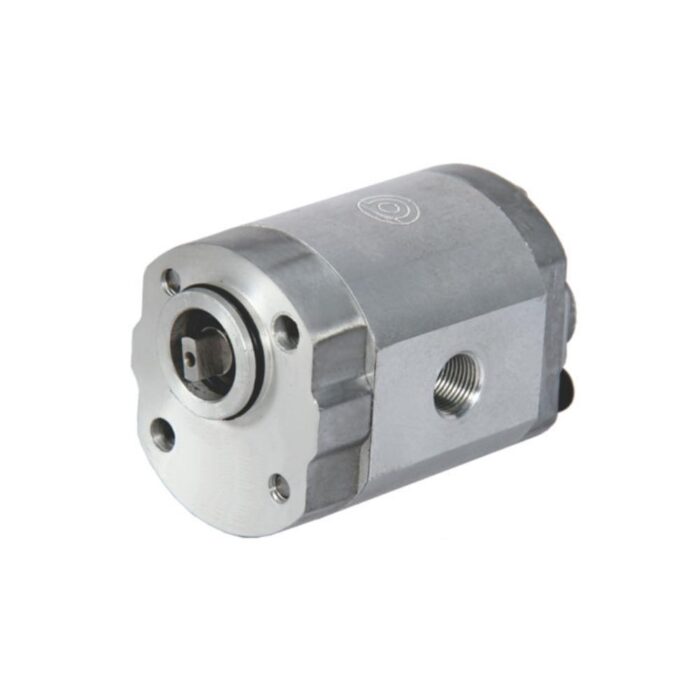

The Boss Hydraulics Group 00P is a compact, high-pressure external gear pump engineered for PTO applications on small vehicles and machinery. It features high-strength aluminum housings for operating pressures up to 230 Bar and is available in various rotation and porting configurations for diverse industrial uses.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Boss Hydraulics Group 00P PTO Pump operates with a maximum nominal working pressure of 230 Bar across its models and features delivery rates ranging from 1.5 lpm to 7.5 lpm when measured at 1500 rpm.
| Pump Type | Nominal Delivery lpm @1500 rpm |
Pressure In Bar | Max. Speed rpm | Ports | |
|---|---|---|---|---|---|
| Suction | Delivery | ||||
| P-20 | 3.0 | 230 | 3000 | G 3/8″ | G 3/8″ |
| P-50 | 7.5 | 230 | 3000 | G 1/2″ | G 3/8″ |
| P-75 | 11.25 | 230 | 3000 | G 1/2″ | G 3/8″ |
