Group 2P – 1P

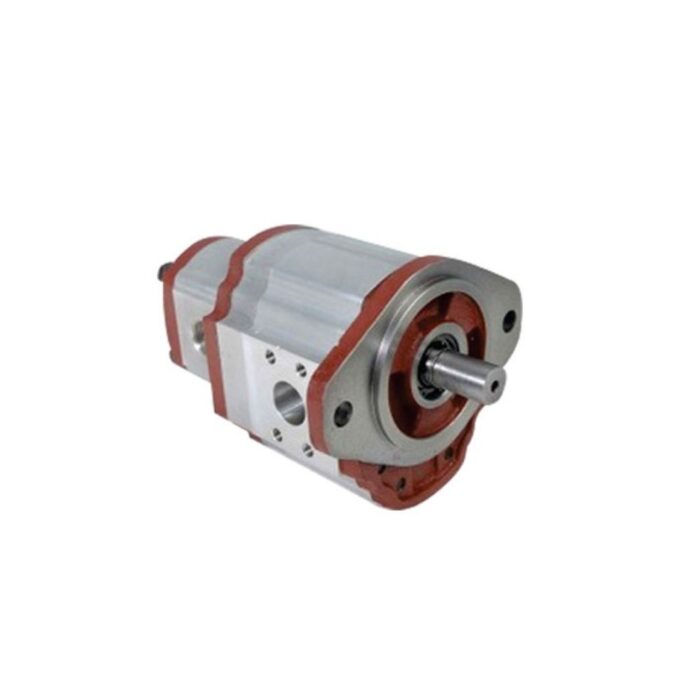

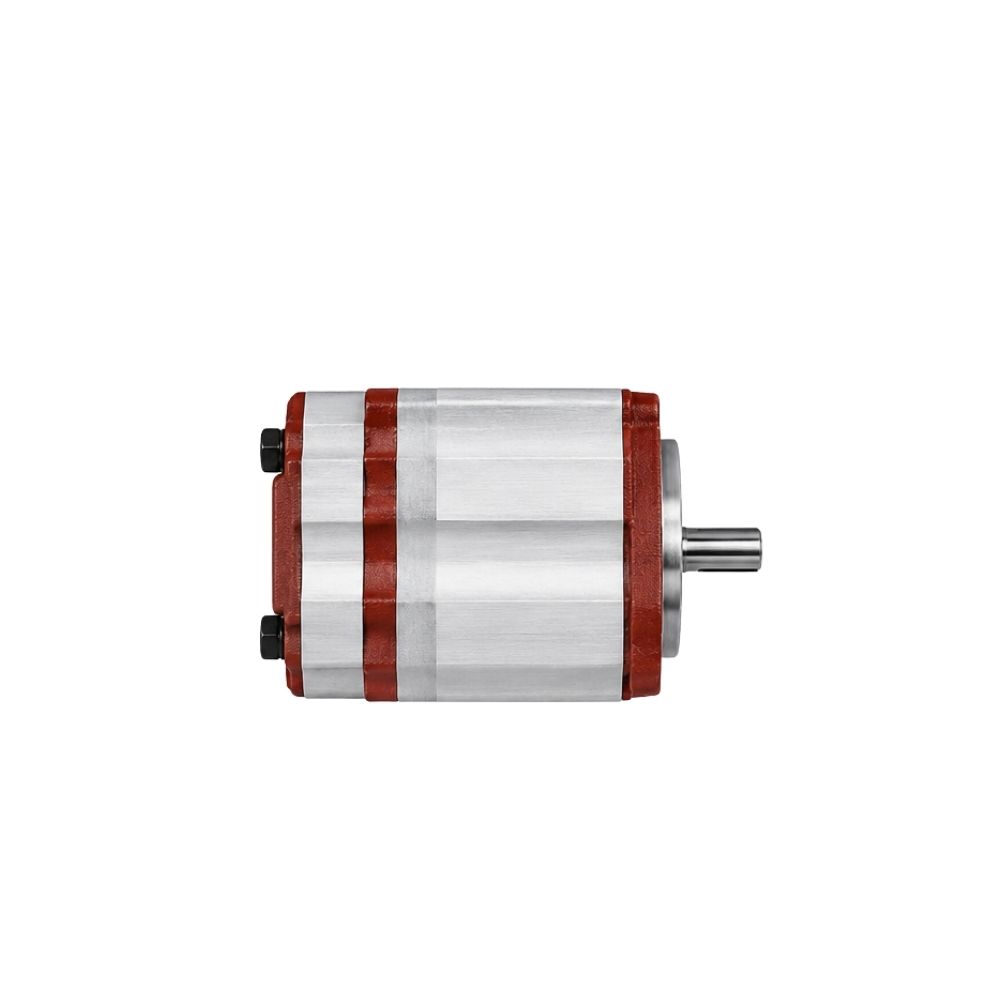

The Boss Hydraulics Group 2P – 1P Tandem Pump is a dual-stage external hydraulic gear pump configuration engineered to provide independent hydraulic flows from a single drive shaft. It couples a high-capacity Group 2P front section with a smaller, precision Group 1P rear section.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Boss Hydraulics Group 2P – 1P Tandem Pump is a high-efficiency, dual-stage external gear pump designed to deliver independent hydraulic flows from a single drive shaft. By coupling a larger Group 2P front section with a smaller Group 1P rear section, this compact unit optimizes space and eliminates the need for multiple gearboxes or dual prime movers. It is specifically engineered for high-low systems or machinery requiring two separate operating circuits from a single power source.
| Parameter | Front Section (Group 2P) | Rear Section (Group 1P) | Overall System Specifications |
|---|---|---|---|
| Component Role | High-flow primary stage | Low-flow secondary stage | Dual-stage tandem assembly |
| Combined Flow Range | — | — | 14 LPM to 82 LPM |
| Max Operating Flow | — | — | 30 LPM to 140 LPM |
| Max Pressure Rating | Up to 230 bar (3,335 PSI) | Up to 230 bar (3,335 PSI) | 230 bar (3,335 PSI) |
| Internal Connection | — | — | Oldham Coupling |
| Mounting Flanges | — | — | SAE 2-bolt / 4-bolt options |
| Shaft Types Available | Parallel (keyed) / Splined / Tapered | — | Standard prime mover drive options |
| Body Material | Cast Iron / Heavy-duty Aluminum | Cast Iron / Heavy-duty Aluminum | Modular multi-stage housing |
