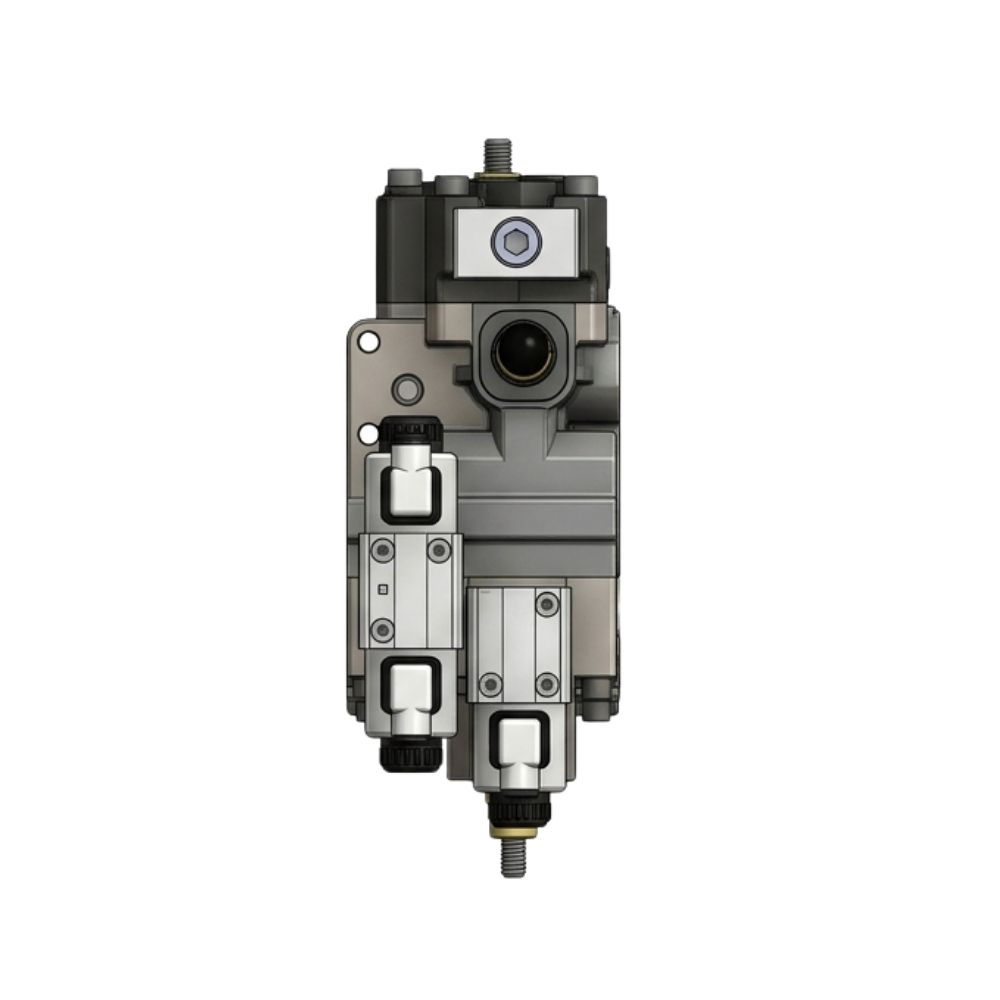

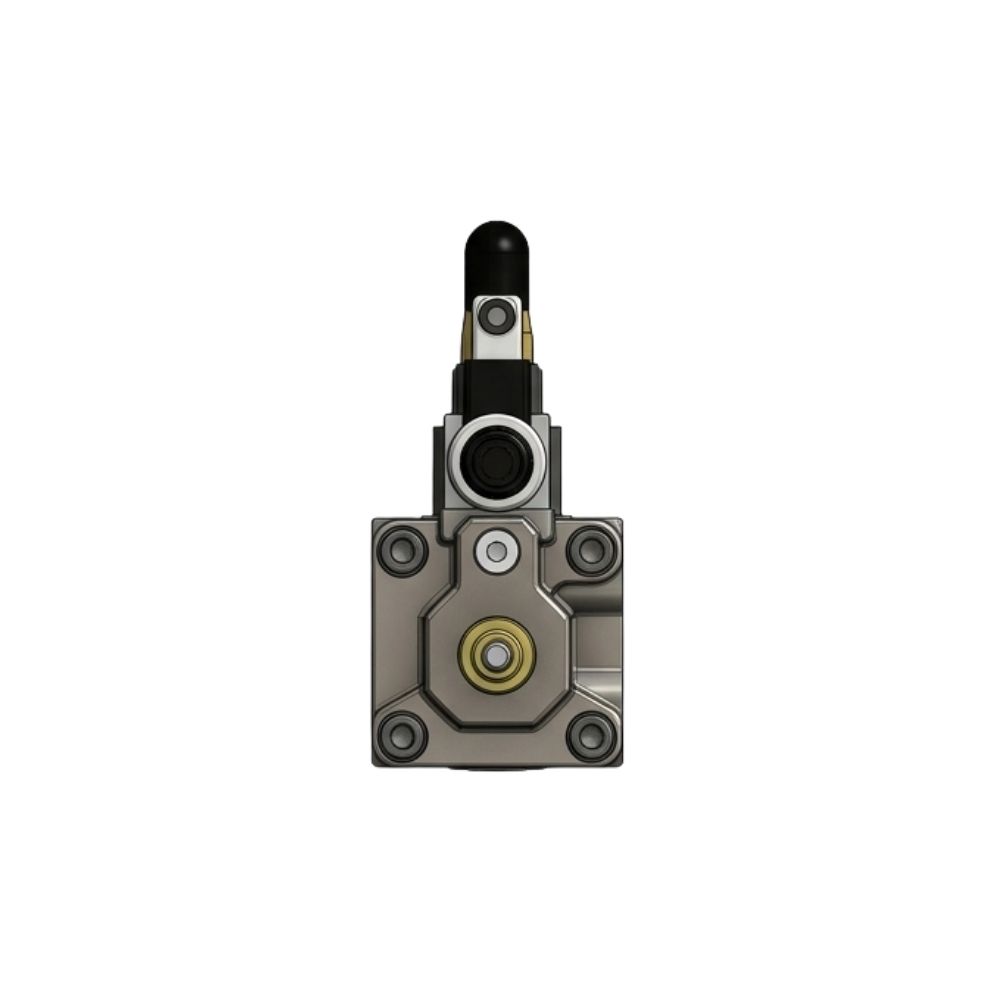

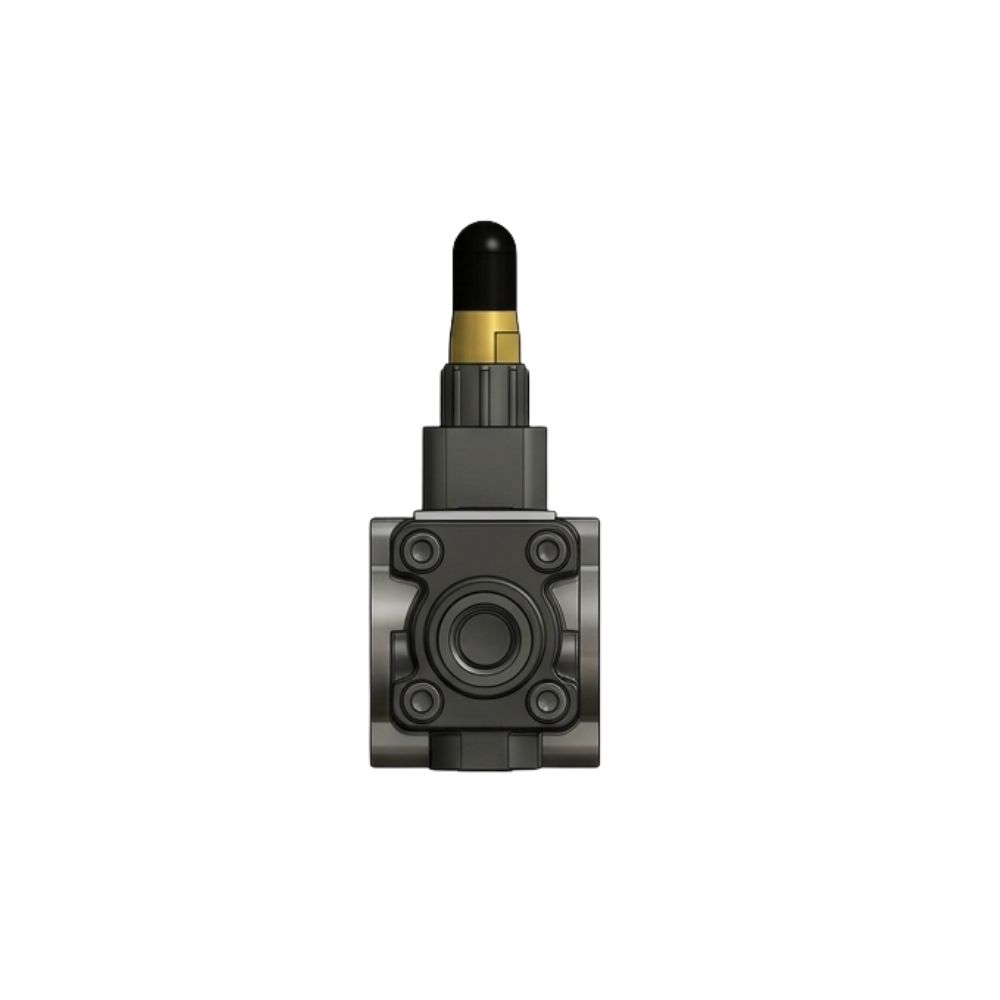

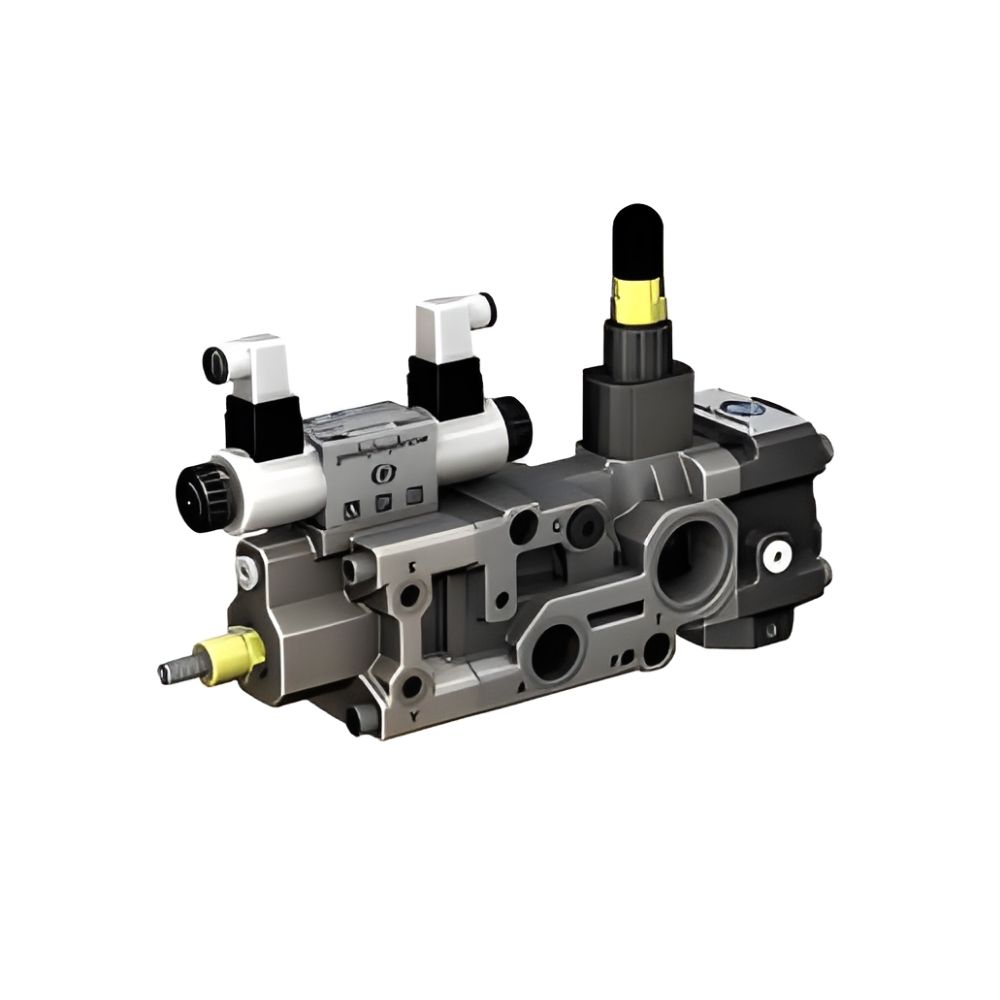

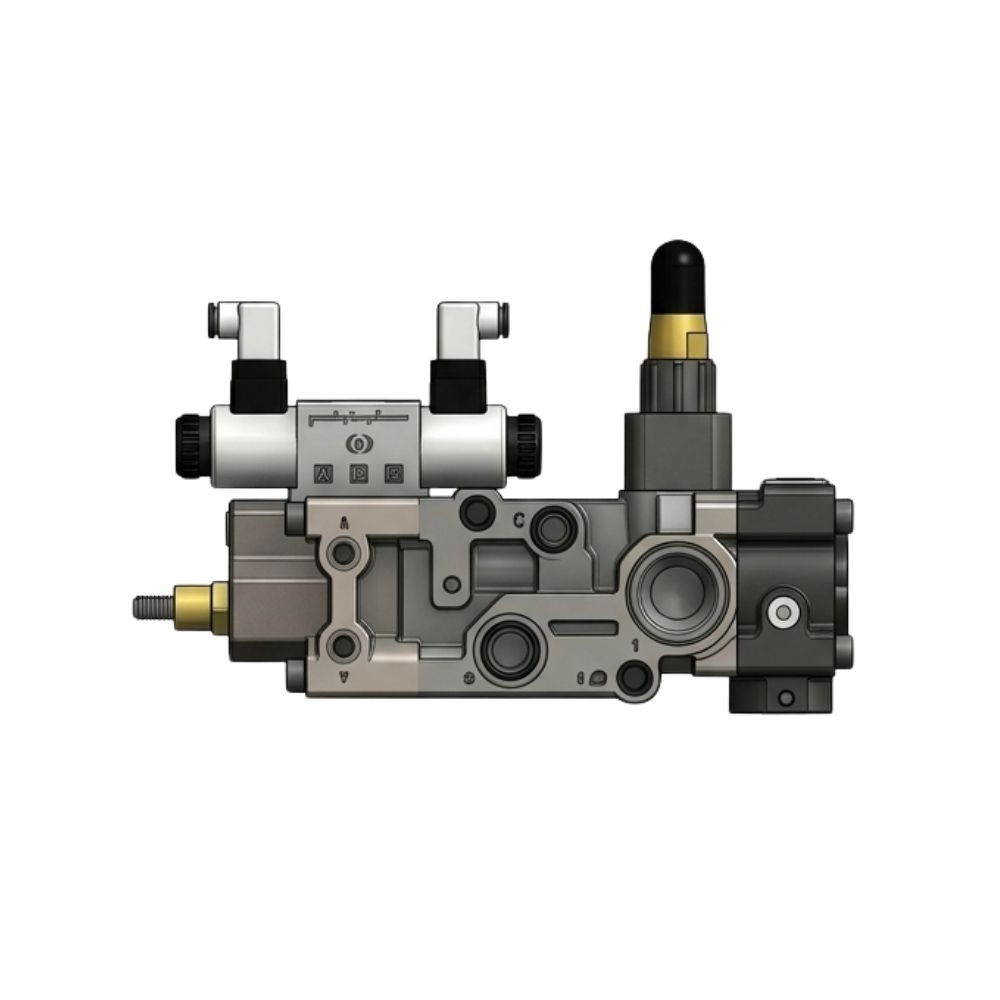

DES 10, DES 20 – Solenoid Pilot Operated Pressure Holding D.C.V.

The Polyhydron DES 10 and DES 20 are Solenoid Pilot Operated Pressure Holding Directional Control Valves (DCV) specifically designed for single-acting cylinders. They are primarily used in applications like rubber moulding presses where maintaining high pressure during a working cycle is critical.

  • Check Mark Operating Pressure : High Performance Range
  • Check Mark Application : Industrial & Mobile Systems

About this item

The Polyhydron DES 10, DES 20 – Solenoid Pilot Operated Pressure Holding D.C.V. are solenoid pilot-operated pressure holding directional control valves designed for single-acting cylinders that require reliable pressure holding. They are especially suitable for applications like rubber moulding presses.

These valves ensure smooth decompression before the return of the cylinder ram, improving system safety and performance. They are available in both standard and quick exhaust versions, where the quick exhaust option offers 2.34 times larger return oil passages for faster operation. The large return passages allow the ram to return even under low external forces.

For added reliability, the valves are equipped with a manual override feature for operation during power failures. Multiple valves can be connected in series for independent control of multiple single-acting cylinders, and operation is achieved through a solenoid-controlled pilot mechanism.

Flow Passage Areas Valve Model P to A / P to B B to T
Standard 4DES20A 3.1 cm² 5.3 cm²
With quick exhaust feature 4DES20A 3.1 cm² 12.4 cm²
Operating Pressure For ports P, A, B, C G — 350 bar
For port T ———– 7 bar max.
Pilot Pressure 35 bar
Key Features
  • Pressure Holding & Decompression: These valves ensure the cylinder holds pressure during the curing or working cycle and provide smooth decompression before the cylinder ram returns.
  • Quick Exhaust Option: Available in a standard version or with a “Quick Exhaust” feature. The quick exhaust variant has 2.34 times larger return passages, allowing rams with very low external forces to return rapidly.
  • Series Connectivity: Multiple valves can be connected in series to operate several independent single-acting cylinders from one source.
  • Emergency Manual Override: Equipped with a manual opening feature to operate the valve in case of a power failure.
  • Optional Mounting: Provisions are available for mounting a Pressure Switch (1PS)* and a Pressure Relief Valve (DPR 06)* directly onto the valve body, which eliminates the need for additional interconnecting piping.
