Manifold – MDR06
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item

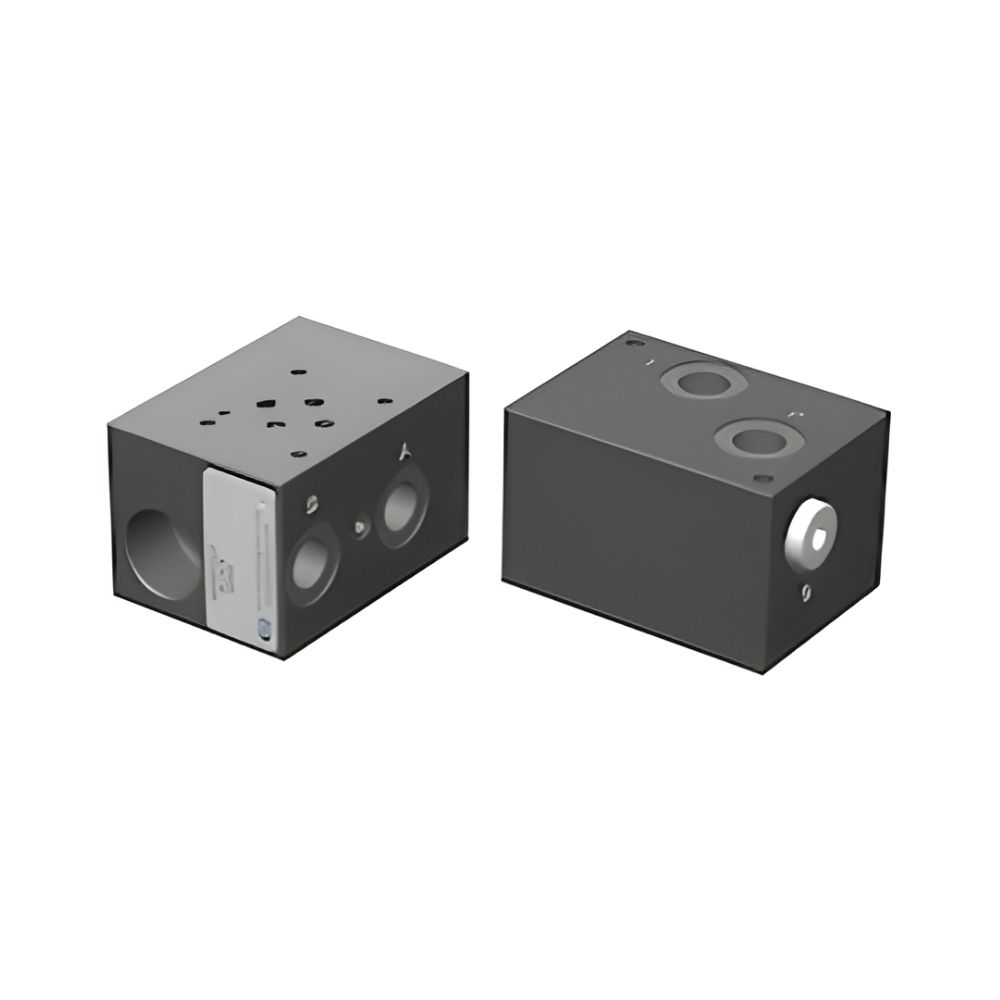

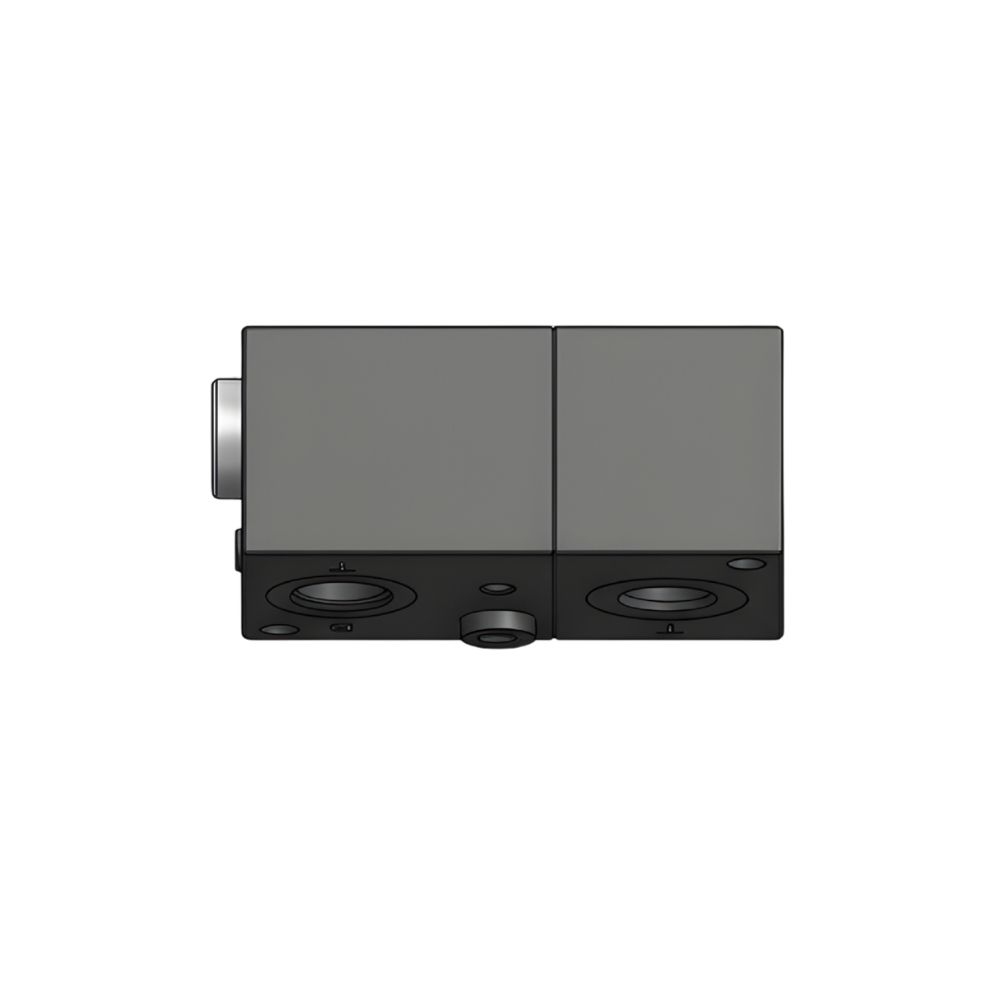

The Manifold – MDR06 is a general-purpose manifold designed for mounting a Direction Control Valve (conforming to ISO 4401-03-02) and a direct-acting Pressure Relief Valve (DPR 06 cavity as per Polyhydron standards). It features one inlet, two outlets, and one tank port, ensuring efficient flow distribution. The manifold is built for reliable performance with a maximum working pressure of 350 bar.
| Feature | Specification Details |
|---|---|
| Model Number | MDR06 |
| Max Working Pressure | 350 bar |
| Valve Mounting Interface | ISO 4401-03-02 |
| Relief Valve Cavity | Polyhydron standard DPR 06 cavity |
| Port Configuration | 1 Inlet (P), 2 Outlets (A, B), 1 Tank (T), 1 Gauge (G) |
| Port Thread Size | Gauge port (G) is typically G 1/4 (standard plug included) |
| Mounting Position | Optional (standard industrial vertical/horizontal stacking) |
| Hydraulic Medium | Mineral oil |
| Temperature Range | -20°C to +80°C |
| Viscosity Range | 10 cSt to 380 cSt |
| Fluid Cleanliness | ISO 4406 20/18/15 or better |

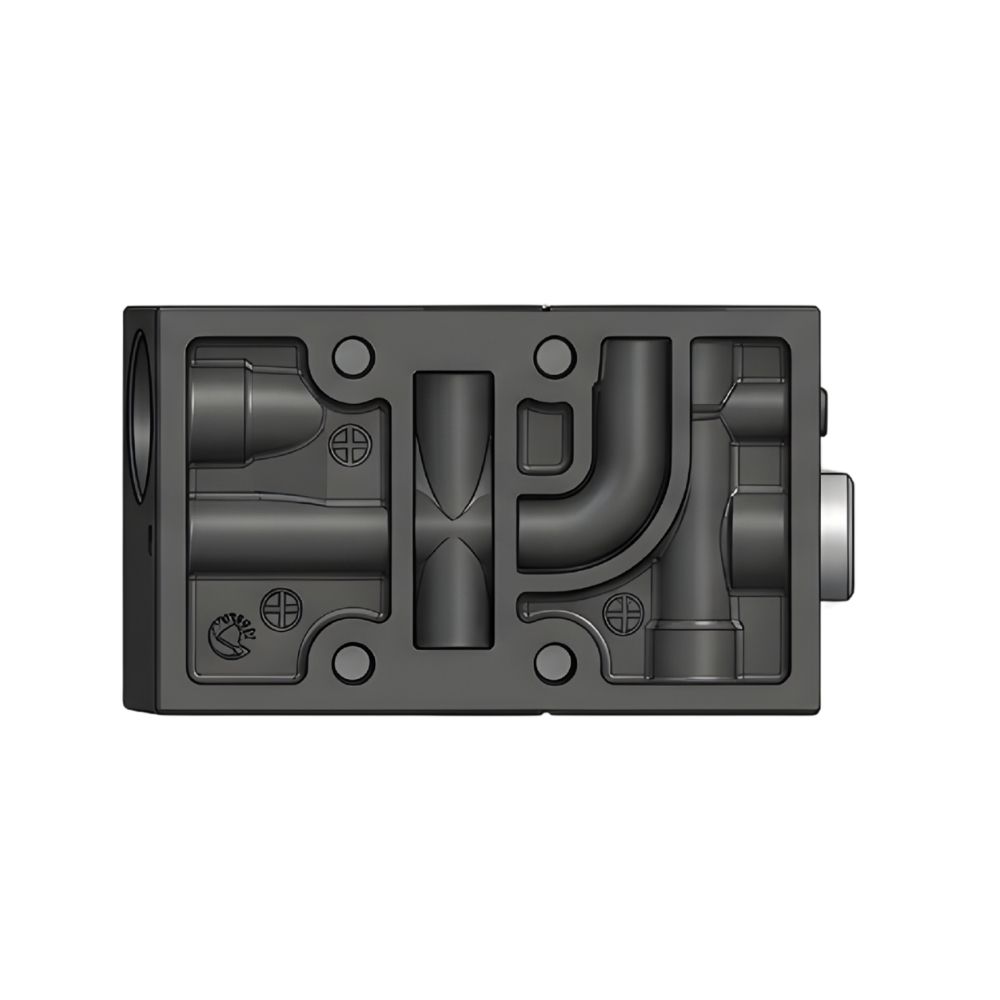

Key Specification & Features
-
- P:Â Pump inlet port (supply line)
- T:Â Tank port (return line)

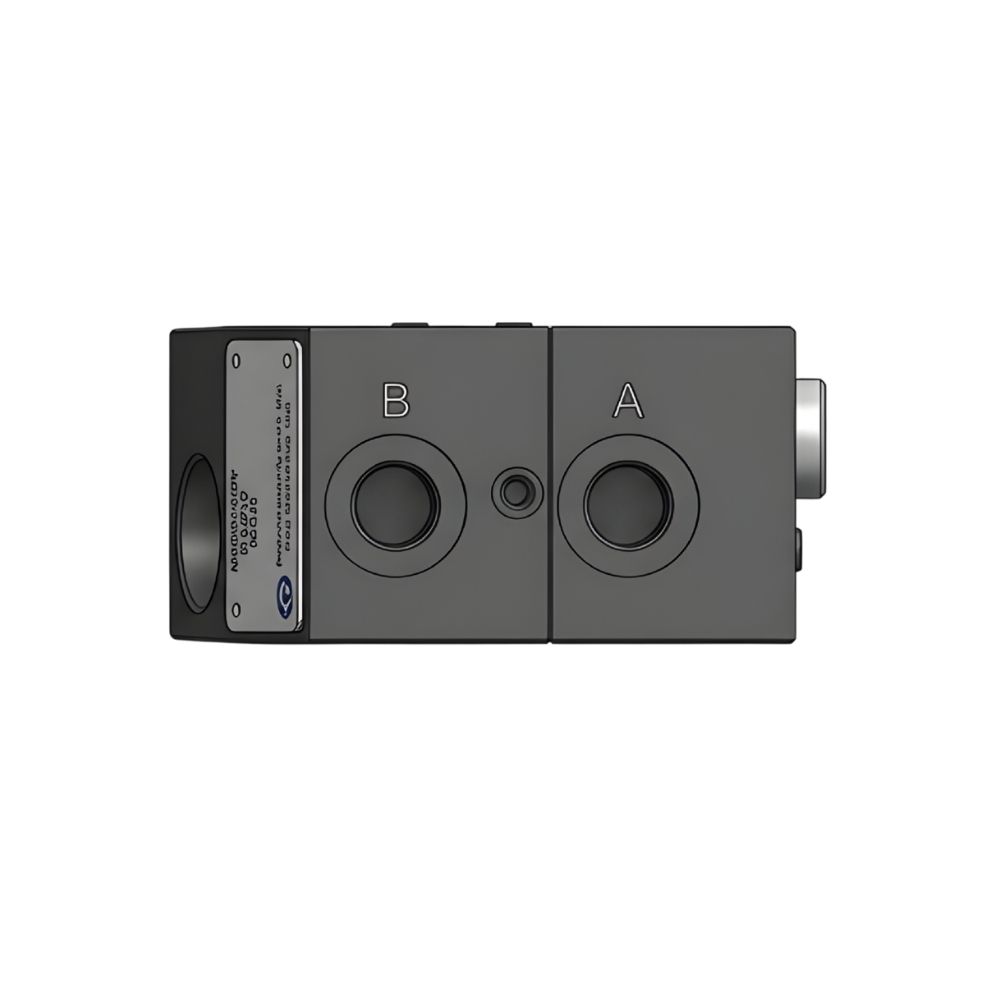

- A & B:Â Outlet ports (to actuators/cylinders)
- G:Â Gauge port (for pressure monitoring; must be plugged if not in use)
Note:Â The Directional Control Valve and the Relief Valve cartridge are not included with the manifold block and must be ordered separately based on your specific circuit requirements.
