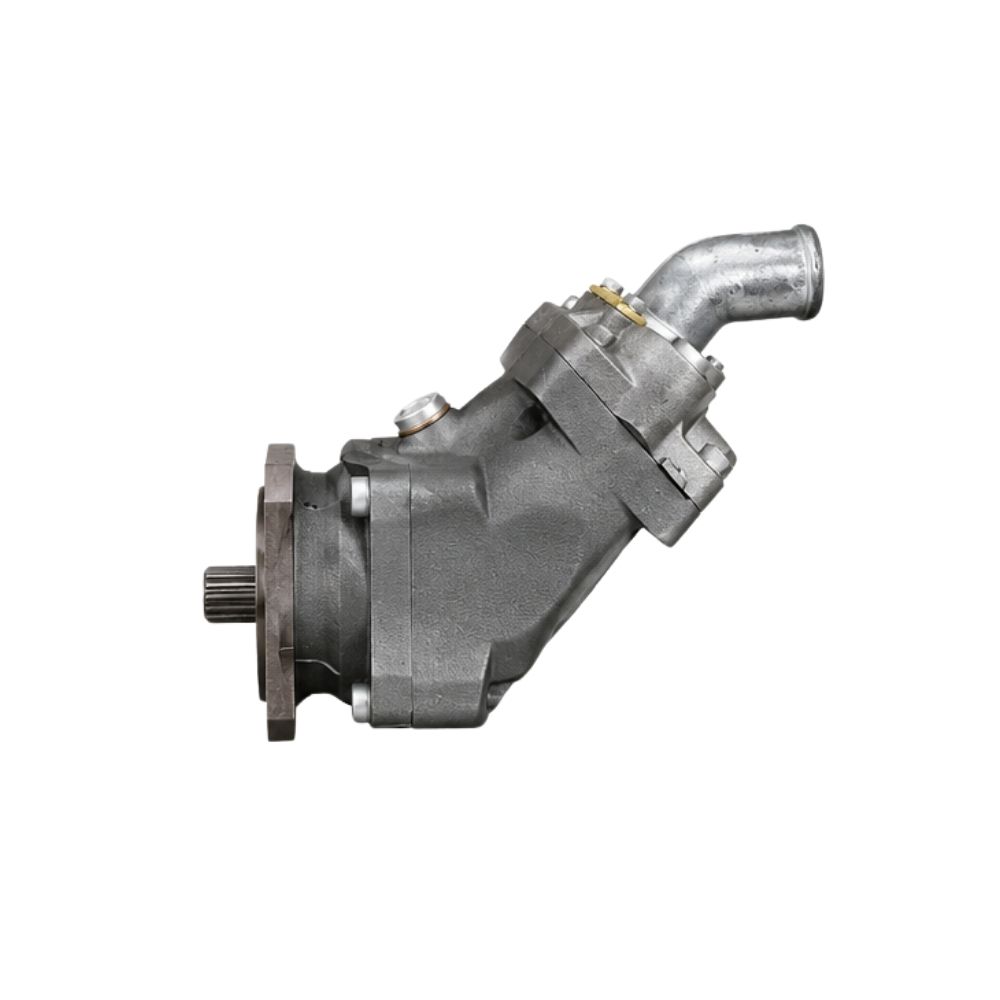

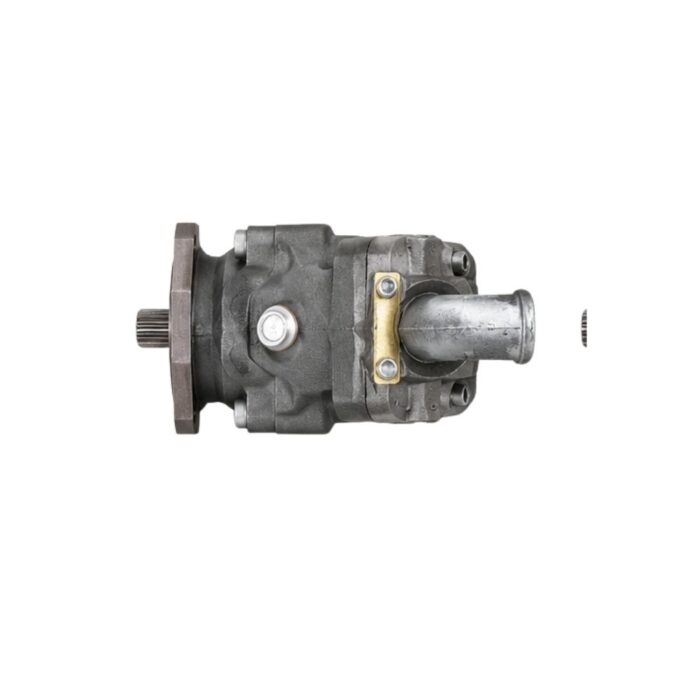

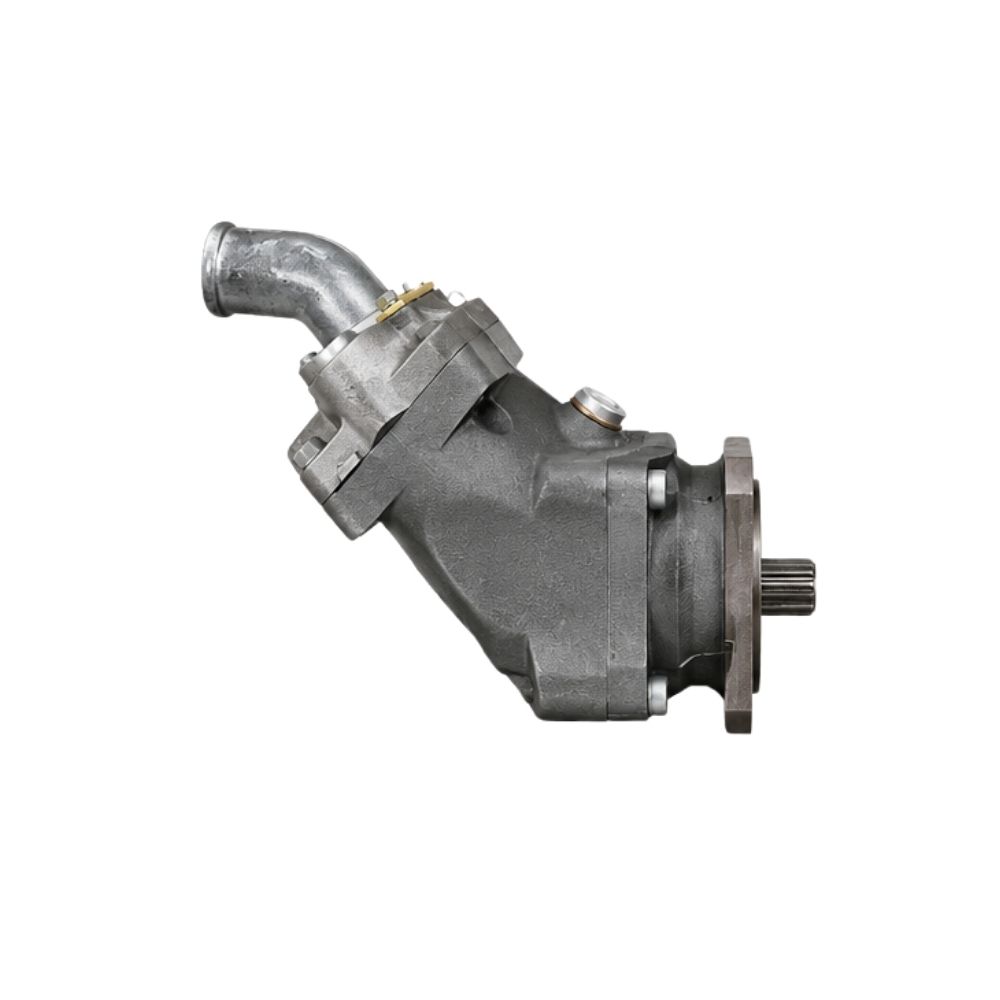

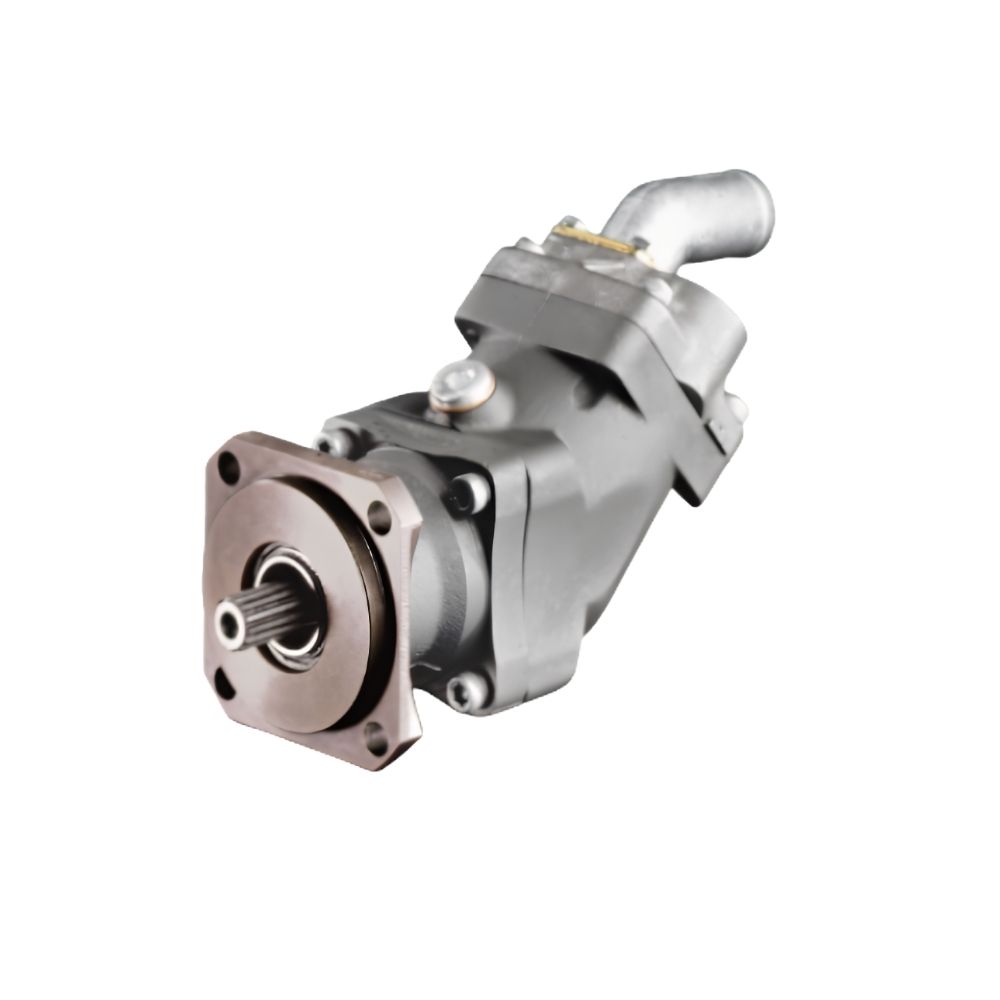

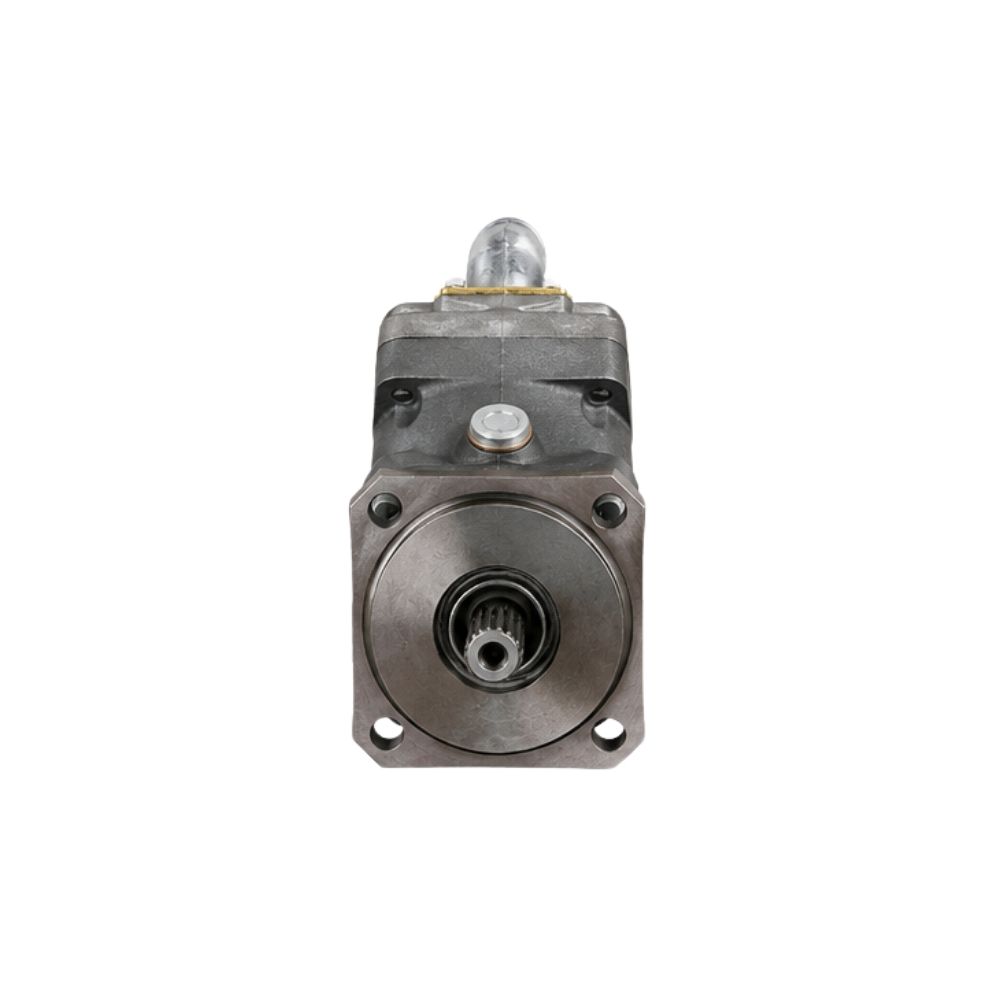

K60N – Axial piston pumps
The HAWE K60N is a heavy-duty, fixed displacement axial piston pump designed primarily for open circuit mobile hydraulics. Operating on the bent axis principle, it is highly optimized for mounting directly onto the power take-off (PTO) of commercial vehicle transmissions.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The axial piston pump type K60N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions. The axial piston pump type K61N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions.
| Category | Feature | Specification / Detail |
|---|---|---|
| Performance | Nominal Flow Rate | 45 L/min (12 US gpm) |
| Max. Operating Pressure | 315 bar (4600 psi) | |
| Max. Back Pressure | 25 bar (360 psi) | |
| Physical Build | Number of Sections | 1 to 7 working sections (monoblock) |
| Section Pitch | 37 mm (1.46 in) | |
| Spool Diameter | 16 mm (0.63 in) interchangeable spools | |
| Circuit Design | Circuit Types | Parallel, Series, or Tandem |
| Gallery Type | Type “S” free flow gallery for high efficiency | |
| Power Beyond | Available as SD5/1-D (Carry-over) or SD5/1-N | |
| Safety & Control | Standard Protection | Main relief valve + load check valve on each section |
| Control Methods | Manual, Cable, Pneumatic, Hydraulic, & Electro-hydraulic | |
| Applications | Harvesting machines, brushcutters, and small front loaders |
