Shuttle Valve – SL06
The Polyhydron Shuttle Valve (Model SL06) is a seat-type hydraulic valve designed to automatically select the higher of two pressure sources. It functions as a hydraulic “OR” gate, connecting its output port (P) to whichever input port (A or B) has the higher pressure while isolating the lower-pressure port.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item

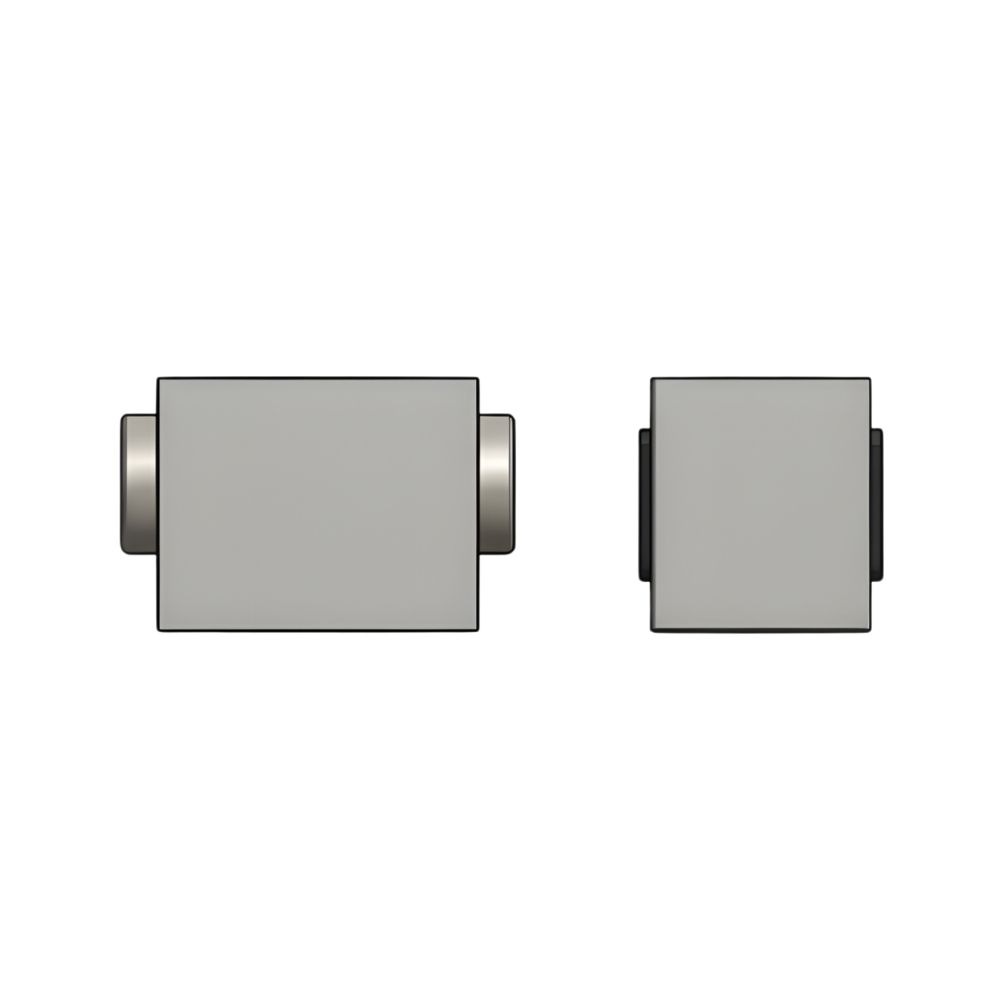

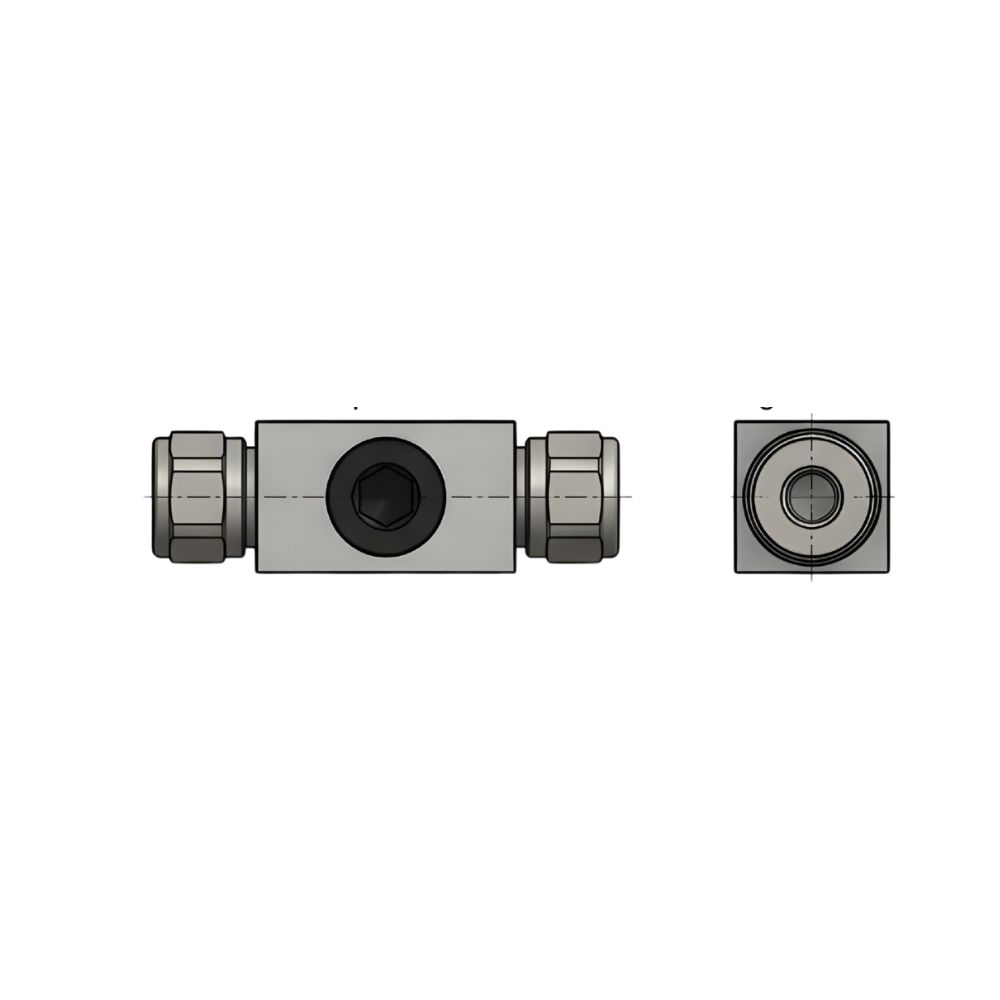

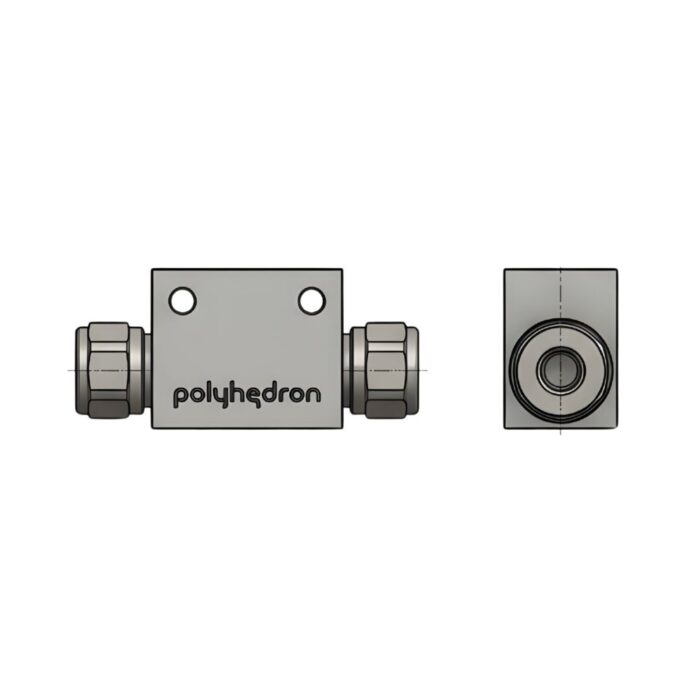

The Polyhydron Shuttle Valve – SL06 is a seat-type valve that automatically connects port P to either port A or port B, depending on which has the higher pressure. It effectively isolates ports A and B from each other. Port P is connected to the tank only when both ports A and B are connected to the tank. The valve is available in both threaded and sub-plate mounting options for flexible installation.
| Nominal flow and pressure ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | Max. working pr. (bar) | Max. flowl/min. | |||||
| SL06 | 315 | 30 l/min. | |||||
Common Application
- Load Sensing Circuits:Â Used to signal the highest pressure demand to a pump.
- Pilot Supply:Â Selecting a pilot pressure from two different parts of a circuit to operate a larger valve.
- Brake Control:Â Ensuring a brake remains released as long as pressure is available from either of two control lines
