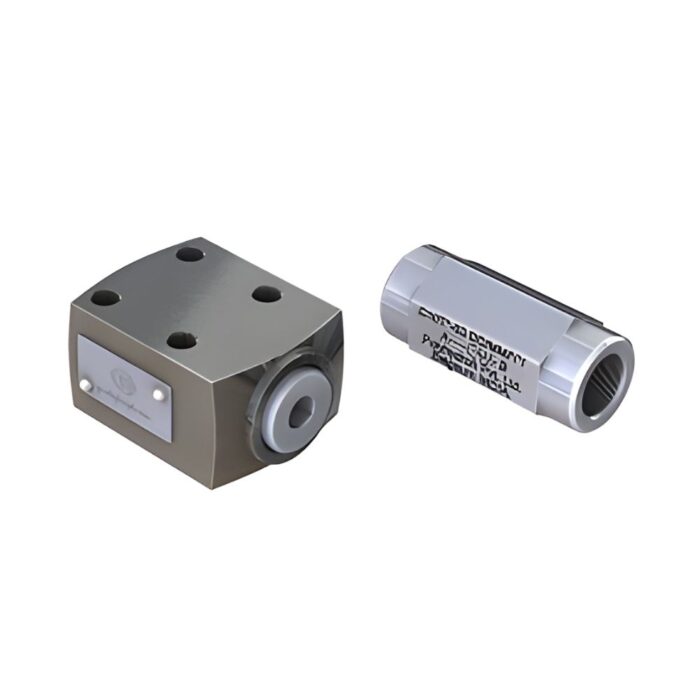

Check Valve – C
The Polyhydron Check Valve C is a simple, high-pressure non-return valve that acts as a one-way street for hydraulic oil. It uses a spring-loaded “seat-type” design to ensure a tight, leak-free seal when flow tries to go the wrong way.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item

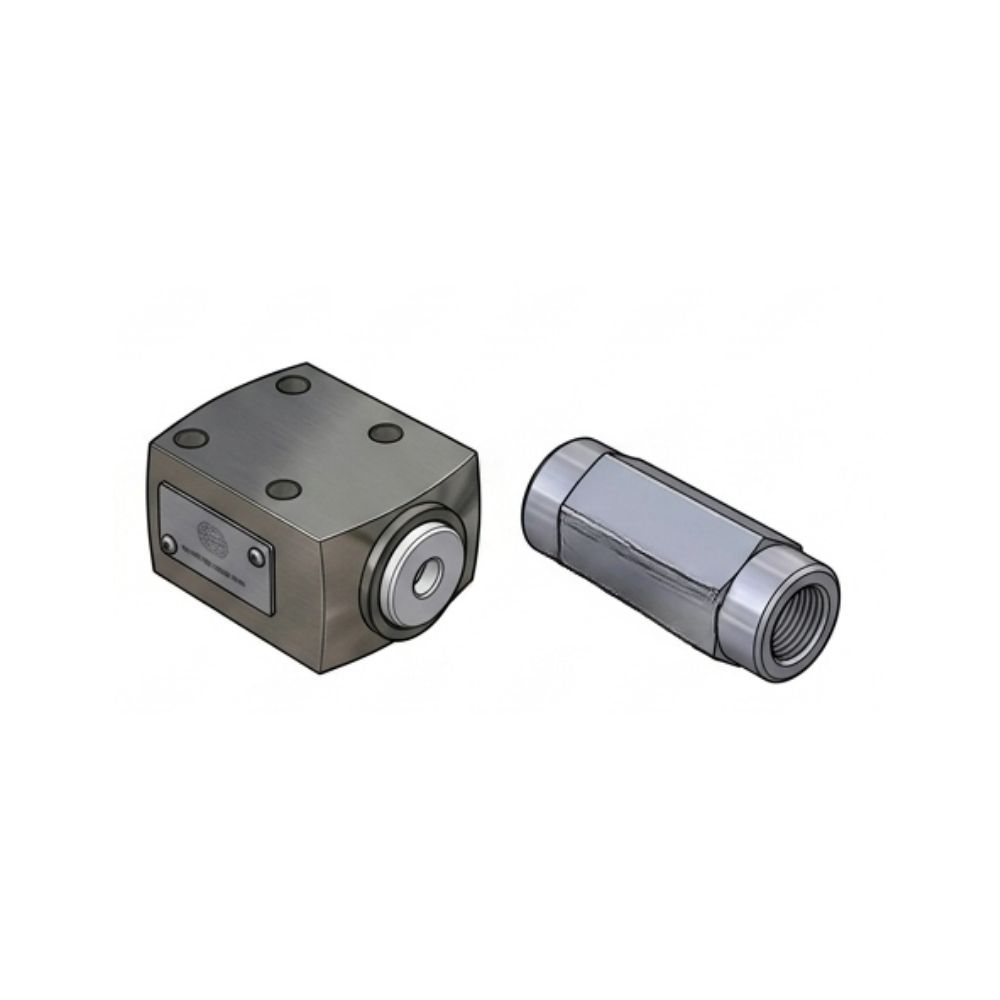

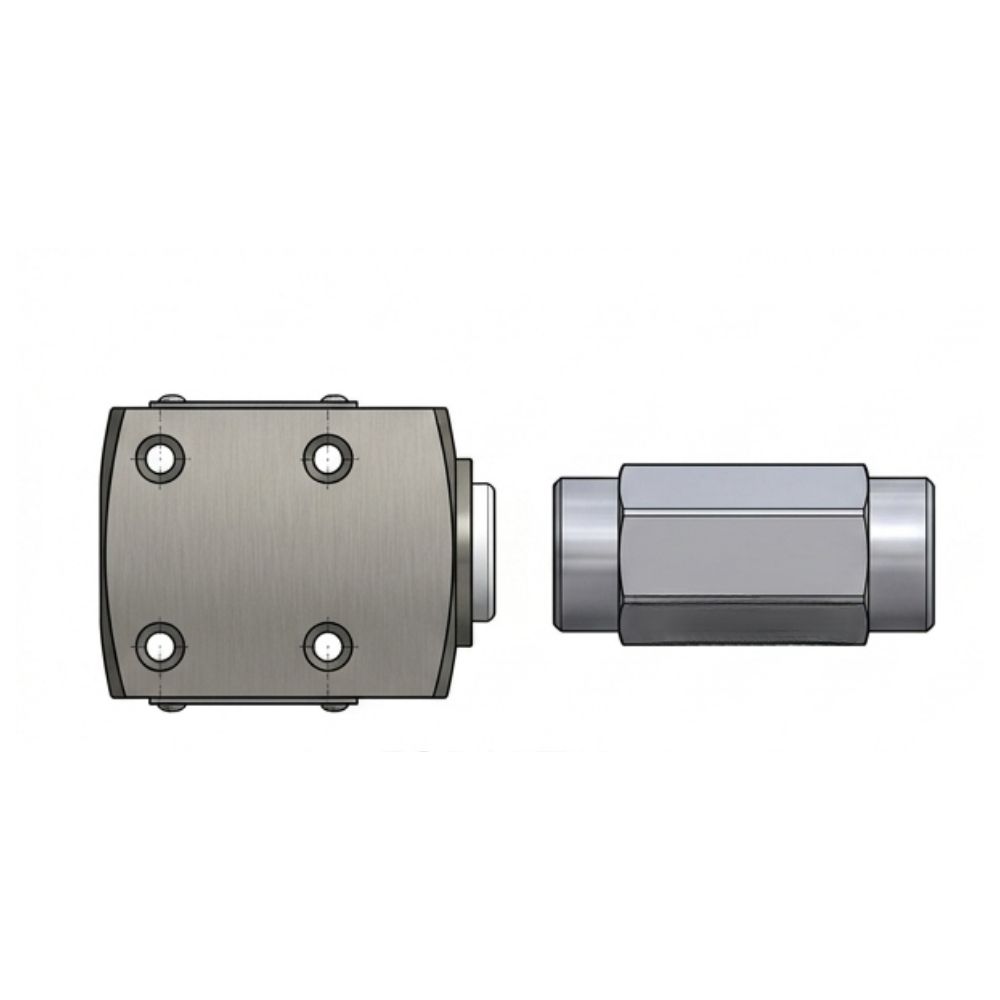

The Check Valve – C is a seat-type valve that allows free flow from port A to port B while providing leak-proof closure in the reverse direction. It is available in both inline and sub-plate mounting options, conforming to factory and ISO standards for versatile installation.
| Nominal pressure and flow ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | C06 | *C08 | C10 | *C15 | C20 | *C25 | C30 |
| Max. working pr. (bar) |
315 | 315 | 315 | 315 | 315 | 315 | 315 |
| Max. flow l/min.11 |
10 | 20 | 30 | 80 | 120 | 220 | 280 |
| * : Available only in threaded type. | |||||||
Key Specifications
- Operating Pressure: Typically rated for working pressures up to 315 bar.
- Mounting Styles:Â Available in three configurations to fit different industrial setups:
- In-line (Threaded):Â Connected directly into the pipeline.
- Sub-plate:Â Mounted onto a separate manifold block.
- Sandwich (Modular):Â Designed for vertical stacking in hydraulic assemblies.
- Cracking Pressures: The pressure required to open the valve can be customised by choosing different internal springs, typically available at 0.5, 1.5, 3, or 5 bar.
- Materials: Constructed from durable metals like mild steel with options for chrome or sky-blue finishes to resist wear and corrosion.
