FD – Flow divider valve

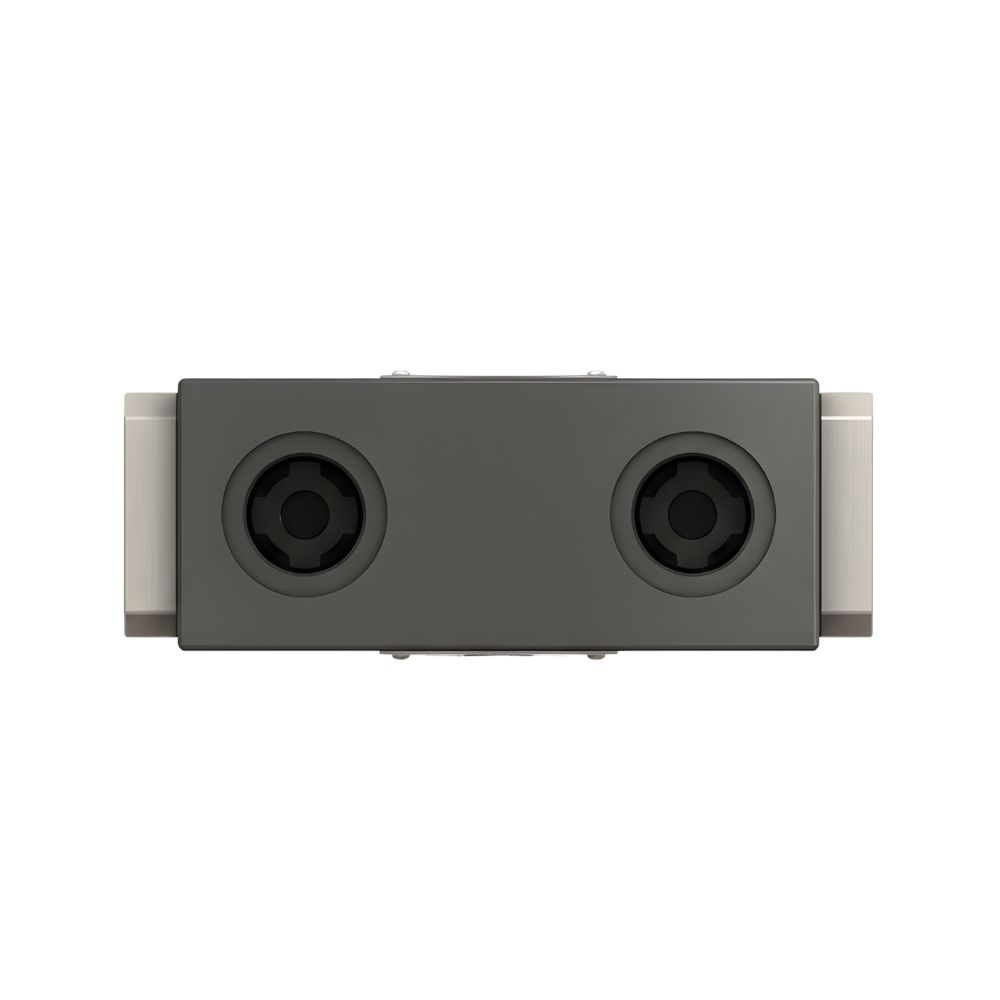

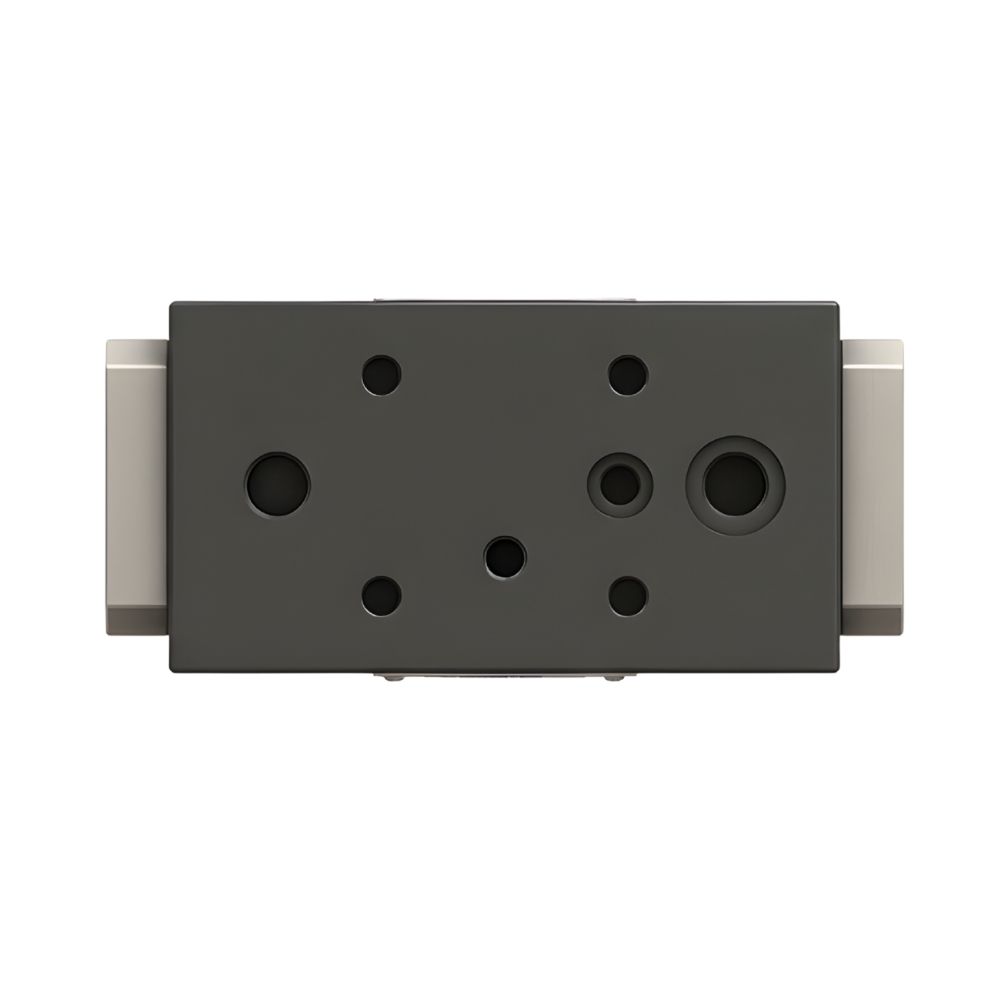

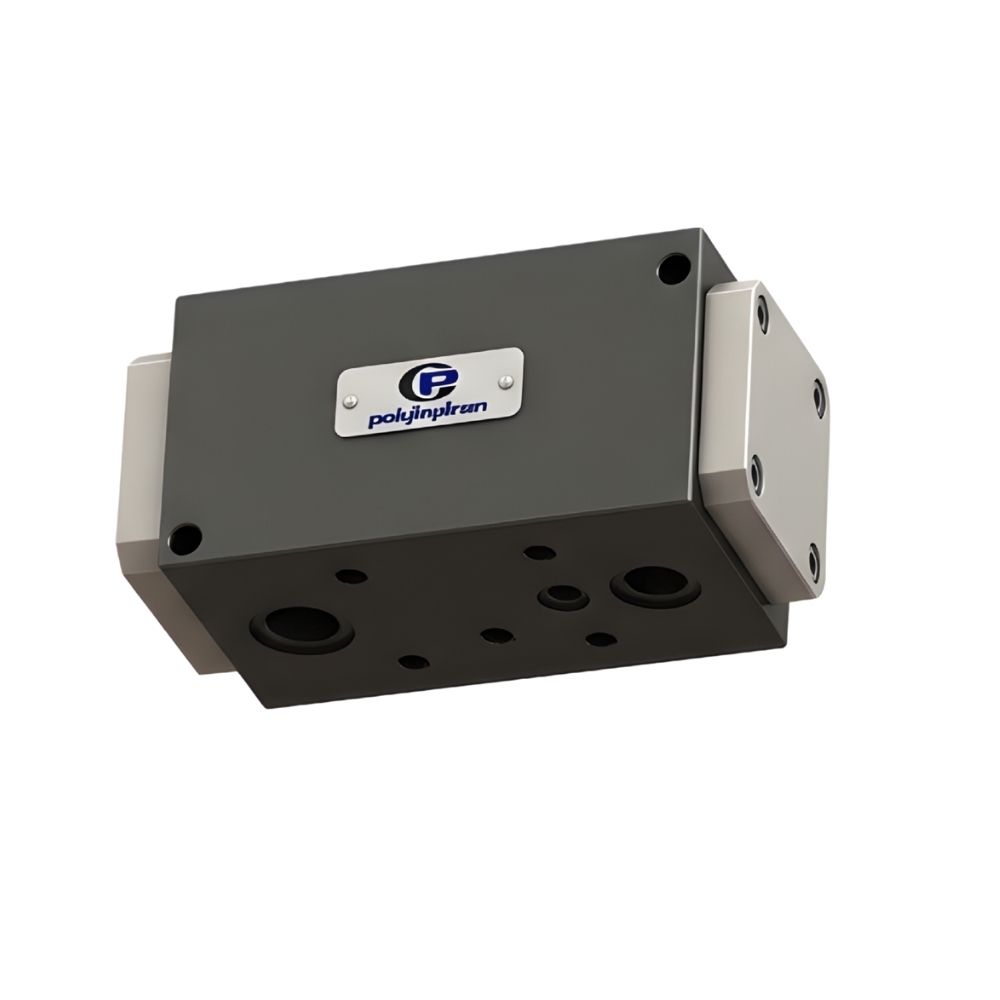

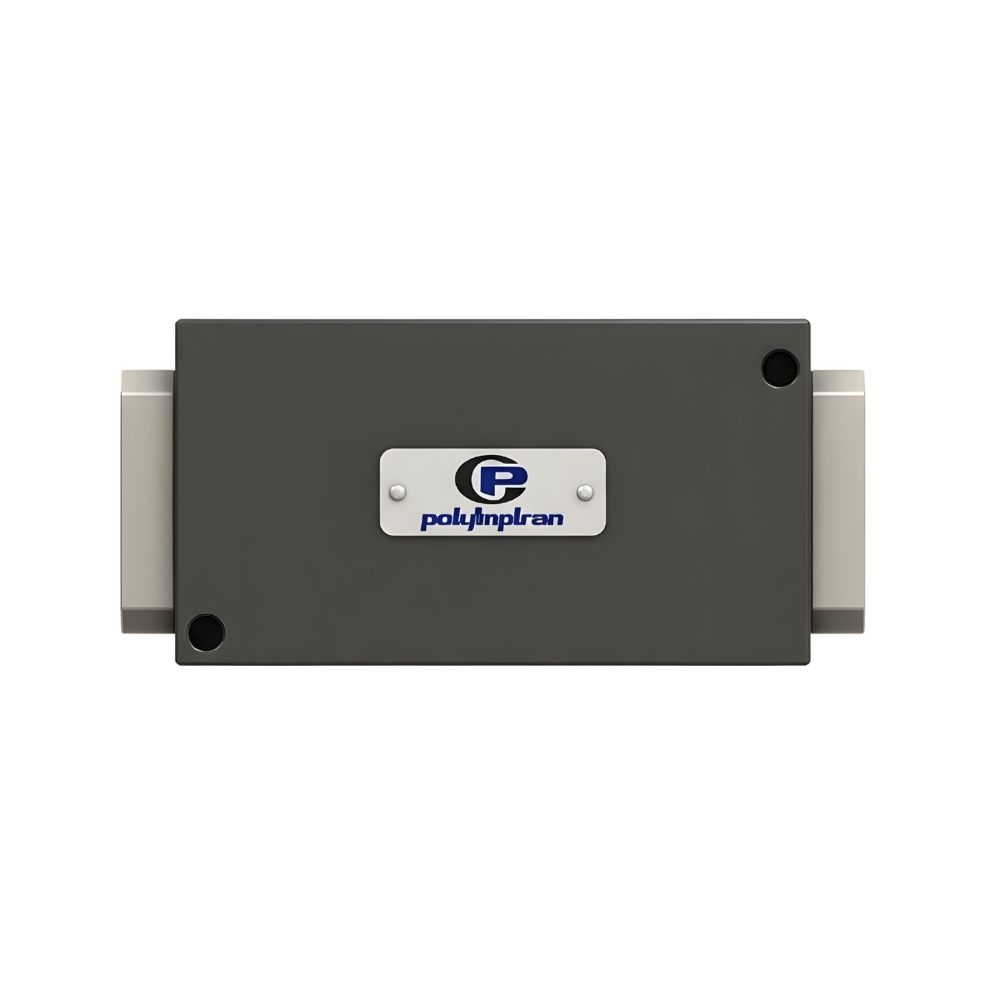

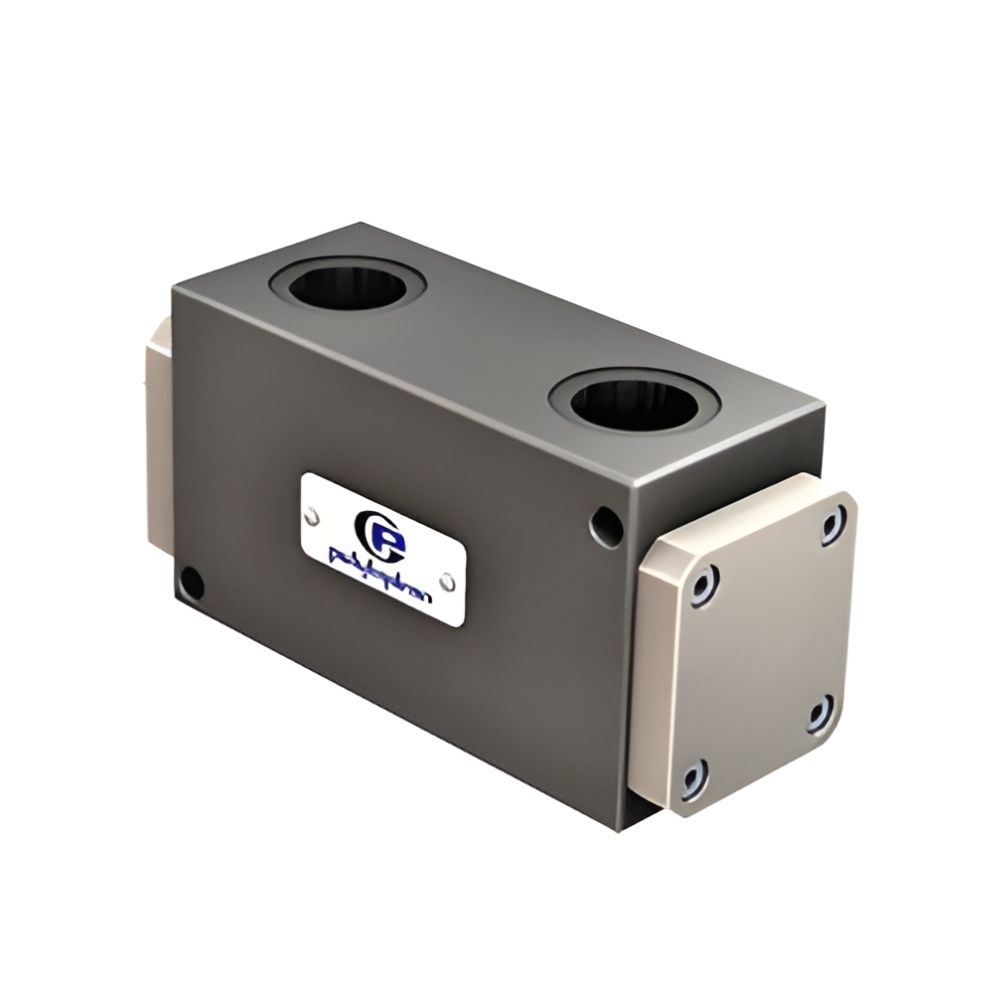

The Polyhydron Flow Divider (Series FD) is a pressure-compensated, spool-type hydraulic valve designed to split a single inlet flow into two equal outlet flows at a 50:50 ratio. It is specifically engineered to ensure that multiple actuators (like cylinders) move in synchronization, even when they are subjected to different loads or pressures.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Flow Divider Valve (FD) is designed to split flow from a single source into two outputs at a predetermined ratio, ensuring consistent performance regardless of load variations. It offers high accuracy with a maximum dividing error of less than 5% and features a threaded port body for easy installation.
| Inlet Flow | 5 -10 | 10 -18 | 15 -30 | 30 -100 |
|---|---|---|---|---|
| Max. Pr. (bar) | 315 | |||
| Dividing Ratio (%) | 50 : 50 | |||
Key Specifications
The FD series is categorized primarily by its inlet flow capacity while maintaining consistent core performance metrics:
-
- Construction:Â Pressure-compensated spool type.
- Maximum Operating Pressure:Â 315 bar (approx. 4500 PSI).
- Mounting:Â Threaded body for horizontal mounting.
- Hydraulic Medium:Â Mineral oil.
- Temperature Range: -20 °C to +70 °C.
- Fluid Cleanliness:Â Requirement of ISO 16/13 or better.
