CETOP 03 / NG6 Manifold for Directional Control Valves

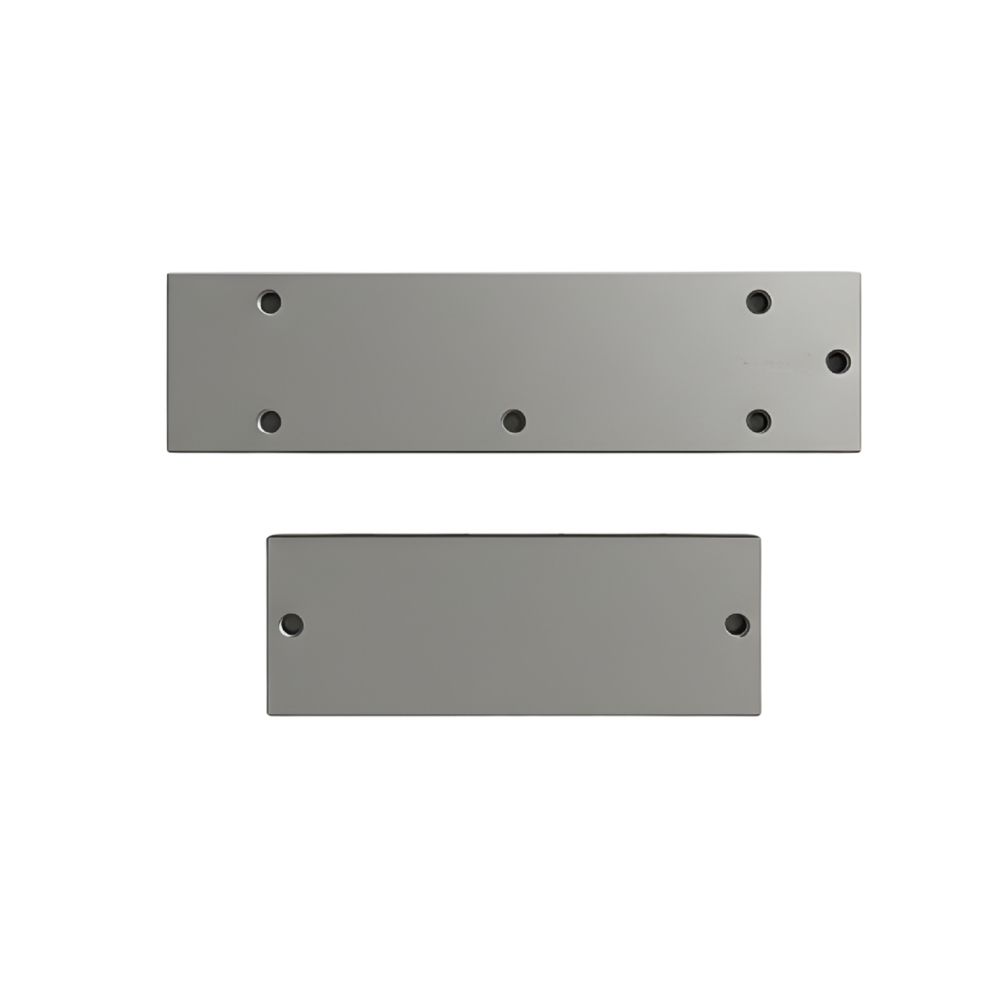

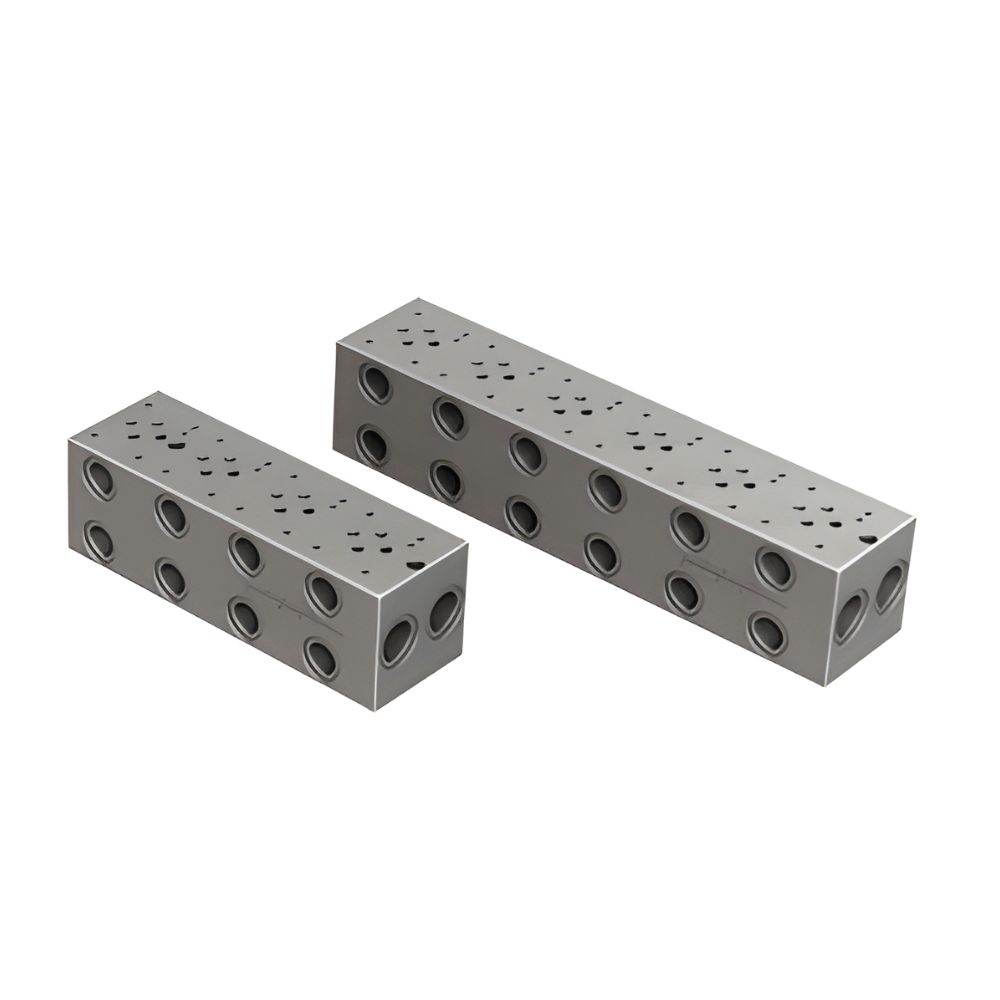

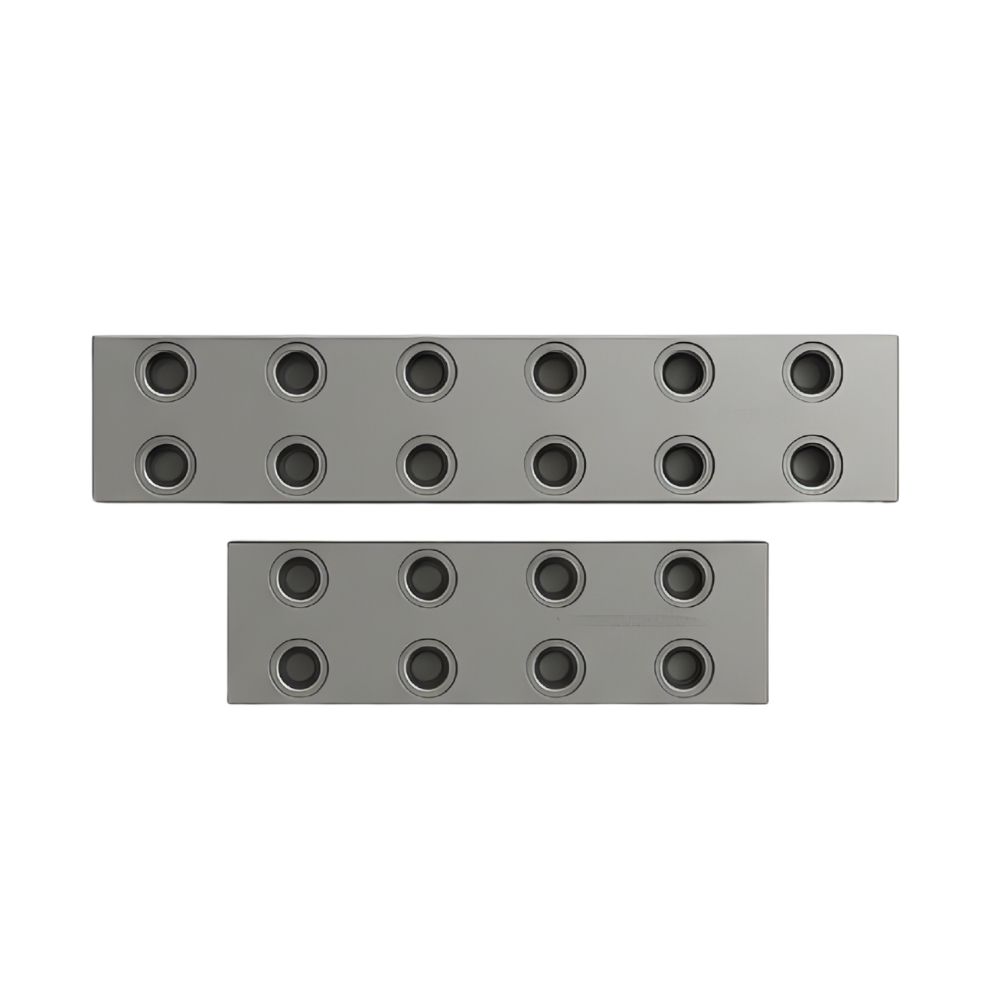

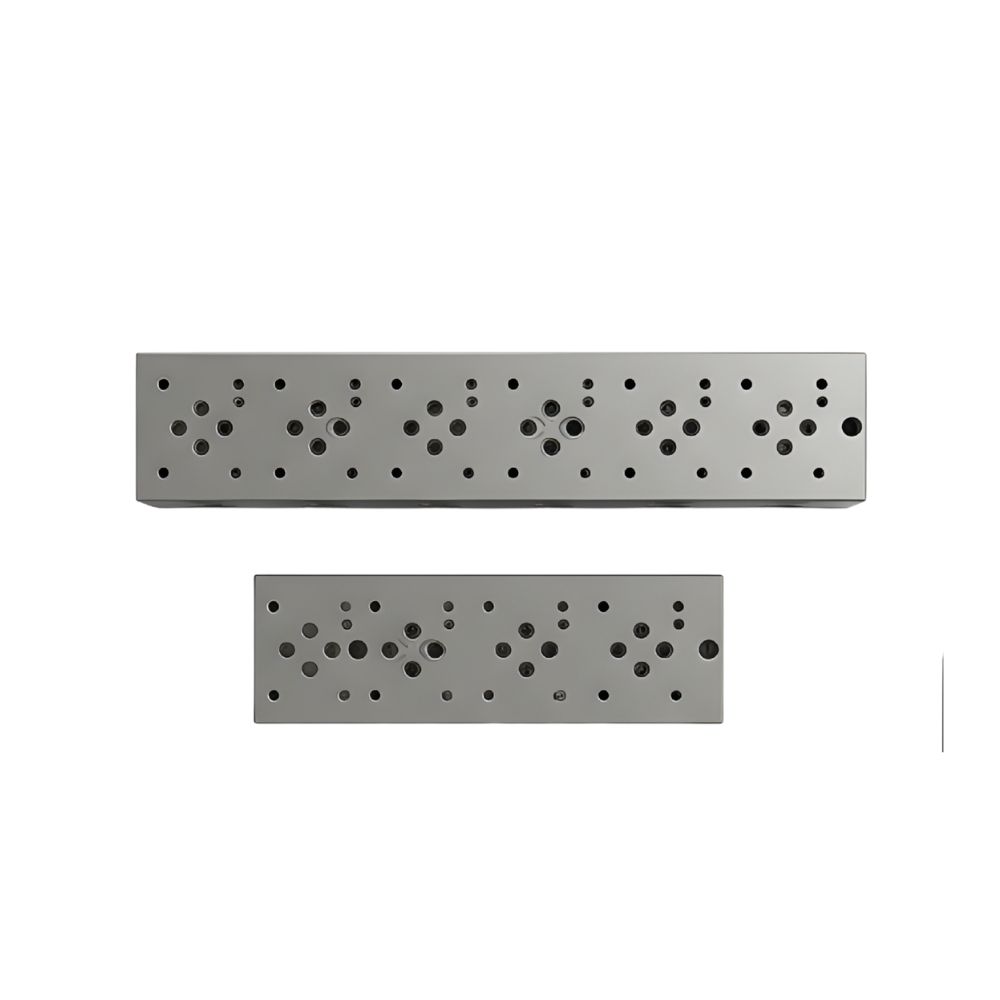

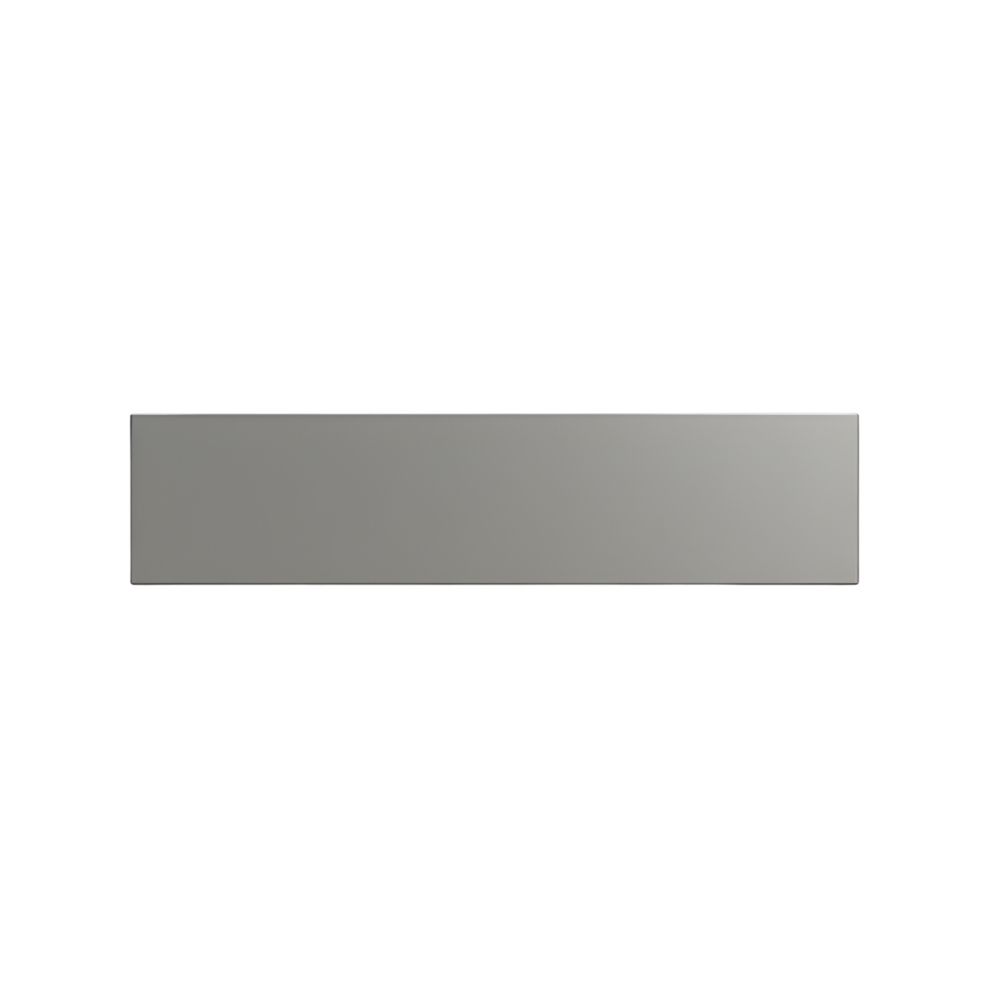

The Polyhydron 1P 02155* is a high-performance multistation bar manifold designed to serve as a central mounting block for hydraulic directional control valves. It features a standardized CETOP 3 (NG6) interface, allowing multiple valves to be stacked side-by-side in a compact footprint.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Manifold for Directional Control Valves – (1P 02155*) is specially designed for multi-station directional control valve applications, conforming to CETOP RP 35 H size 3 standards. It supports configurations ranging from a minimum of 2 stations to a maximum of 6 stations, offering flexibility and efficient system integration.
| Feature | Specification Details |
|---|---|
| Mounting Standard | ISO 4401-03-02 (CETOP 3 / NG6 / Size 3) |
| Circuit Type | Parallel (P and T ports common to all stations) |
| Max. Operating Pressure | 350 bar |
| Number of Stations | 1 to 10 (denoted by the suffix in model code) |
| Body Material | Mild Steel (MS) or Aluminium Alloy |
| Hydraulic Medium | Mineral Oil |
| Viscosity Range | 10 cSt to 380 cSt |
| Fluid Temp. Range | -20°C to +80°C |
| Port Size (Service) | Typically 1/4″ or 3/8″ BSPP (depending on model) |
| Port Size (P & T) | Generously sized to minimise pressure drop |
