Group G3 + G3

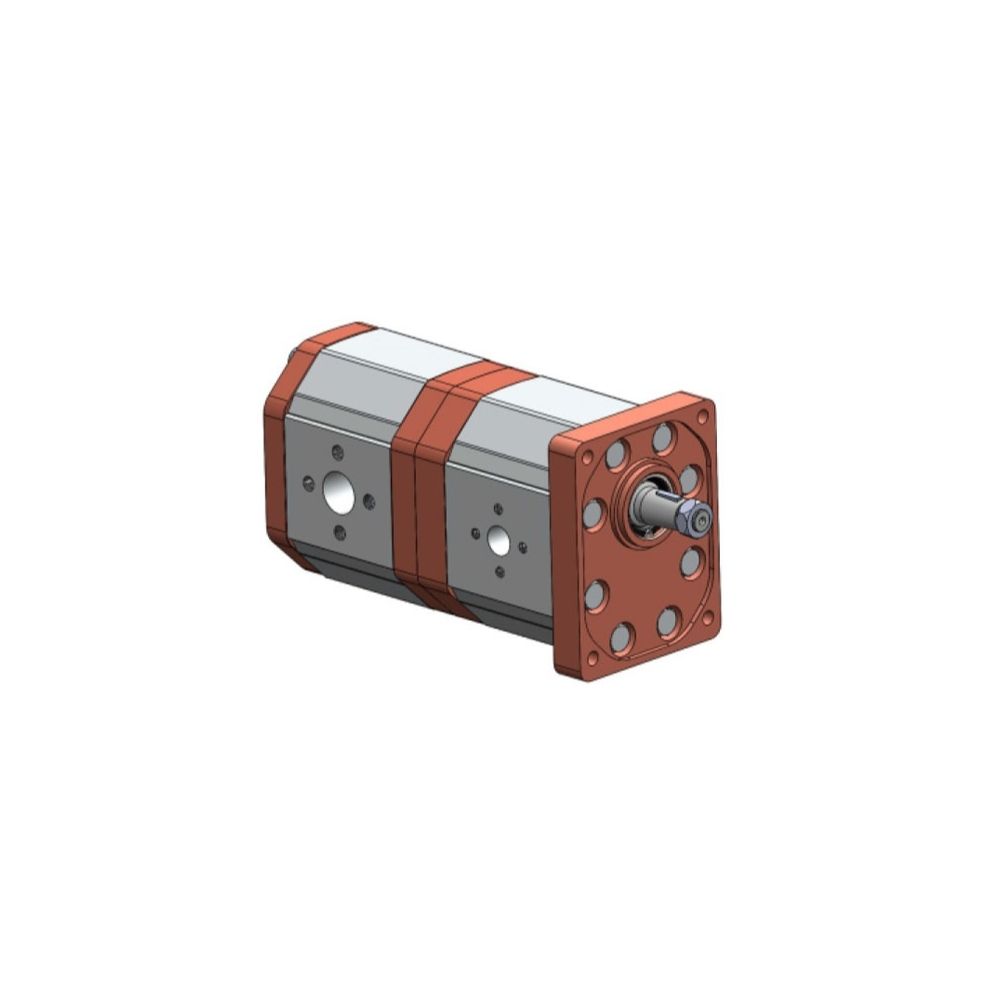

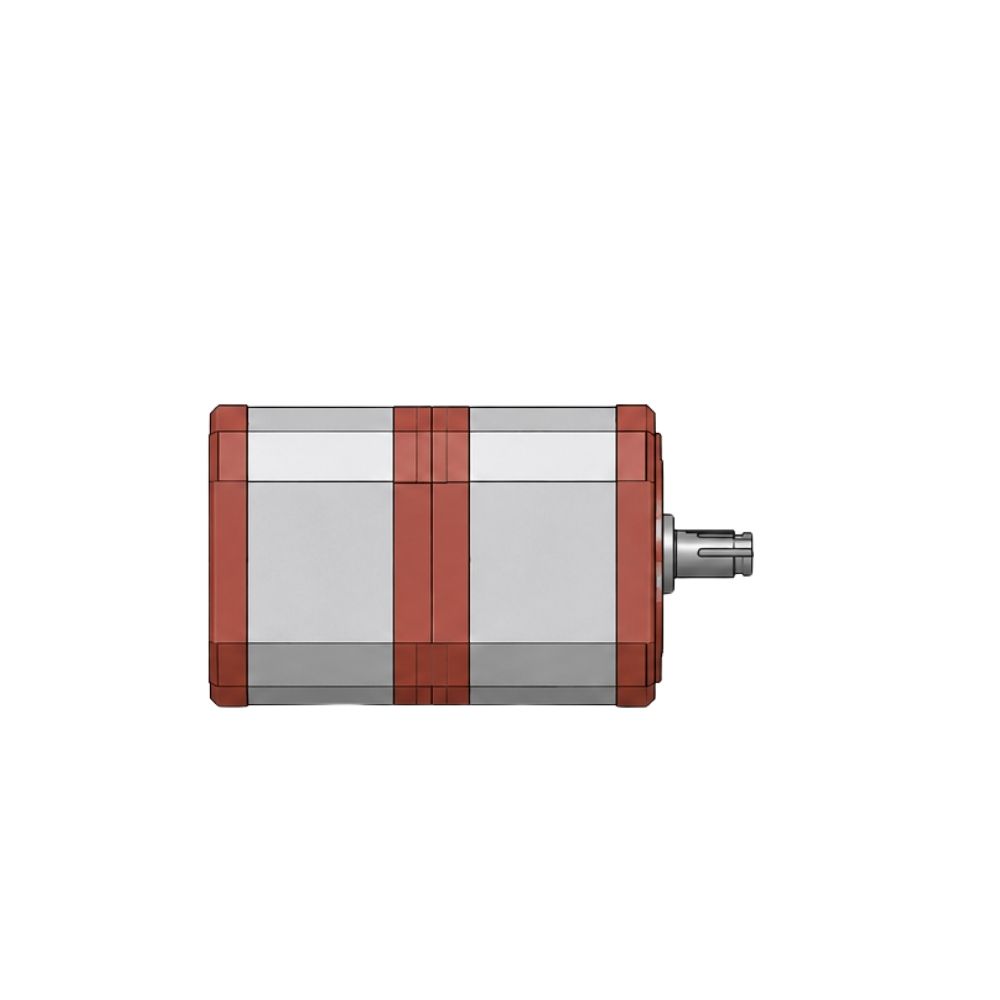

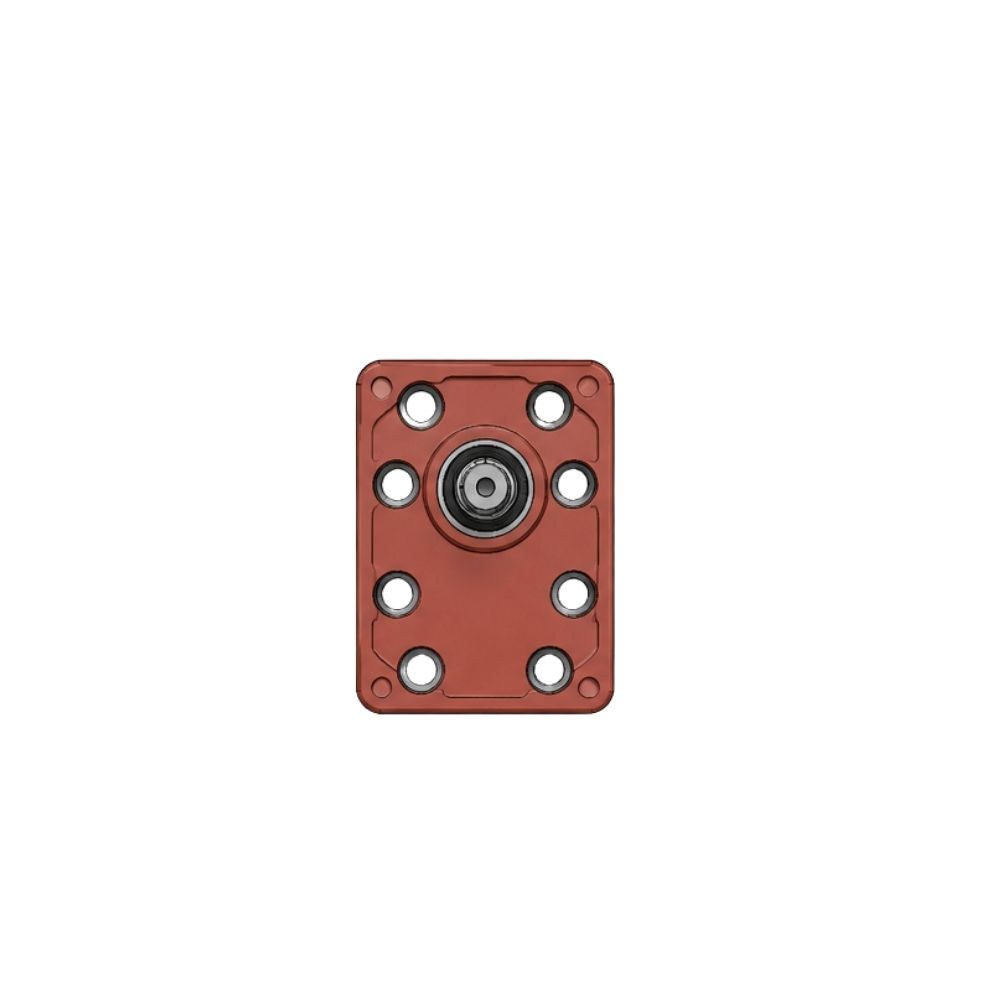

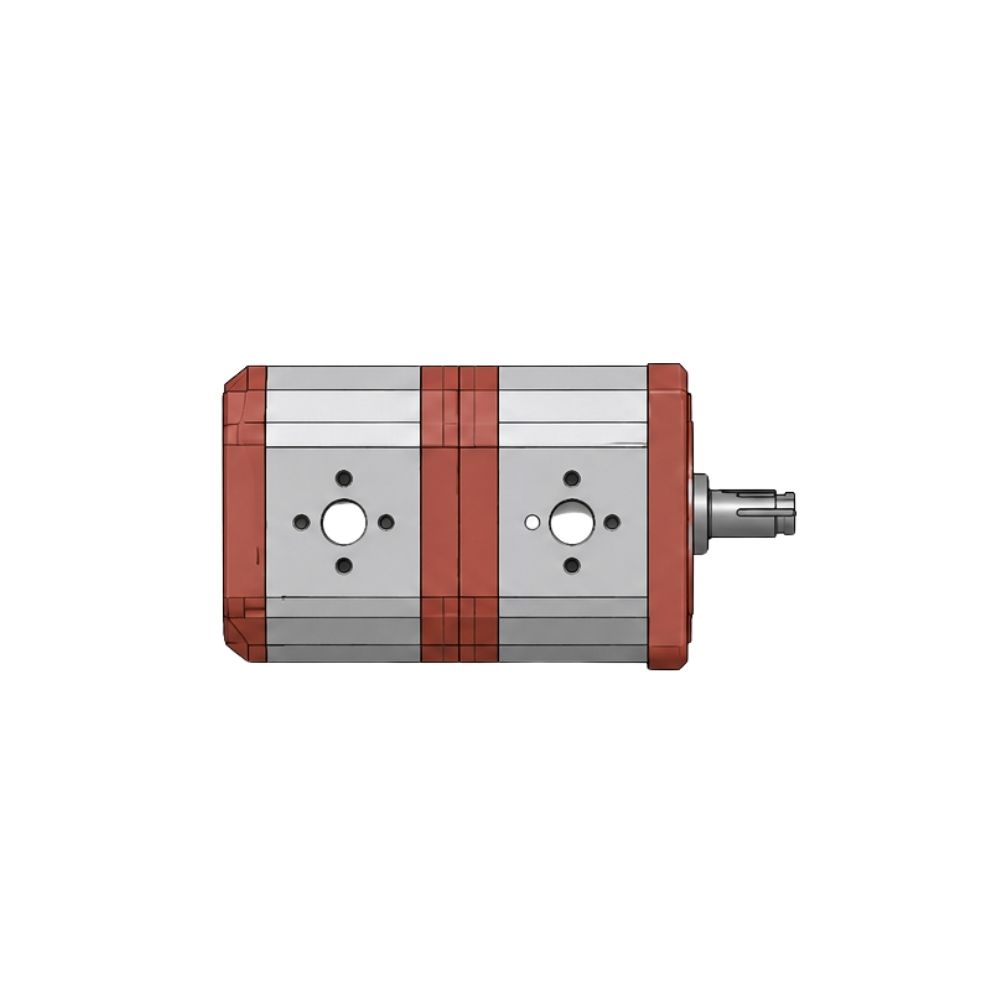

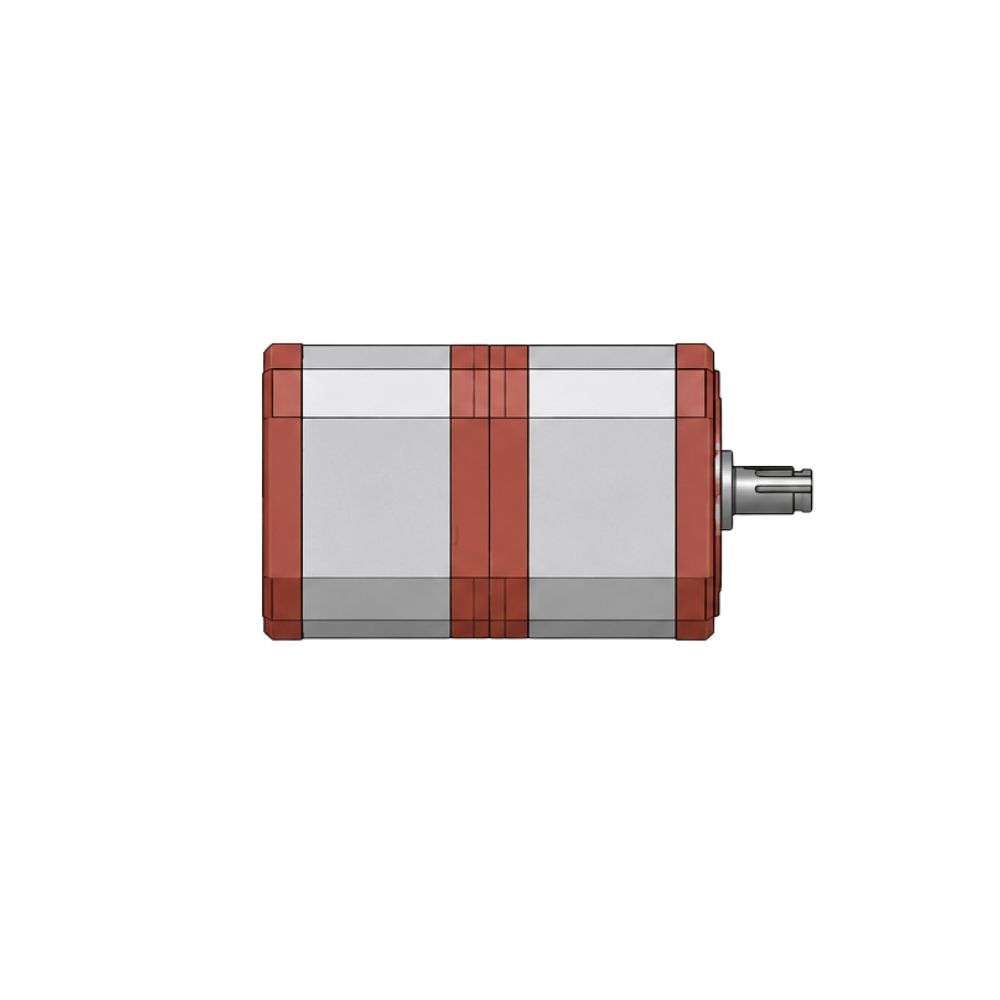

The Boss Tandem Pump Group G3 + G3 is a heavy-duty dual hydraulic gear pump assembly designed to run two independent hydraulic circuits from a single drive source. Manufactured by Boss Hydraulics (an ISO 9001:2015 certified company in India), this system couples two Group 3 high-pressure pumps in series using a specialized tandem connection kit.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Boss Tandem Pump Group G3 + G3 is a high-performance multiple gear pump system manufactured by Boss Hydraulics (formerly S.S. Hydraulics) based in Ahmedabad, India. It consists of two standalone Group 3 heavy-duty gear pumps coupled in series via a modular tandem connection kit. This configuration allows a single drive shaft to power two independent hydraulic circuits or provide combined flow from a single unit.
| Section Model | Delivery at 1500 rpm (lpm) | Max Pressure (Bar) | Max Speed (rpm) | Standard Ports |
|---|---|---|---|---|
| G320 | 28.0 | 250 | 3000 | G 3/4″ |
| G325 | 36.0 | 250 | 3000 | G 3/4″ |
| G332 | 46.0 | 250 | 3000 | G 3/4″ |
| G336 | 51.0 | 250 | 2800 | G 3/4″ |
| G342 | 60.0 | 230 | 2500 | G 1″ |
| G350 | 72.0 | 200 | 2100 | G 1-1/4″ |
| G360 | 86.0 | 180 | 1750 | G 1-1/4″ |
