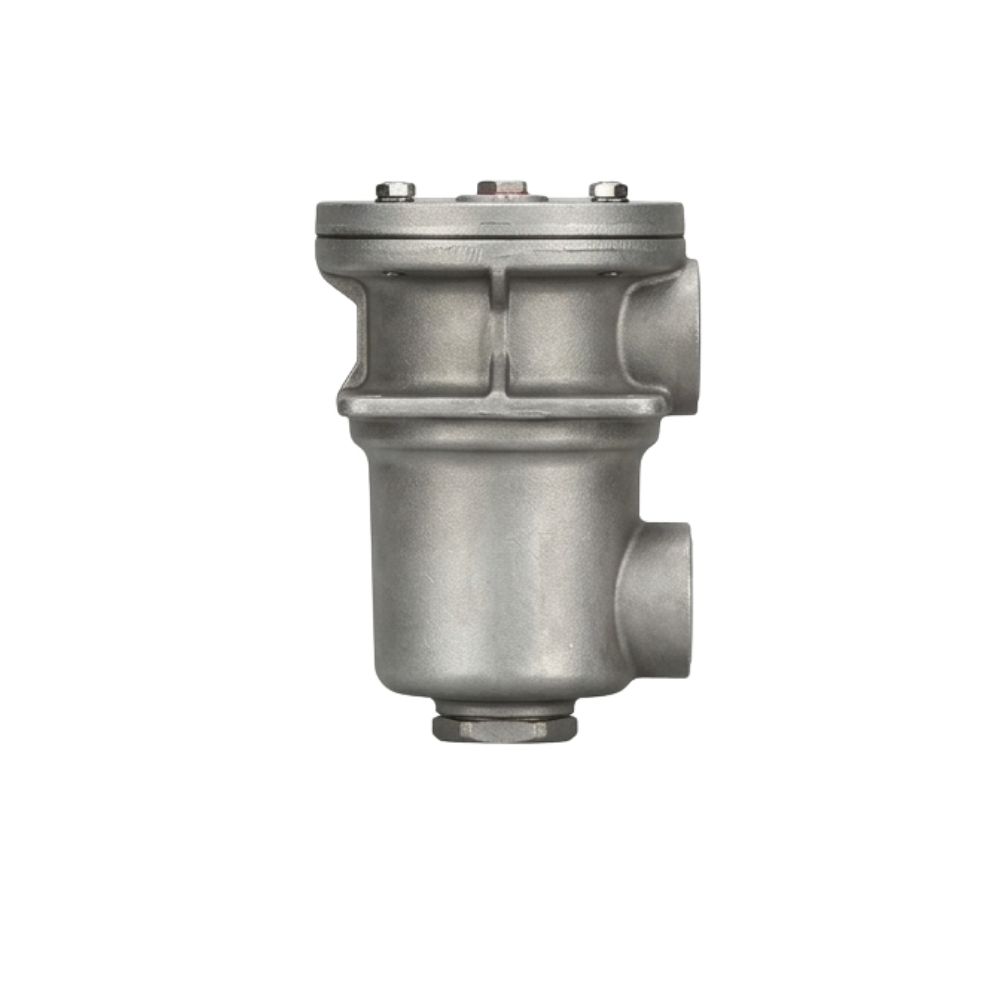

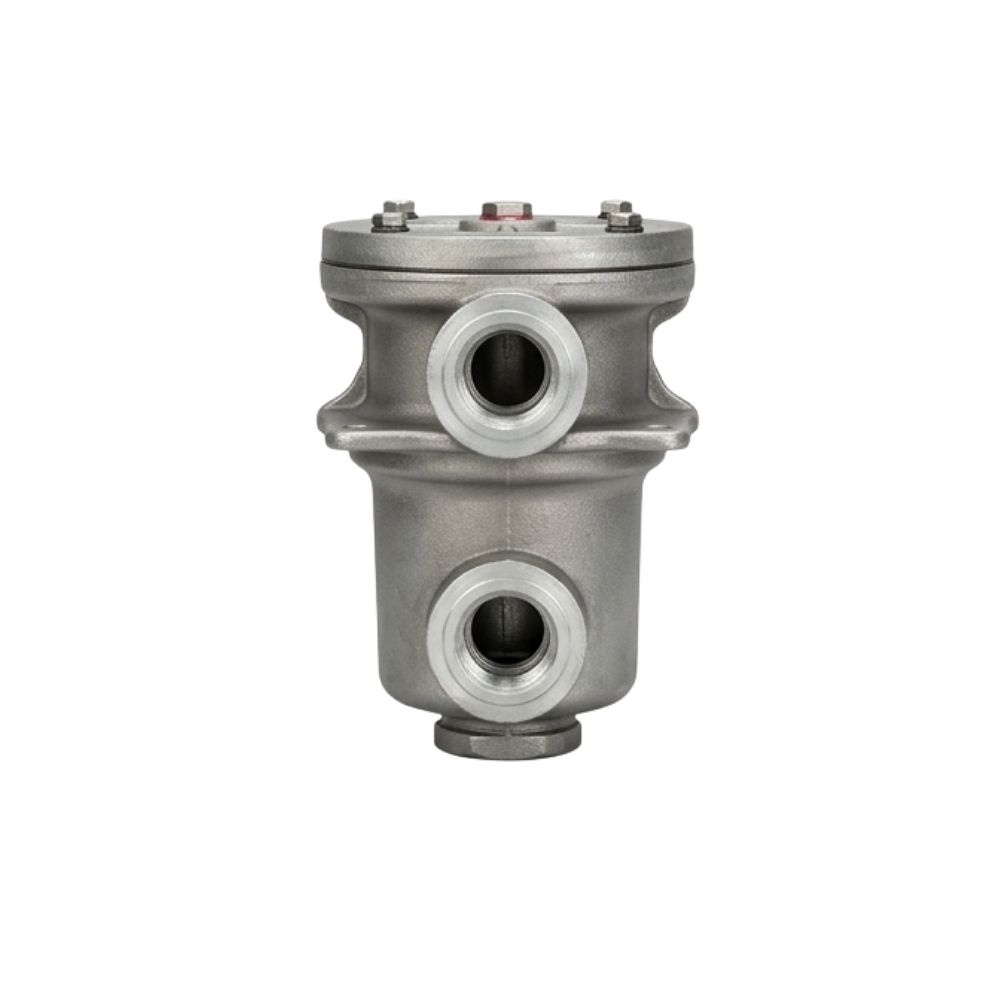

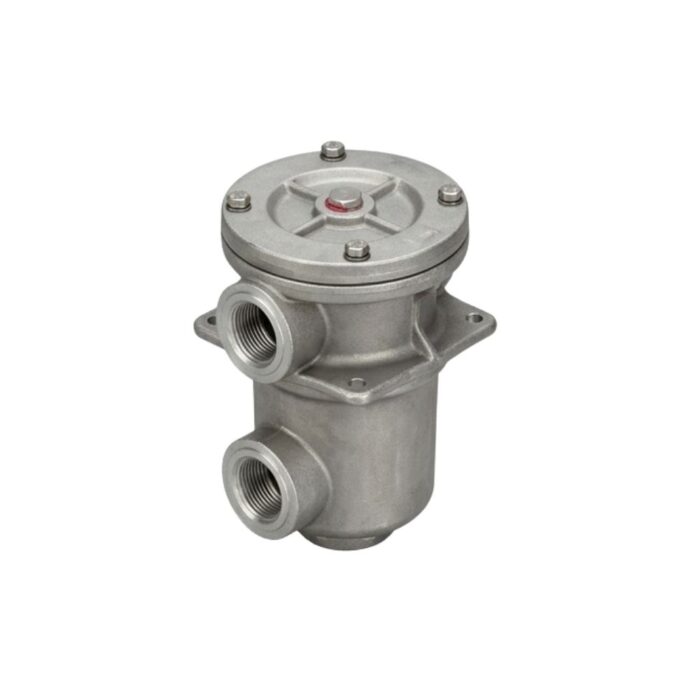

Filter – Tank Top Heavy Duty – CFR
The Hydroline CFR Series is a heavy-duty hydraulic filter designed to protect systems from contaminants that cause internal wear. It is primarily used in return-line circuits for both industrial and mobile applications.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hydroline CFR Series is a heavy-duty, tank-top mounted hydraulic filter designed primarily for return or suction lines in industrial and mobile applications. These filters are constructed from aluminium die-cast materials to ensure durability and can be mounted directly to the tank or in-line.
| Feature / Model | Hydroline CFR Heavy Duty Tank Top Filter Details |
|---|---|
| Material | Aluminium Die-Cast housing for high durability |
| Mounting | Tank-top (directly on reservoir) or In-line |
| Max Flow Rate | Up to 850 LPM (depending on model size) |
| Pressure Ratings | 20 Bar (Working) / 30 Bar (Test) / 40 Bar (Burst) |
| Bypass Valve | 1 Bar (Return lines) / 0.35 Bar (Suction lines) |
| Temperature | Maximum operating temperature of 80°C |
| Filtration Media | 10 or 25 Microns; compatible with mineral/petroleum oils |
| CFR-025 / 040 | Compact units with 1/2″ to 3/4″ BSPP port sizes |
| CFR-100 / 250 | Mid-range units; 1″ to 1-1/2″ BSPP ports; up to 250 LPM |
| CFR-630 / 850 | High-capacity units; 2-1/2″ to 3-1/2″ SAE flange connections |
