Level Gauge – LG6
The Hydroline LG6 is a robust, visual liquid-level gauge designed for the real-time monitoring of fluid levels in industrial tanks and reservoirs. It is specifically engineered for non-pressurised systems and is a standard component for hydraulic power units and lubrication setups.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item

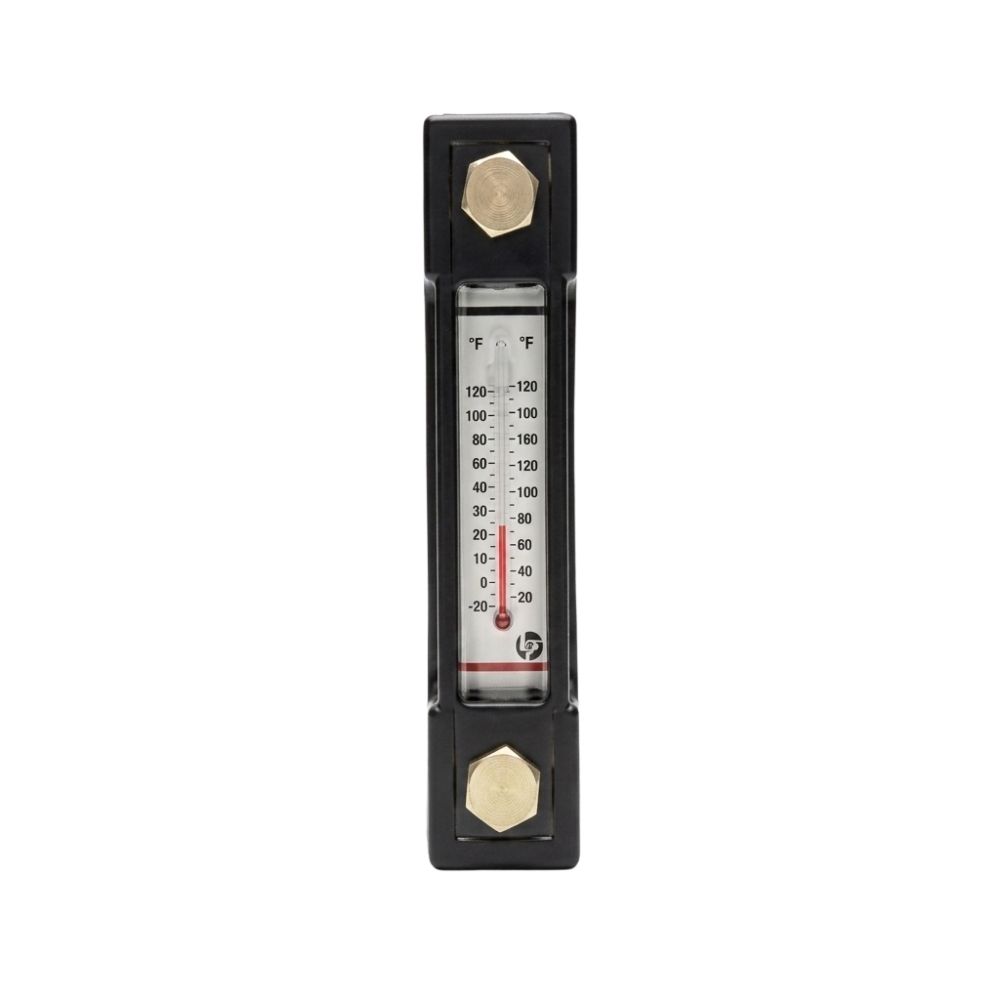

The Hydroline LG6 series is a visual liquid level gauge used primarily to monitor oil levels in hydraulic tanks and lubrication systems. It is designed for use in non-pressurised tanks and features a sturdy die-cast cover with “O” ring type construction to ensure a leak-proof seal.
| Category | Specification / Feature Details |
|---|---|
| Model Variants | LG6-03 (3″), LG6-05 (5″), LG6-10 (10″) bolt centers |
| Primary Construction | Sturdy die-cast aluminium or mild steel cover with an ‘O’ ring type seal for leak-proof performance |
| Viewing Window | High-clarity acrylic or polycarbonate window for visual monitoring |
| Sealing Material | Standard Nitrile (Buna-N) or optional Viton ‘O’ rings |

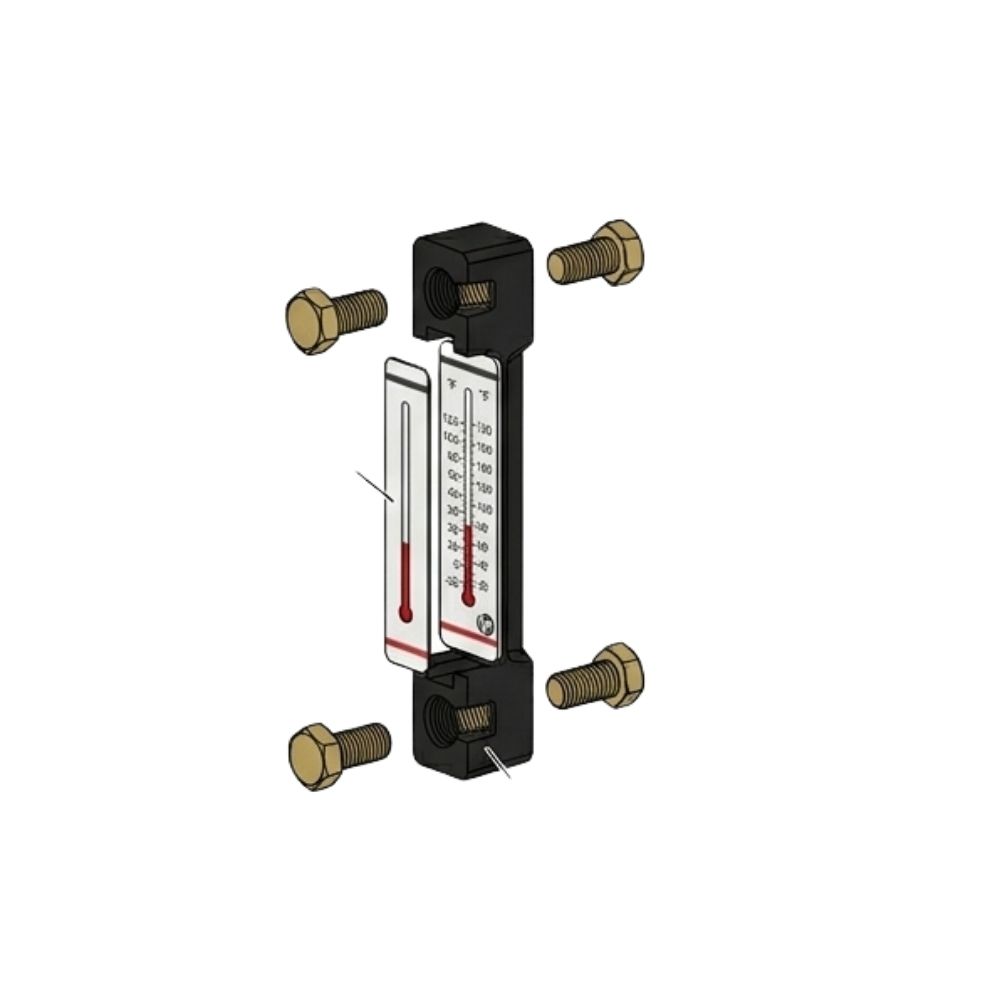

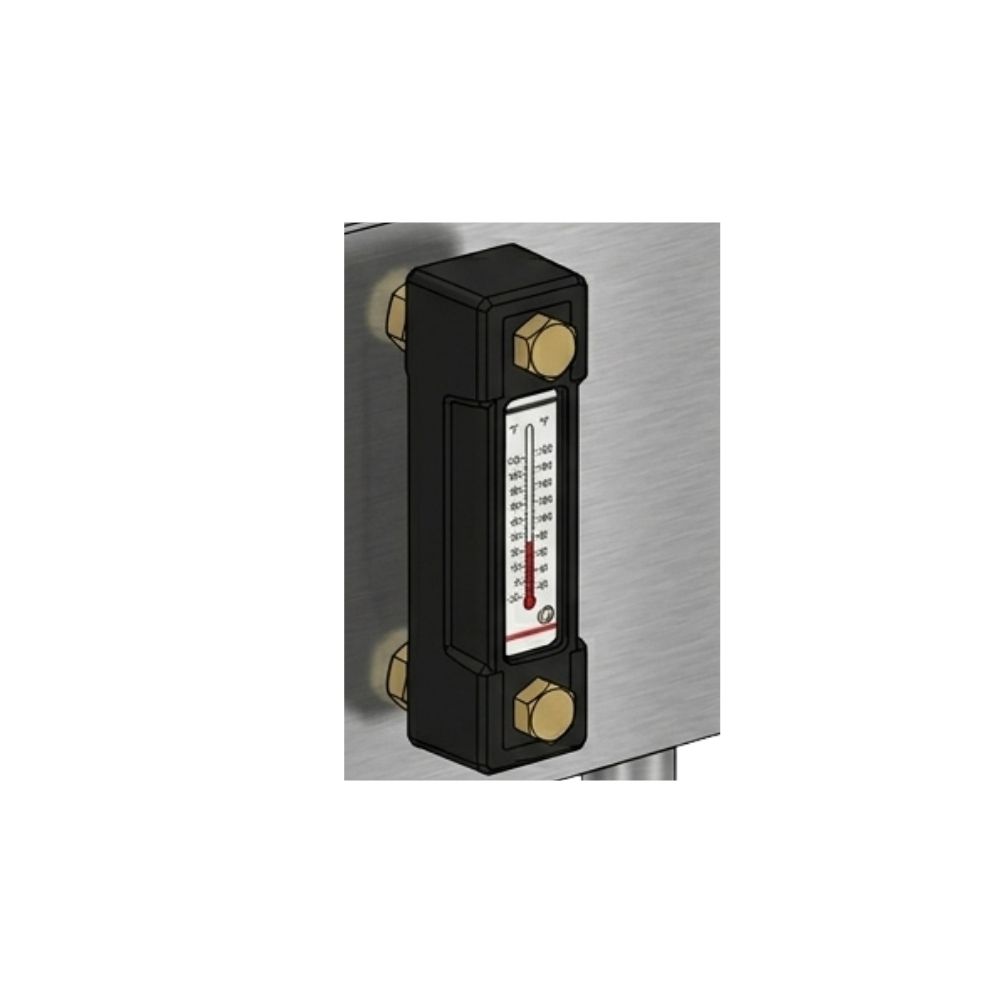

| Mounting Style | Bolt-on mounting suitable for tapped holes; limited to 3 ft-lbs bolt torque |
| Tank Type | Designed for non-pressurised tanks only |
| Fluid Compatibility | Optimized for mineral and petroleum-based oils |
| Operating Temp. | Rated for a maximum temperature of 80°C (176°F) |

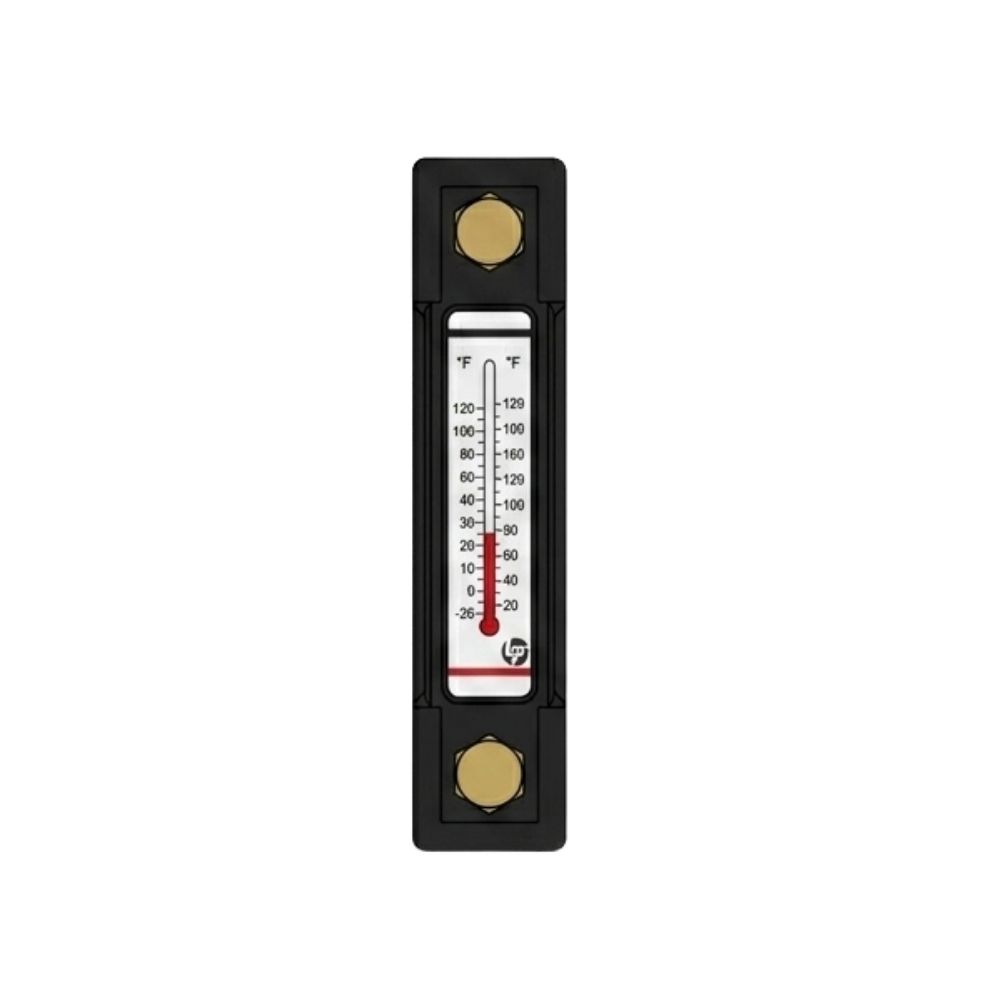

| Optional Features | Integrated thermometer (indicated by “T” suffix, e.g., LG6-03T) for temperature monitoring |
| Standard Fasteners | Typically supplied with M12 bolts (Standard) or optional M10 / 1/2″-13 UNC bolts |
