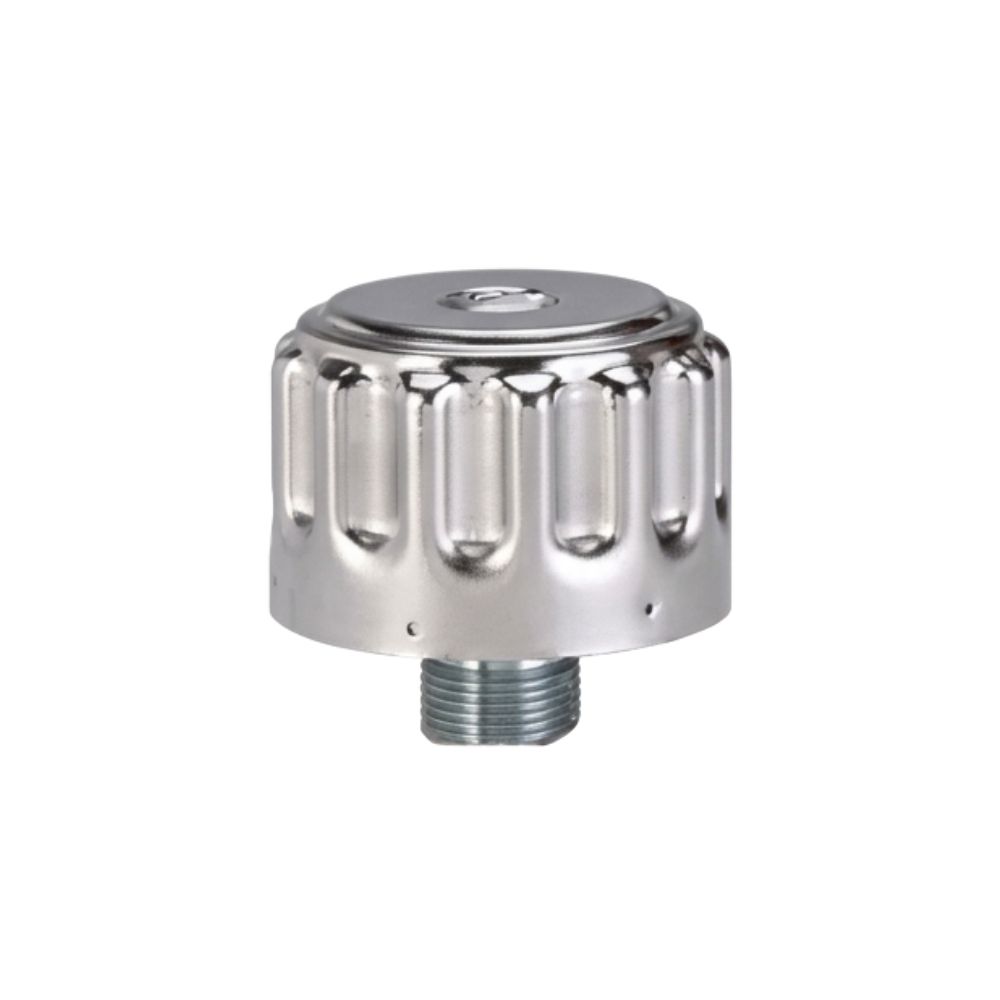

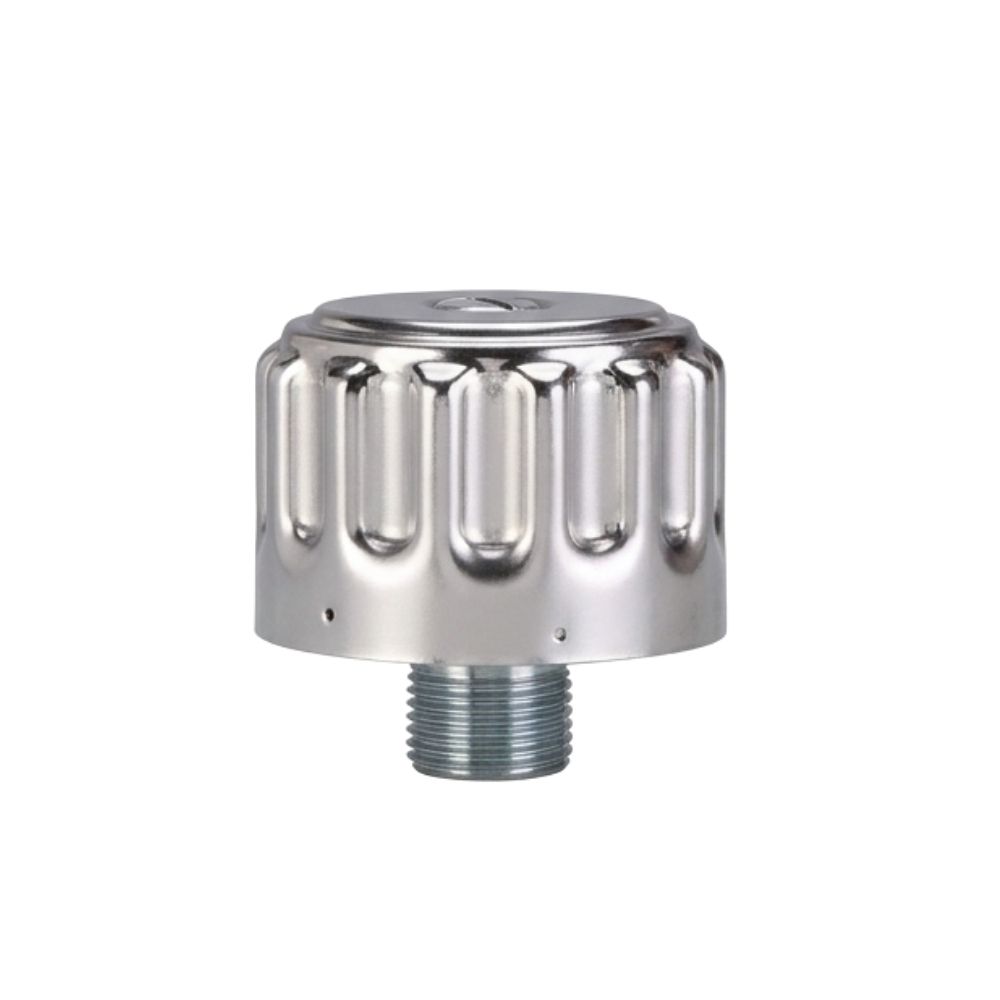

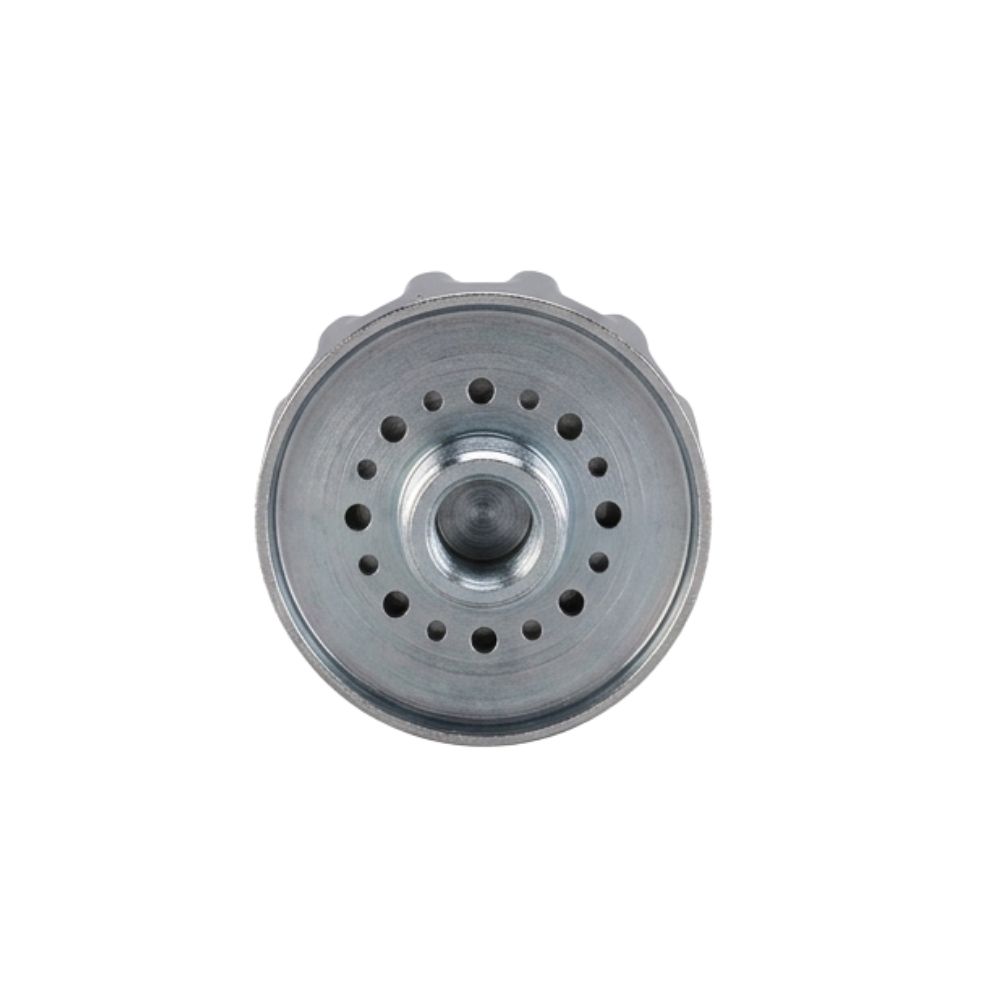

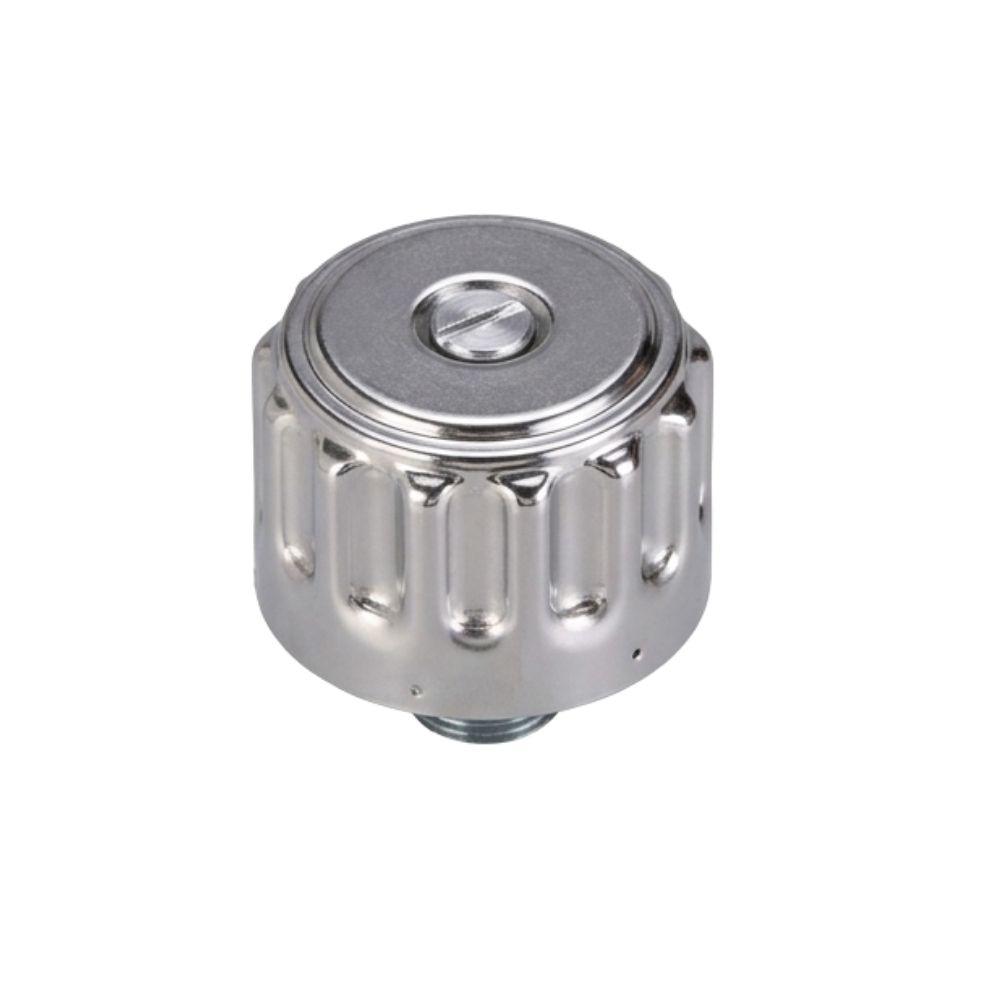

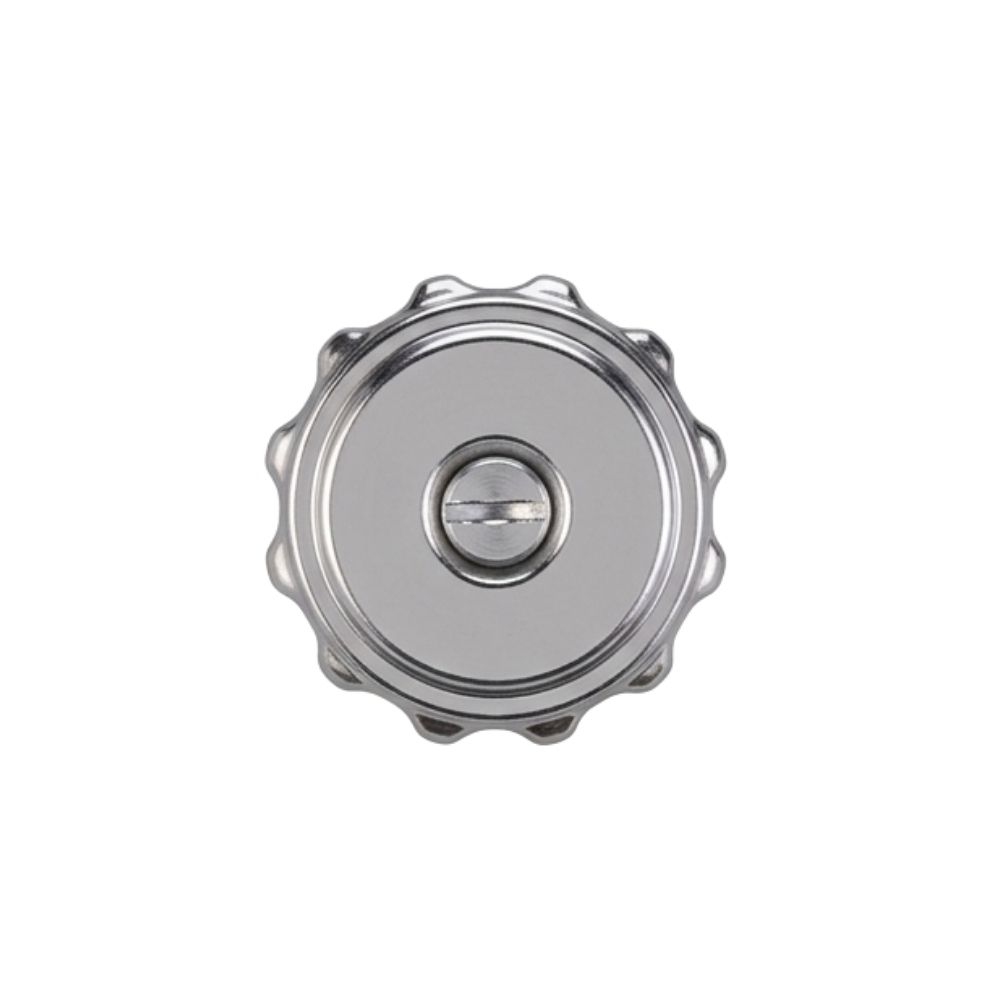

Breather – TB
The Hydroline TB series consists of line-mounted, threaded hydraulic tank breathers designed to protect reservoirs from airborne contamination while managing internal air pressure. These units act as a ventilation point, filtering air as it enters and exits the tank during standard system cycles.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hydroline Breather TB series consists of line-mounted tank breathers designed to maintain preset pressure in hydraulic reservoirs while filtering incoming air. These breathers are commonly used in industrial and mobile applications to prevent contaminants from entering the hydraulic system and to manage air displacement.
| Feature | Specification Details |
|---|---|
| Valve Function | Integrated pressure relief valve (Standard: 5 PSI) |
| Air Flow | Bi-directional (allows free intake if tank pressure drops) |
| Filtration Rating | 40 Microns (Standard); 10 or 3 Microns (Optional) |
| Mounting Type | Line-mounted, threaded connection |
| Housing Material | Chrome-plated steel (Black powder coating optional) |
| Internal Components | Metal strainer included for basic particle protection |
| Fluid Compatibility | Mineral oils, water-glycols, and most synthetic fluids |
| Operating Temp | Up to 100°C (212°F) |
