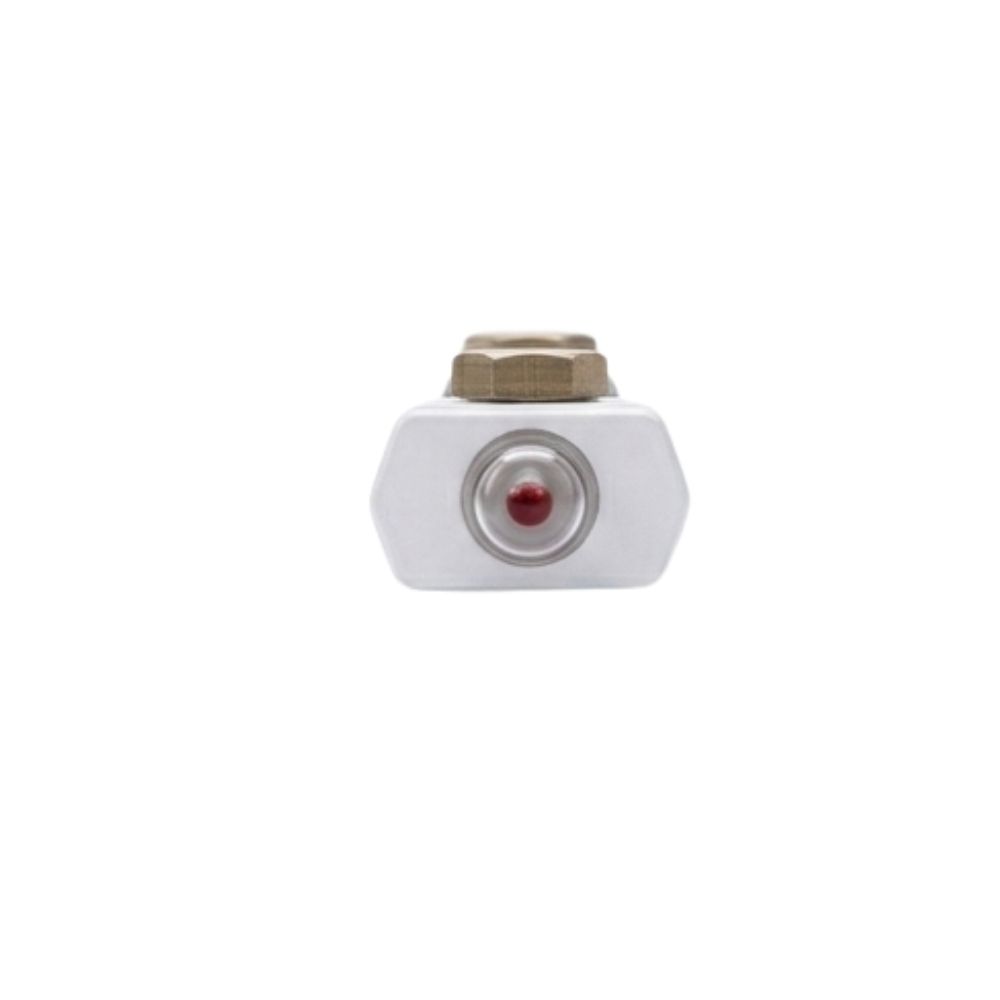

Level Gauge – LG2
The Hydroline LG2 series is a range of high-precision sight level gauges engineered for clear, visual fluid monitoring in hydraulic reservoirs and tanks. Known for their compact and robust design, these gauges are essential for maintaining system safety by preventing overfilling or low-oil conditions.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hydroline LG2 series is a range of industrial sight-level gauges designed primarily for monitoring oil levels in non-pressurised hydraulic tanks and reservoirs. These gauges feature an “O” ring type construction and are commonly used with mineral or petroleum-based oils.
| Category | Specification / Feature | Details per Model |
|---|---|---|
| Technical Dimensions | Bolt Centre Distance (A) | LG2-03: 76 mm (3″) | LG2-05: 127 mm (5″) | LG2-10: 254 mm (10″) |
| Visible Length (B) | LG2-03: 31 mm | LG2-05: 76 mm | LG2-10: 200 mm |
|
| Overall Height (F) | LG2-03: 108 mm | LG2-05: 159 mm | LG2-10: 286 mm |
|
| Unit Weight | LG2-03: 0.23 kg | LG2-05: 0.28 kg | LG2-10: 0.41 kg |
|
| Key Features | Construction Type | Leak-proof ‘O’ ring type construction. |
| Tank Compatibility | Designed for non-pressurised tanks only. | |
| Fluid Compatibility | Suitable for mineral and petroleum-based oils. | |
| Mounting | Can be mounted on tapped holes; standard M12 bolts included. | |
| Operational Limits | Max Temperature | Reliable up to 80°C (176°F). |
| Bolt Torque | Recommended limit of 3 ft-lbs for installation. | |
| Materials & Options | Body Material | Cast Iron or Aluminum with Acrylic/Borosilicate glass window. |

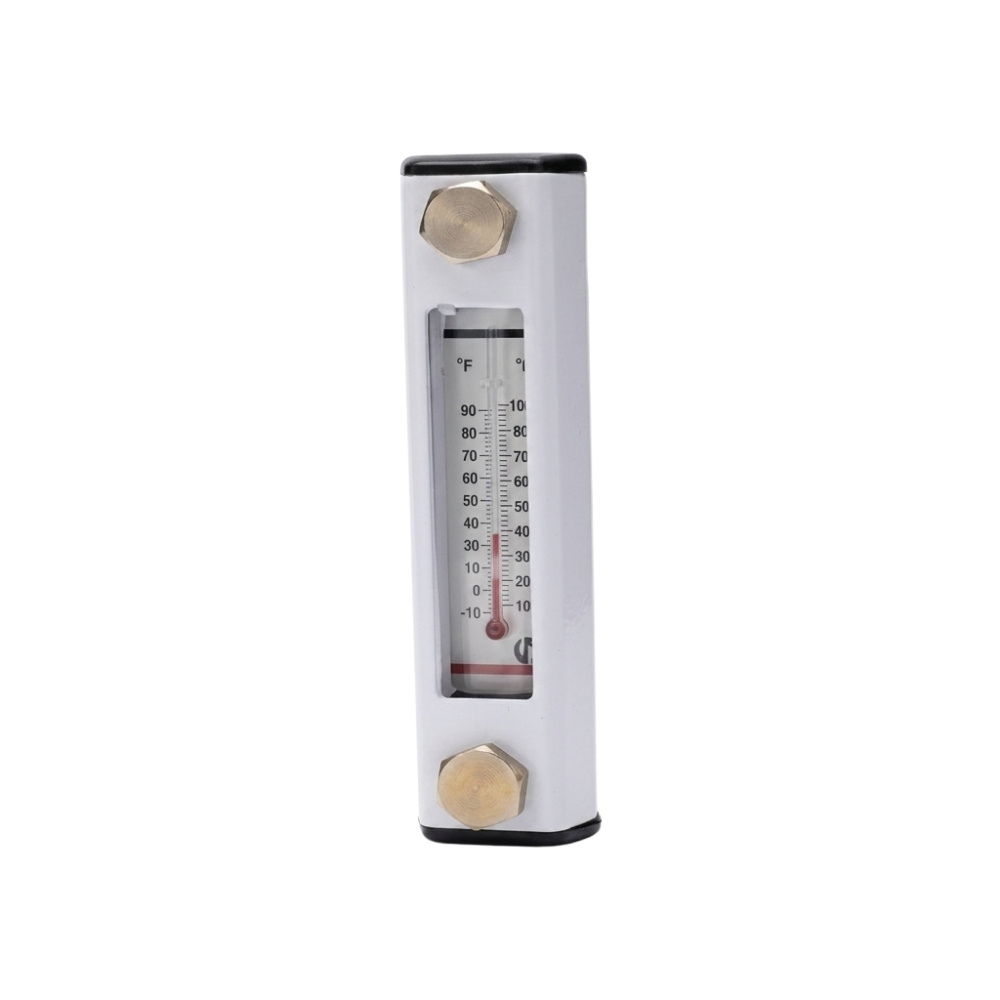

| Temperature Gauge | Optional ‘T’ suffix (e.g., LG2-05T) for integrated thermometer. | |
| Bolt Options | Special M10 or 1/2″-13 UNC bolt sizes available on request. |
