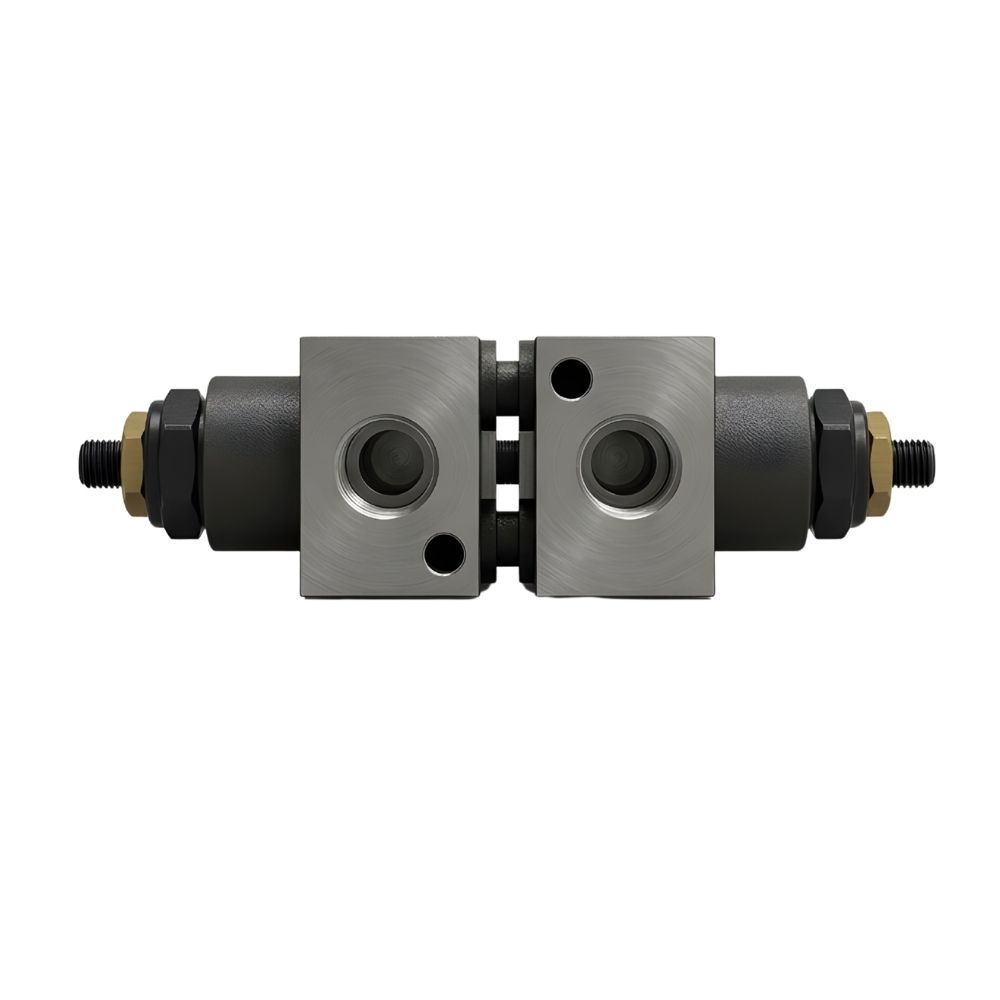

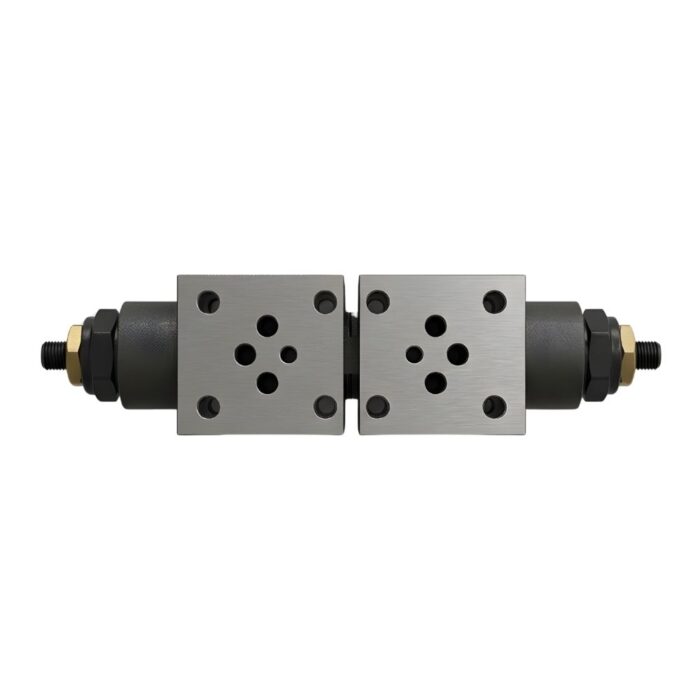

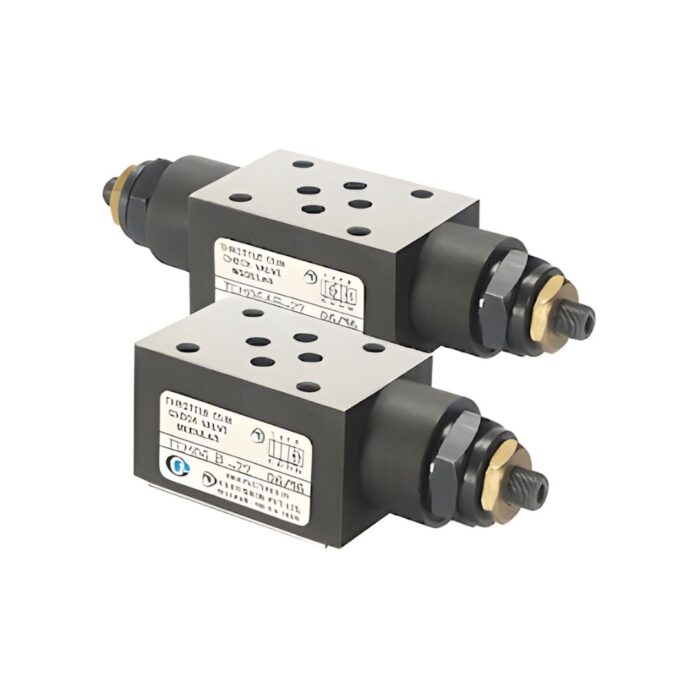

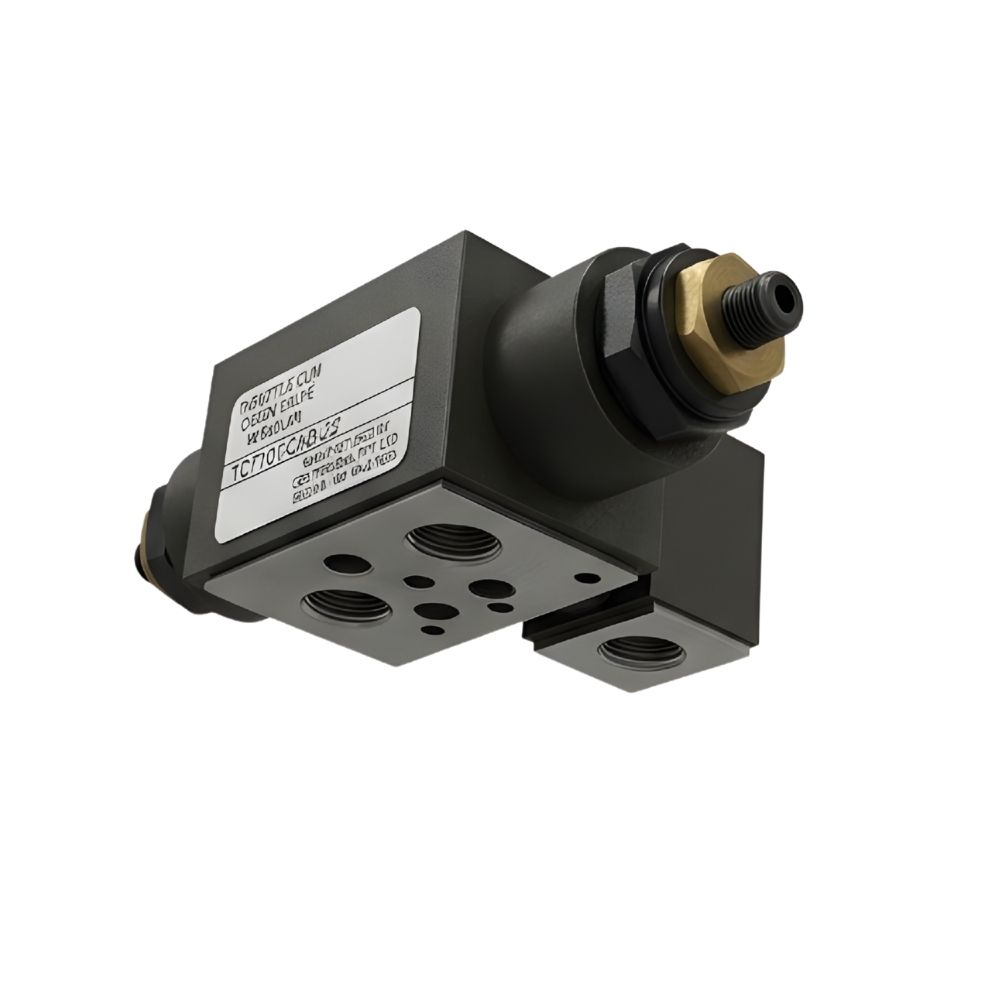

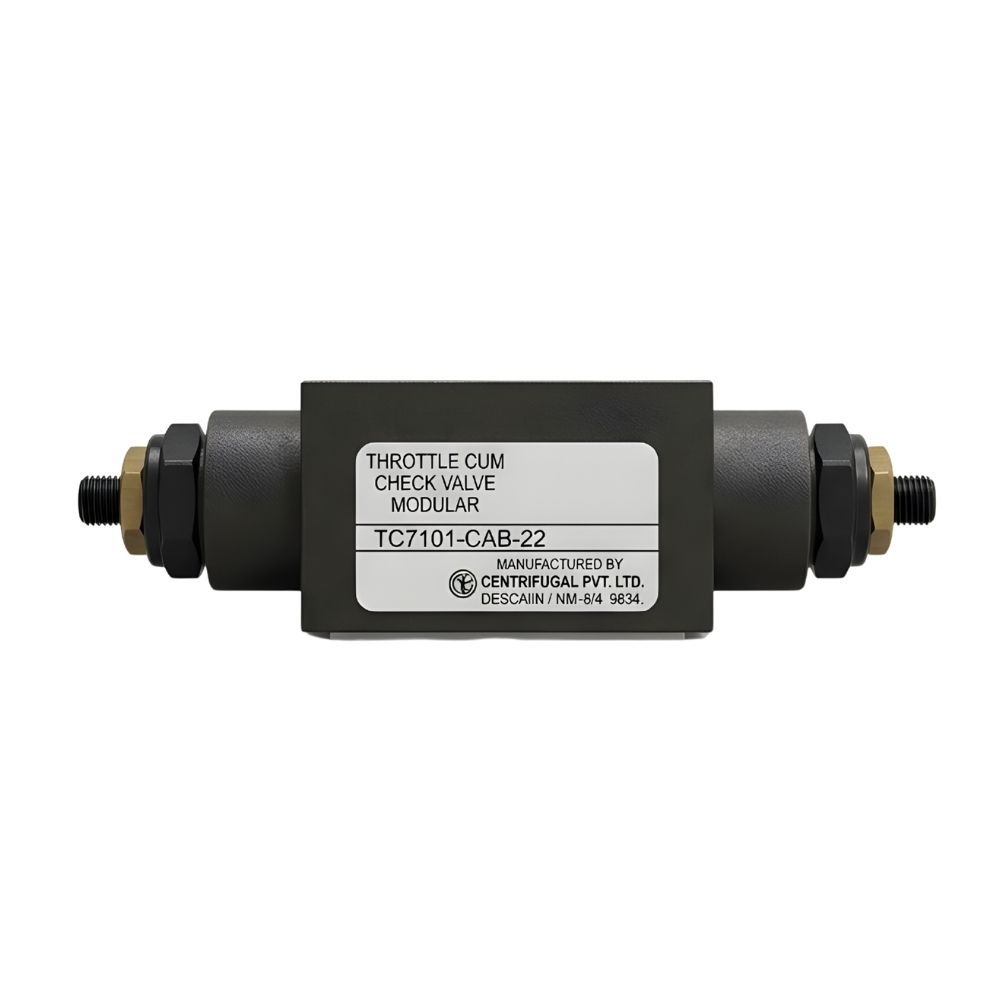

TCM 06 – Throttle / Check Valve (Modular) –
The Polyhydron Check Valve TCM 06 is a modular throttle-check valve used to regulate hydraulic actuator speeds. It works by restricting flow in one direction via an adjustable screw while allowing free flow in the opposite direction through a built-in check valve.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Throttle/Check Valve (Modular) – TCM 06 features a double throttle cum check design with non-pressure compensated operation. Its modular construction allows easy integration into hydraulic systems, and it can be used as a metering-in or metering-out device for effective flow control.
| Nominal flow and pressure ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | Max. working pr. (bar) | Max. flowl/min. | |||||
| TCM 06 | 315 | 40 | |||||
Key Specifications
| Feature | Specification |
|---|---|
| Valve Size | Size 6 |
| Nominal Flow Capacity | 40 L/min |
| Operating Pressure | Up to 315 bar |
| Fluid Temperature Range | -10°C to +80°C |
| Viscosity Range | 10 cSt to 380 cSt |
| Mounting Standard | Conforms to ISO 4401-03-02-0-94, IS 10187, DIN 24340 |
| Mass | Approximately 1.1 kg |
