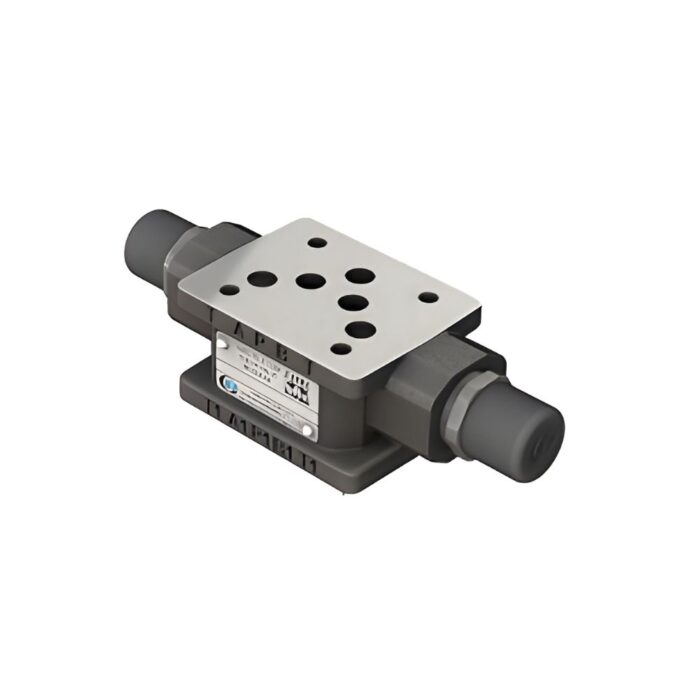

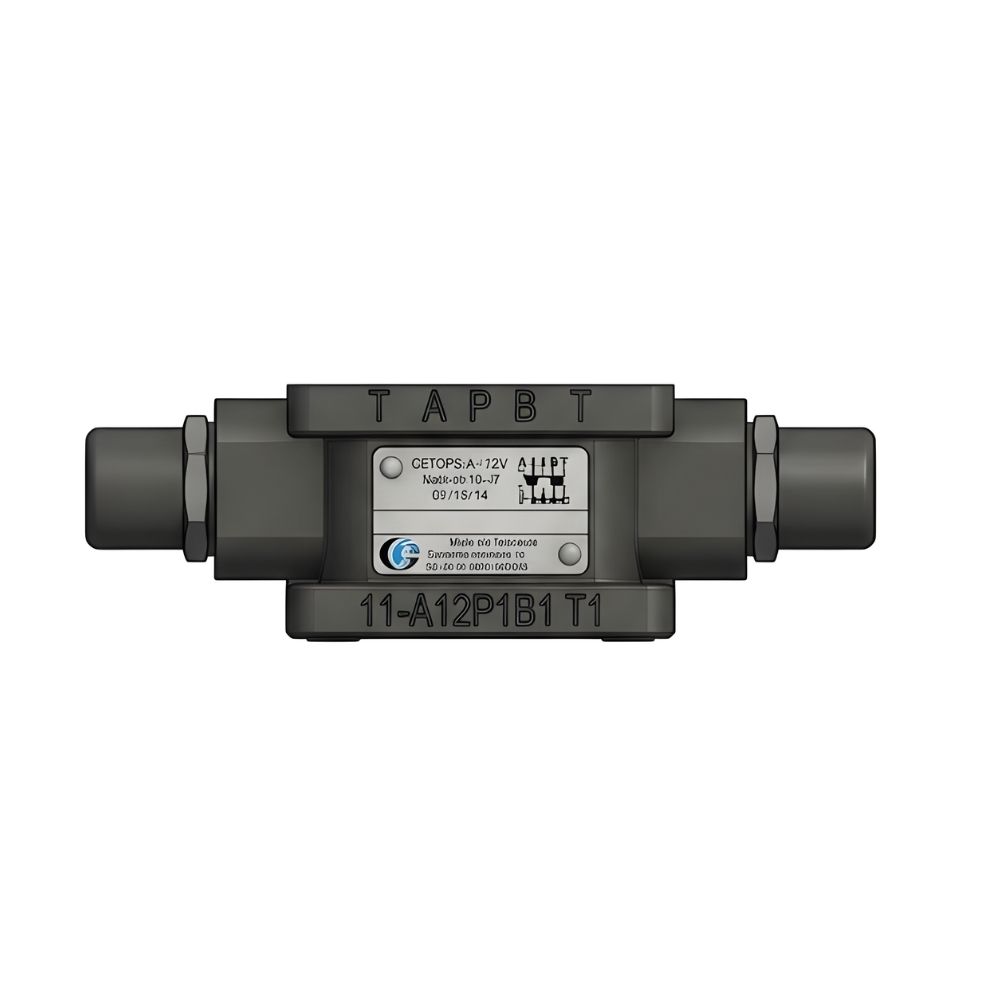

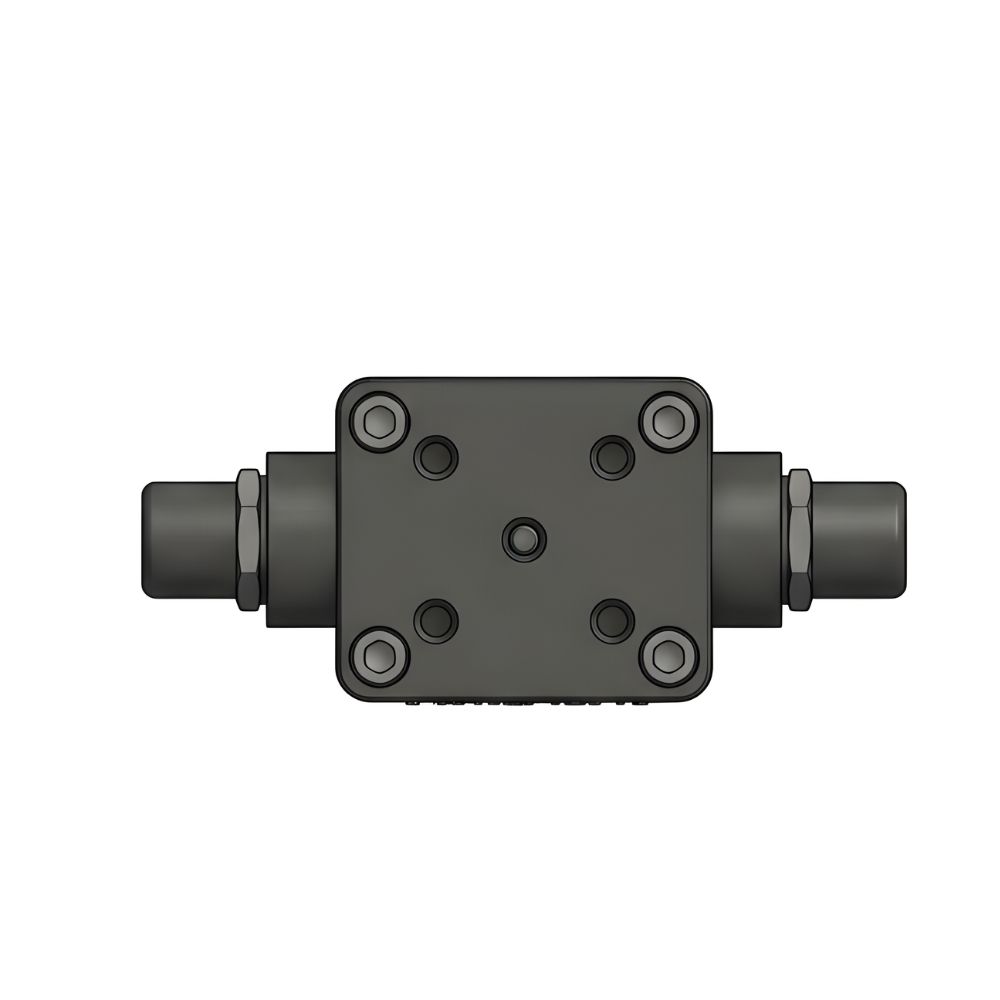

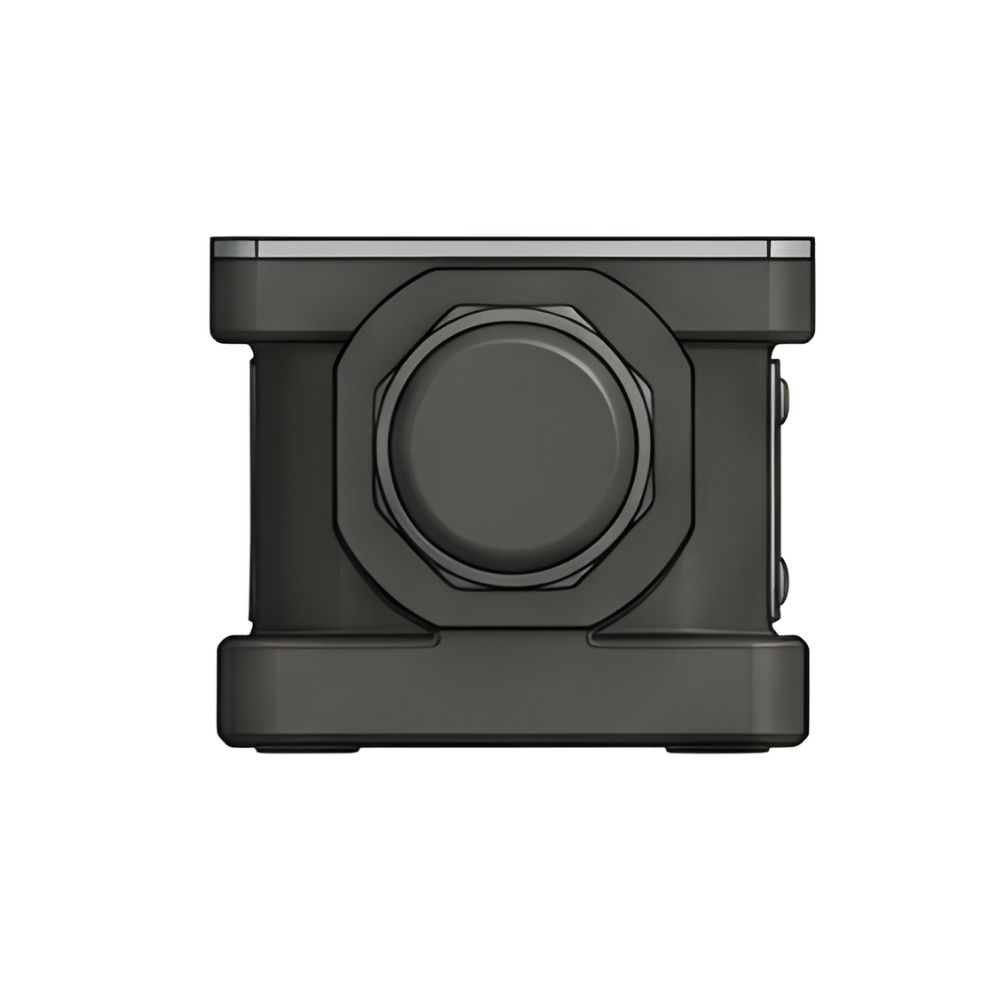

TCM 10 – Throttle / Check Valve (Modular)
The Polyhydron TCM 10 is a modular, non-pressure-compensated throttle check valve used to regulate hydraulic flow in one direction while allowing free flow in the reverse direction.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Throttle/Check Valve (Modular) – TCM 10 features a double throttle cum check design with non-pressure compensated operation. Its modular construction ensures easy installation, and it can be used as a metering-in or metering-out device for effective flow control in hydraulic systems.
| Nominal flow and pressure ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | Max. working pr. (bar) | Max. flowl/min. | |||||
| TCM 10 | 315 | 40 | |||||
Configuration & Operation

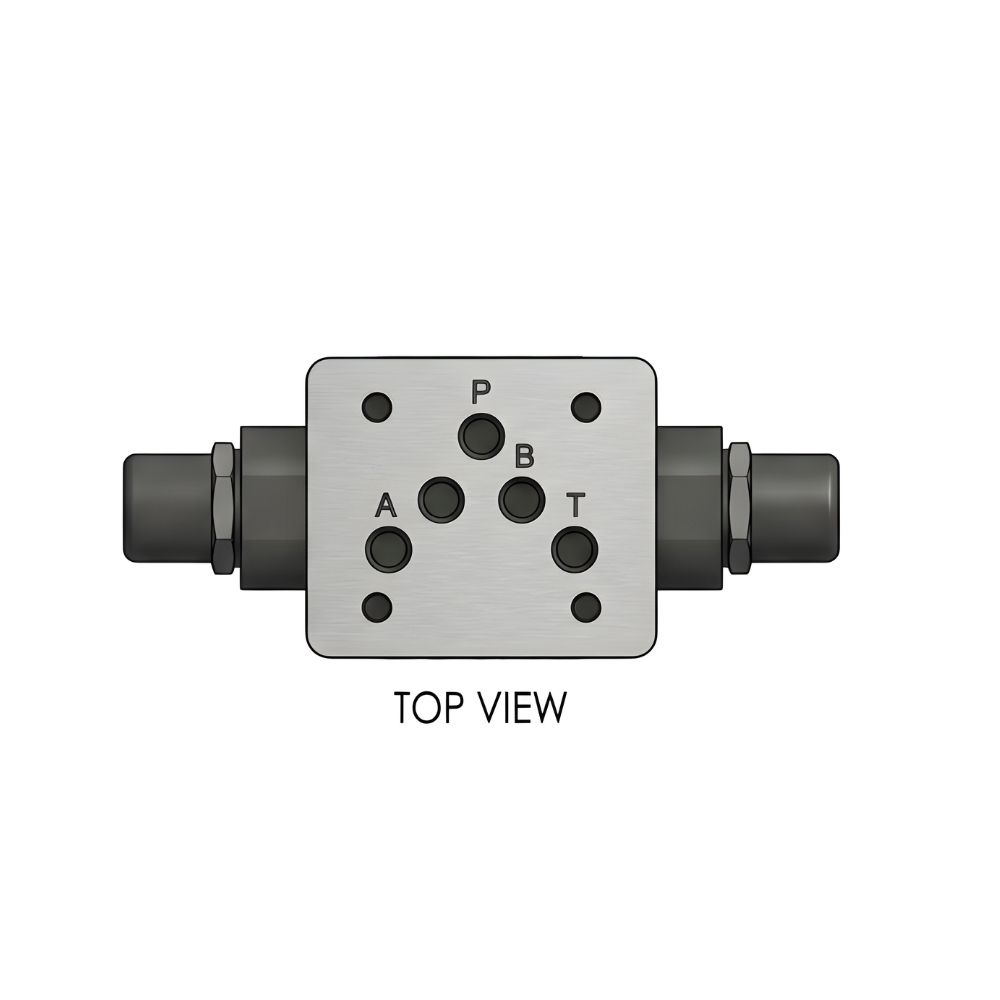

- Port Availability: The valve can be configured for throttle-check control on Port A, Port B, or both A and B ports simultaneously.
- Meter-In vs. Meter-Out:Â You can convert the valve from a meter-in to a meter-out configuration by simply rotating the body 180 degrees along its longitudinal axis during installation.
- Adjustment: Turning the throttling screw clockwise increases the pressure drop (decreases oil flow). It includes a check nut for locking the setting and a protective cap.
- Flow Path:Â Ports P and T allow unrestricted free flow in both directions.
