T15 – Digital Temperature Transmitter
The WIKA T15 is a high-performance, digital temperature transmitter designed for industrial applications requiring precise temperature monitoring [1]. It acts as an intermediary device, taking raw electrical resistance signals from temperature sensors and converting them into a clean, standardized 4 to 20 mA analog signal that control systems (like PLCs) can easily read.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The WIKA T15 is a highly accurate, PC-configurable digital temperature transmitter designed to convert resistance signals into a standardized 4 to 20 mA analogue output. It is widely used in plant construction, machine building, and the process industry due to its robust design and exceptional electromagnetic interference (EMI) protection.
| Category | Feature & Specification Details |
|---|---|
| Supported Inputs | Pt100, Pt1000, and reed chains (potentiometer circuit) |
| Connection Types | 2-wire, 3-wire, or 4-wire sensor configurations |
| Analogue Output | 4 … 20 mA, standard 2-wire loop-powered design |
| Measurement Accuracy | < 0.2 K (< 0.36 °F) or 0.1% of set span |
| Power Supply Range | DC 8 … 35 V (Standard) or DC 10 … 30 V |
| Operating Temperature | Standard ambient temperature range of -40 °C to +85 °C |
| Response Time | Fast measuring rate with switch-on time under 3 seconds |

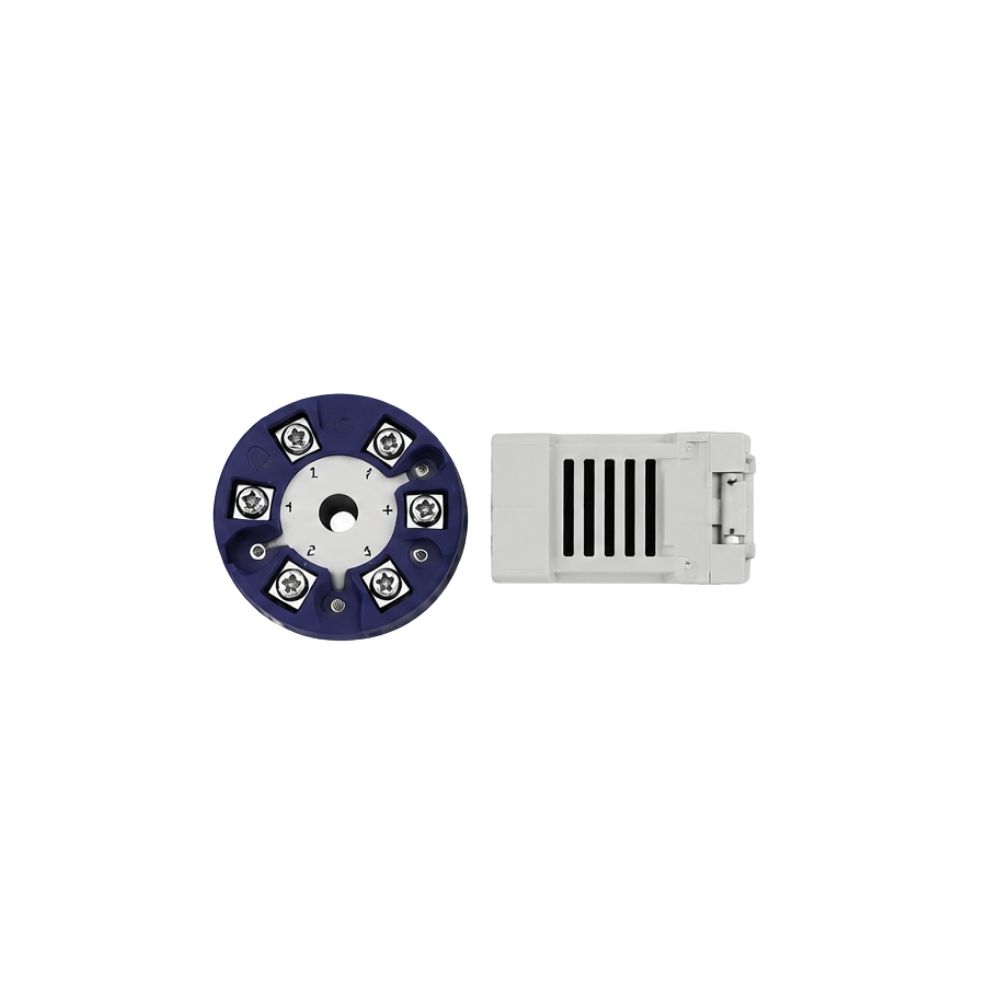

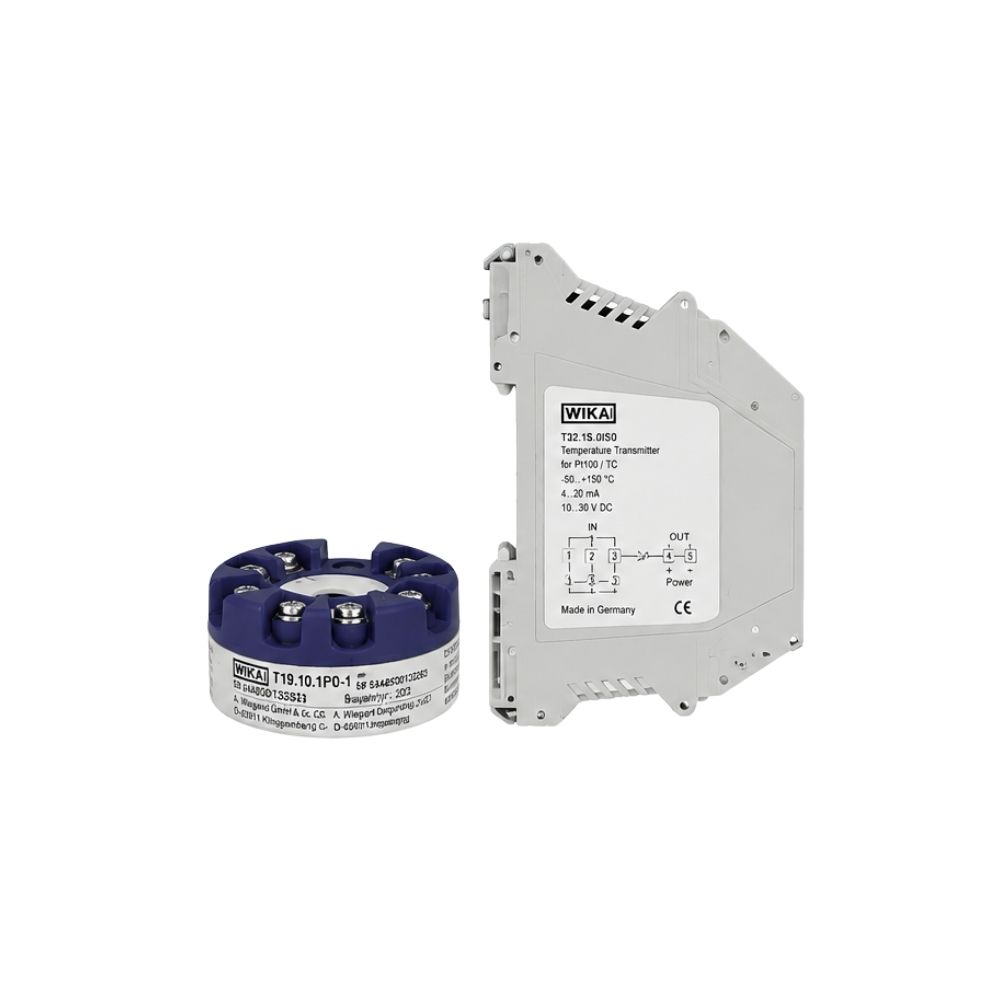

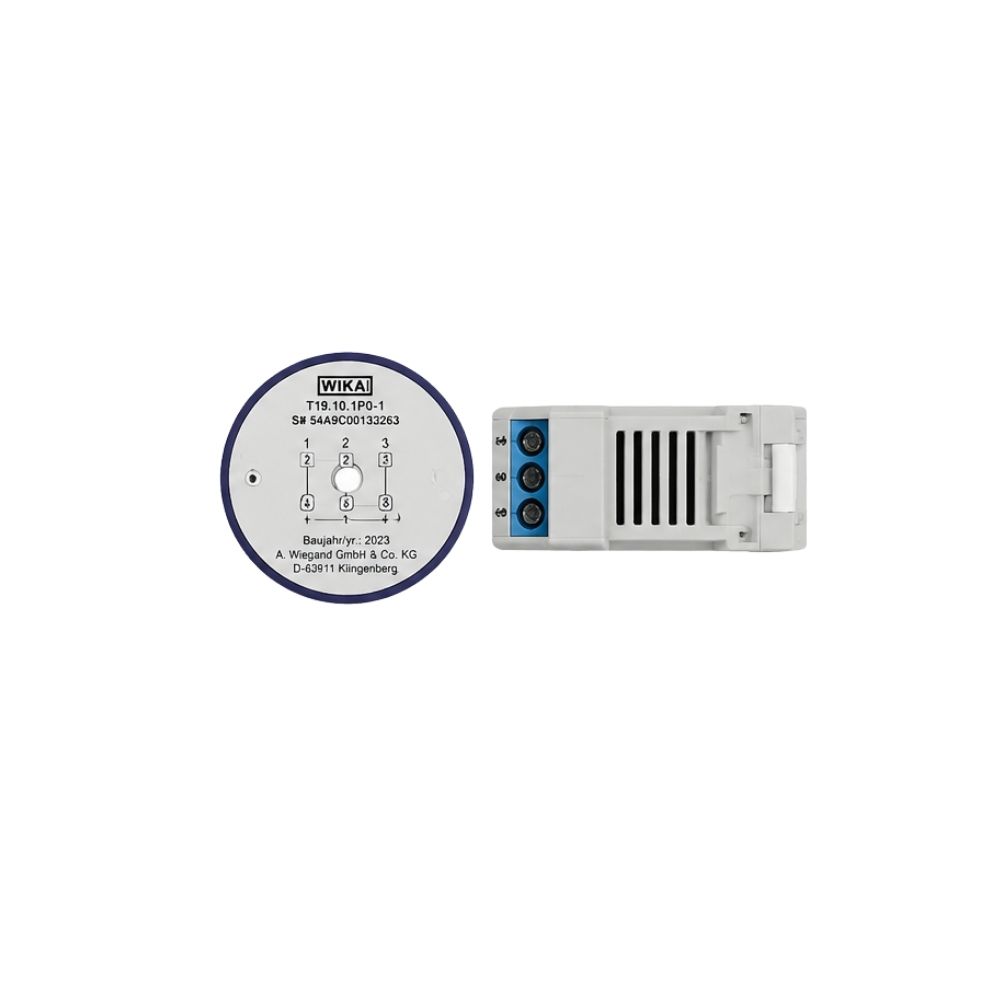

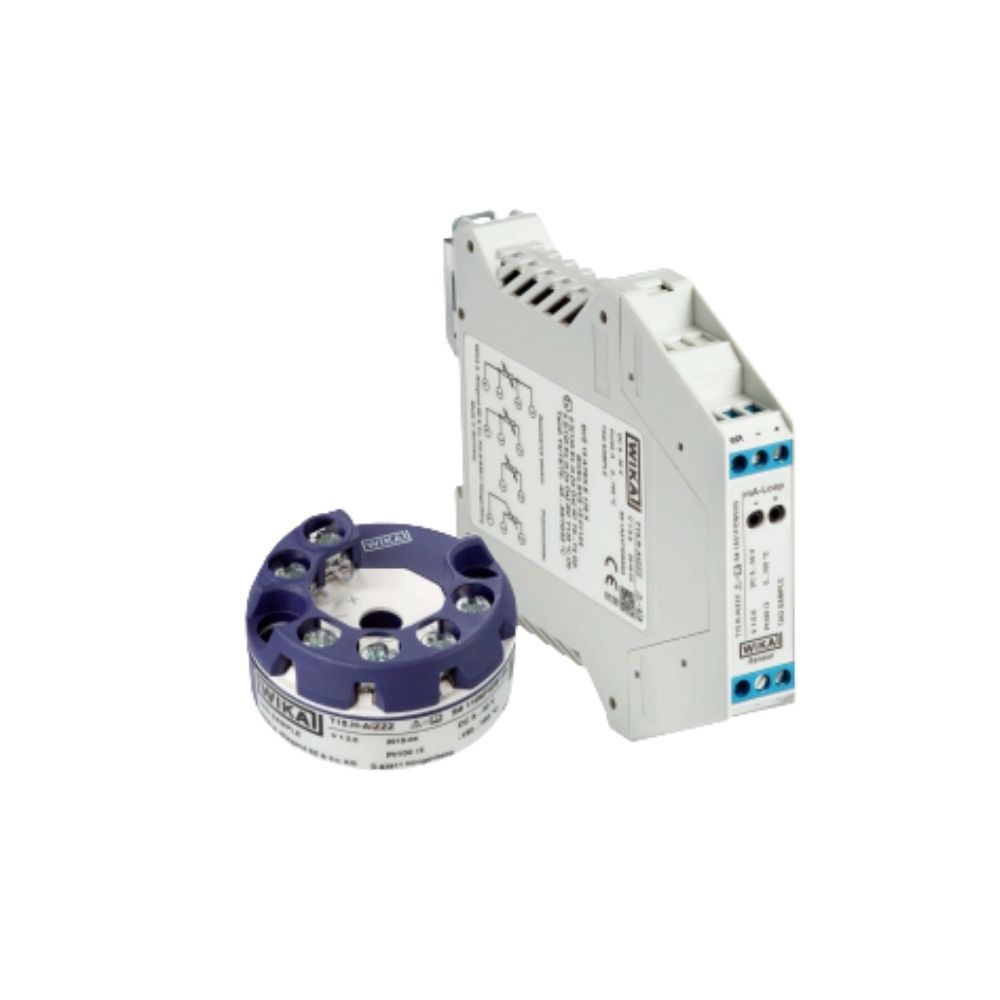

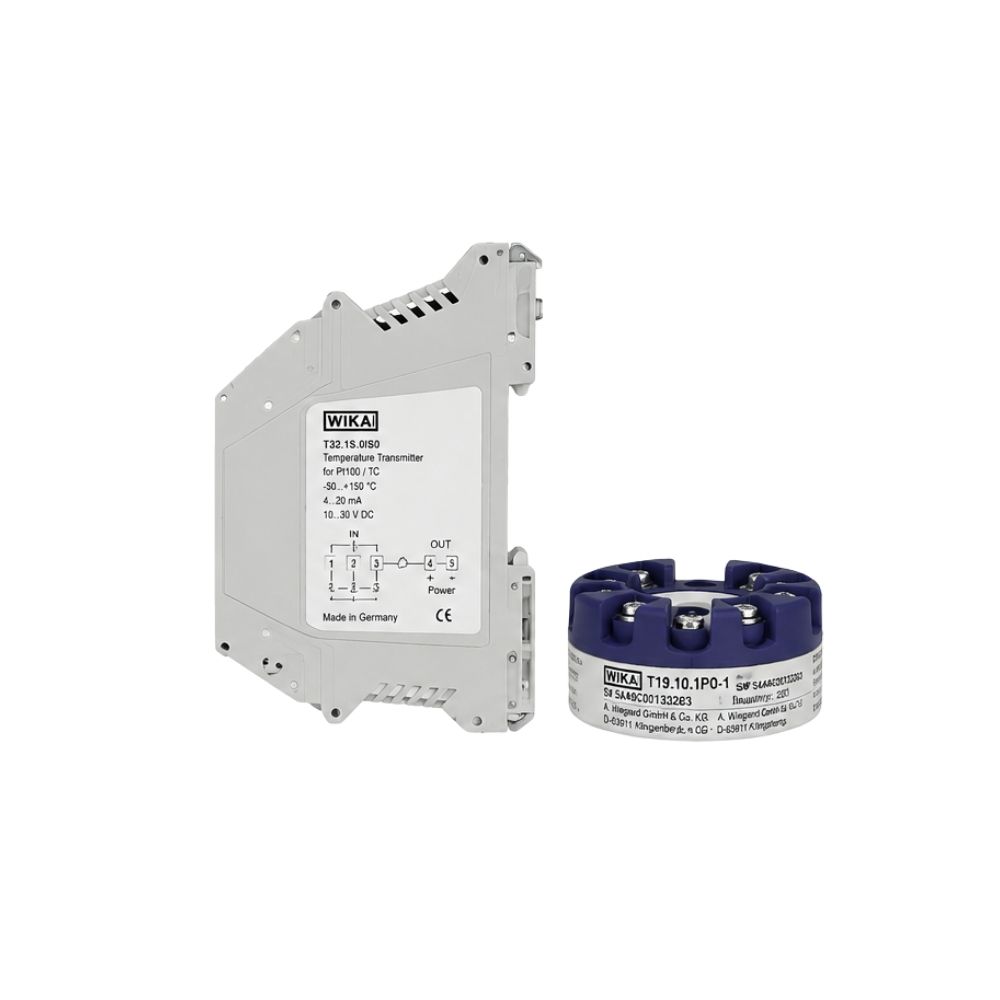

| Available Forms | T15.H (Head-mounted, Form B) or T15.R (DIN Rail-mounted) |
| PC Configuration | Programmable via WIKAsoft-TT software and PU-548 unit |
| Quick Connection | Compatible with magWIK magnetic connector for rapid setup |
| NAMUR Compliance | Meets NE21 (EMC), NE43 (Signal limits), and NE89 (Break detection) |
| Device Diagnostics | Continuous cyclic self-monitoring to ensure safe operation |
