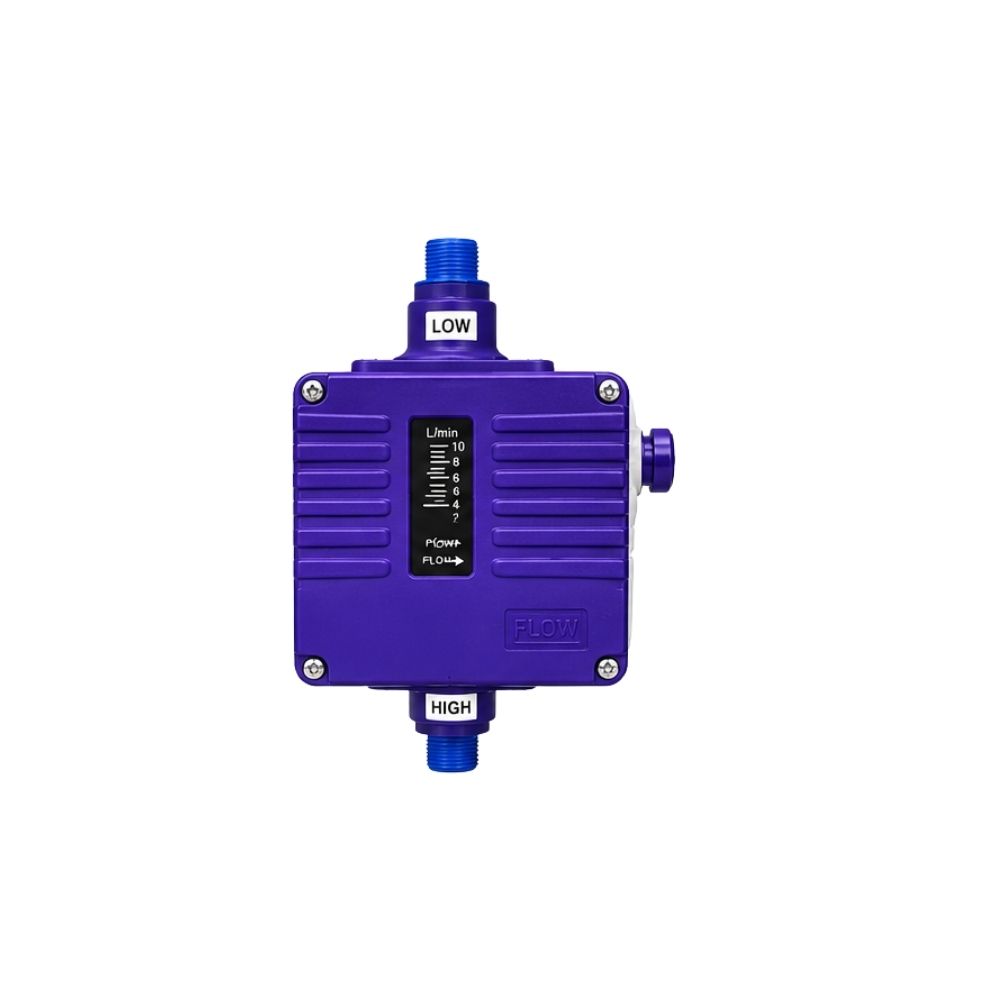

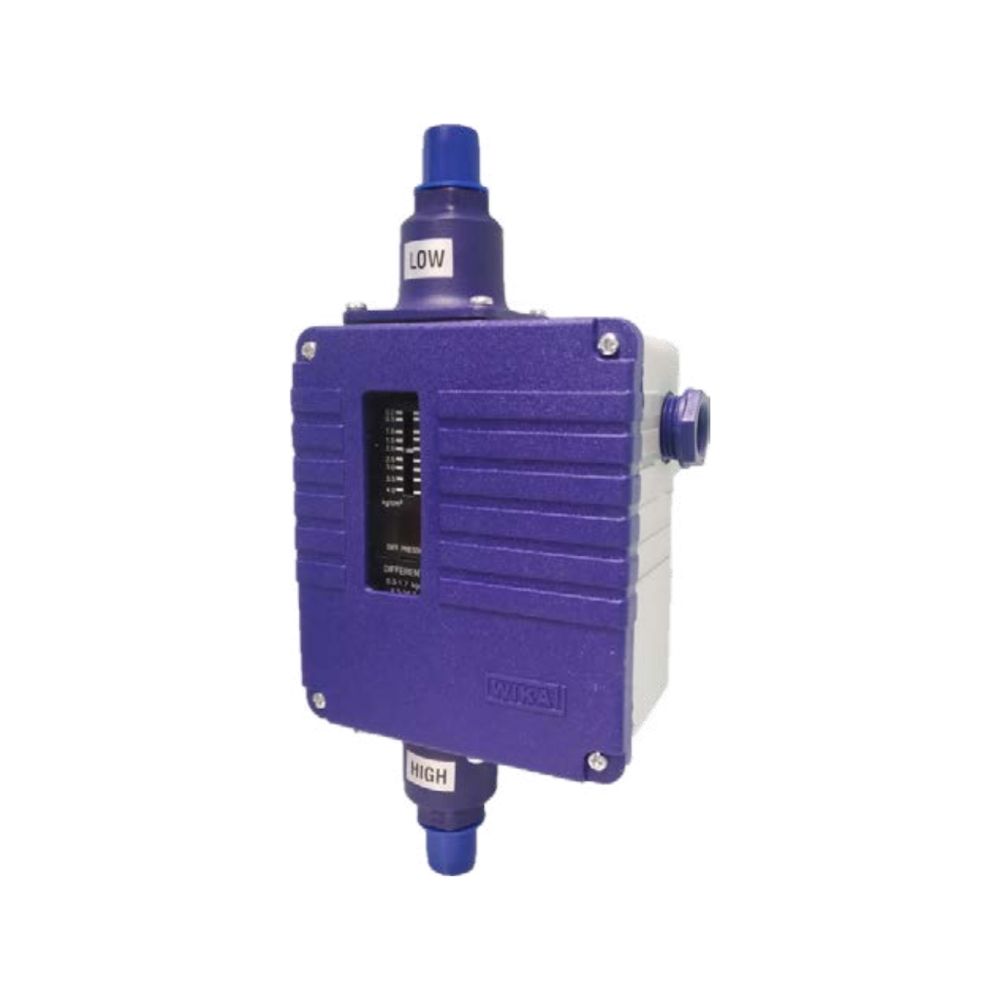

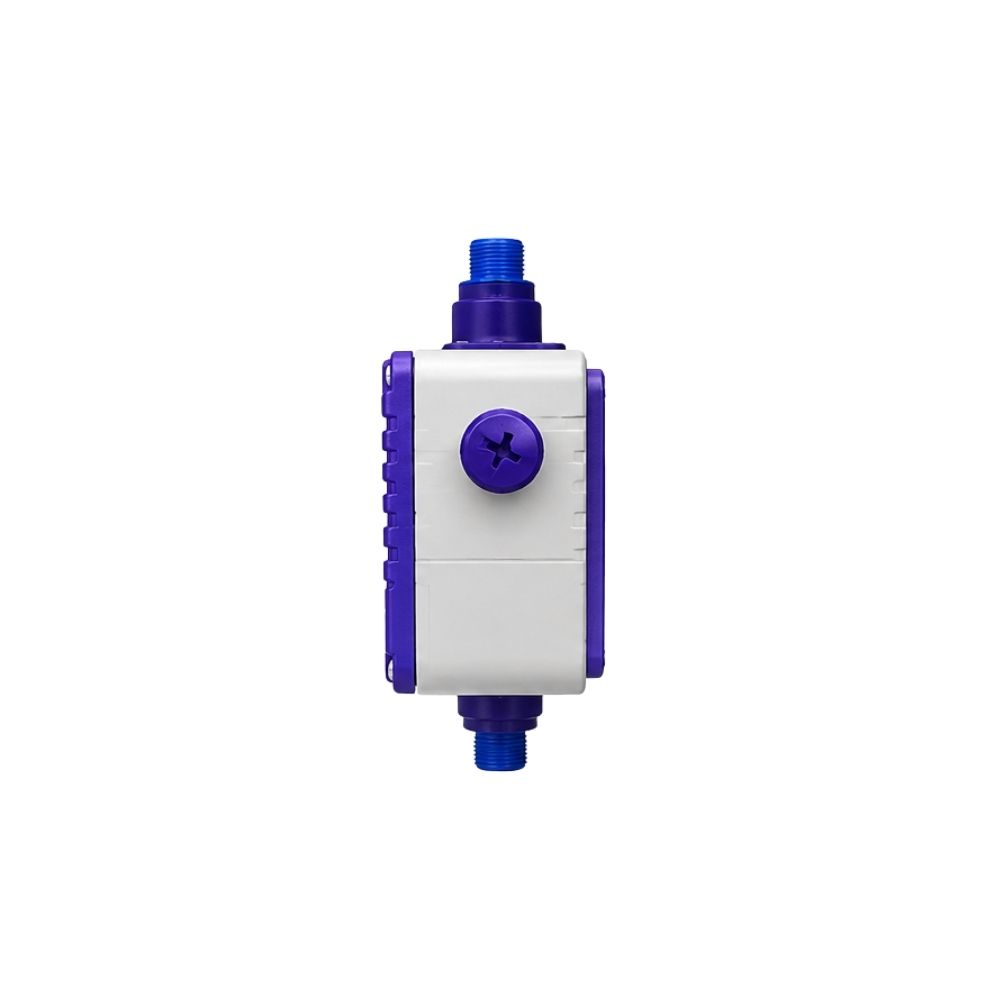

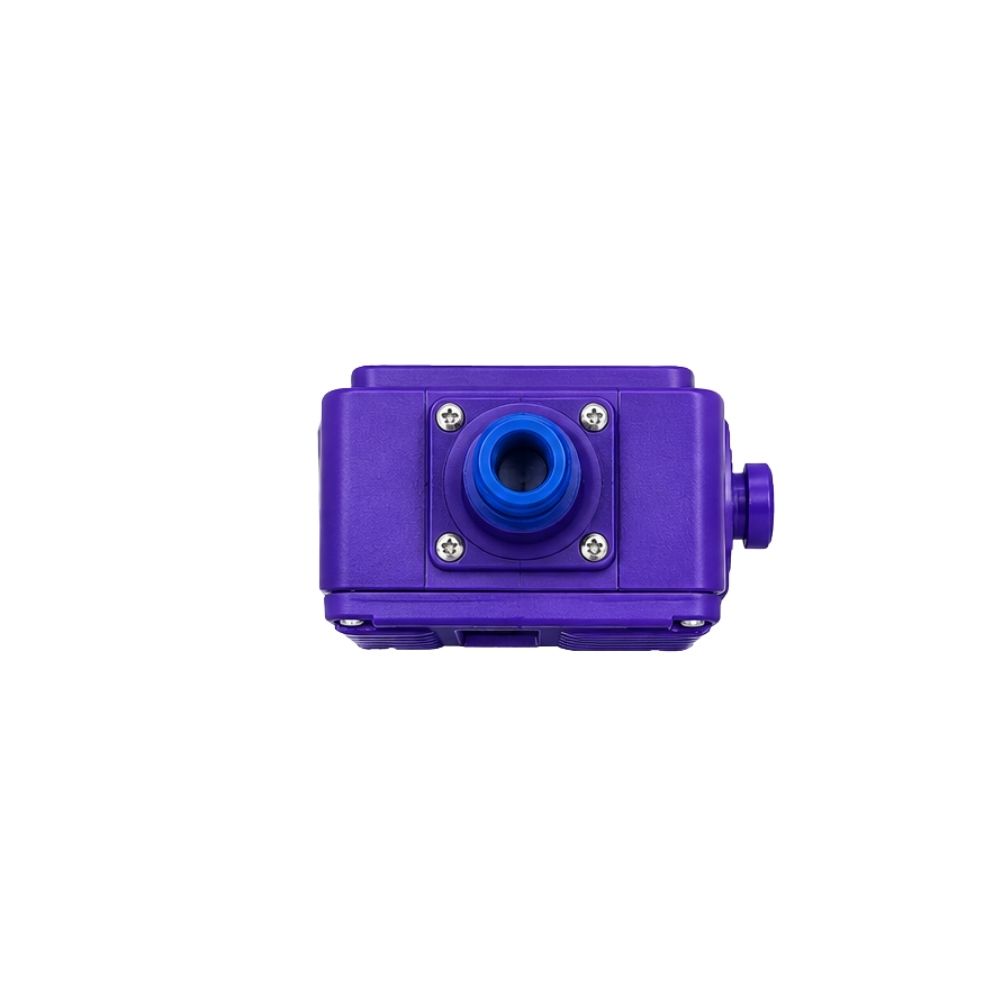

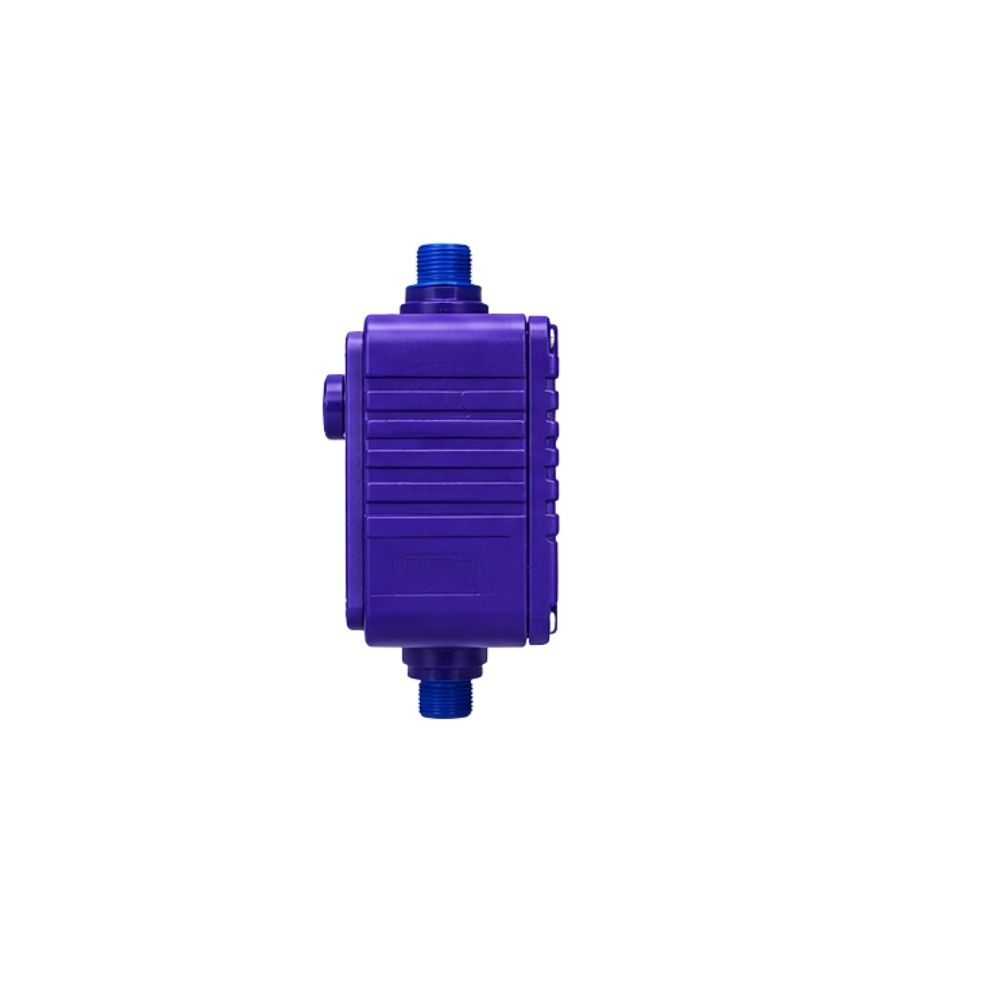

DPSM-550 – Differential Pressure Switch Mechanical
The WIKA DPSM-550 is a heavy-duty mechanical differential pressure switch engineered for precise industrial control, monitoring, and alarm systems. Manufactured under the reputable WIKA Indfos brand, this robust mechanical switch utilizes a high-quality sensor and diaphragm/bellows principle to trigger electrical circuits based on fluid pressure variations without requiring external electronic power.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The WIKA DPSM-550 is a heavy-duty, mechanical differential pressure switch designed to monitor, regulate, and control pressure variances between two distinct points in fluid or gas systems. Built under the trusted WIKA Indfos name, this instrument operates purely mechanically without the need for external electronic power supply. It uses a flexible bellows or diaphragm sensor assembly to actuate an electrical micro switch whenever the difference between the high and low-pressure inlets reaches a user-defined setpoint.
| Specification / Feature | Details |
|---|---|
| Product Model | WIKA Indfos DPSM-550 |
| Switch Type | Mechanical Differential Pressure Switch |
| Sensor Principle | Diaphragm / Bellows mechanism |
| Contact System | 1x SPDT (Single Pole Double Throw) micro switch |
| Power Requirements | None (Purely mechanical operation) |
| Adjustment Options | On-site adjustable range & adjustable on-off differential |
| Enclosure Rating | IP67 weatherproof |
| Housing Material | Dough Moulded Compound (DMC) or Polyester |
| Cover & Gasket | ABS plastic cover with Nitrile rubber gasket |
| Mechanical Life | Up to 1 million switching cycles |
| Repeatability | High long-term performance stability |
| Primary Applications | Pump control, filter monitoring, lubrication loops, marine systems |
