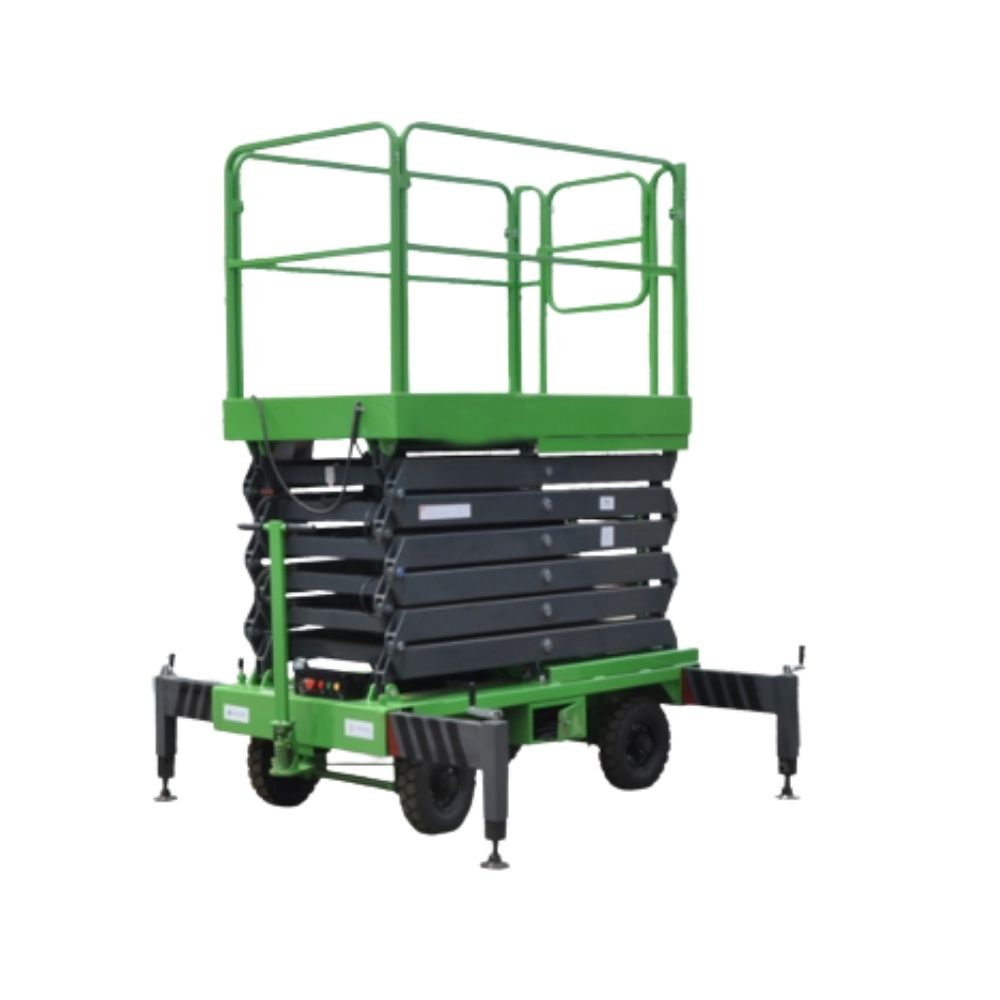

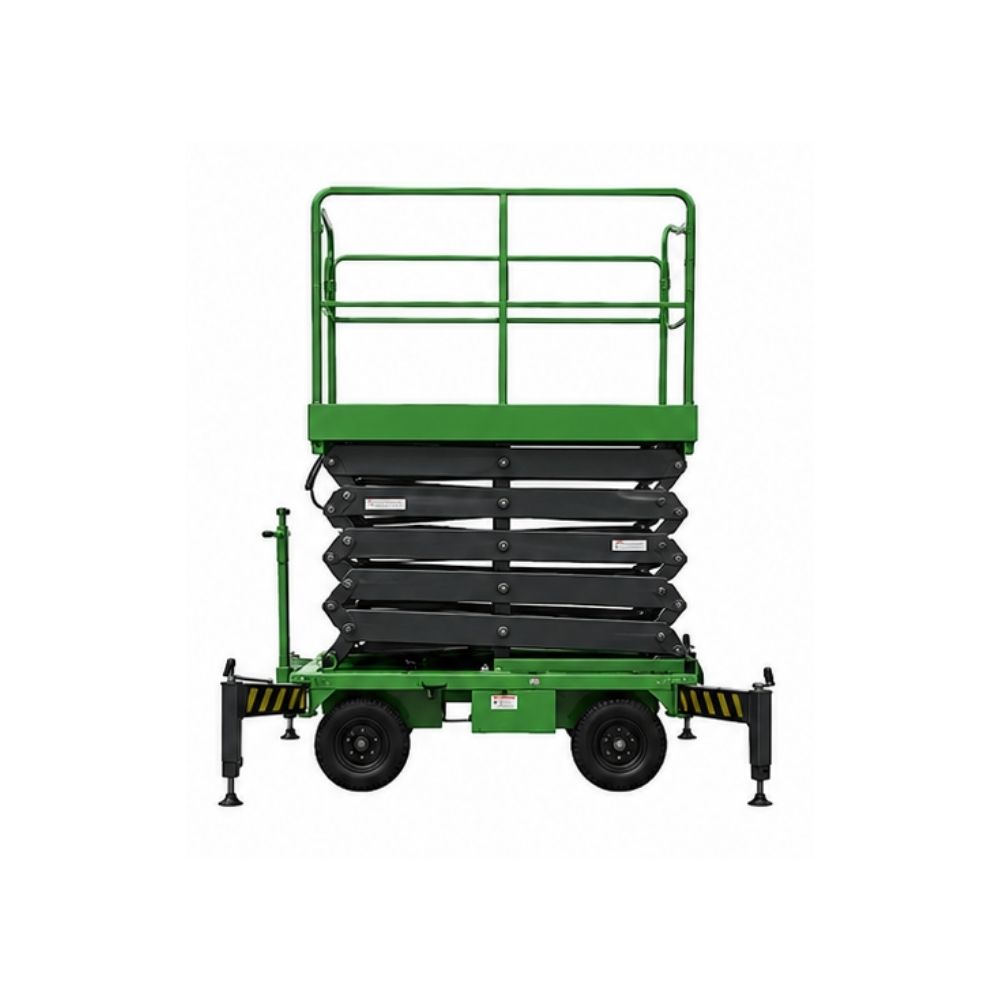

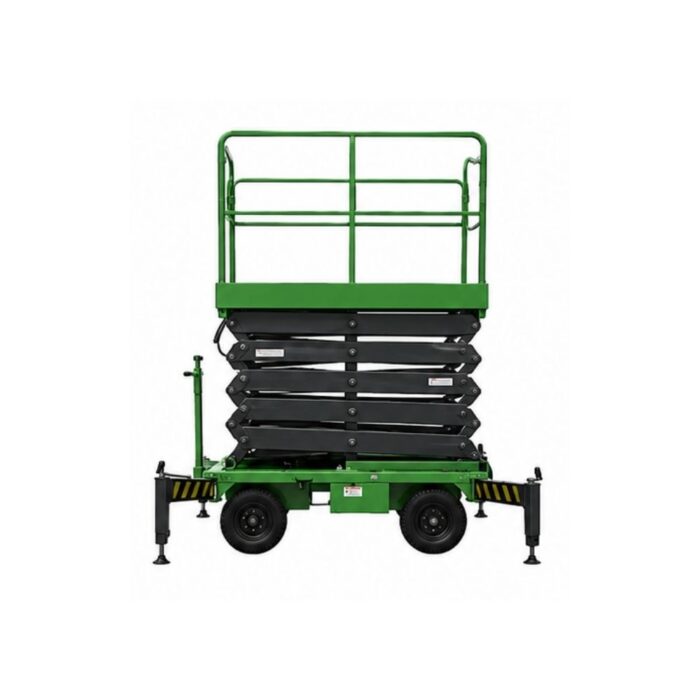

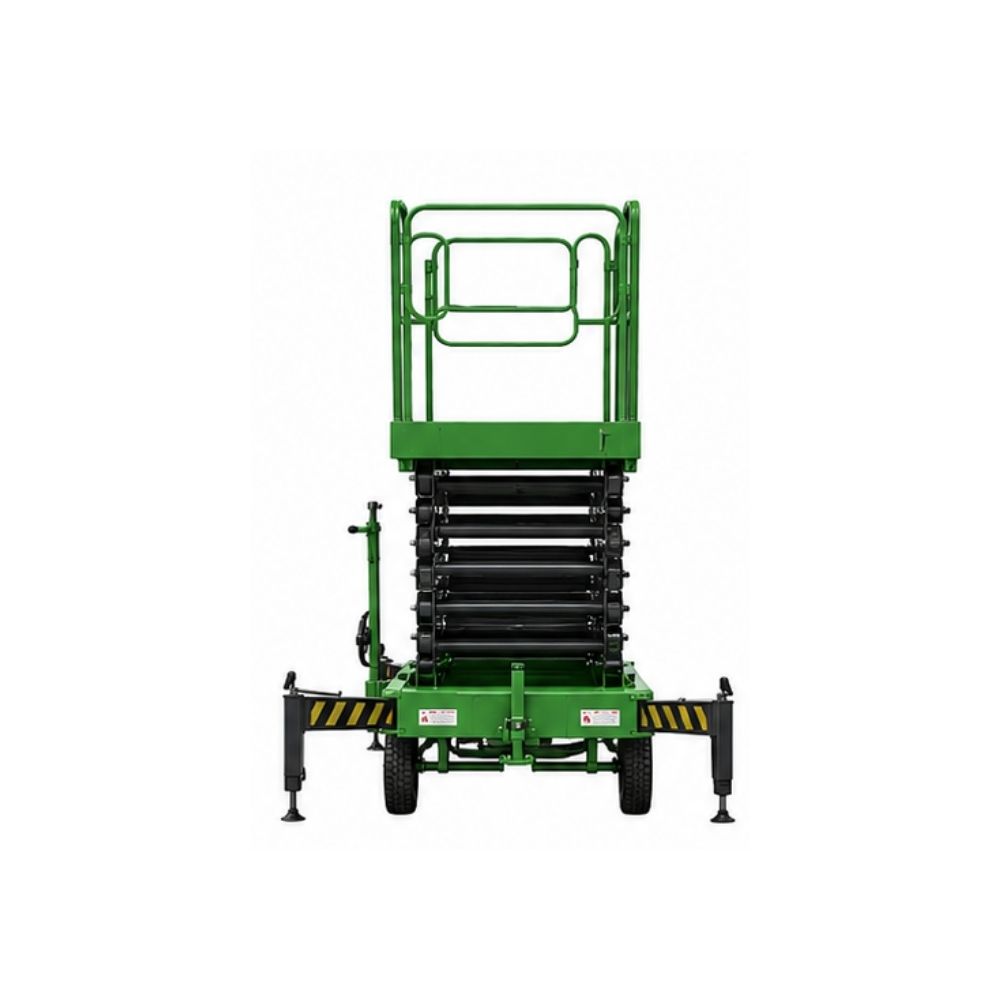

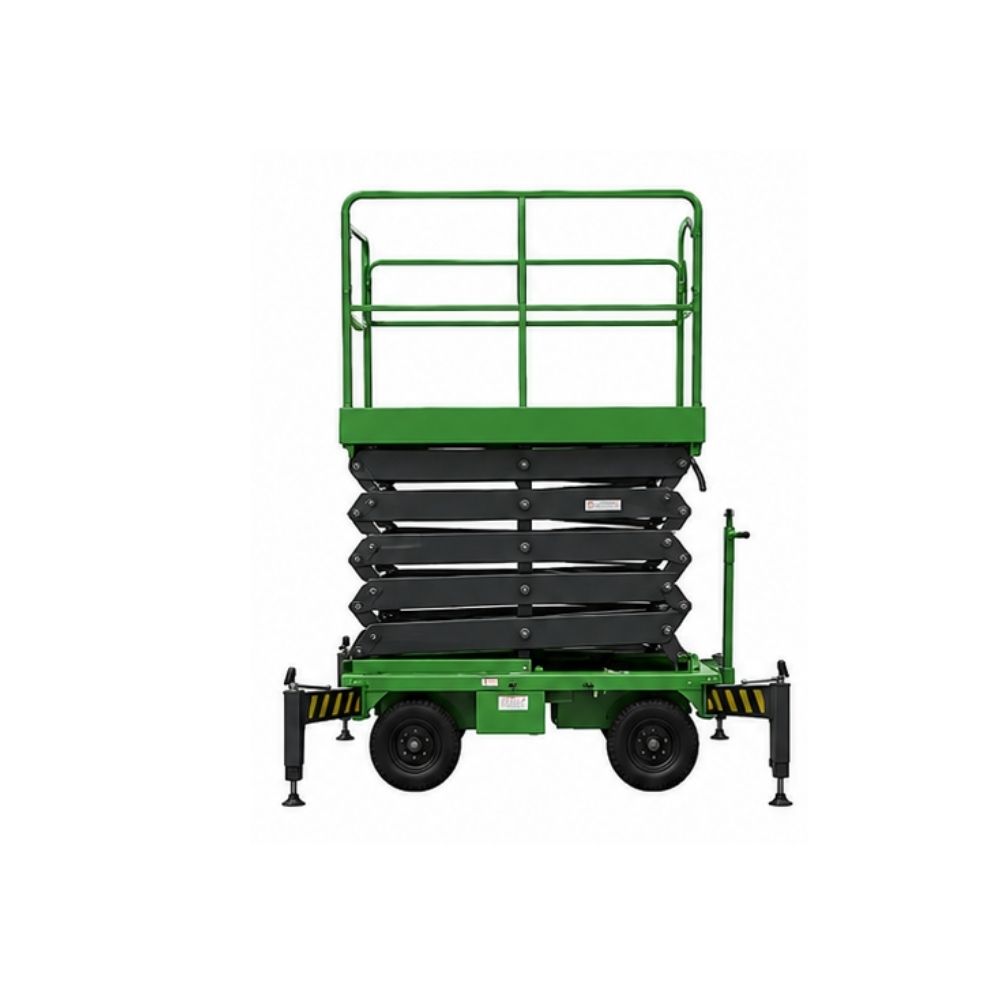

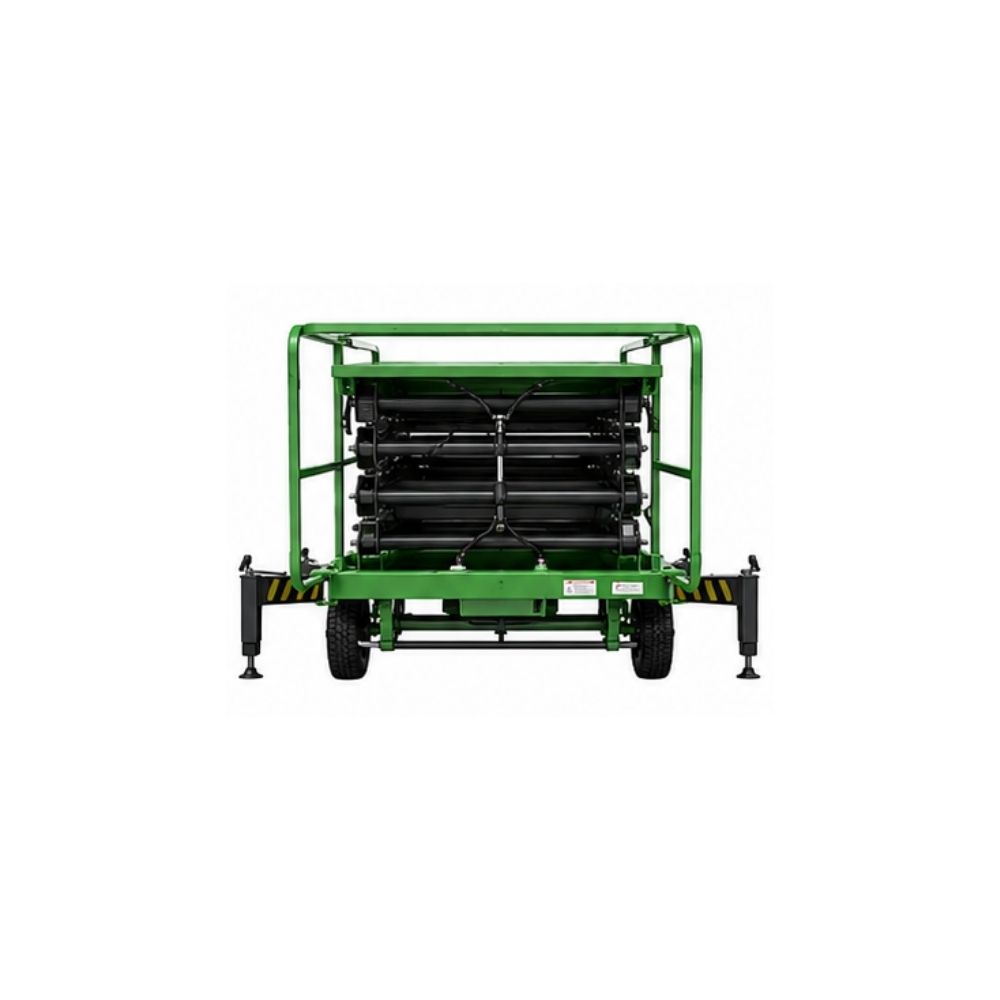

Manual Pushing Mobile Scissor Lift
The Vankos Manual Pushing Mobile Scissor Lift is a heavy-duty industrial platform used for safe overhead maintenance and lifting. It is rolled into position by hand and lifted hydraulically using electrical power (AC/DC) or a manual hand pump.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
Vankos & Company designs and manufactures customized Material Handling Equipment, including Manual Pushing Mobile Scissor Lifts. These lifts combine a manually maneuvered (push-around) chassis with hydraulic vertical lifting configurations to ensure reliable and safe aerial operations.
| Model | MK600 | MK900 | MK1100 | MK1200 | MK1400 | MK1600 | MK600T | MK900T | MK1200T |
|---|---|---|---|---|---|---|---|---|---|
| S.W.L on Extension | 500 kg | 500 kg | 500 kg | 500 kg | 500 kg | 300 kg | 1000 kg | 1000 kg | 1000 kg |
| Platform Height (Max) | 6 m | 9 m | 11 m | 12 m | 14 m | 16 m | 6 m | 9 m | 12 m |
| Platform Size (L × W) | 1.85 × 0.80 m | 1.80 × 1.00 m | 2.10 × 1.15 m | 2.45 × 1.35 m | 2.45 × 1.35 m | 2.75 × 1.50 m | 1.80 × 1.00 m | 1.80 × 1.25 m | 2.45 × 1.35 m |
| Overall Size (L × W × H) | 2.05 × 1.08 × 1.10 m | 2.00 × 1.20 × 1.60 m | 2.30 × 1.35 × 1.70 m | 2.65 × 1.55 × 1.88 m | 2.65 × 1.55 × 2.00 m | 2.95 × 1.75 × 2.10 m | 2.00 × 1.20 × 1.45 m | 2.00 × 1.15 × 1.75 m | 2.65 × 1.55 × 1.88 m |
| Lifting Time | 55 s | 70 s | 80 s | 125 s | 165 s | 173 s | 60 s | 100 s | 135 s |
| Motor Power | 1.5 kW | 1.5 kW | 2.2 kW | 3 kW | 3 kW | 3 kW | 2.2 kW | 3 kW | 4 kW |
| Power Voltage | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V |
| Weight | 800 kg | 1200 kg | 1580 kg | 2450 kg | 2650 kg | 3200 kg | 1100 kg | 1510 kg | 2700 kg |
| Tyre | Φ200 Polyurethane | Φ500-8 Pneumatic Tyre | |||||||
