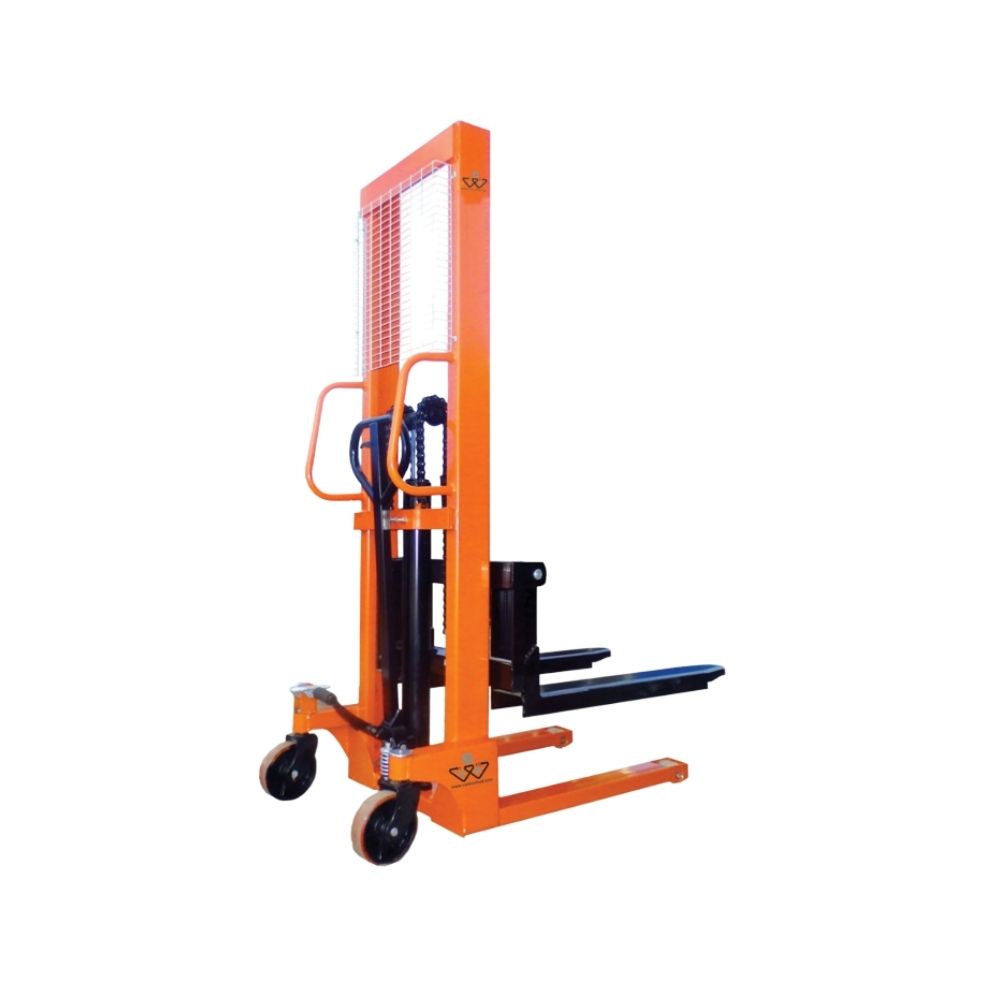

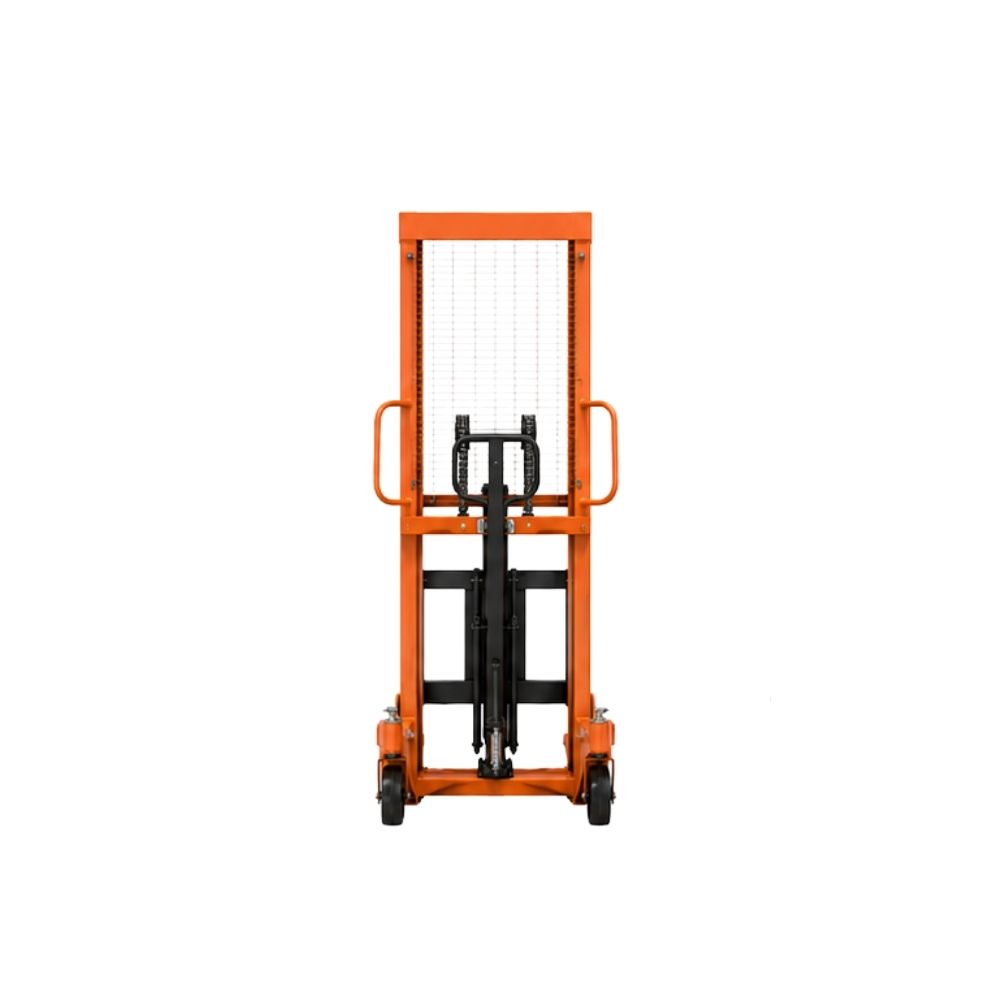

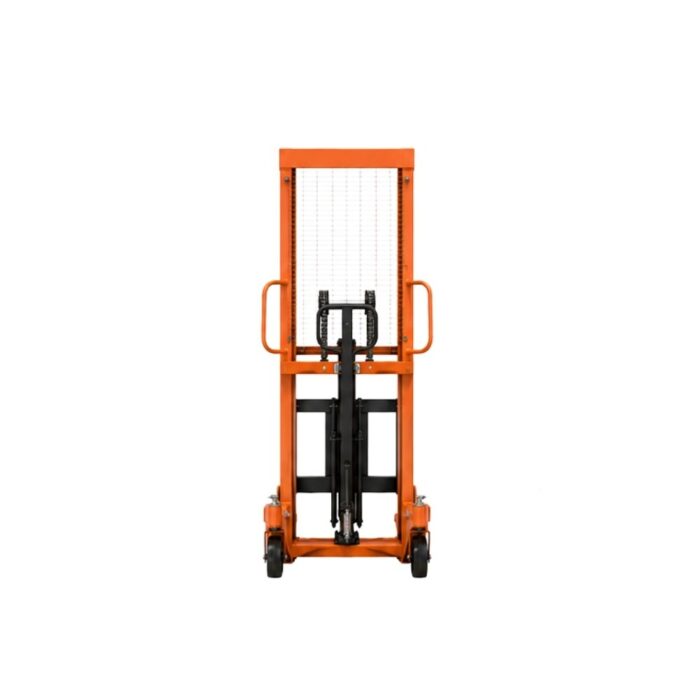

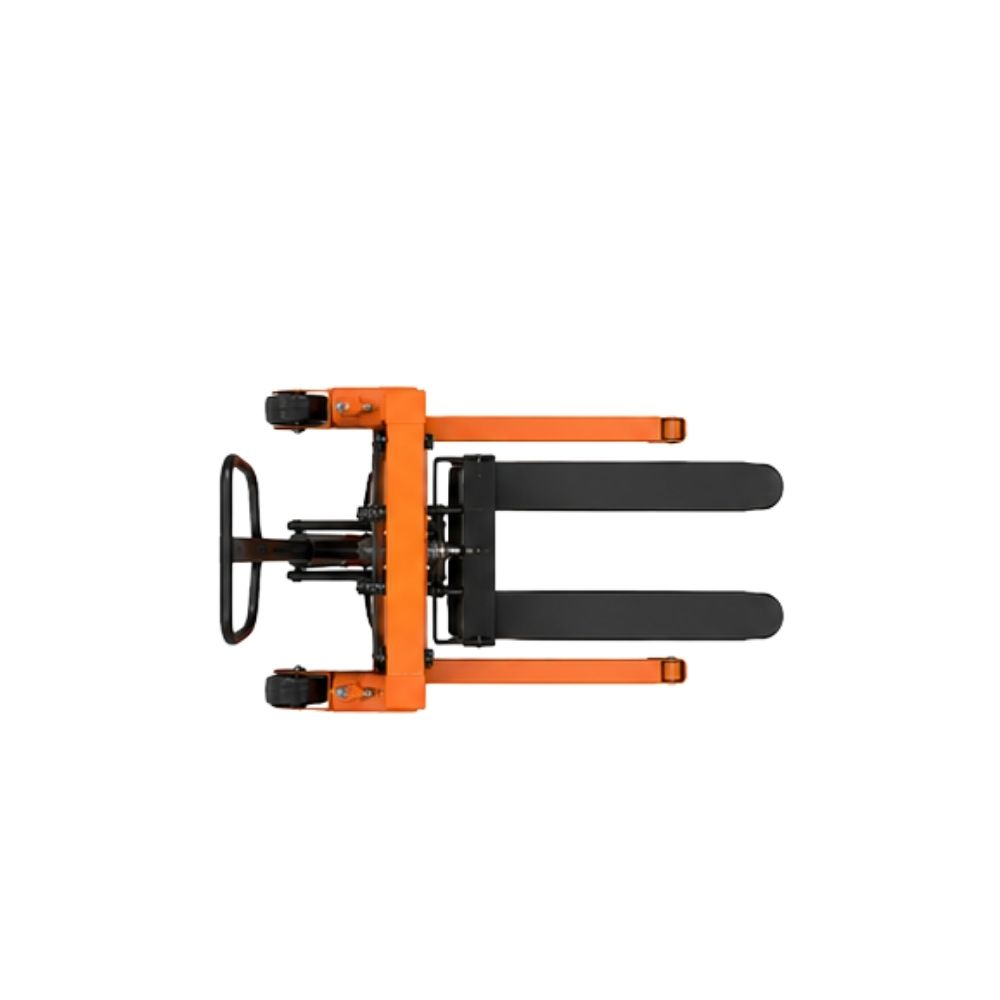

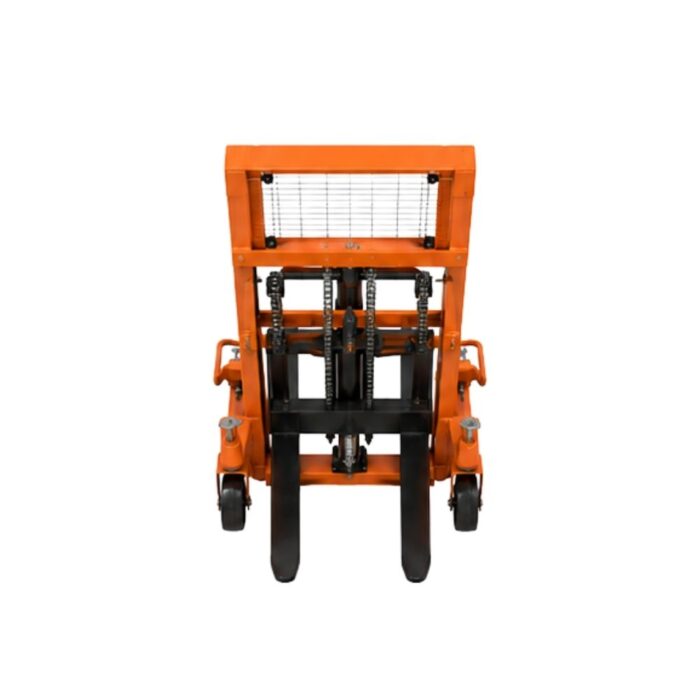

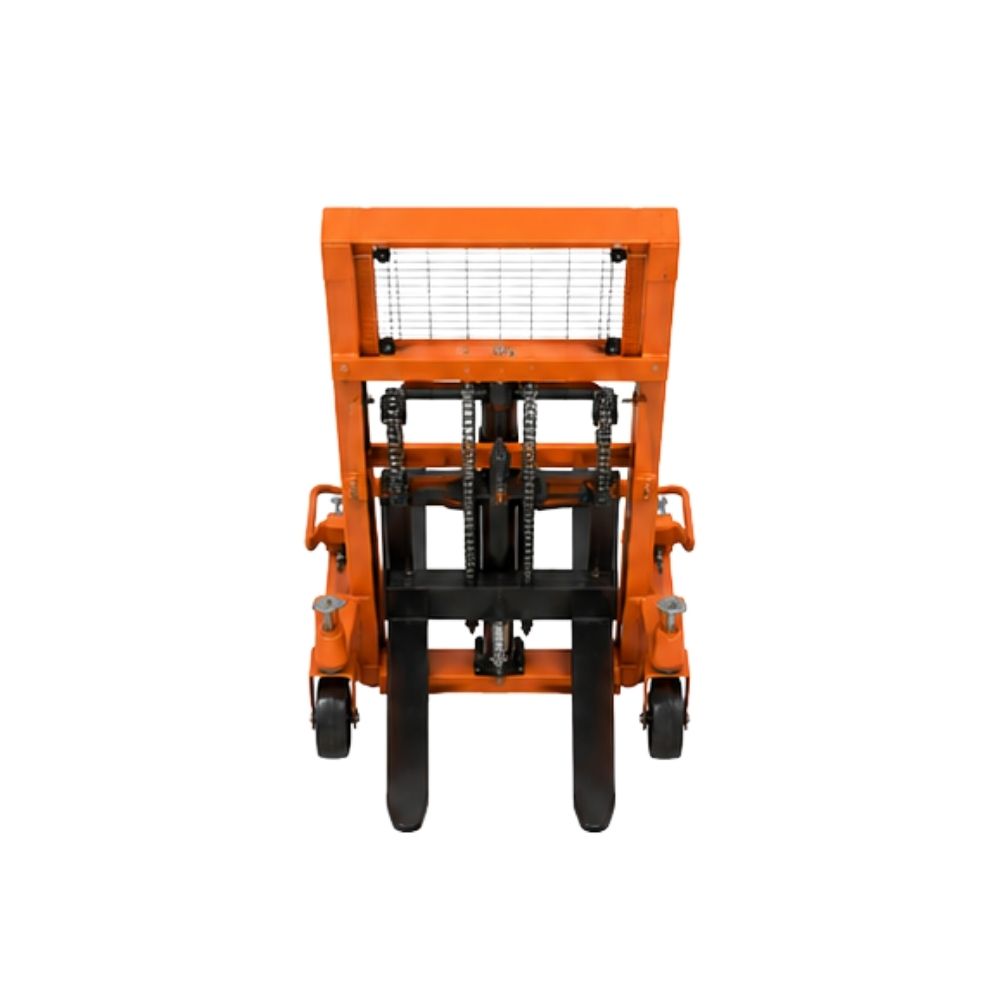

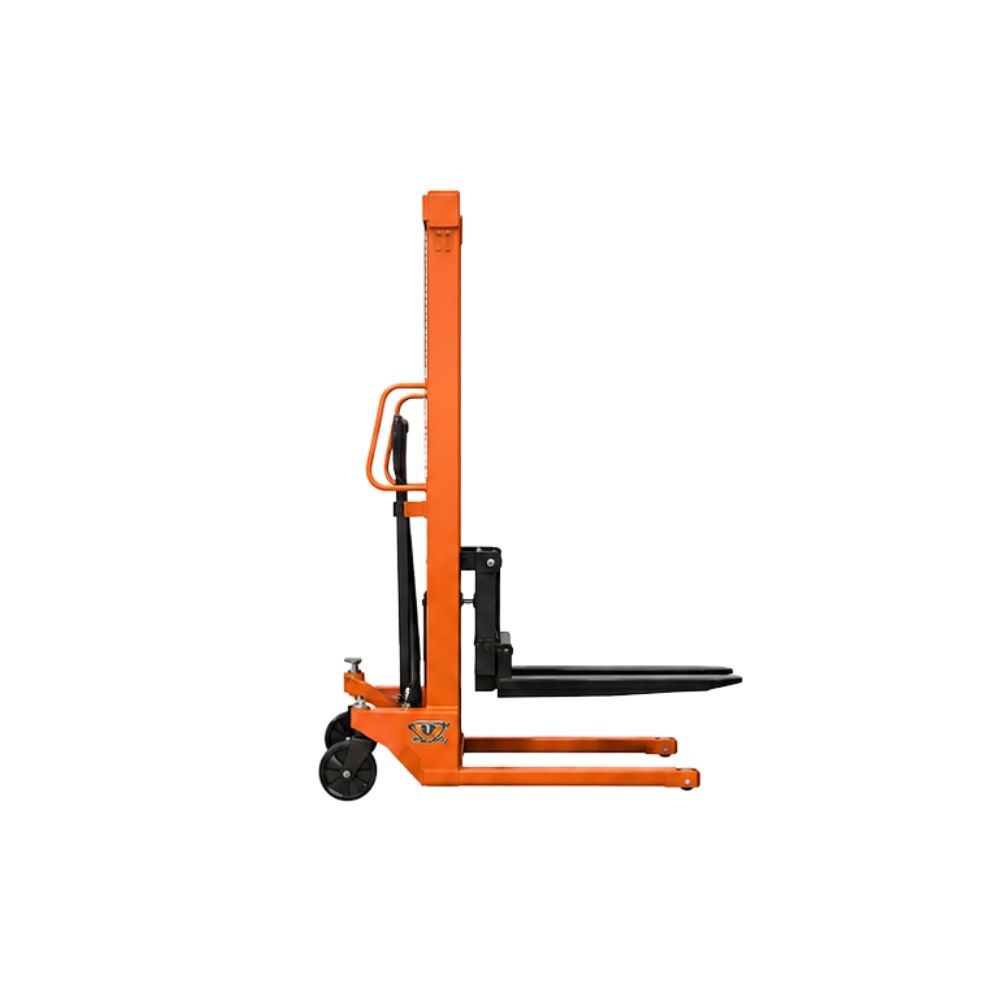

Manuel Stacker
The Vankos Manual Stacker is a heavy-duty, hand-operated hydraulic lift designed for transporting and stacking loads of 1 to 2 tons in warehouses and factories. It operates without electricity, utilizing a manual pump to reach heights of 1.6 to 2 metres, making it suitable for narrow aisles and loading docks. For more information, visit the official Vankos website.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
Vankos & Company manufactures high-quality hydraulic material handling equipment, including the Vankos Manual Hand Pallet Stacker. These heavy-duty, non-electric lifters are primarily designed for transporting, lifting, and vertical stacking of palletized goods in warehouses, factories, and retail fulfillment spaces.
| Model | VCTY-E 1.0 | VCTY-E 2.0 |
|---|---|---|
| Rated Lifting Capacity (kg) | 1000 | 2000 |
| Max Lifting Height (mm) | 1600 | 1600 |
| Lowered Height of Forks (mm) | 90 | 90 |
| Fork Length (mm) | 900 | 900 |
| Adjustable Width of Forks (mm) | 320–750 | 340–750 |
| Lifting Speed (mm/stroke) | 20 | 14 |
| Lowering Speed (mm/stroke) | Controllable | Controllable |
| Operation Power of Hand Crank (kg) | 24 | 32 |
| Outer Width of Front Legs (mm) | 690 | 690 |
| Min. Refuel Volume for Fuel Tank (L) | 1.6 | 2.0 |
| Front Wheel Size (mm) | Ø74 × 52 | Ø74 × 70 |
| Rear Wheel Size (mm) | Ø180 × 50 | Ø180 × 50 |
| Overall Size (mm) | 1390 × 780 × 2040 | 1390 × 780 × 2040 |
| Self Weight (kg) | 200 | 240 |
