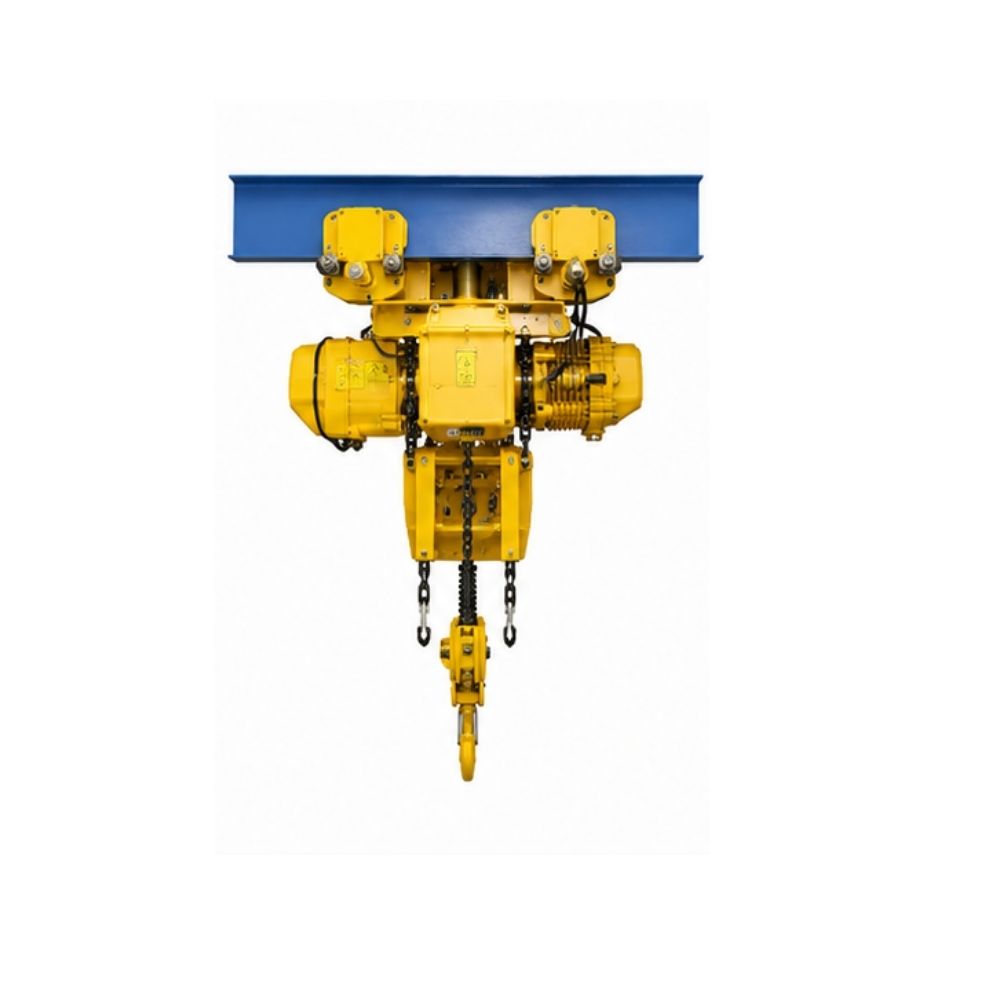

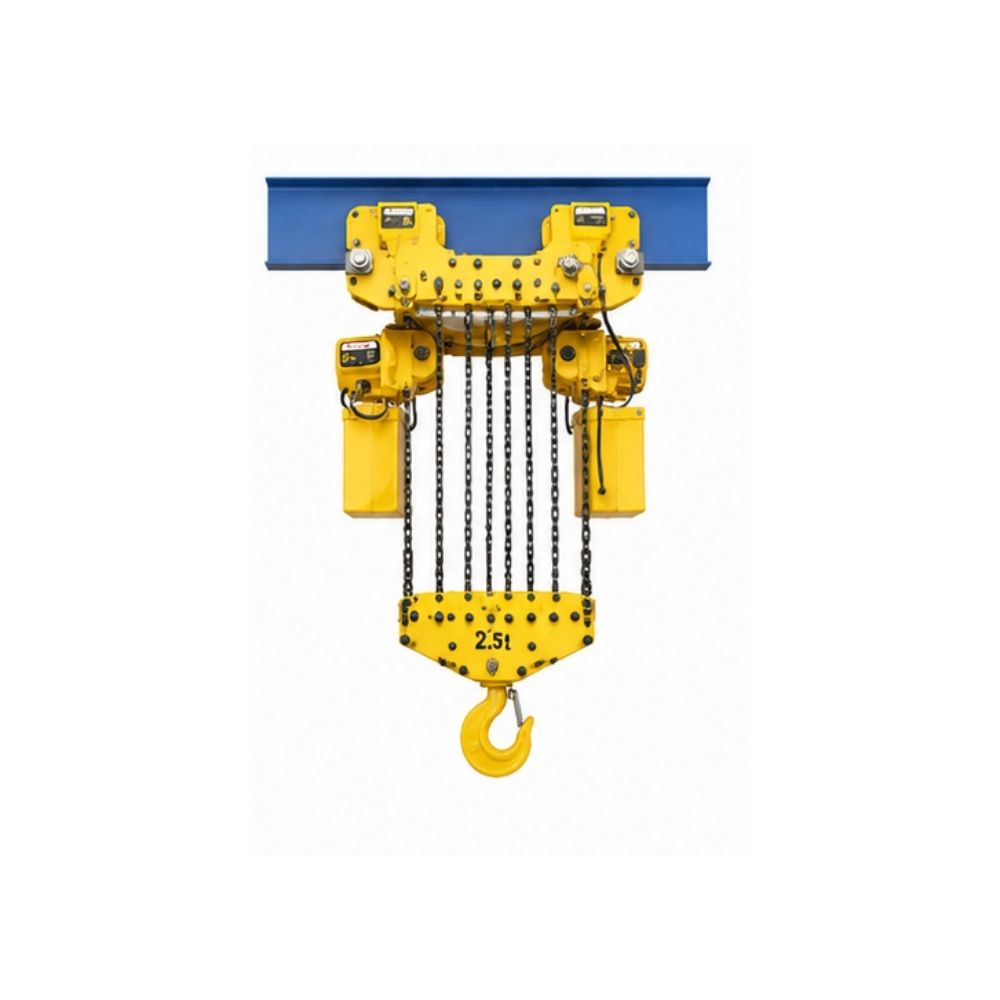

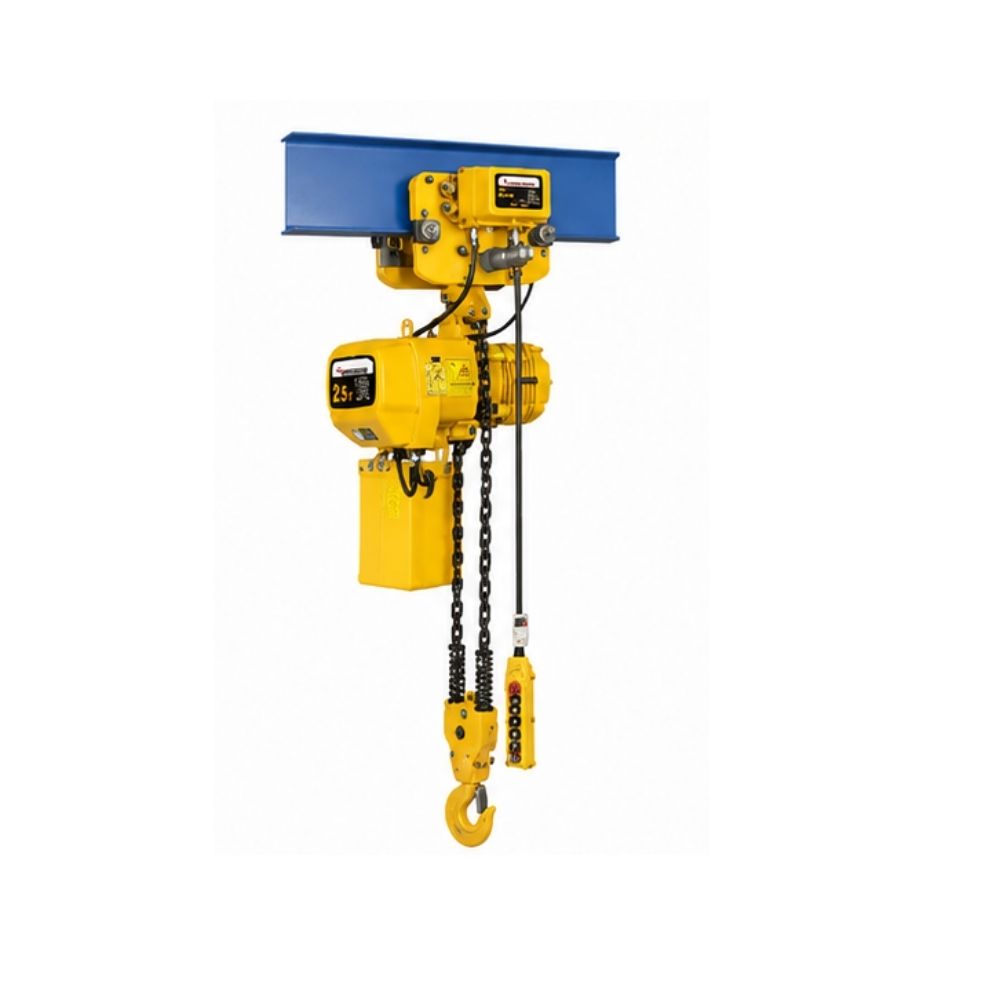

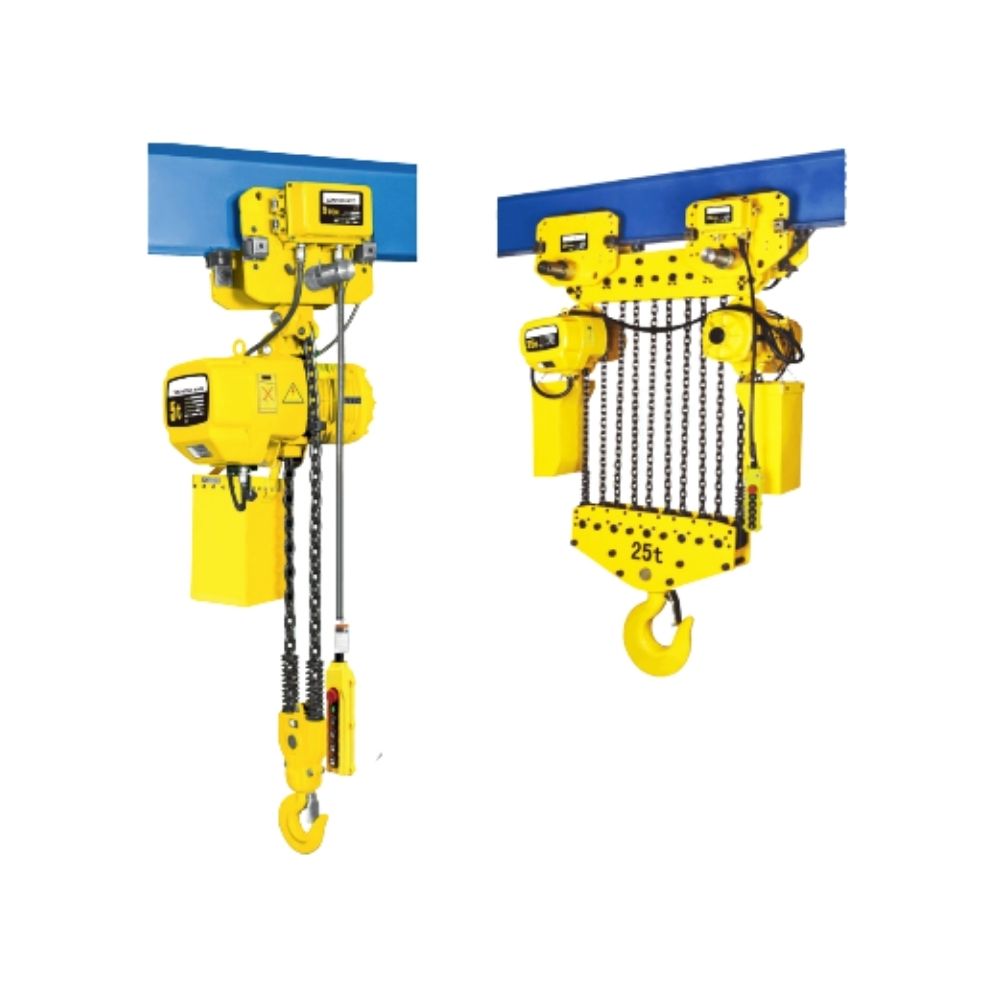

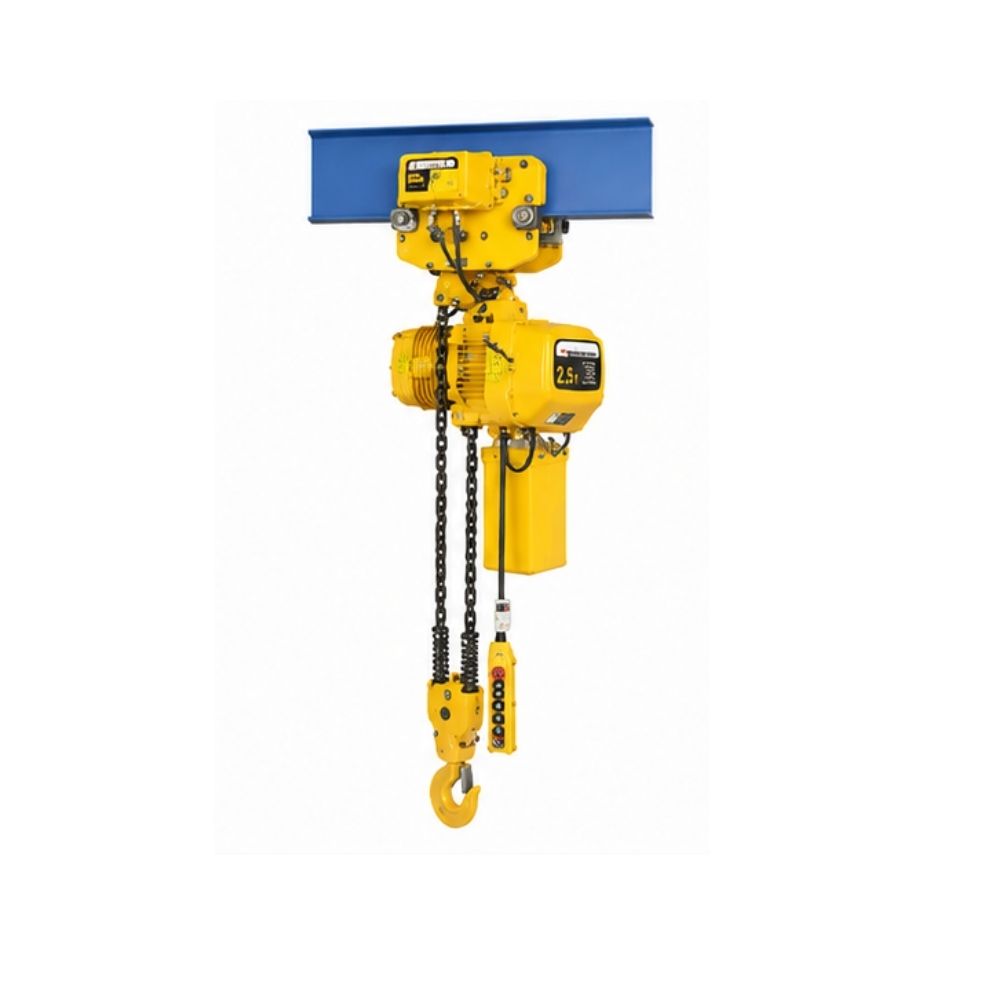

Electric Chain Hoist Trolley
An electric chain hoist trolley is a motorized lifting system that moves heavy loads both vertically and horizontally. The hoist lifts and lowers items precisely using heavy-duty steel chains, while the attached trolley rolls side-to-side along an overhead I-beam or monorail track. Controlled by a simple push-button remote, this compact system is widely used to transport machinery and materials across factories, warehouses, and repair workshops.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
Vankos & Company does not manufacture electric chain hoists or trolleys. They are a highly reputed Indian manufacturer explicitly specializing in high-pressure hydraulic equipment, including hydraulic jacks, remote control plain rams, threaded rams, and hydraulic pallet trucks. If you are looking for an industrial-grade electric chain hoist trolley system in the Indian market, you will need to look at dedicated material handling brands like Indef, V-TAL, or K2Cranes.
| Parameter | Specification / Range |
|---|---|
| Load Capacity | 0.5 Ton to 10 Tons (Most common: 1T, 2T, 3T, 5T) |
| Lifting Height | Standard 3 meters to 6 meters (Customisable up to 30 meters) |
| Lifting Speed | 2.5 m/min to 8 m/min (Dual-speed options available) |
| Trolley Travel Speed | 10 m/min to 20 m/min (Motorised versions) |
| Power Supply | 3-Phase, 380V – 440V, 50Hz / 60Hz AC |
| Control Voltage | 24V / 36V / 48V Low Voltage (For operator safety) |
| Duty Cycle Rating | Class II / Class III (FEM 1Am, 2m, or 3m / ISO M3, M4, or M5) |
| Load Chain Type | Grade 80 (G80) or Grade 100 Alloy Steel |
| Beam Flange Width | Adjustable from 75 mm to 300 mm (Fits standard I-Beams and H-Beams) |
| Ingress Protection | IP54 or IP55 (Dust and water-splash resistant) |
