Filter – Inline Heavy Duty – HFR
The Hydroline HFR is a robust, inline-mounted hydraulic filter designed to remove contaminants from mineral and petroleum-based fluids. It is specifically engineered for “Heavy Duty” environments where high-vibration and constant pressure cycles are common.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item

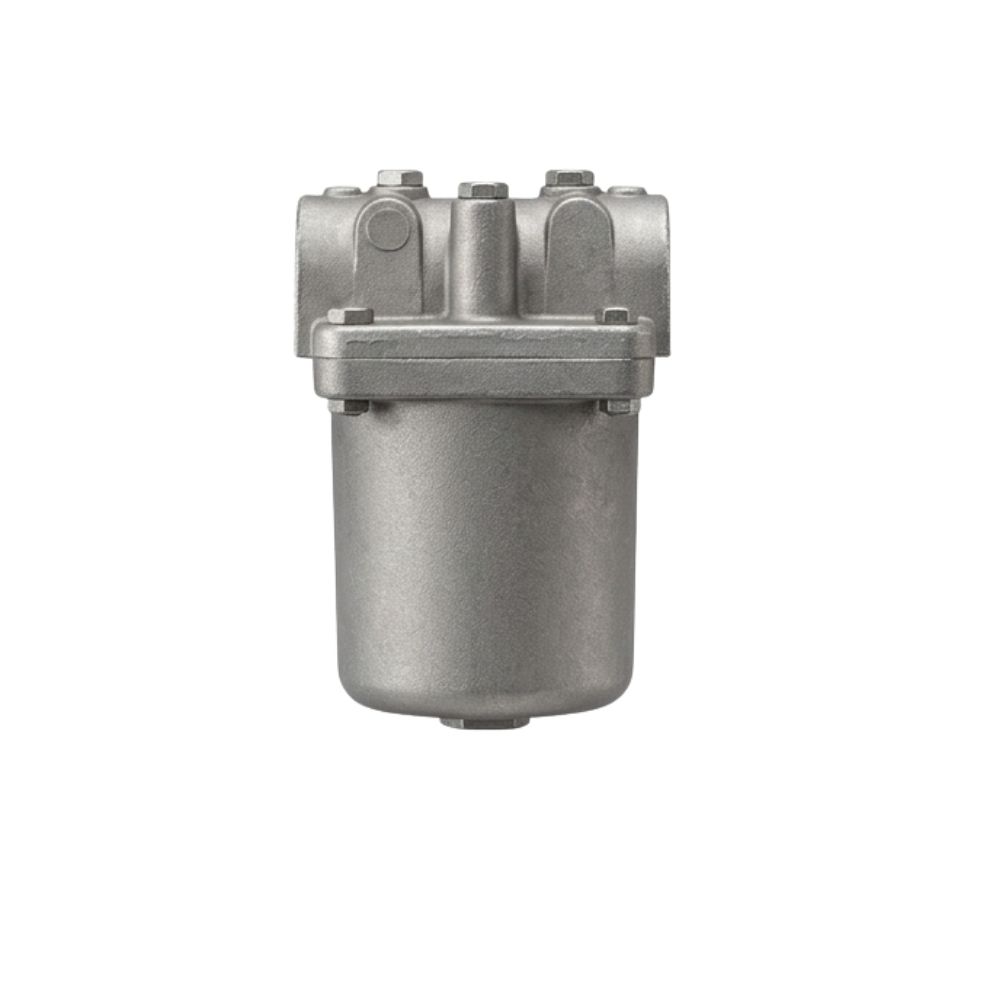

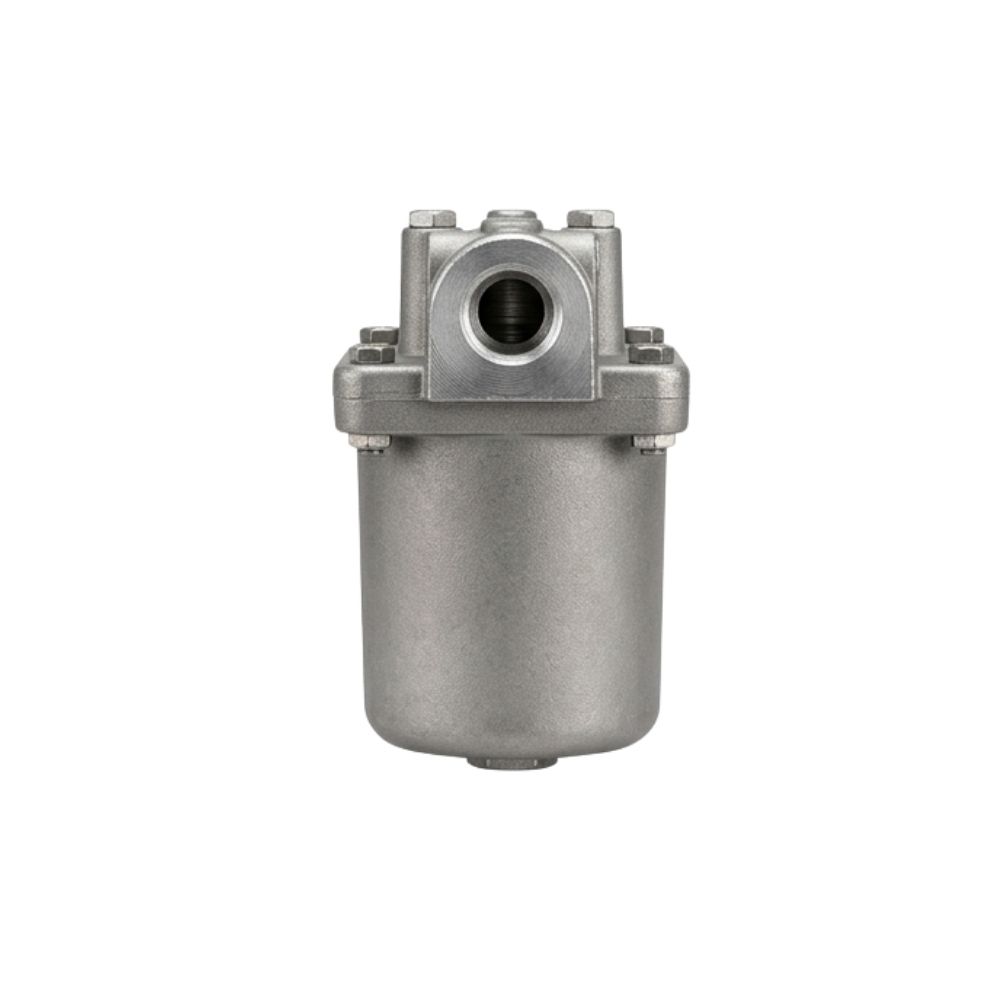

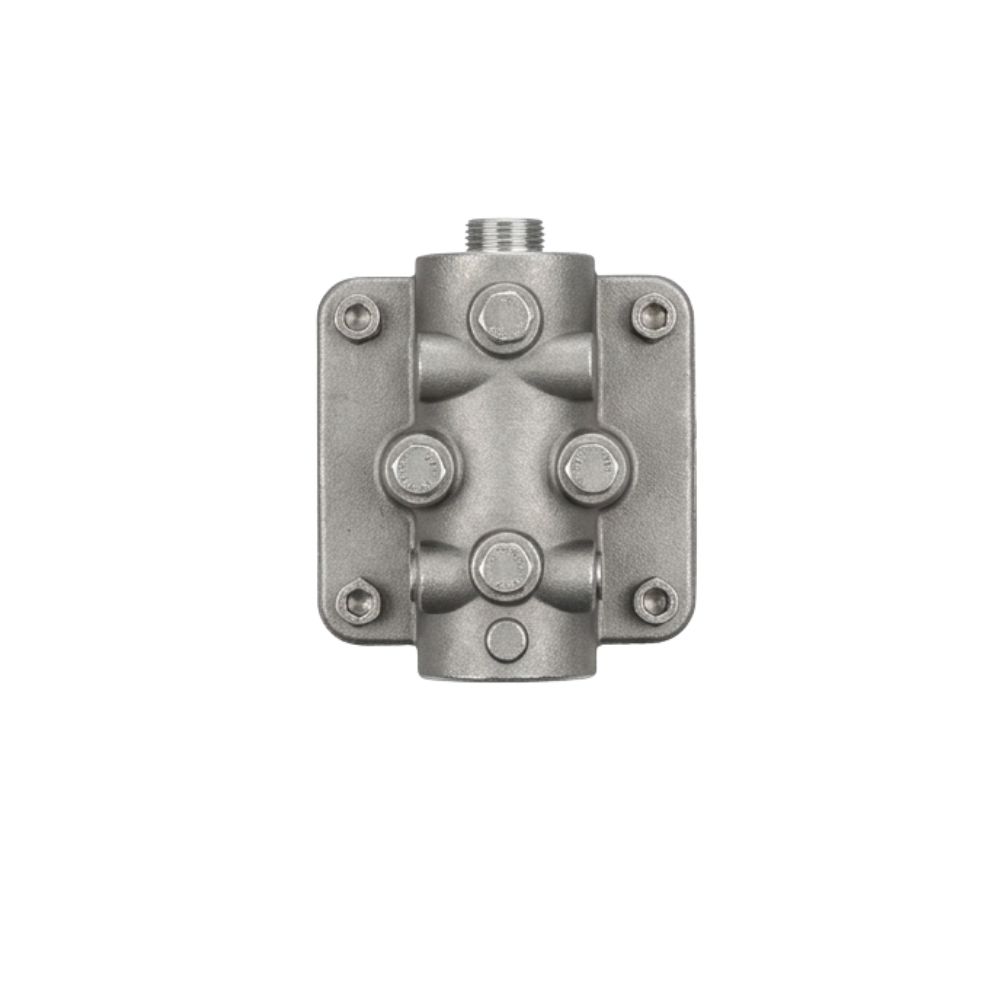

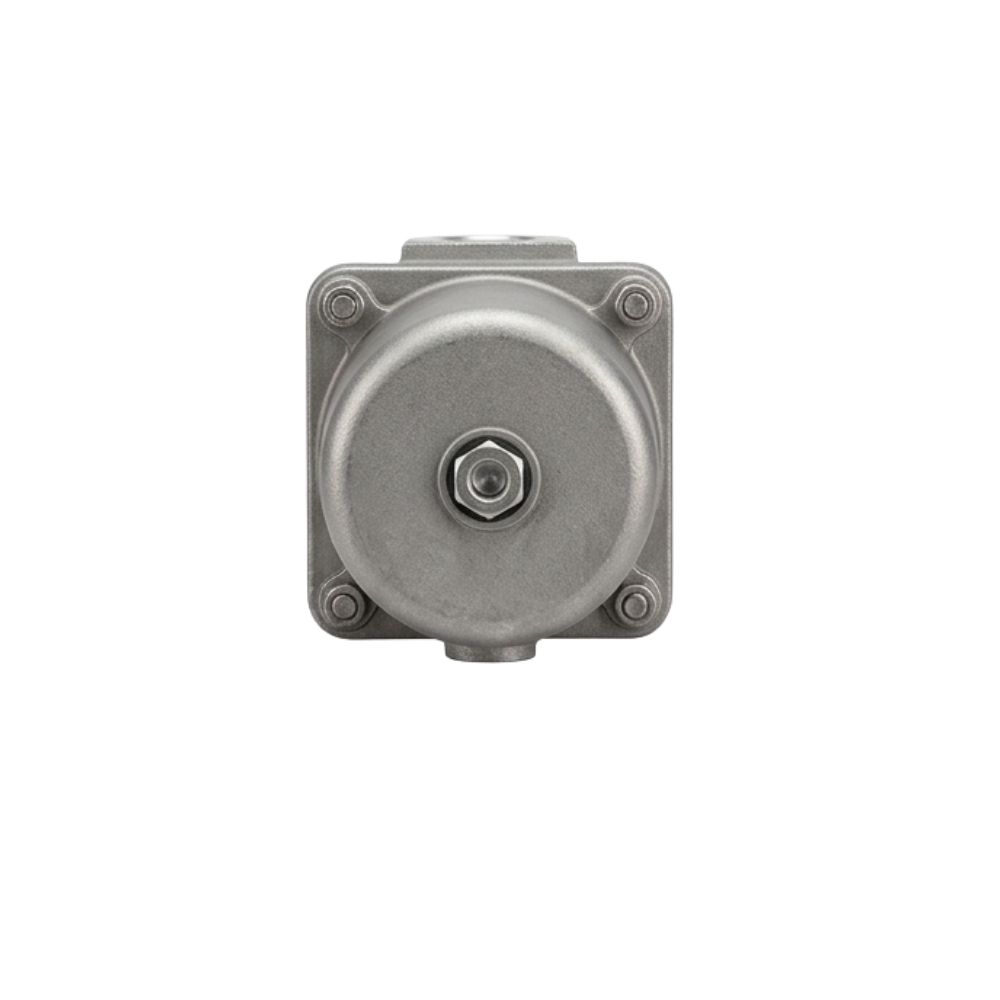

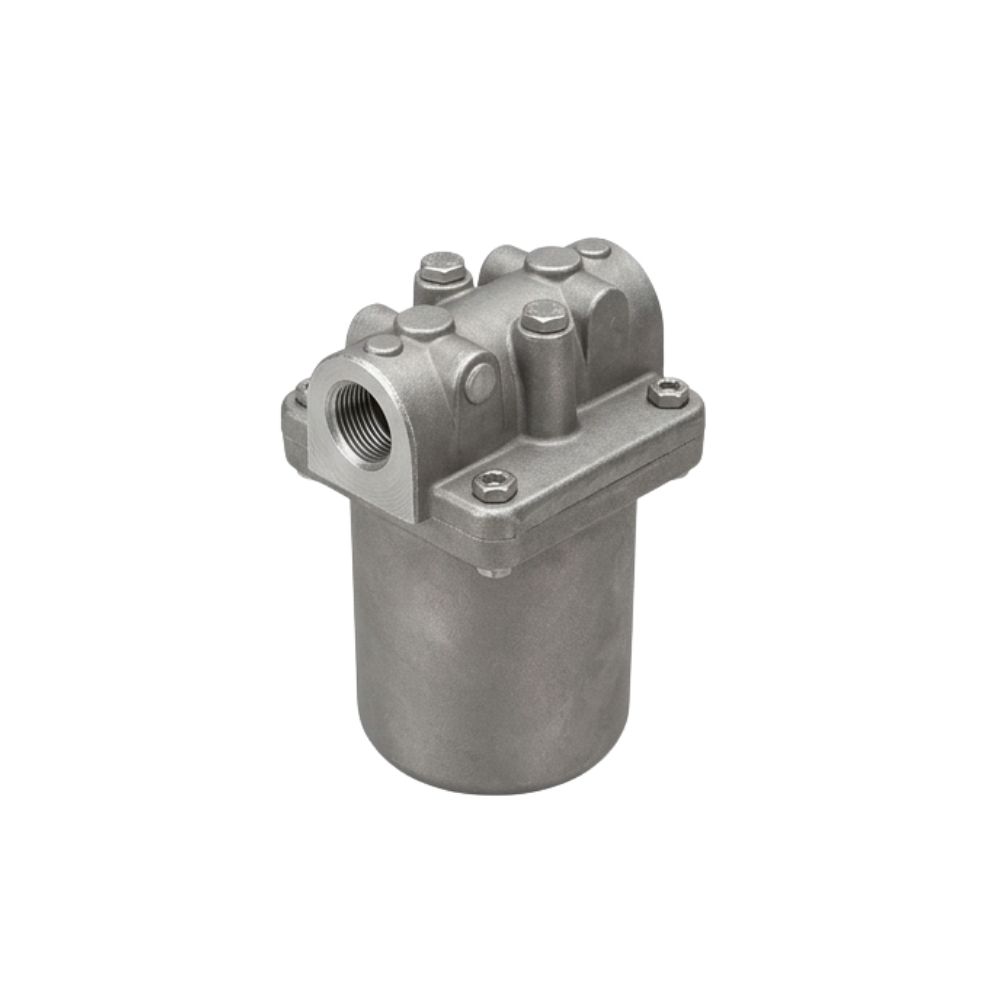

The Hydroline HFR Series is a heavy-duty, inline hydraulic filter designed to clean mineral and petroleum-based fluids in return or suction lines. It features a rugged aluminium die-cast housing, making it durable for industrial environments while remaining relatively lightweight.
| Category | Technical Specifications & Features |
|---|---|
| Housing Material | High-grade Aluminium Die-Cast |
| Mounting Type | Inline (directly into the pipeline) |
| Operating Pressure | Working: 20 Bar (290 PSI) | Test: 30 Bar | Burst: 40 Bar |
| Flow Capacity | 30 LPM to 150 LPM (depending on model size) |
| Fluid Compatibility | Mineral and petroleum-based oils |
| Operating Temperature | Up to 80°C (176°F) |
| Port Sizes | 1/2″, 3/4″, 1″, and 1-1/4″ BSP Threads |
| Filtration Media | Standard 25 Micron (Paper or Wire Mesh options) |
| Bypass Valve | Built-in standard 1 Bar (14.5 PSI) setting |
| Maintenance Aids | Provision for Visual or Electrical Clogging Indicators |
| Primary Function | Contaminant removal in Return or Suction lines |
