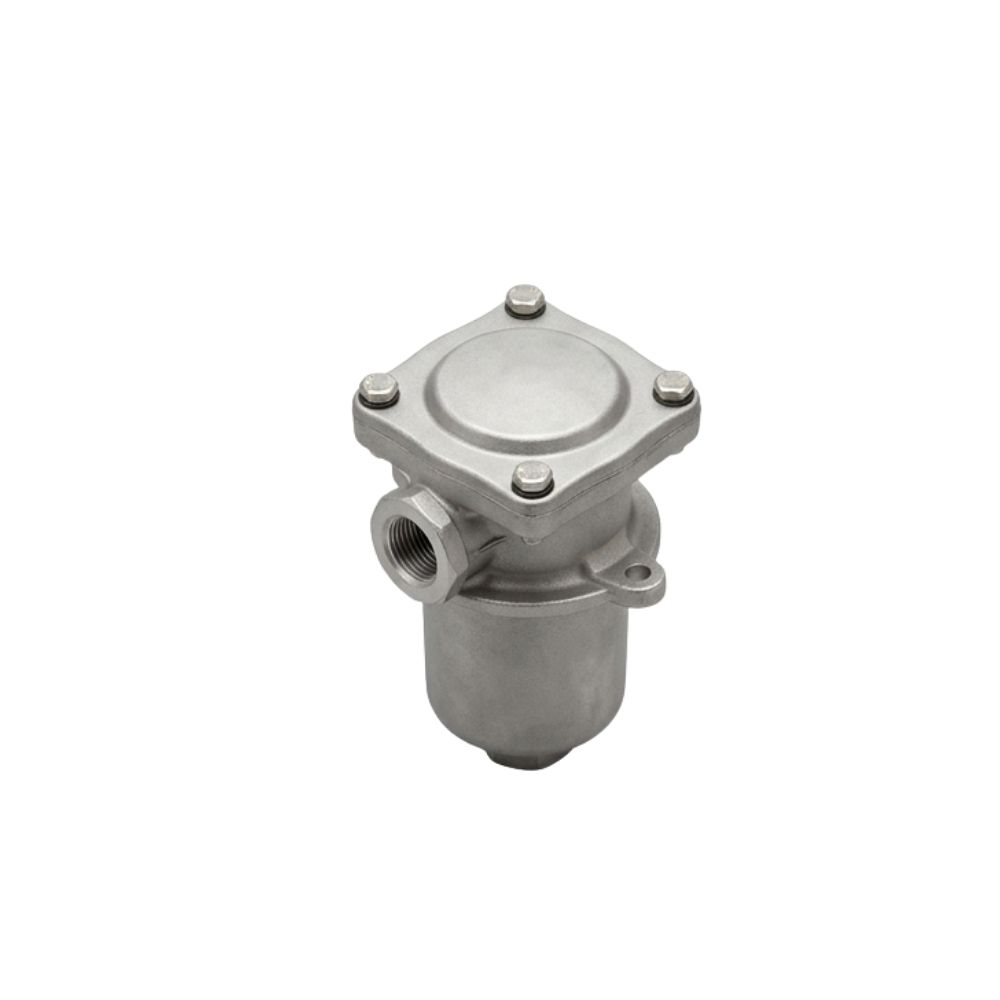

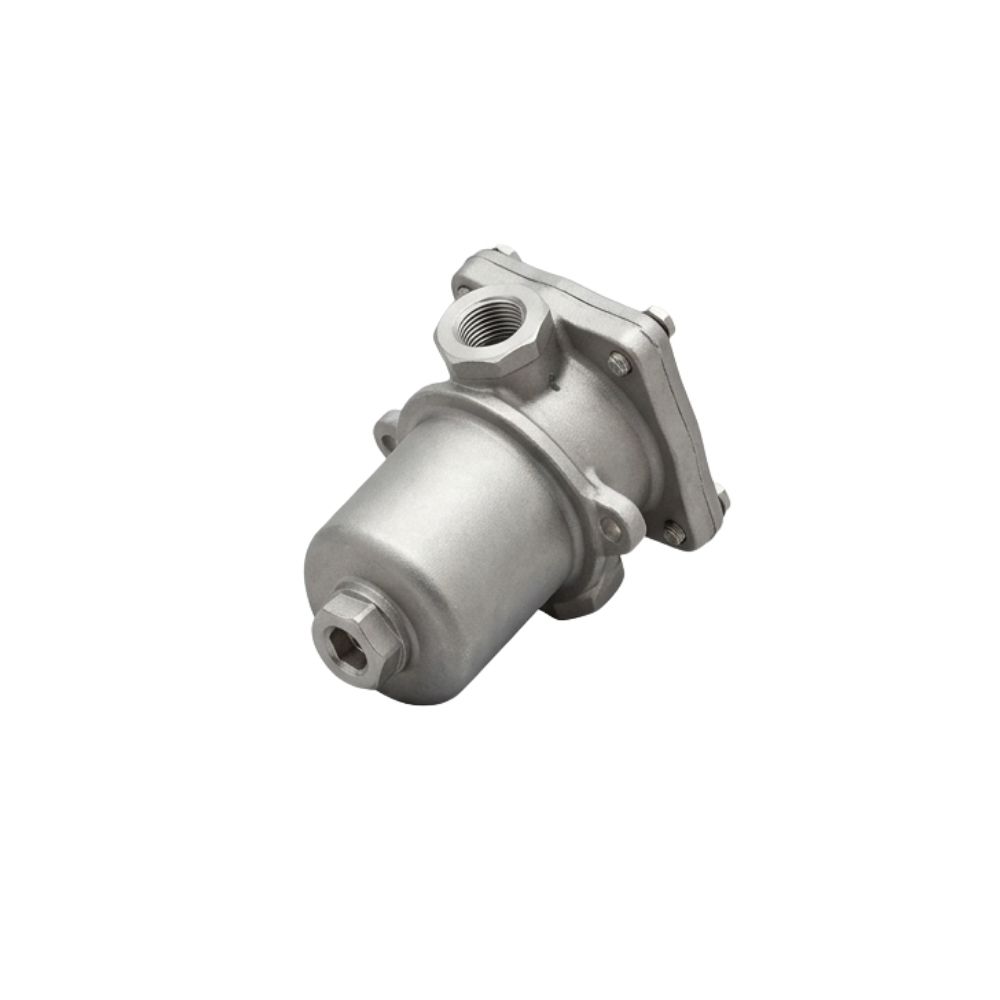

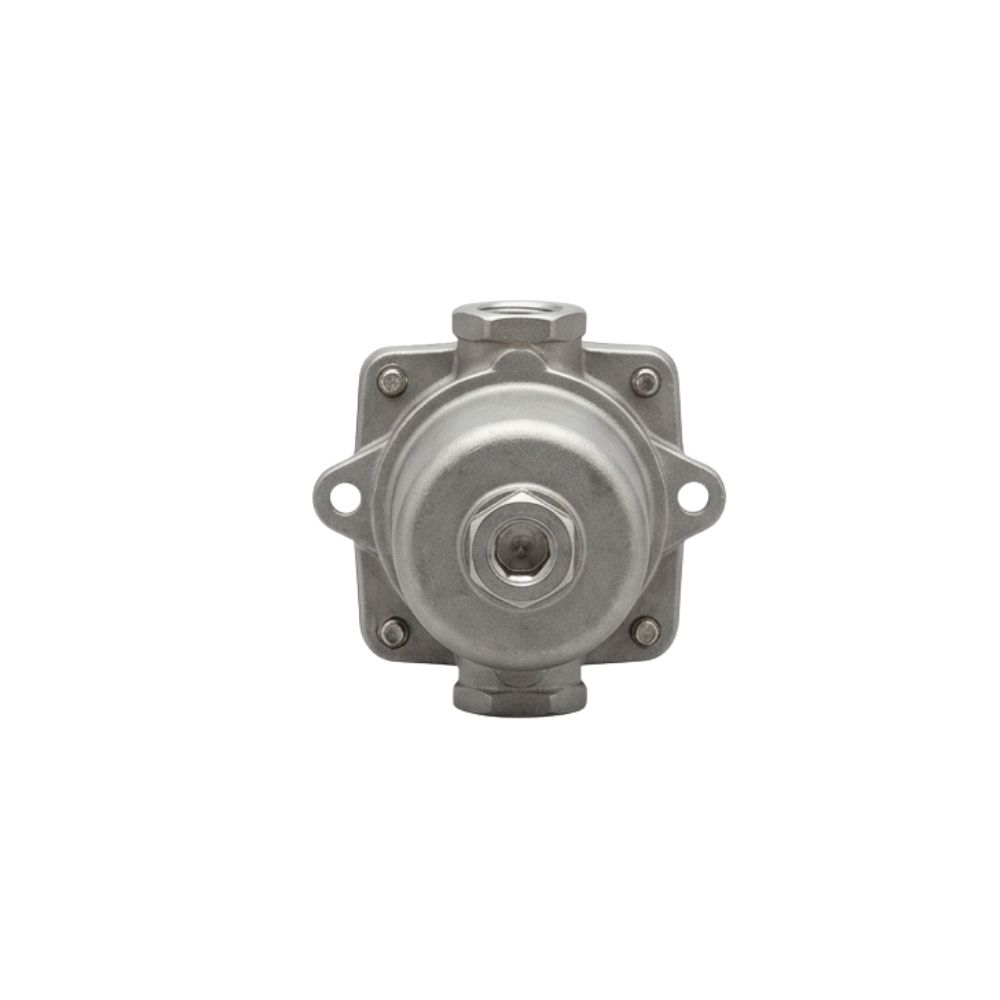

Filter – Tank Top Cartridge – TIF2
The Hydroline TIF2 is an industrial-grade, tank-immersed hydraulic return line filter designed for high-efficiency fluid management. It is engineered to remove pollutants from hydraulic oil as it returns to the reservoir, protecting sensitive components like pumps and valves from debris-related damage.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hydroline TIF2 is an industrial-grade, tank-immersed hydraulic return line filter designed for high-efficiency fluid management. It is specifically engineered to remove pollutants from hydraulic oil as it returns to the reservoir, protecting sensitive components like pumps and valves from damage caused by debris.
| Category | Feature / Specification | Details |
|---|---|---|
| Material | Construction | Aluminium die-cast body and cover |
| Installation | Mounting Style | Tank top mounting (immersed in reservoir) |
| Pressure | Operating Pressure | Max 10 Bar (145 PSI) |
| Pressure | Test / Burst | 20 Bar / 25 Bar |
| Flow | Flow Rate | Up to 175 LPM (varies by model size) |
| Temperature | Operating Limit | Up to 80°C |
| Fluid | Compatibility | Mineral and petroleum-based oils |
| Filtration | Standard Ratings | 10, 25, or 149 Micron |
| Protection | Bypass Valve | Standard 1 Bar (15 PSI) crack pressure |
| Indicator | Optional Gauges | Visual (GR) or Electrical (ER) return indicators |
| Add-ons | Contaminant Trap | Optional internal magnet for metallic particles |
