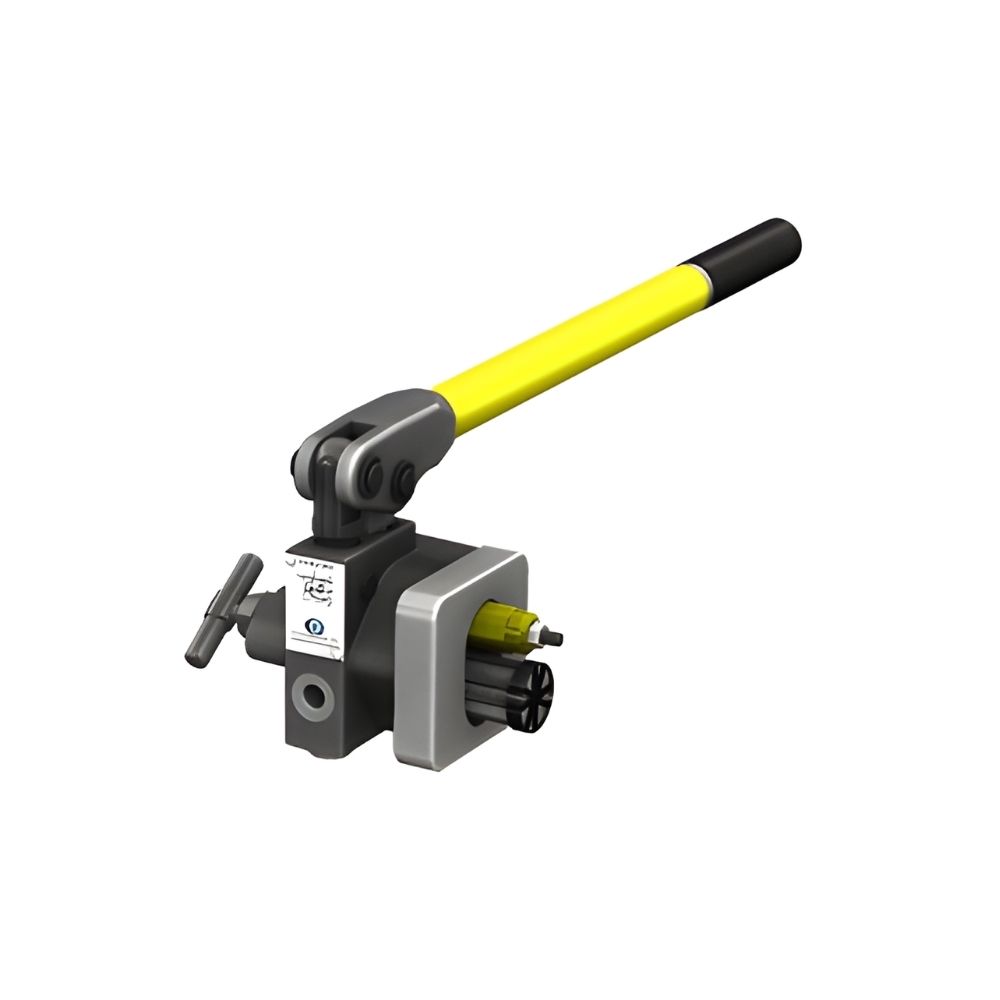

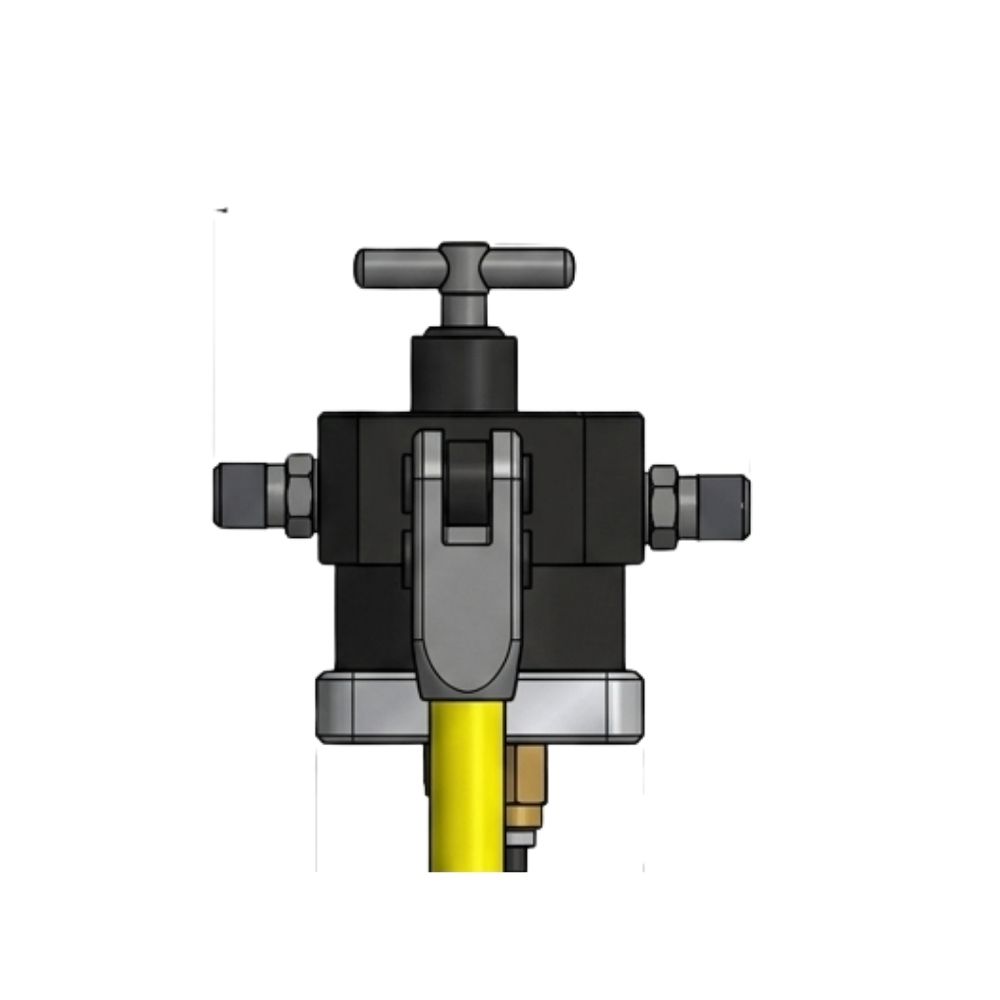

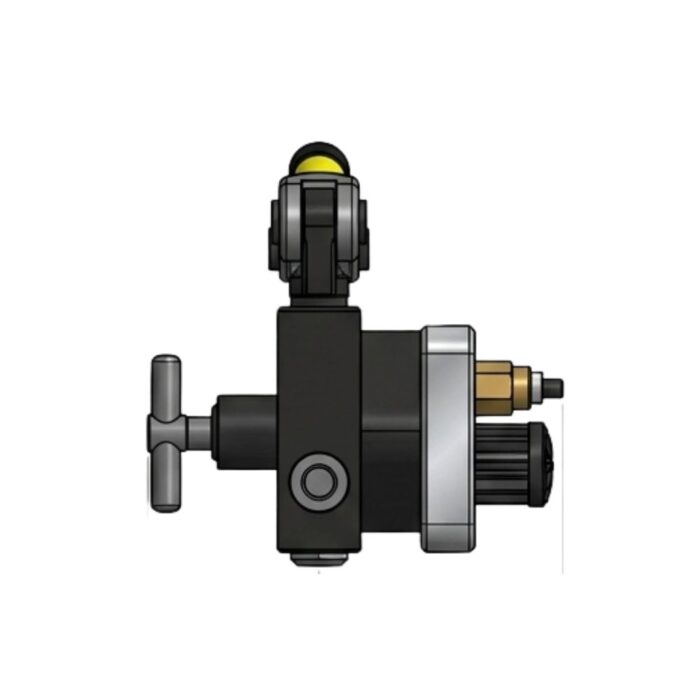

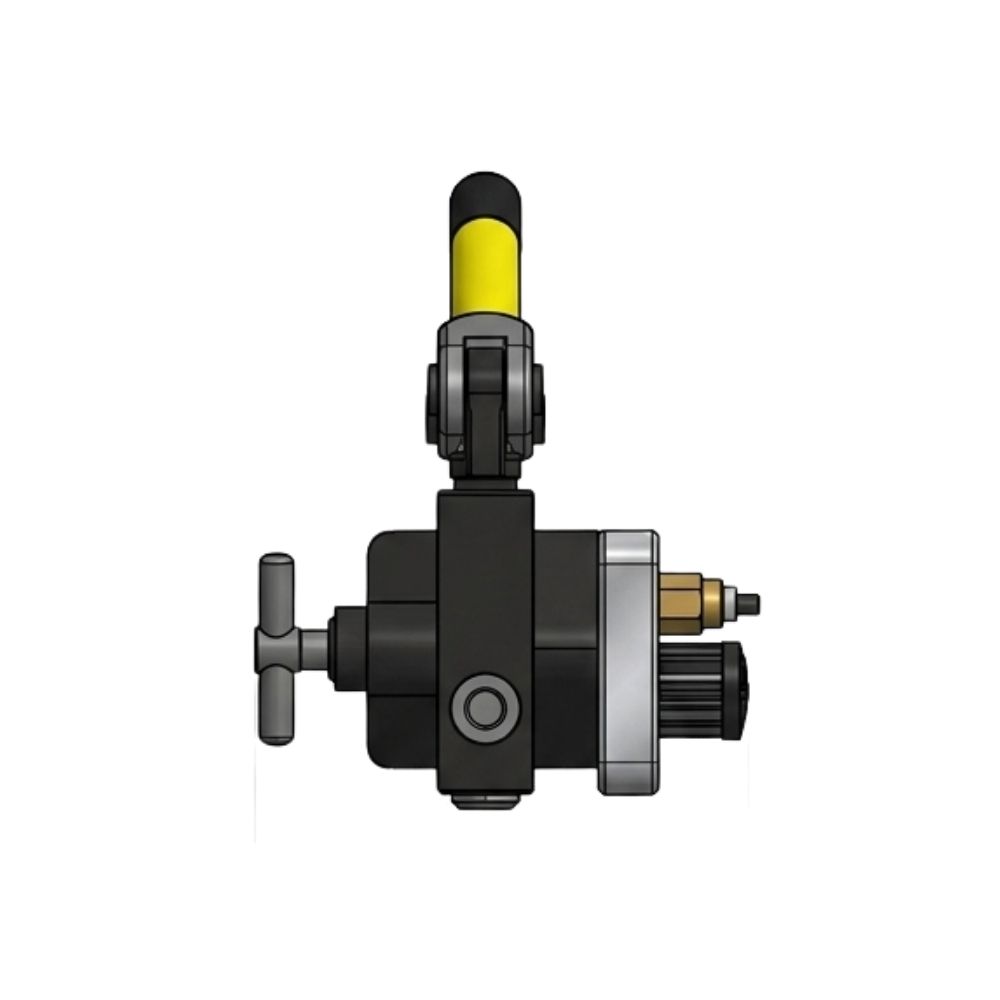

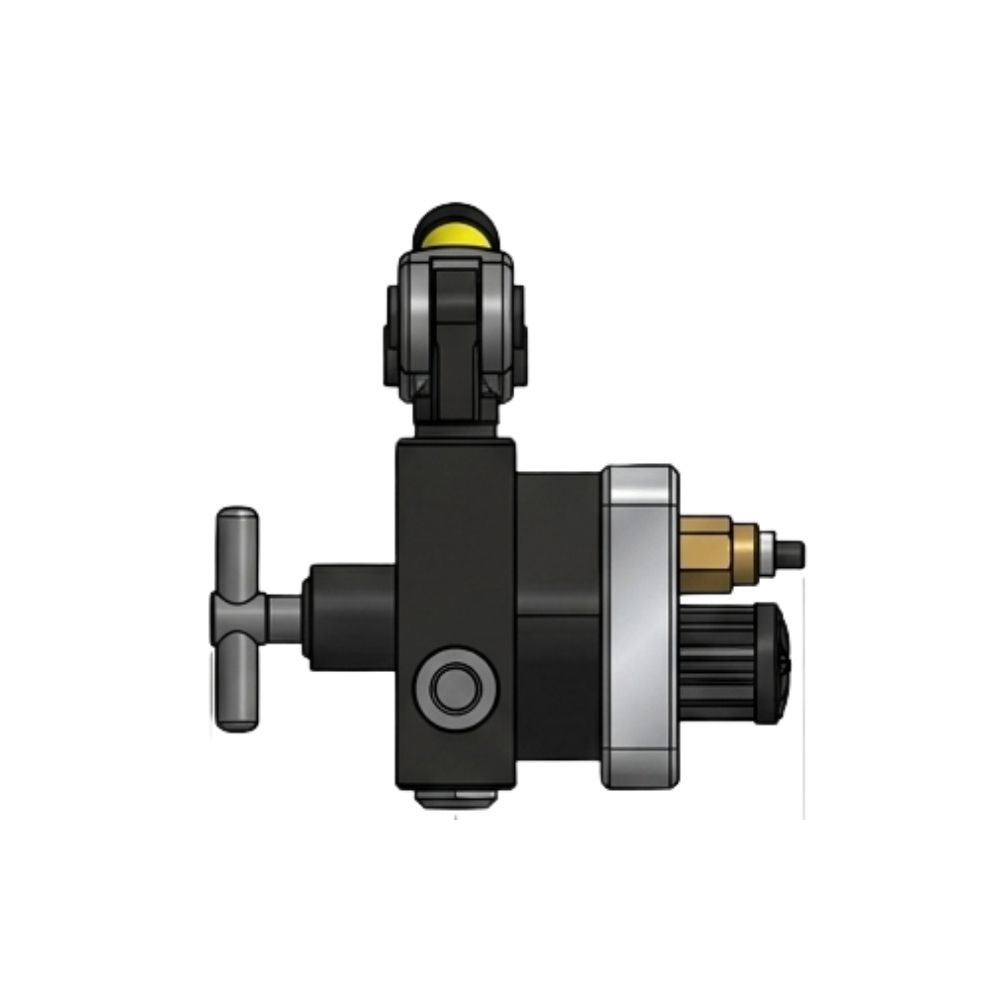

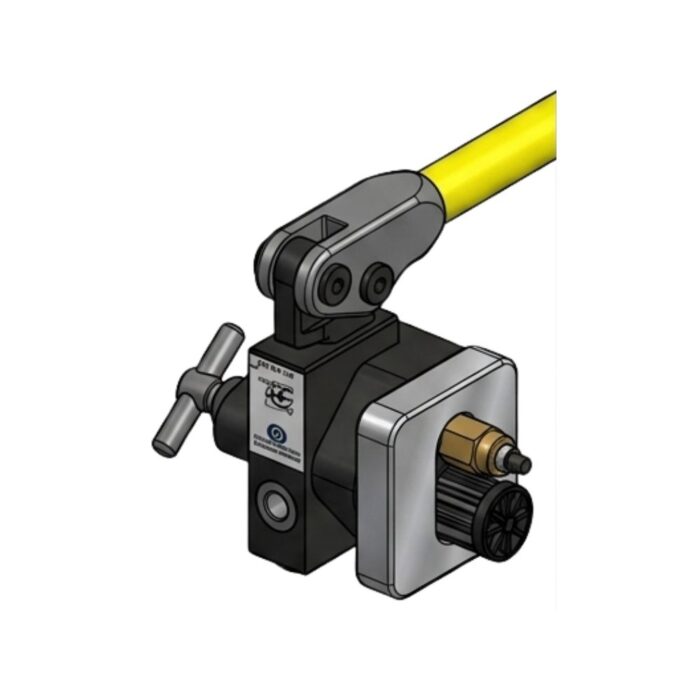

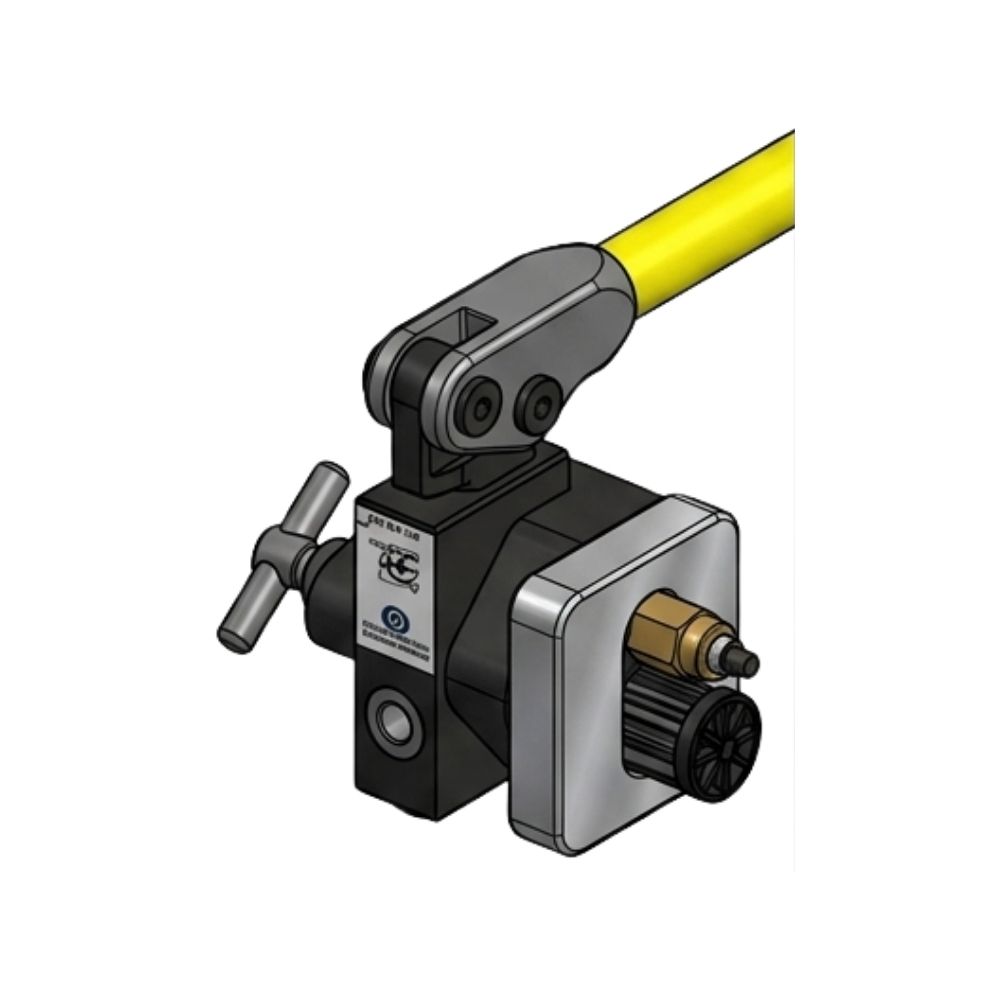

HPTS12, HPTS16 & HPTS12-1000 – Hand Pump (Tank Side Mounting)
Polyhydron series HPTS hand pumps are specialized for tank side mounting on the side walls of oil reservoirs. These are identical in performance specifications to the standard HP series but are designed to be integrated into larger hydraulic systems as stand-by power sources or for actuating heavy-duty jacks and cylinders.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Hand Pump (Tank Side Mounting)-HPTS12, HPTS16 & HPTS12-1000Â hand pumps are designed for mounting on the side wall of an oil reservoir or hydraulic tank. They offer the same specifications and performance as the HP series pumps, with the added advantage of easy integration into the hydraulic system.
These pumps can be used as a standby unit within the main system or as a power source for cylinders and jacks requiring a large volume of oil. Their design makes them ideal for applications where space optimization and system integration are important. For additional details, please refer to the datasheet.
| Parameters | HPTS12 | HPTS16 | HPTS12-1000 |
|---|---|---|---|
|
Max Working Pressure
|
700 bar (10,150 psi) | 350 bar (5,075 psi) | 1000 bar (14,500 psi) |
|
Displacement
|
2.8 cm³/stroke | 5.0 cm³/stroke | 2.8 cm³/stroke |
|
Hand Force (Approx)
|
385 N | 340 N | 550 N |
|
Mass (Approx)
|
7.7 kg (without oil) | 7.7 kg (without oil) | 7.7 kg (without oil) |
