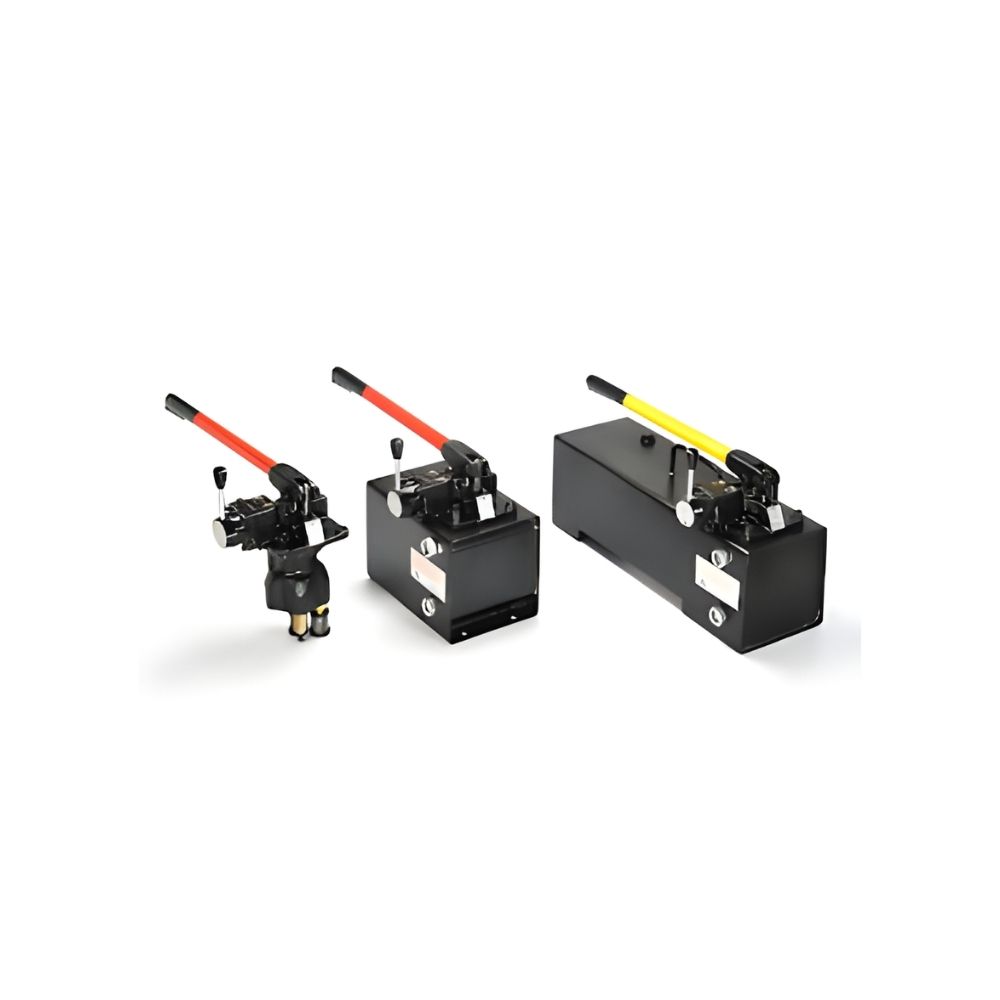

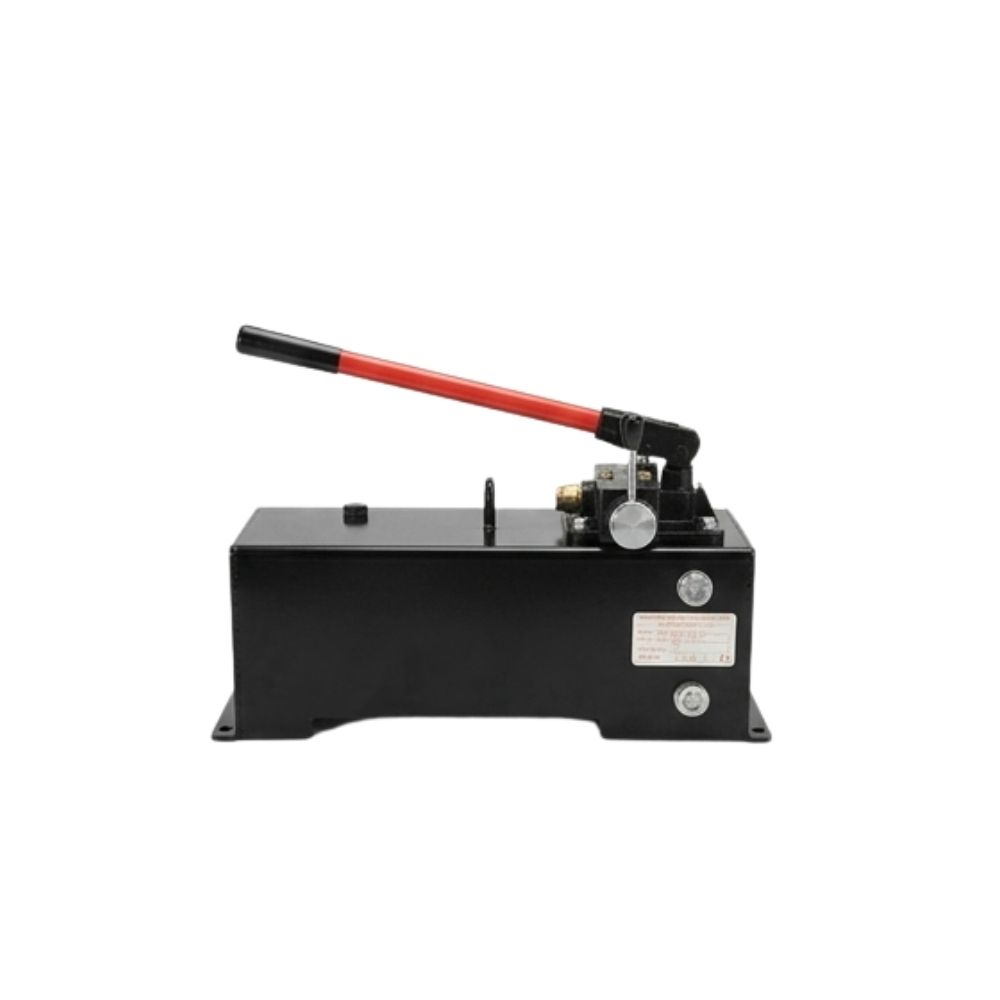

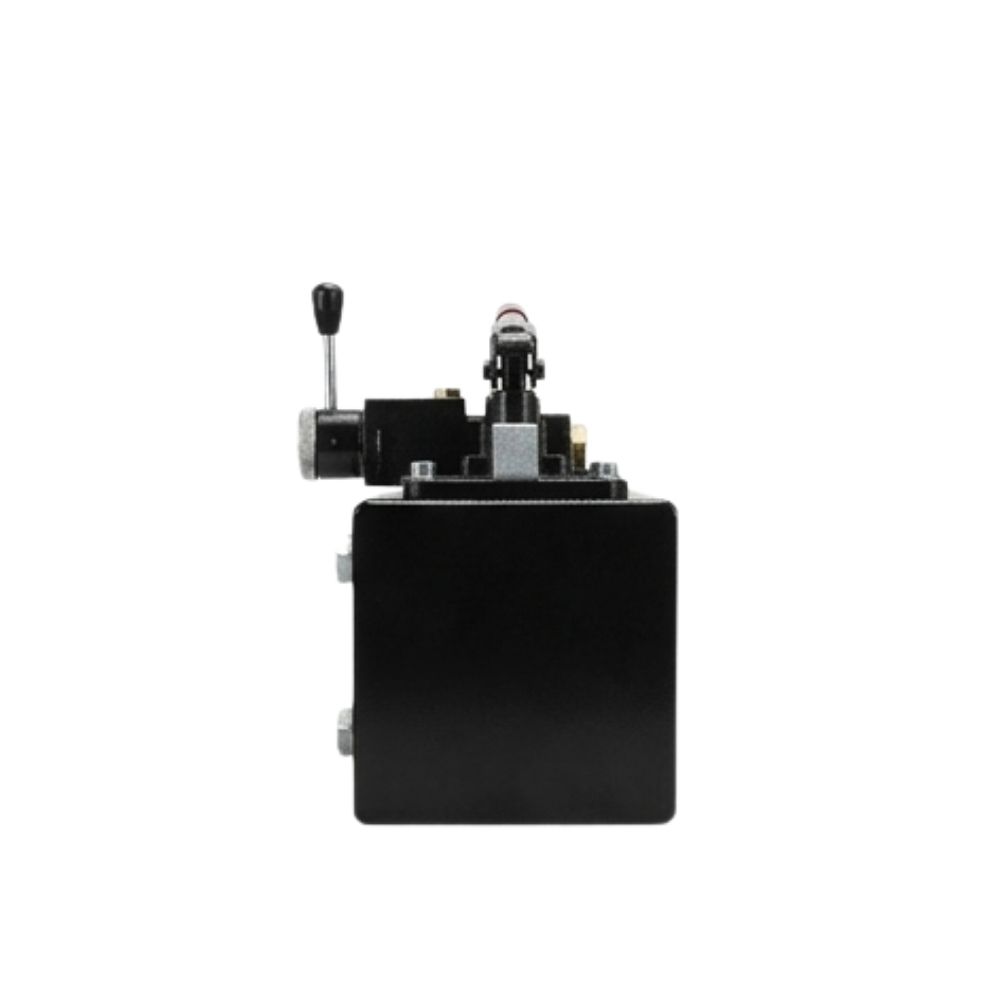

HP5012D & HP5016D – Feed and Power Hand Pump with Rotary Directional Control Valve
The Polyhydron HP5012-D and HP5016-D are heavy-duty, two-stage “Feed and Power” hand pumps featuring an integrated Rotary Directional Control Valve. These pumps are designed for high-efficiency operation of double-acting hydraulic cylinders, where a long initial travel must be completed quickly under low load.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron HP5012D and HP5016D are feed and power hand pumps equipped with an integrated rotary directional control valve. They feature two outlet ports, allowing easy switching of flow between both sides of a double-acting cylinder. This design ensures efficient operation and reliable control in hydraulic applications. For additional details, please refer to the datasheet.
| Parameters | Unit | HP5012 / HP5012-ST | HP5016 / HP5016-ST |
|---|---|---|---|
|
Max Working Pressure
|
bar | 700 | 350 |
|
Displacement (Up to 30 bar)
|
cm³/stroke | 49 | 49 |
|
Displacement (Above 30 bar)
|
cm³/stroke | 2.8 | 5.0 |
|
Hand Force (at Max Pressure)
|
N | ~385 | ~340 |
