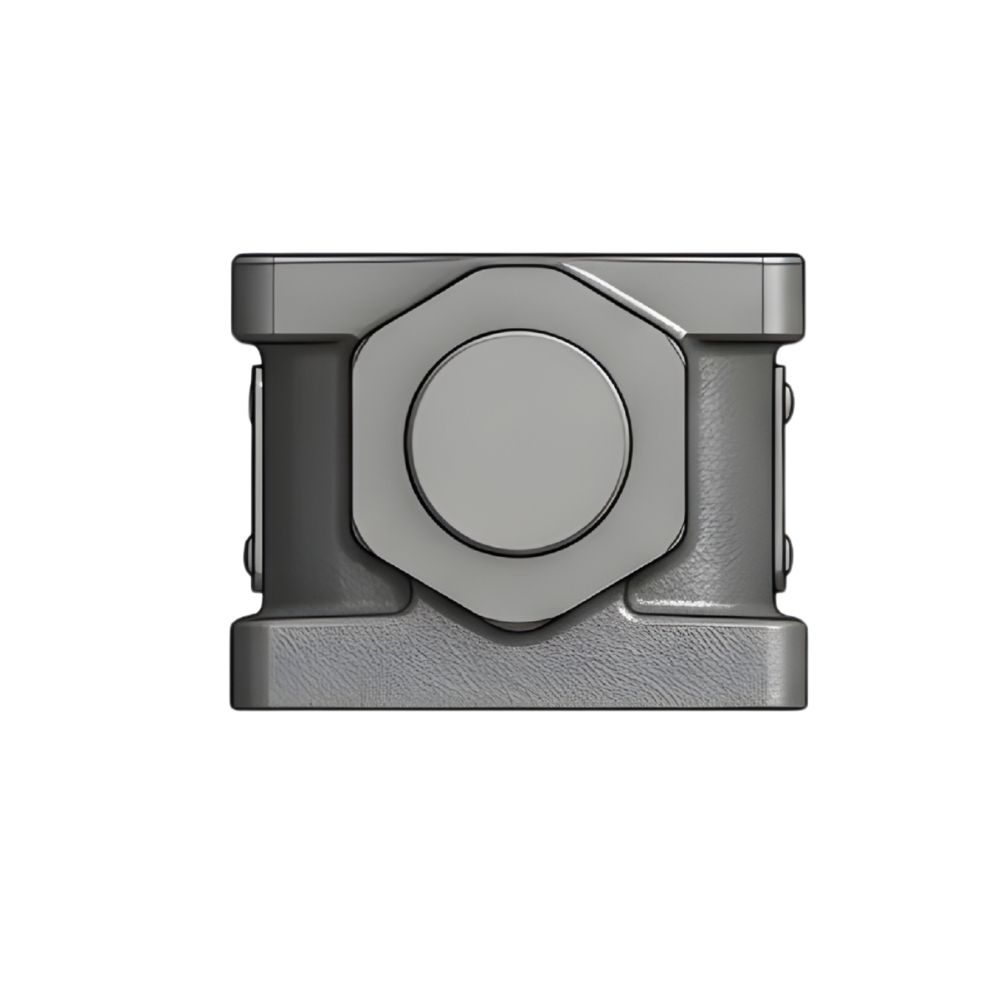

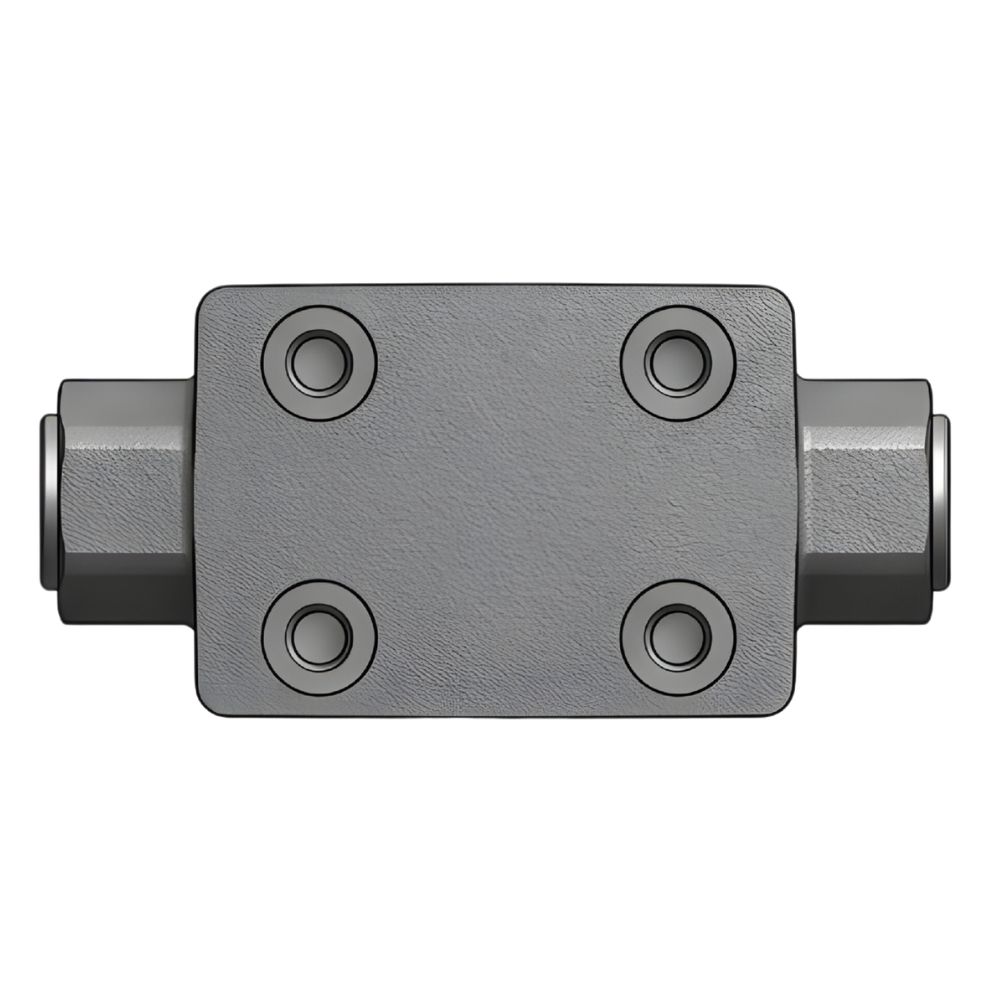

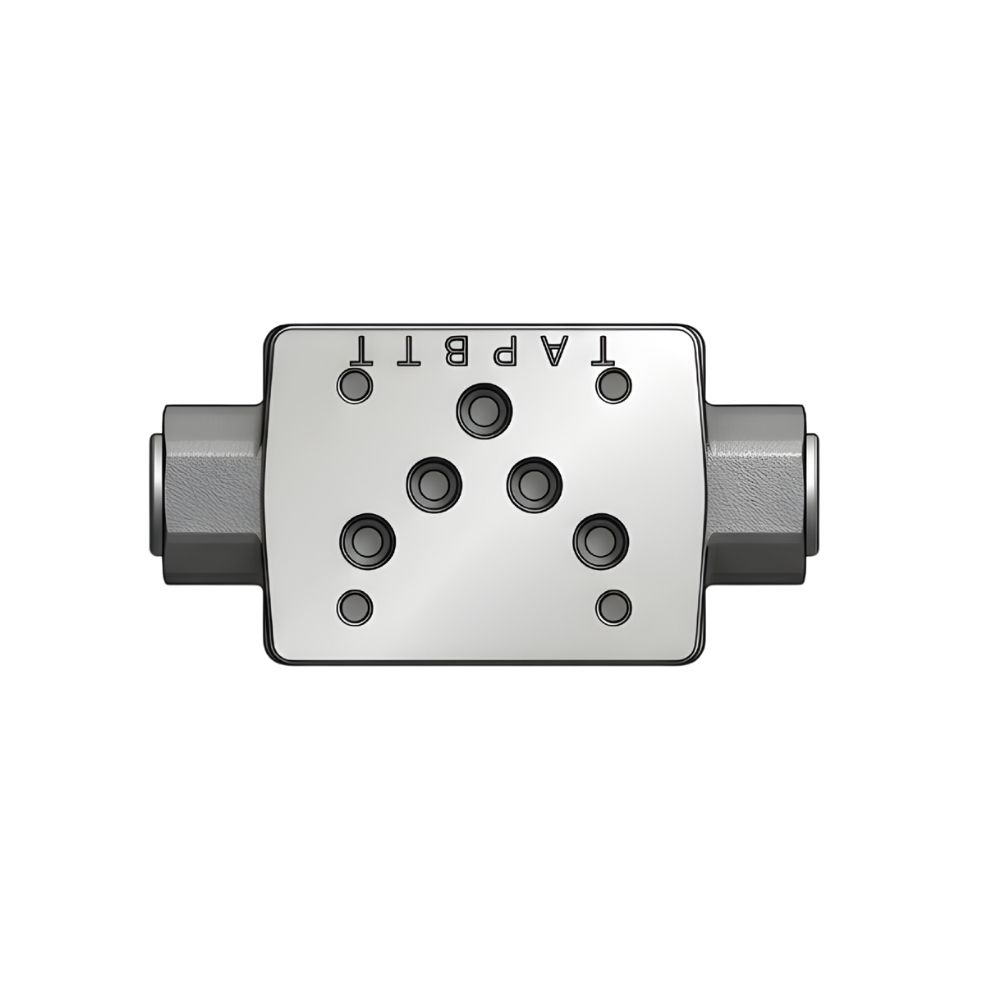

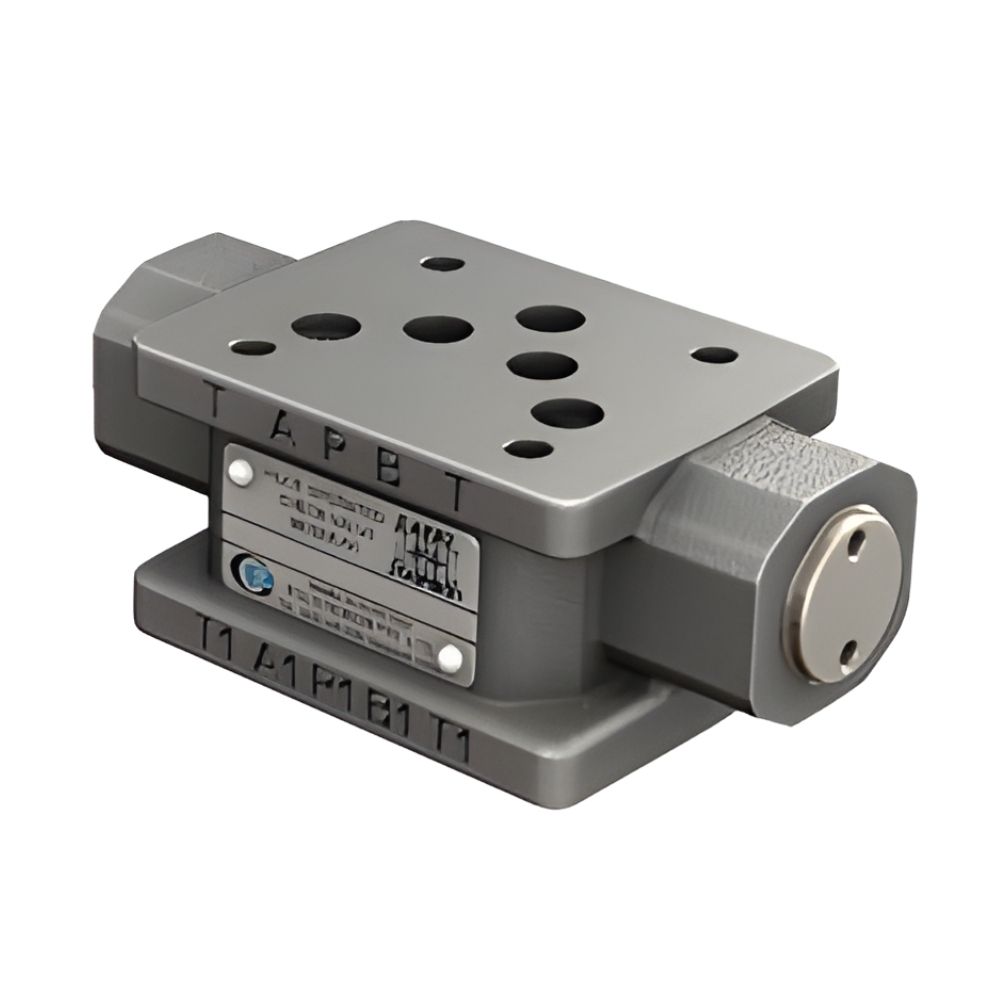

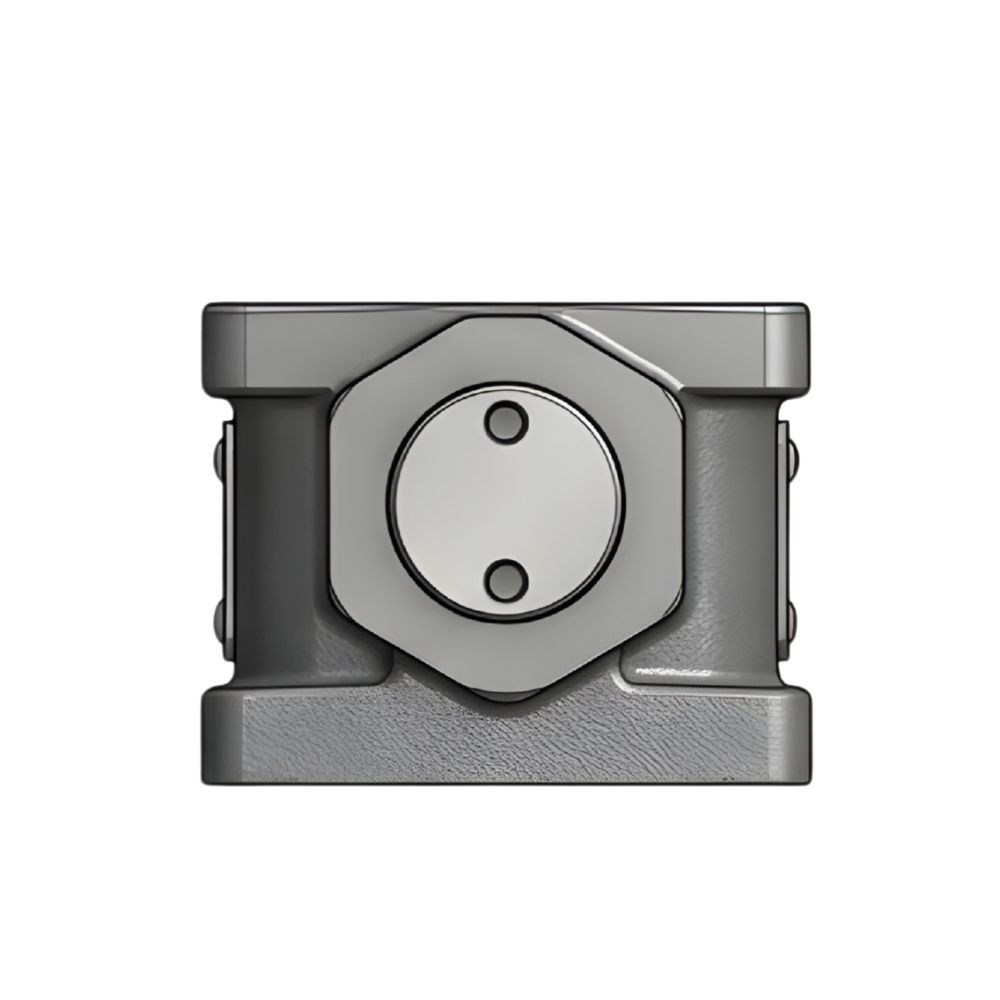

CIM10 – Double Pilot operated check valve (Modular)
The Polyhydron Double Pilot operated check valve (Modular) – CIM10Â is a modular pilot-operated check valve designed to provide leak-free pressure holding in hydraulic systems. Its “modular” construction allows it to be stacked vertically in a valve manifold (sandwich mounting), which eliminates the need for extra piping.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Double Pilot Operated Check Valve (Modular) – CIM10 is designed to provide pilot-operated check valve functionality on port A, port B, or both ports. It allows controlled flow in one direction while ensuring secure locking in the reverse direction. Free reverse flow is achieved through hydraulic opening using internal pilot pressure from the opposite working port.
The valve features a modular construction for easy installation and system integration. For proper closure of both valve poppets, both user connections should be unloaded in the neutral position by connecting them to the return line.
| Nominal flow and pressure ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | Max. working pr. (bar) | Max. flowl/min. | |||||
| CIM 10 | 315 | 80 | |||||
- Maximum Working Pressure:Â 315 bar.
- Max Flow Capacity:Â 80 L/min.
- Cracking Pressures:Â Available in 1, 3, or 5 bar versions.
- Valve Size:Â 10 (confirming to standard interfaces like ISO 4401-AC-05-4-A or DIN 24340).
- Mass:Â Approximately 1.9 kg to 2 kg.
