CIM06 – Double Pilot Operated Check Valve (Modular)

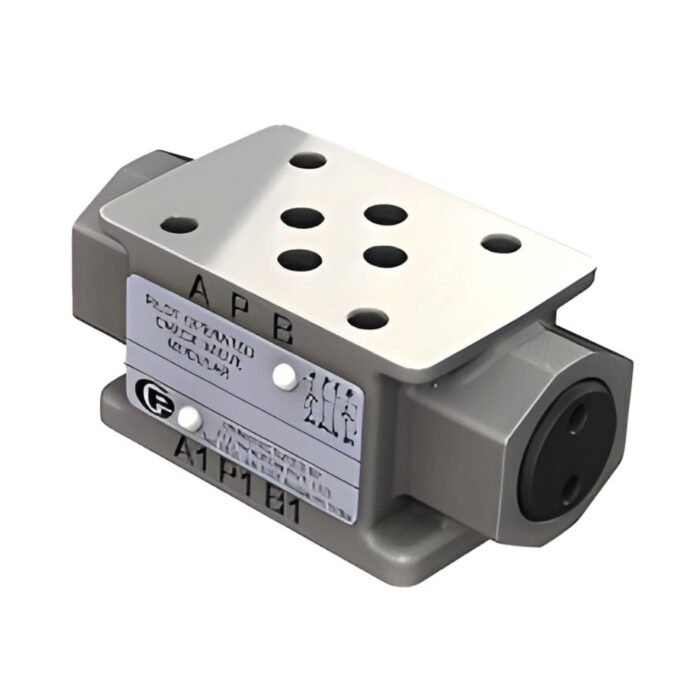

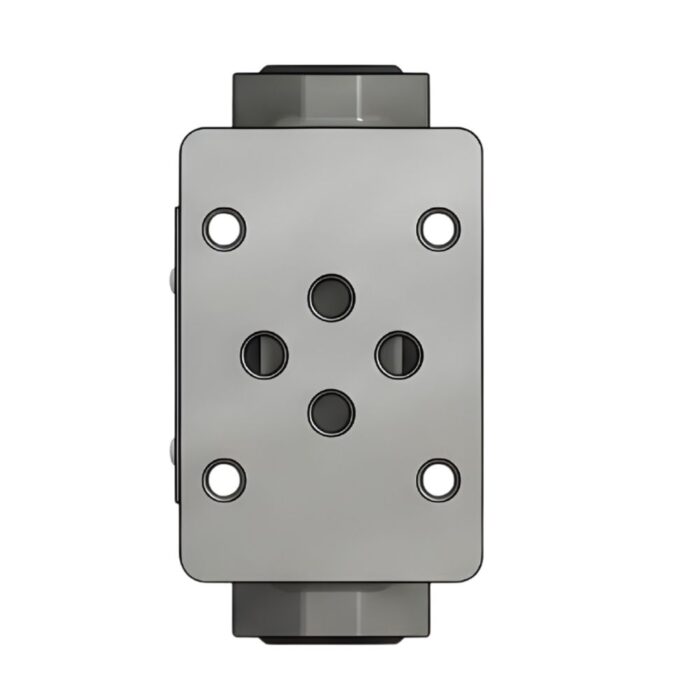

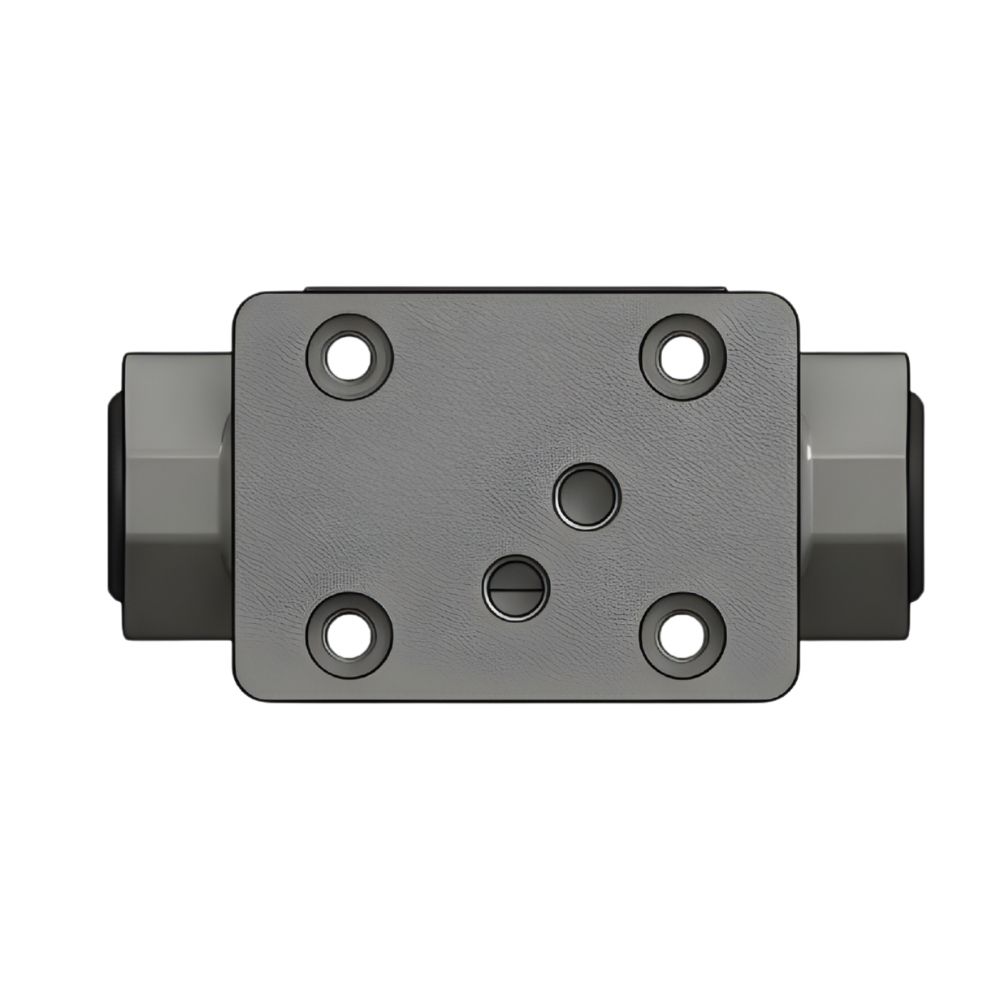

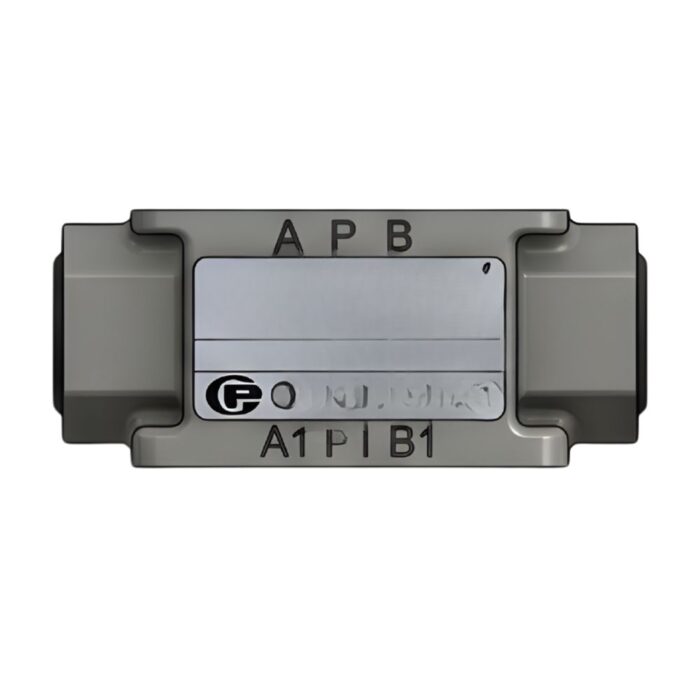

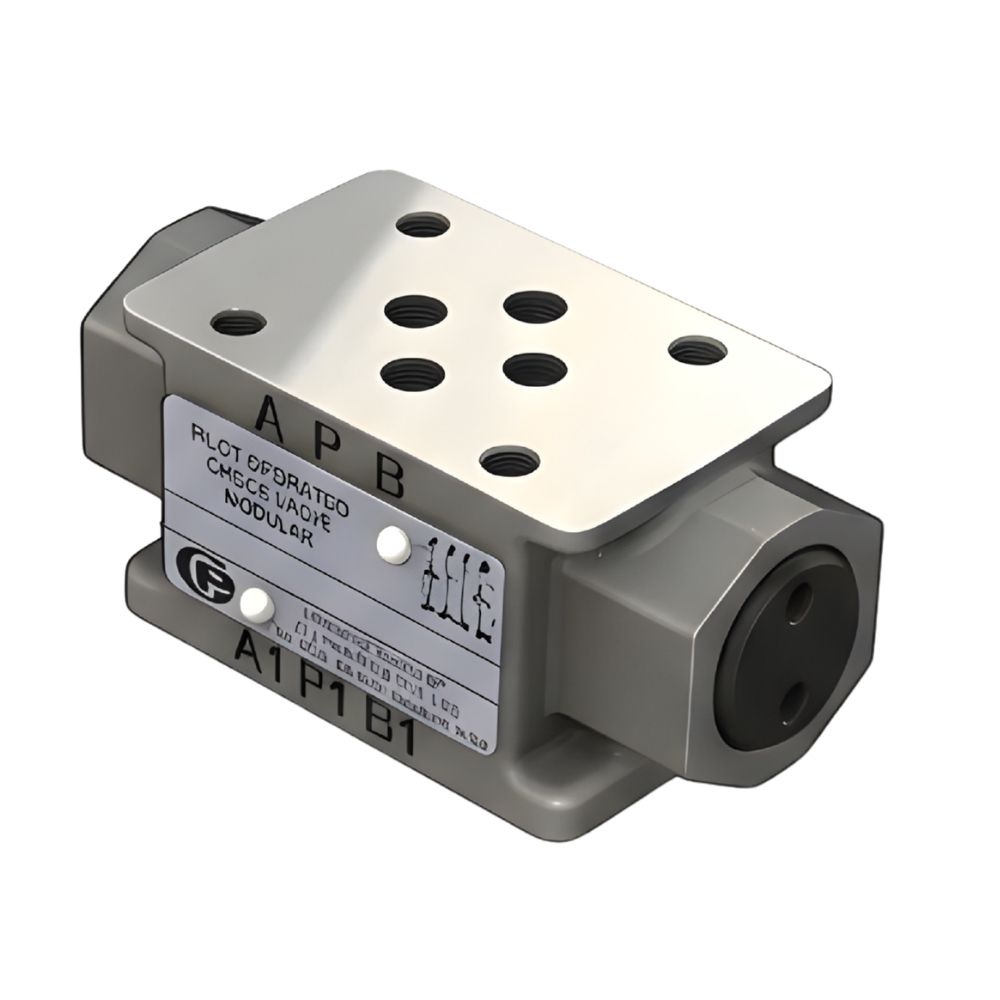

The Polyhydron Double Pilot Operated Check Valve (Modular) – CIM06 series refers to modular pilot-operated check valves designed for vertical stacking in hydraulic assemblies. While the standard base model is the CIM06, the “Double” version is specifically designated as the CIM06 AB.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Double Pilot Operated Check Valve (Modular) – CIM06 is designed to provide pilot-operated check valve functionality on either port ‘A’ or ‘B’. It allows controlled flow in one direction while ensuring secure locking in the opposite direction. Reverse free flow is achieved through hydraulic opening using internal pilot pressure from the opposite working port.
The valve features a modular design with interfaces conforming to ISO 4401-AB-03-04-A, IS 10187, and DIN 24340 standards, ensuring easy integration into hydraulic systems. For proper closure of both valve poppets, both user connections should be unloaded in the neutral position by connecting them to the return line.
| Nominal flow and pressure ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | Max. working pr. (bar) | Max. flowl/min. | |||||
| CIM 06 | 315 | 35 | |||||
- Function:Â Provides a pressure-holding facility on both service ports (A1 and B1), essentially locking a double-acting cylinder in position in both directions.
- Working Pressure: Rated for up to 315 bar.
- Max Flow: Capable of handling up to 40 L/min.
- Mounting: Modular construction that conforms to ISO 4401-AB-03-04-A, DIN 24340, and IS 10187 standards.
- Cracking Pressures: Typically available in 1, 3, or 5 bar options.
- Weight: Approximately 0.9 kg.
