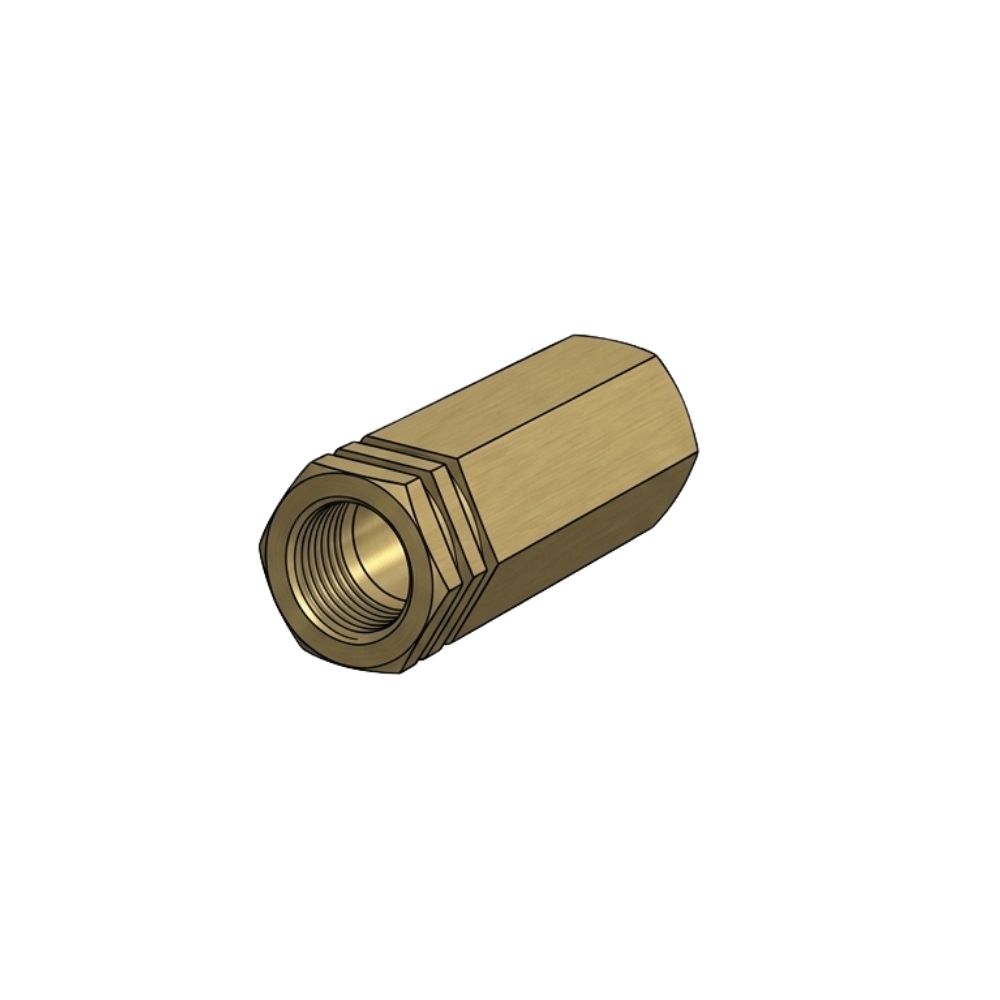

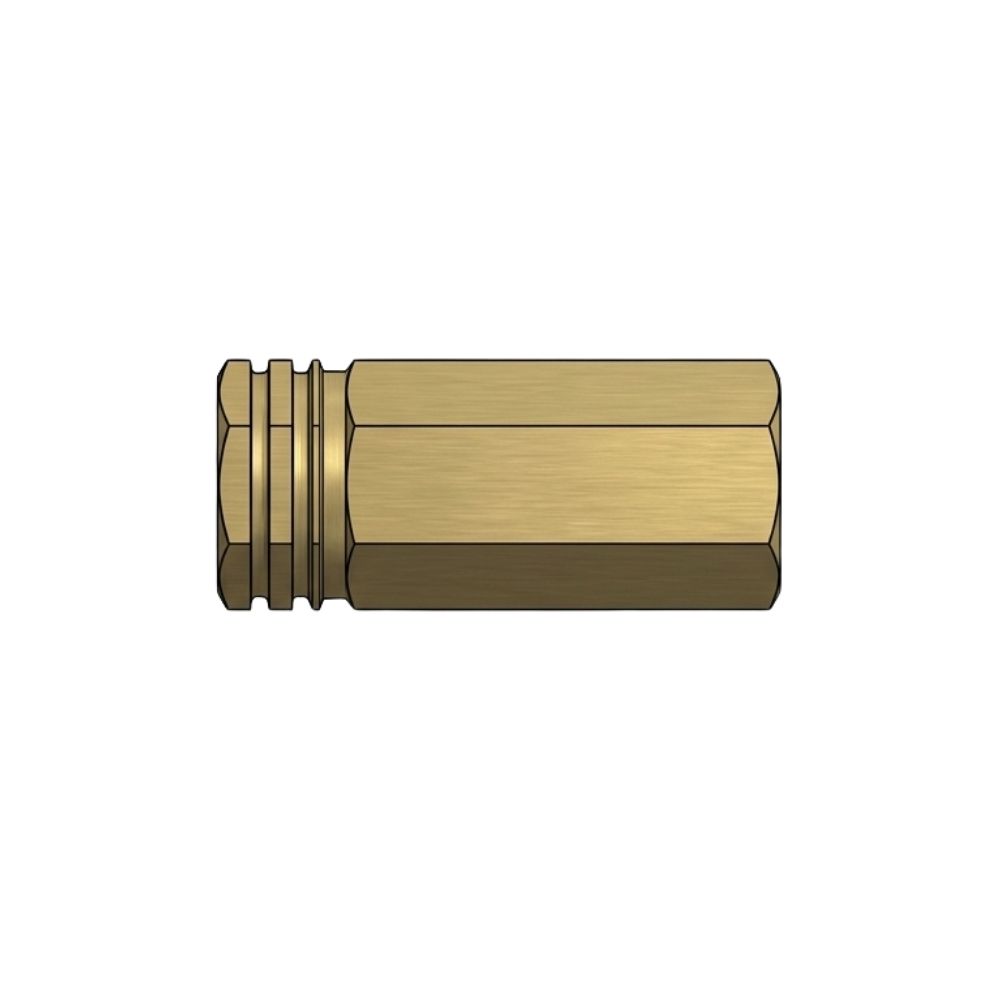

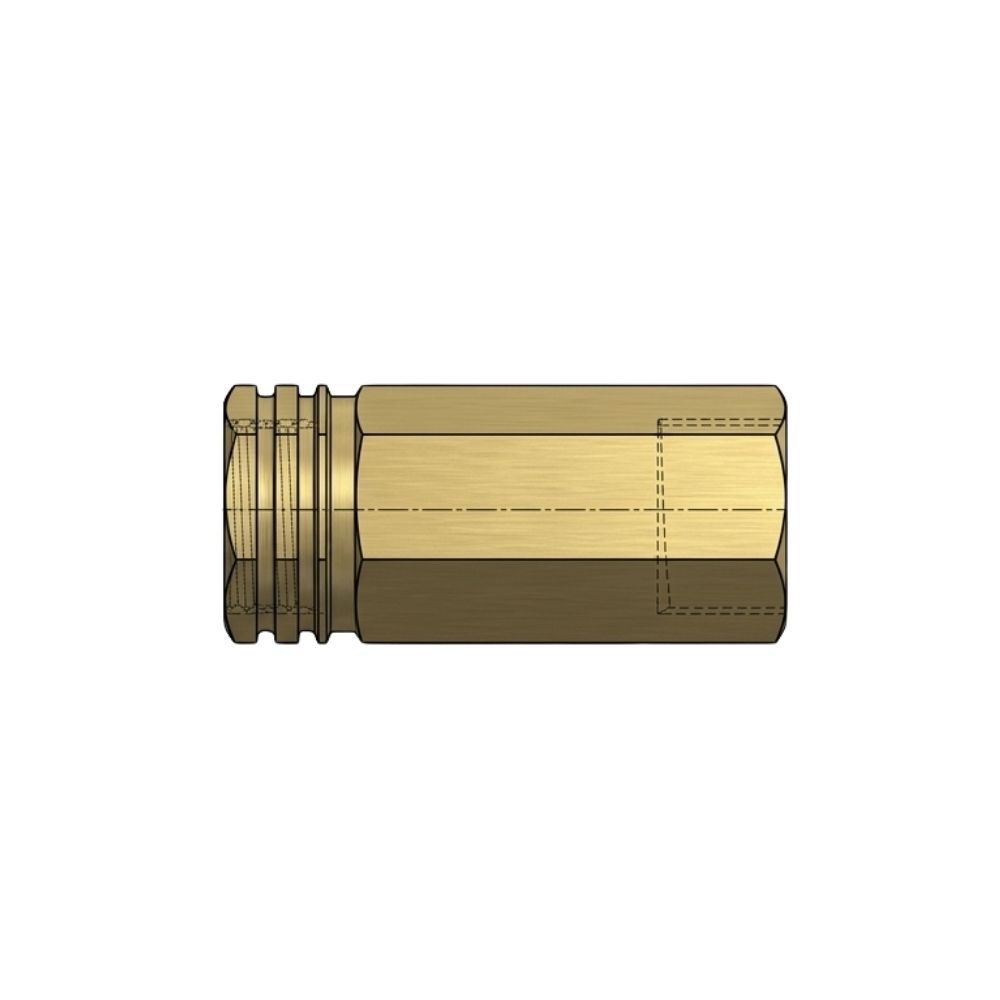

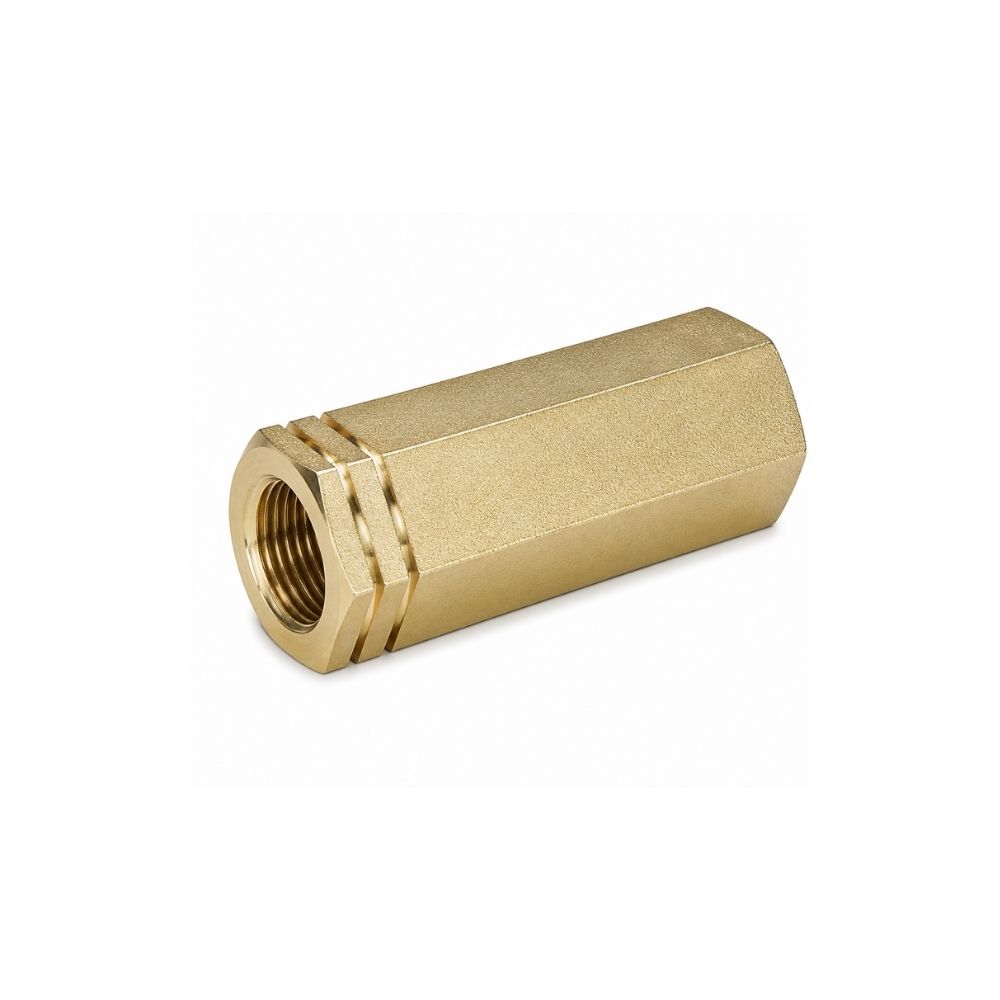

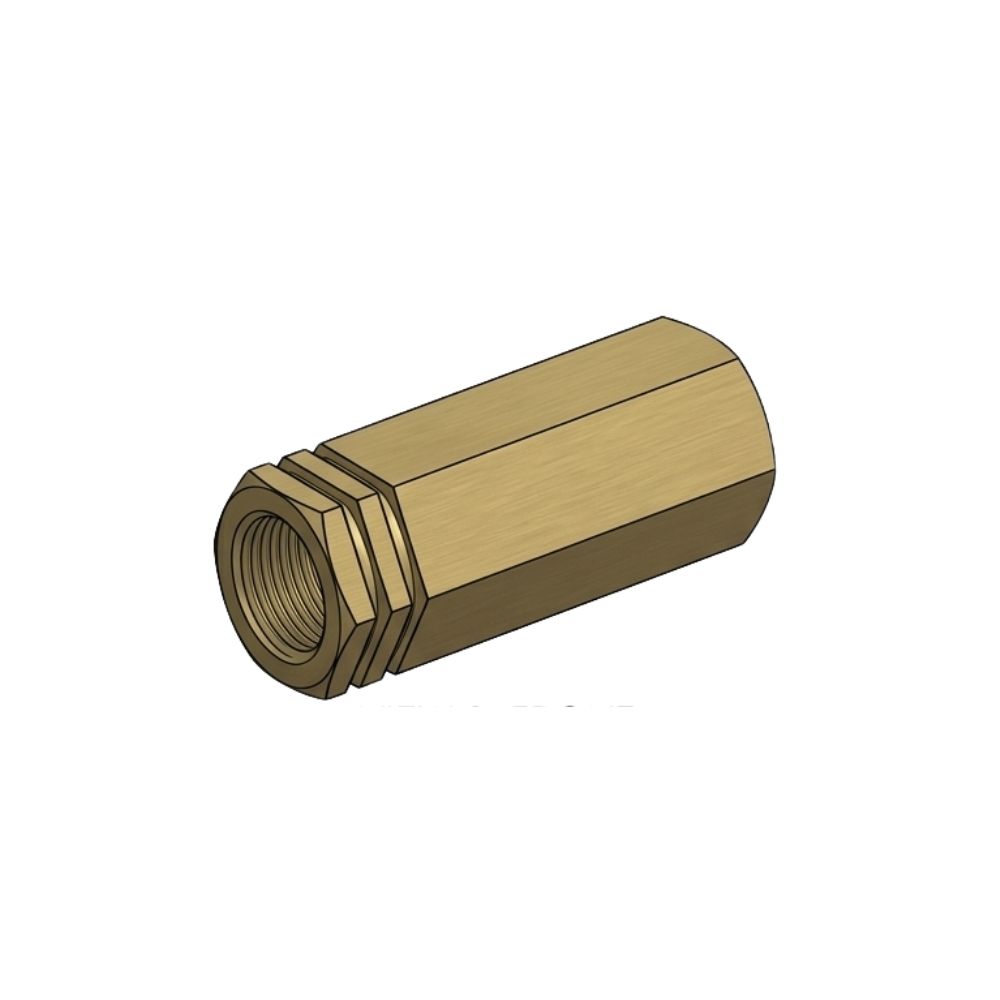

Check Valve – Inline – CUT
The Hydroline CUT series is a precision-engineered inline check valve (or non-return valve) designed to regulate the direction of fluid movement within hydraulic systems. It functions as a “one-way gate,” automatically allowing free flow in a preferred direction while providing a leak-free seal to block any reverse flow.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hydroline CUT series consists of standard inline hydraulic check valves (also known as non-return valves) designed for high-performance fluid control in both industrial and mobile hydraulic systems.
| Feature | Technical Specification & Details |
|---|---|
| Product Series | Hydroline CUT Series (Inline Check Valve) |
| Function | Permits free flow in one direction; blocks reverse flow |
| Internal Design | Robust spring-loaded Poppet type for leak-free sealing |
| Body Material | High-strength Steel (Standard) or Brass |
| Available Sizes | 7 sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, and 1-1/2″ |
| Thread Type | BSPP (Standard) |
| Max Working Pressure | Up to 200 BAR (approx. 2900 PSI) |
| Max Flow Capacity | Up to 270 LPM (depending on valve size) |
| Cracking Pressures | Standard options: 0.35 BAR (5 PSI) or 3.5 BAR (50 PSI) |
| Installation | Inline mounting with hexagonal body for easy wrench tightening |
| Fluid Compatibility | Mineral-based and petroleum-based hydraulic oils |
| Temperature Range | Typically -20°C to +80°C with standard Nitrile seals |
