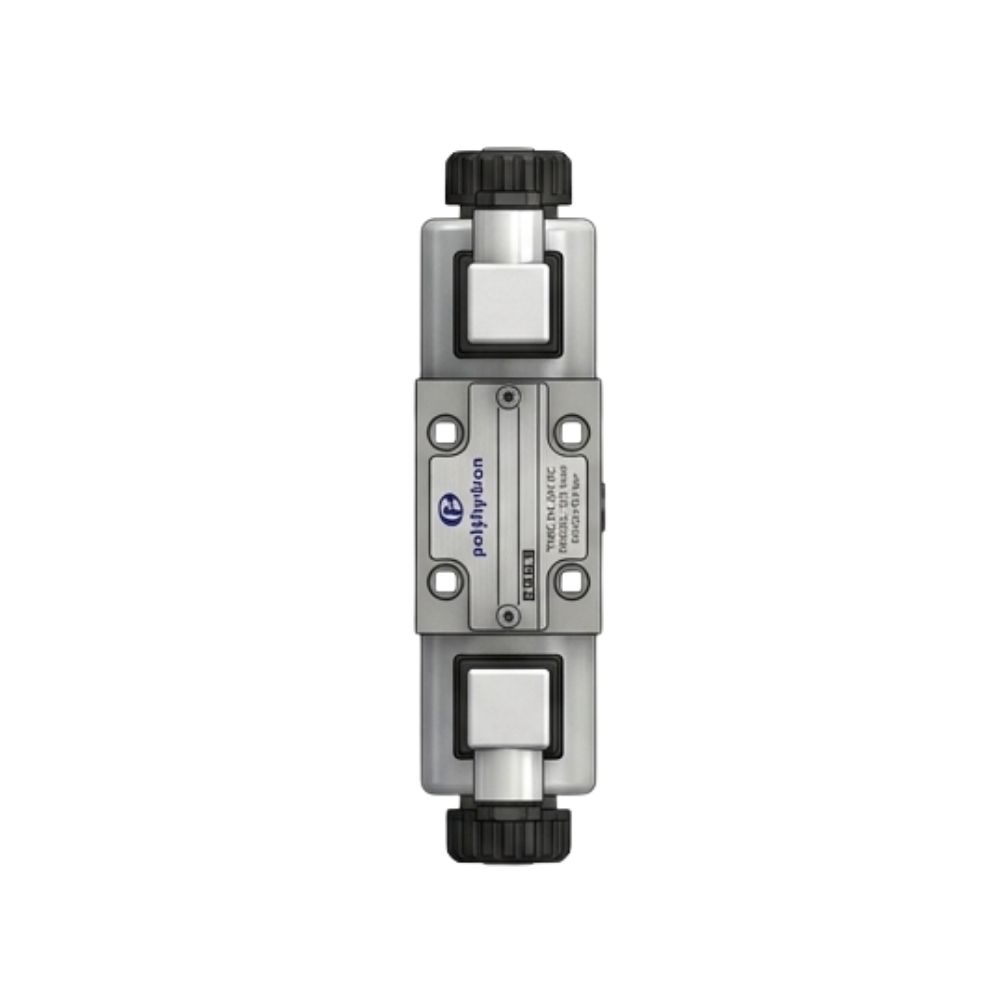

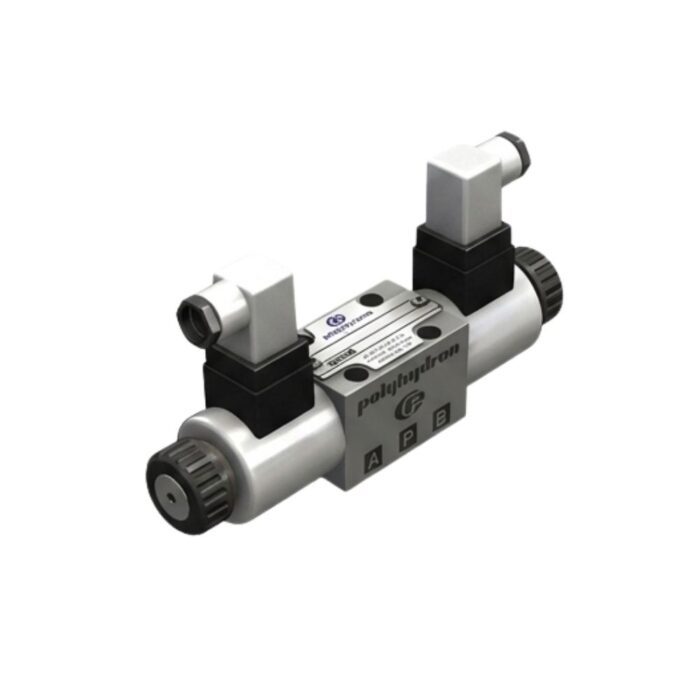

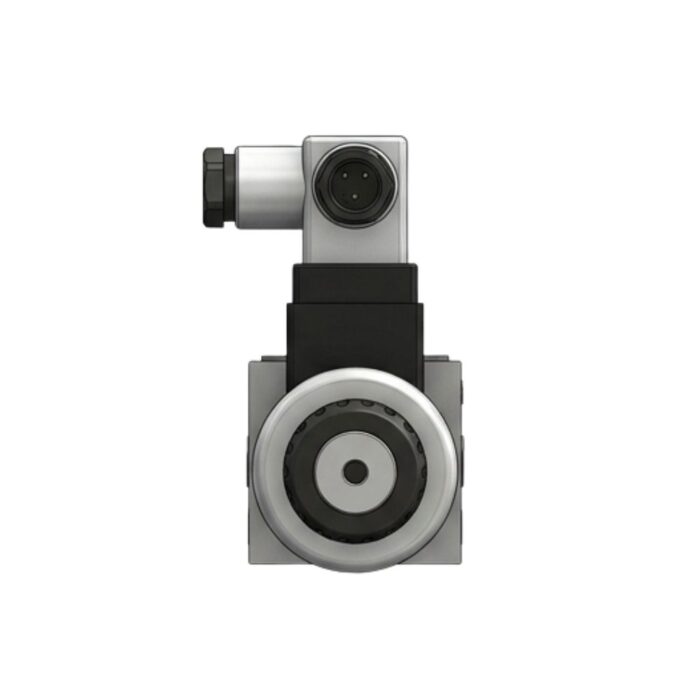

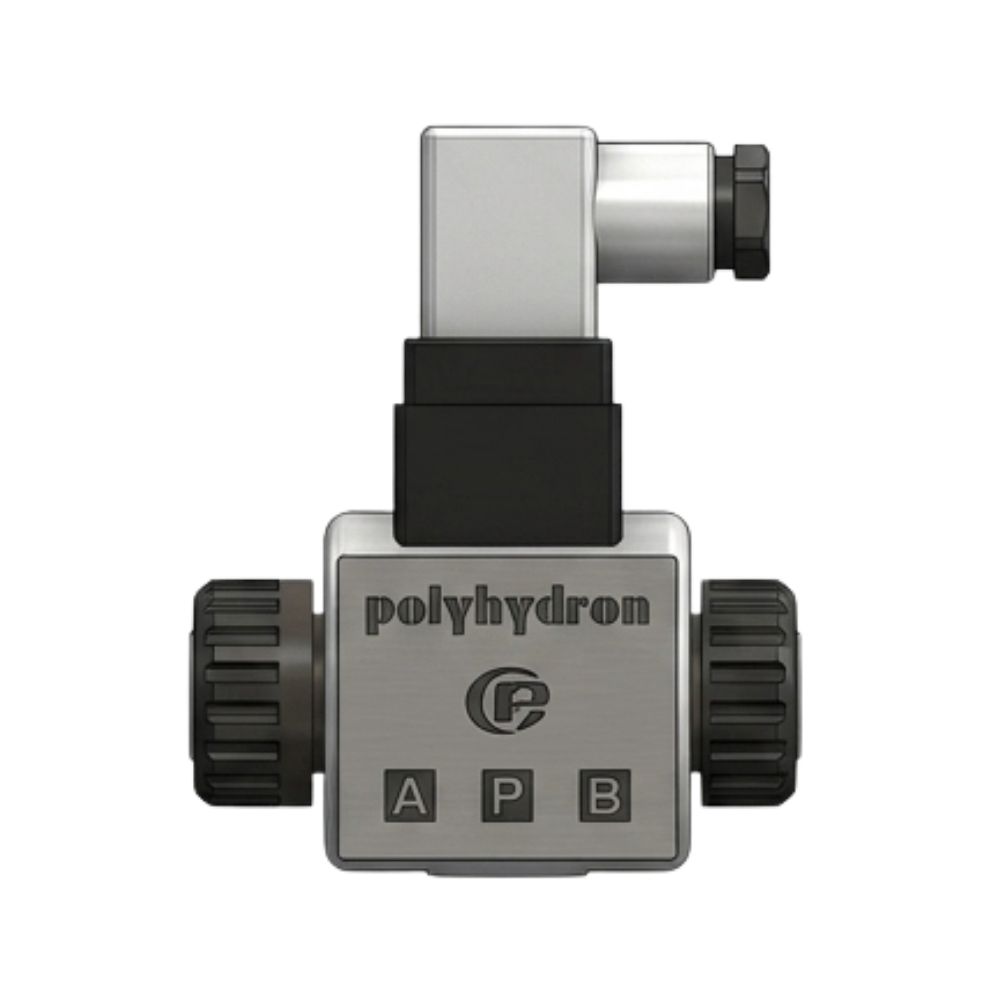

4DE06 Solenoid Operated Directional Control Valve (NG6 CETOP 3, 315 bar, 63 lpm)

The Polyhydron 4DE06 is a direct-acting, solenoid-operated spool-type directional control valve designed for high-performance hydraulic systems. It features a CETOP 03 (NG06) mounting interface, making it compatible with international standards like ISO 4401-03-02.

  • Check Mark Operating Pressure : High Performance Range
  • Check Mark Application : Industrial & Mobile Systems

About this item

The Polyhydron 4DE06 (315 bar, 63 lpm) – Solenoid Operated Directional Control Valve (CETOP 03) is a direct solenoid-operated, spool-type directional control valve designed for mounting on ISO 4401-03-02 standards. It is built to operate up to 315 bar with a flow capacity of 63 LPM.

The valve features a five-chamber body and spool design that ensures low pressure drop and high performance. Its balanced spool design provides reliable shifting and long service life. Interchangeable spools and bodies simplify maintenance and reduce downtime.

Equipped with wet pin DC solenoids, the valve offers better heat dissipation and quieter operation, enhancing durability. The moulded solenoid coils prevent moisture ingress and dust contamination, while plug-in coils allow easy maintenance. Indicator lights are provided as a standard feature for operational convenience.

Parameter Specification
Max. Operating Pressure (P, A, B) 315 bar
Max. Tank Port Pressure (T) 100 bar (standard); up to 150 bar for spools A & B if used as drain
Nominal Flow Rate 63 lpm
Hydraulic Medium Mineral Oil
Viscosity Range 10 cSt to 380 cSt
Fluid Temperature Range -20°C to +80°C
Cleanliness Requirement ISO 4406 20/18/15 or better
Operation Conditions
  • Hydraulic Fluid: Mineral oil with a viscosity range of 10 to 380 cSt.
  • Temperature Range: Fluid temperature should be between -20°C and +80°C; maximum ambient temperature is 50°C.
  • Cleanliness: Requires fluid cleanliness to ISO 4406 20/18/15 or better for optimal performance.
