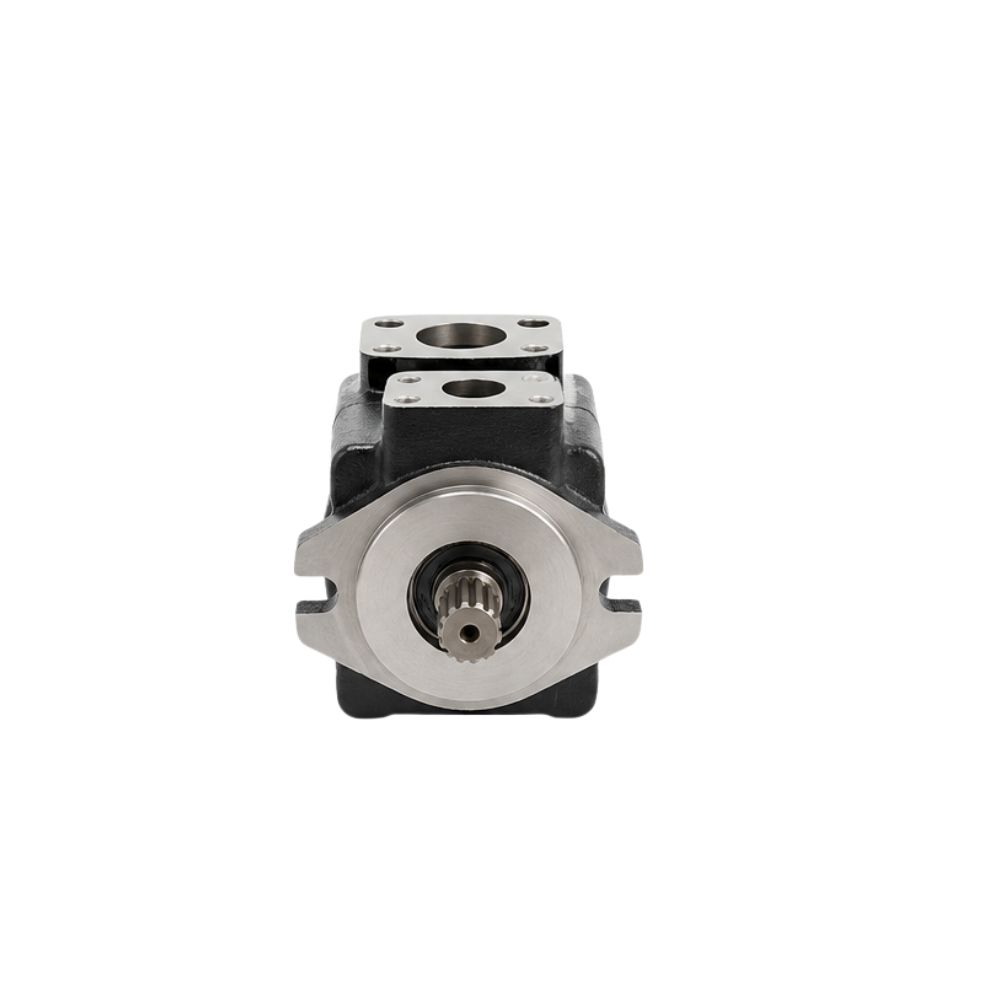

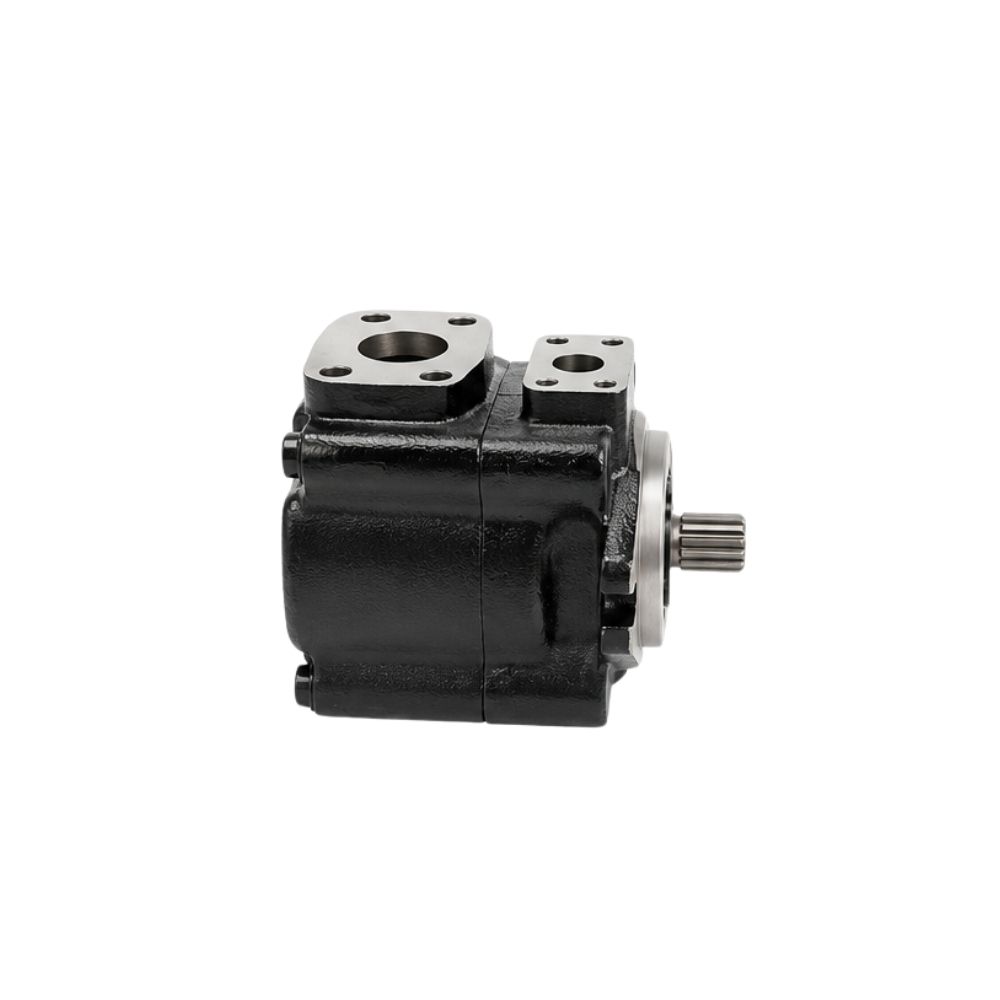

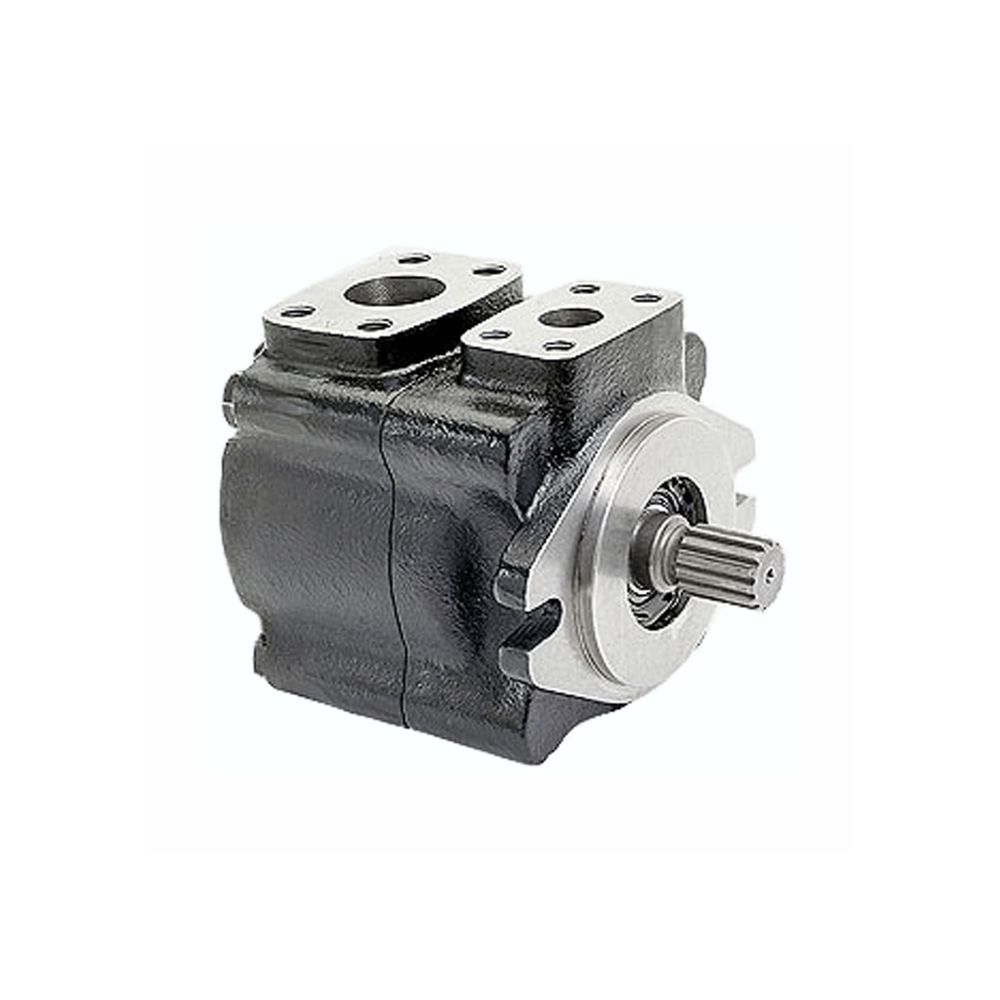

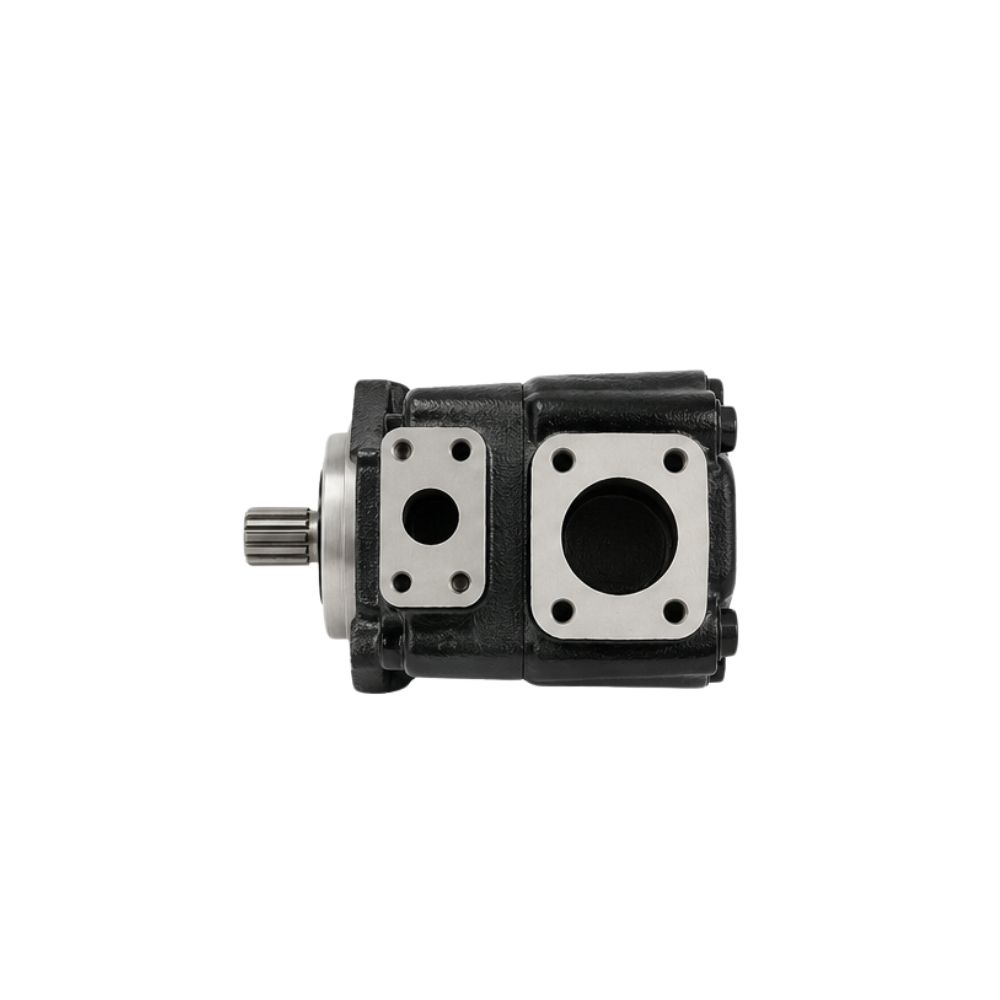

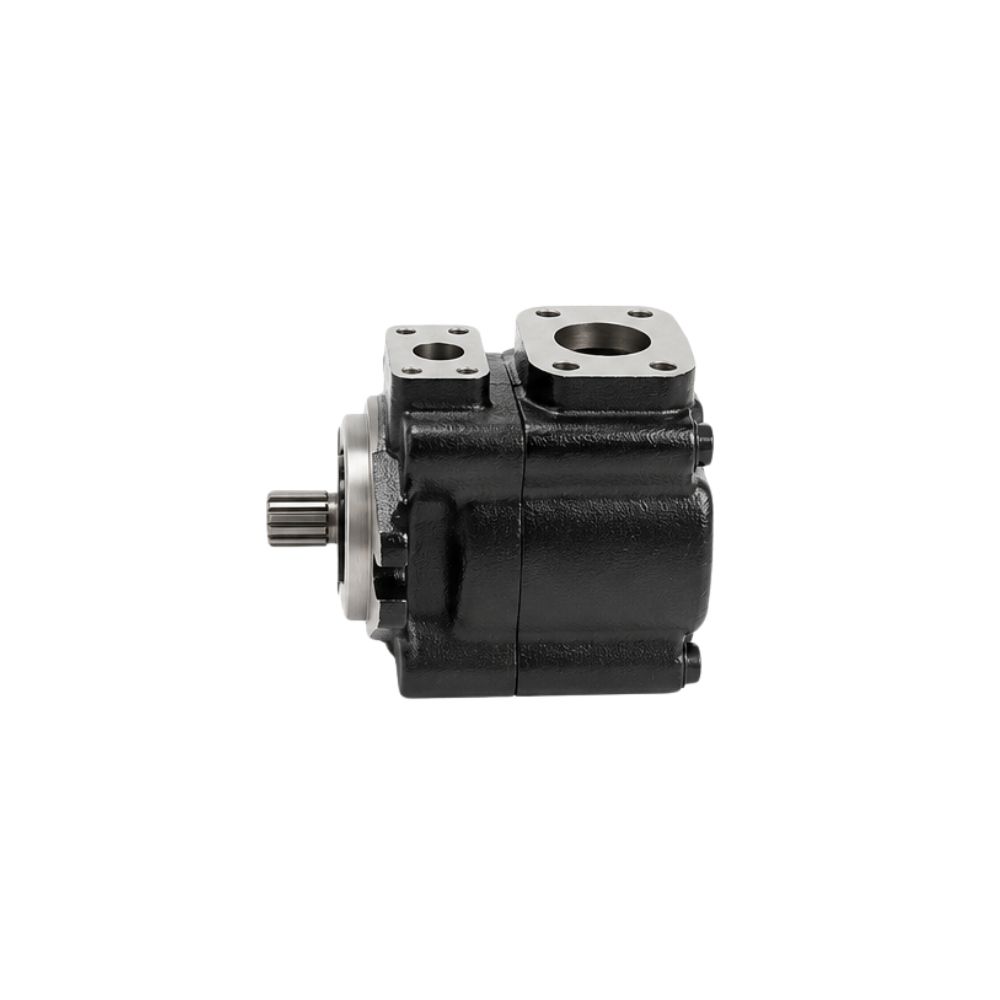

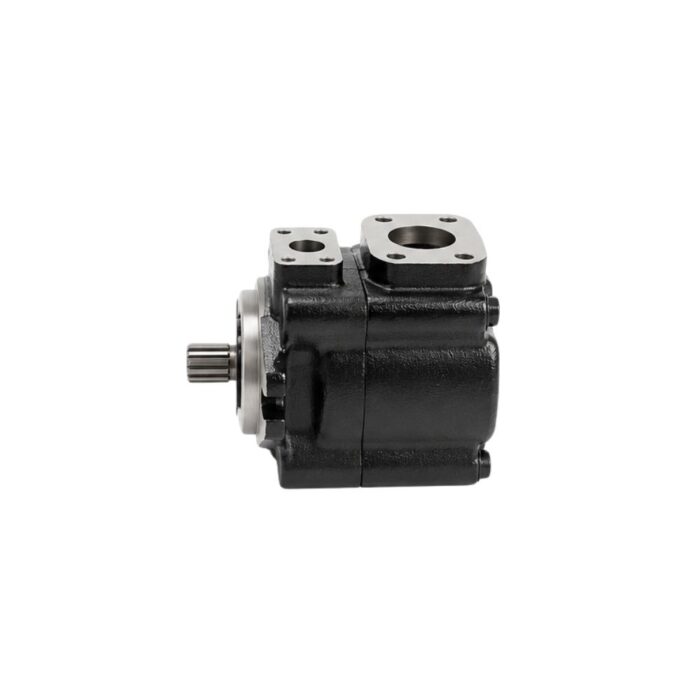

VTXB – Hydraulic Vane Pump
The Veljan VTXB is a high-performance, fixed-displacement single hydraulic vane pump designed for high pressure and low noise operation. It features a heavy-duty cast iron housing and utilizes hydraulically balanced dual-lip vane technology to reduce wear and extend service life. It is fully interchangeable with standard Parker Denison pumps and is commonly used in industrial power packs, injection molding machinery, and mobile equipment.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Veljan VTXB is a high-performance, fixed displacement single hydraulic vane pump manufactured by Veljan Hydrair. It is highly valued for industrial and mobile applications due to its robust design, low-noise operation, and full interchangeability with standard Parker Denison components..
| Metric / Aspect | Technical Details & Functional Features |
|---|---|
| Max Pressure | Up to 210 bar (3,000 psi) |
| Displacement Range | 6.0 to 46.0 cm3/rev (0.40 to 2.80 in3/rev) |
| Maximum Speed | Up to 2,500 RPM |
| Mounting Standard | SAE – A flange type |
| Noise Reduction | Thick, rigid outer housing and 12-vane cartridge dampen operational sounds. |
| Hydraulic Balance | Elliptical cam ring neutralizes internal side loads on the shaft and bearings. |
| Contamination Control | Dual-lip vane technology provides wear compensation against harsh fluid environments. |
| Build Material | Heavy-duty cast iron or mild steel body for structural strength. |
| Interchangeability | Form, fit, and function match standard Parker Denison components. |
