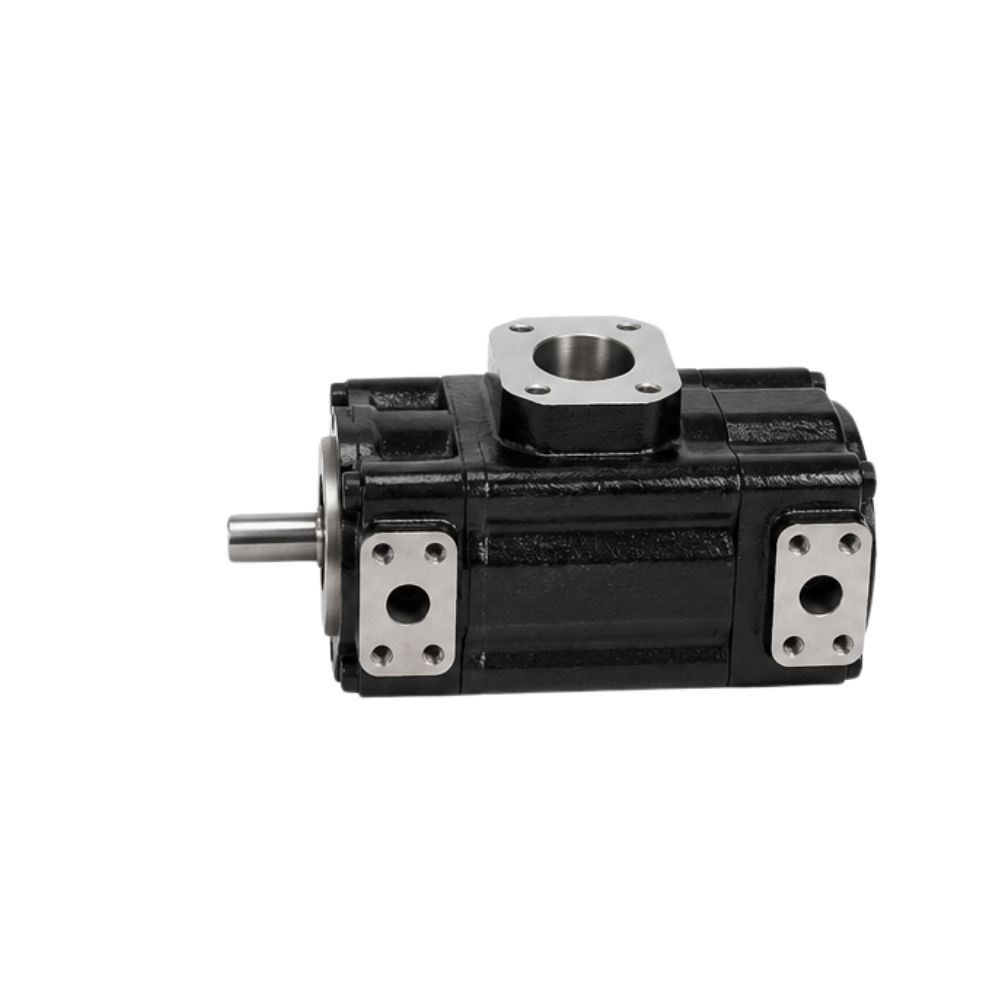

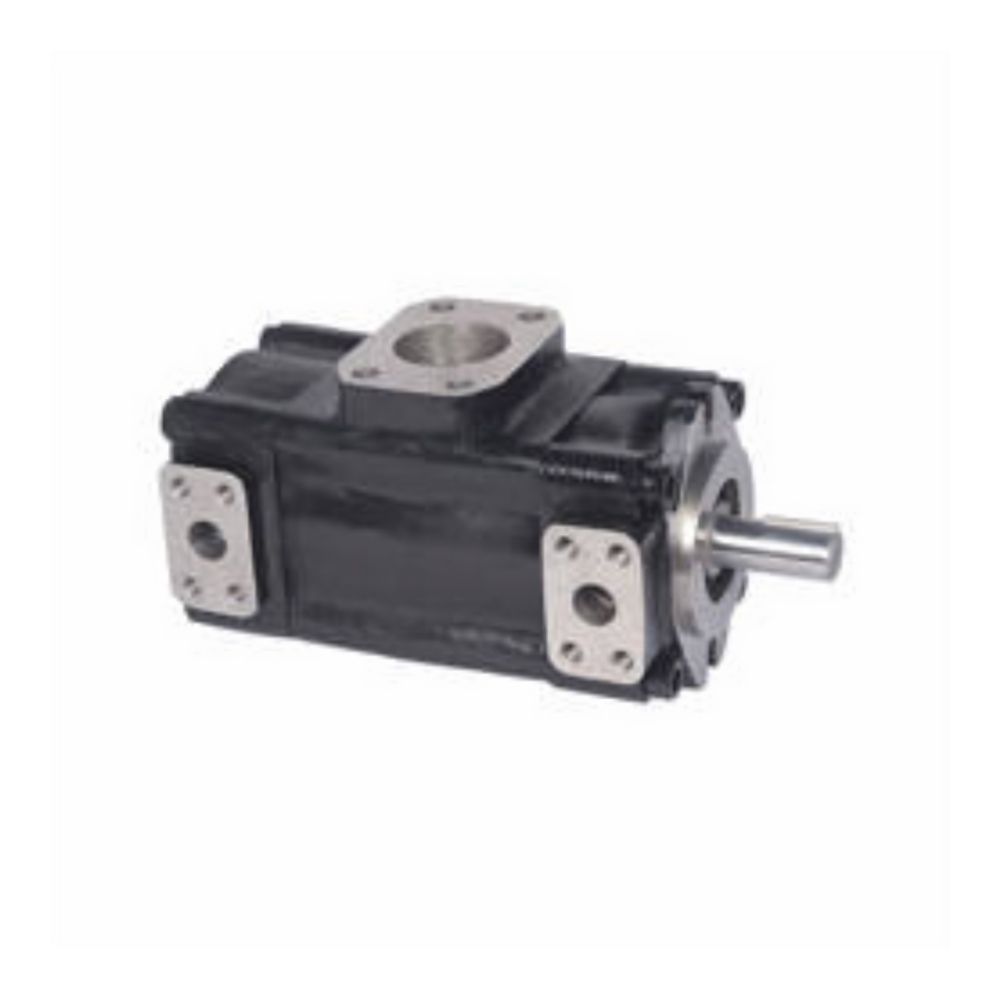

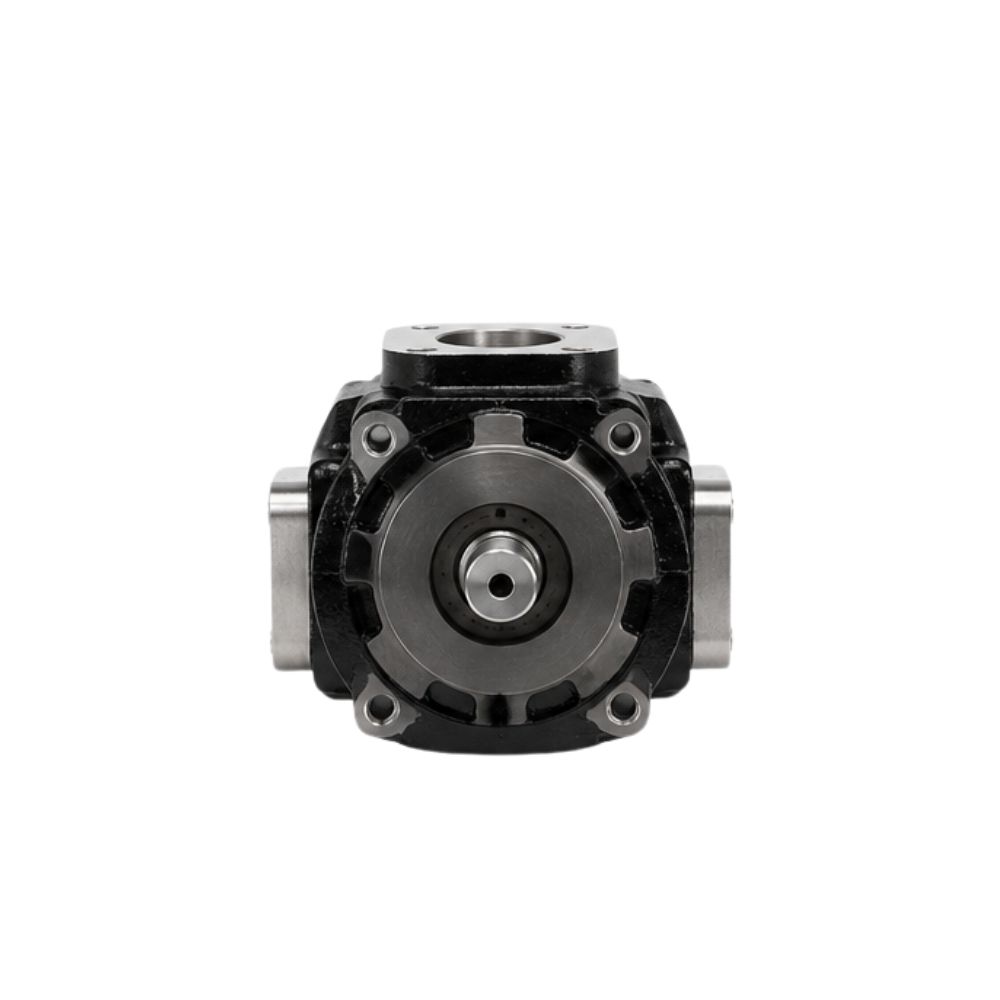

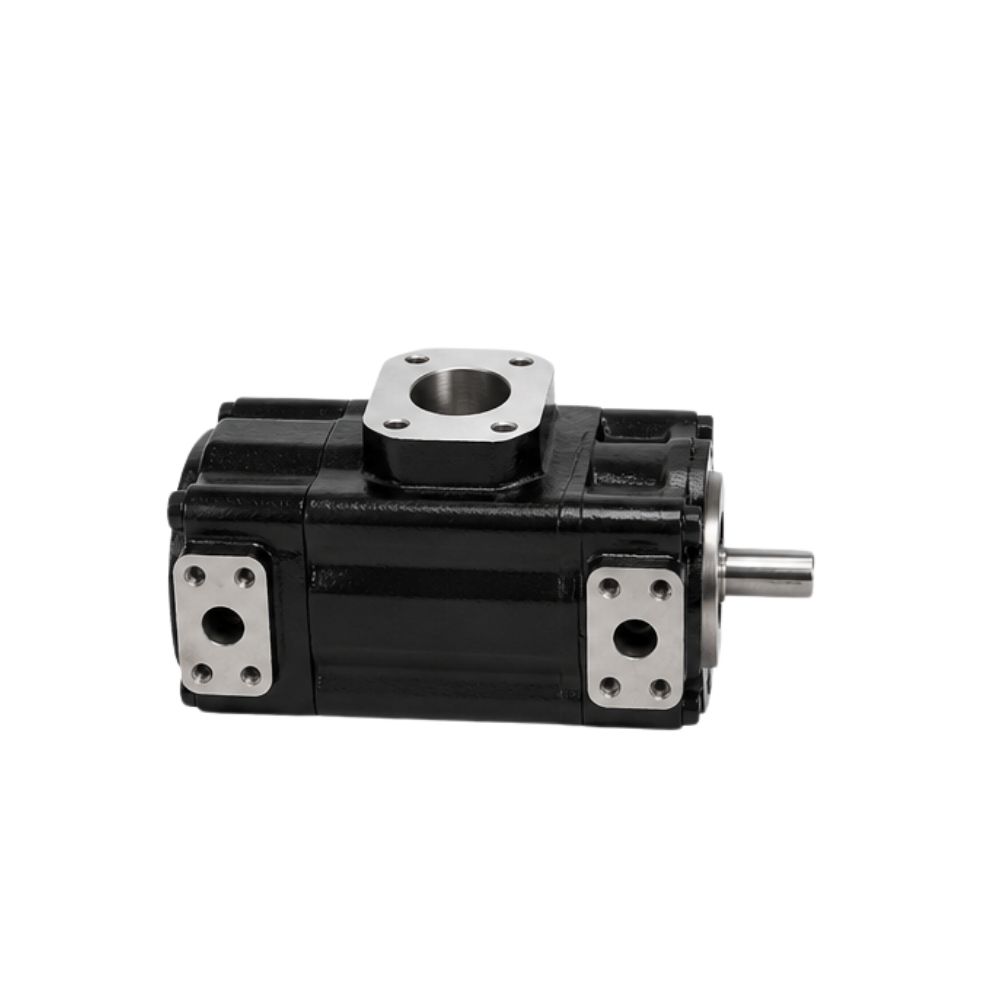

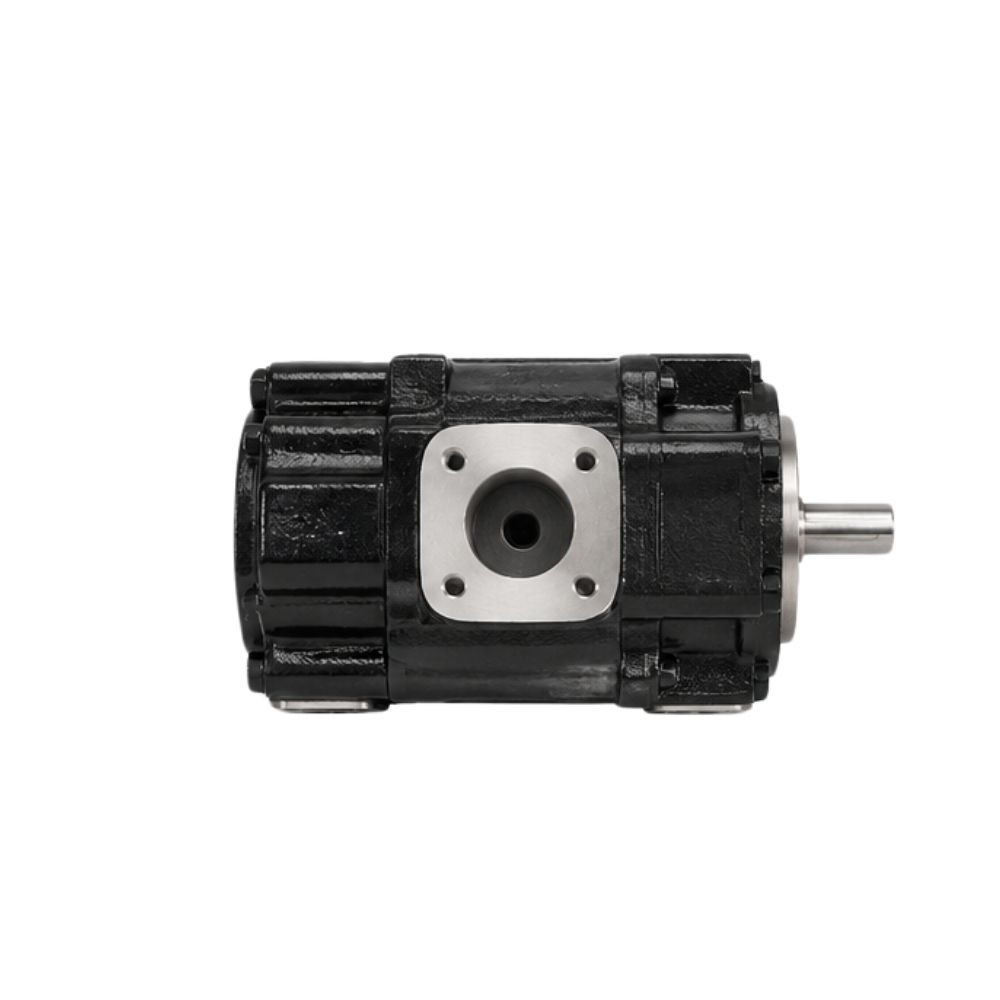

VTXBB – Hydraulic Vane Pump
The Veljan VTXBB is a high-performance, fixed-displacement double hydraulic vane pump designed for demanding industrial and mobile applications. It features a rugged, heavy-duty cast iron housing that dampens operational noise and resists extreme vibrations. Inside, it utilizes two separate cartridge assemblies on a single drive shaft, allowing it to efficiently power multiple independent hydraulic circuits or combine flows for high-demand tasks.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Veljan VTXBB is a high-performance, fixed-displacement double hydraulic vane pump engineered primarily for heavy-duty industrial and mobile applications. Manufactured by Veljan Hydrair, these pumps feature a hydraulically balanced pin-vane design that provides stable operation, exceptional volumetric efficiency, and a long service life under high-pressure conditions.
| Feature / Specification | Details |
|---|---|
| Pump Type | Fixed-displacement double hydraulic vane pump |
| Maximum Pressure | 3000 psi (210 bar) |
| Displacement Range | 0.79 to 5.61 in3/rev (12 to 92 cm3/rev) |
| Maximum Speed | 2500 rpm |
| Mounting Standard | SAE-A / SAE-B |
| Configuration | Double cartridge assembly on a single shaft for multiple or combined flows |
| Housing Material | Heavy-duty cast iron to dampen noise and vibration |
| Vane Technology | Twin-lipped, wear-compensated pin-vanes for high volumetric efficiency |
| Fluid Compatibility | Mineral oils, water glycols, phosphate esters, and invert emulsions |
