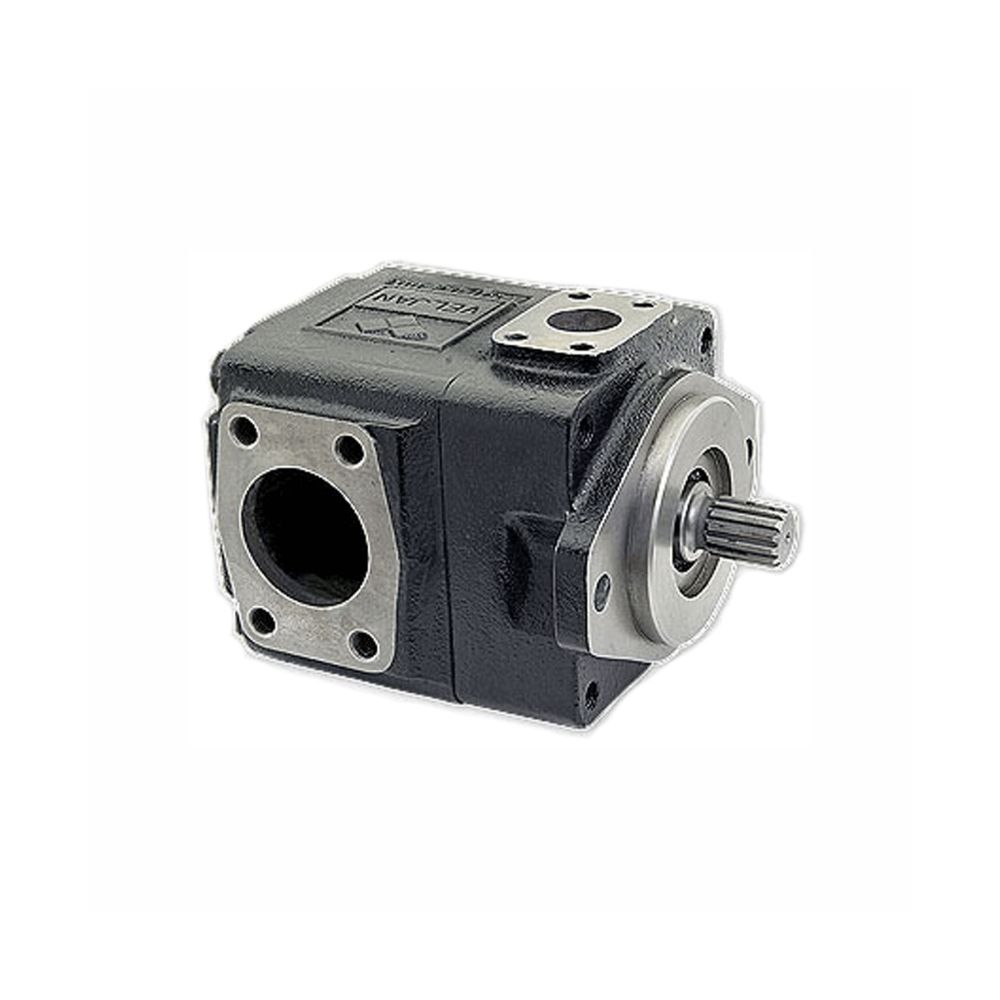

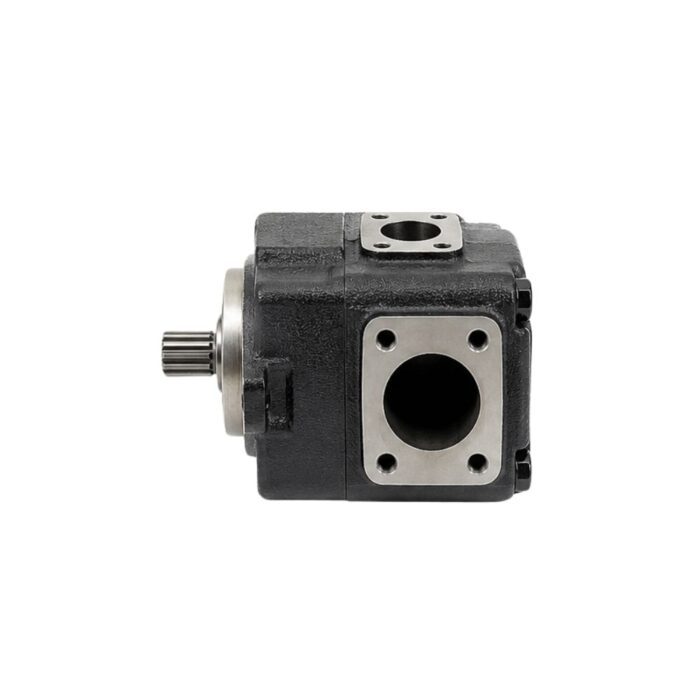

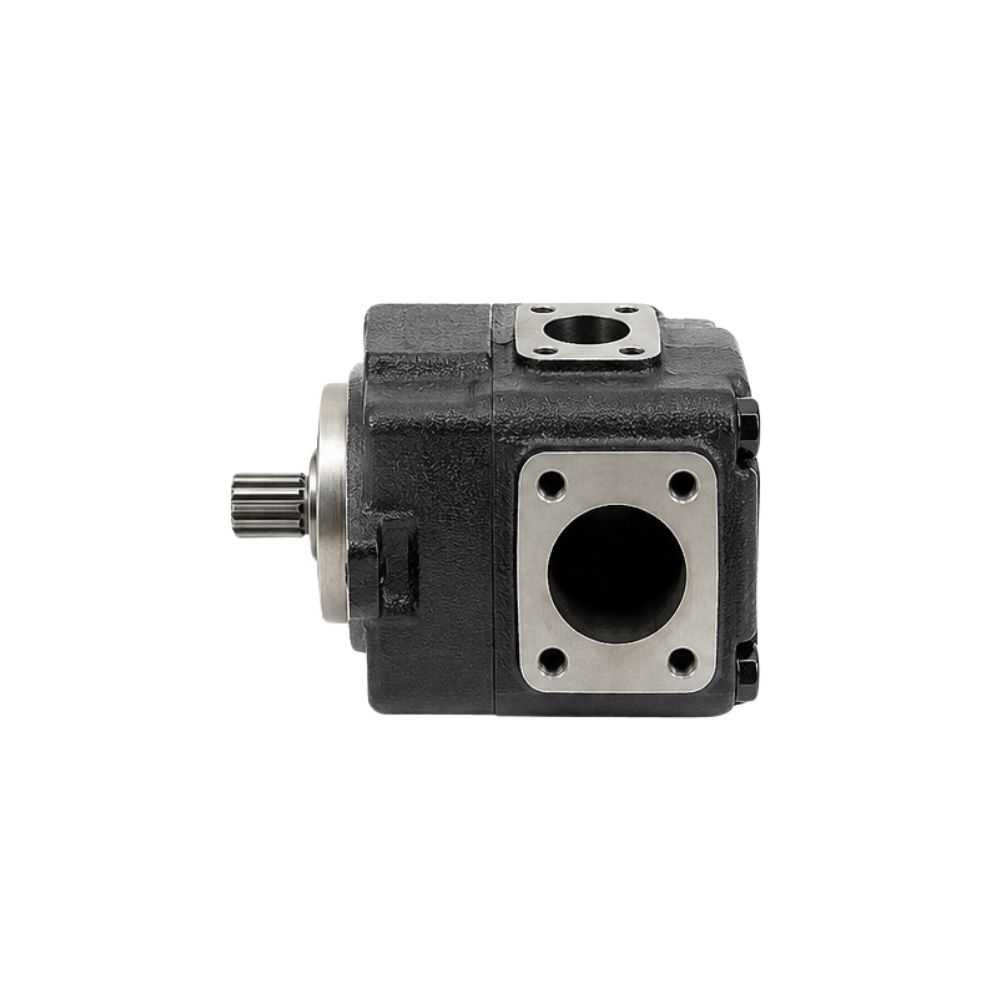

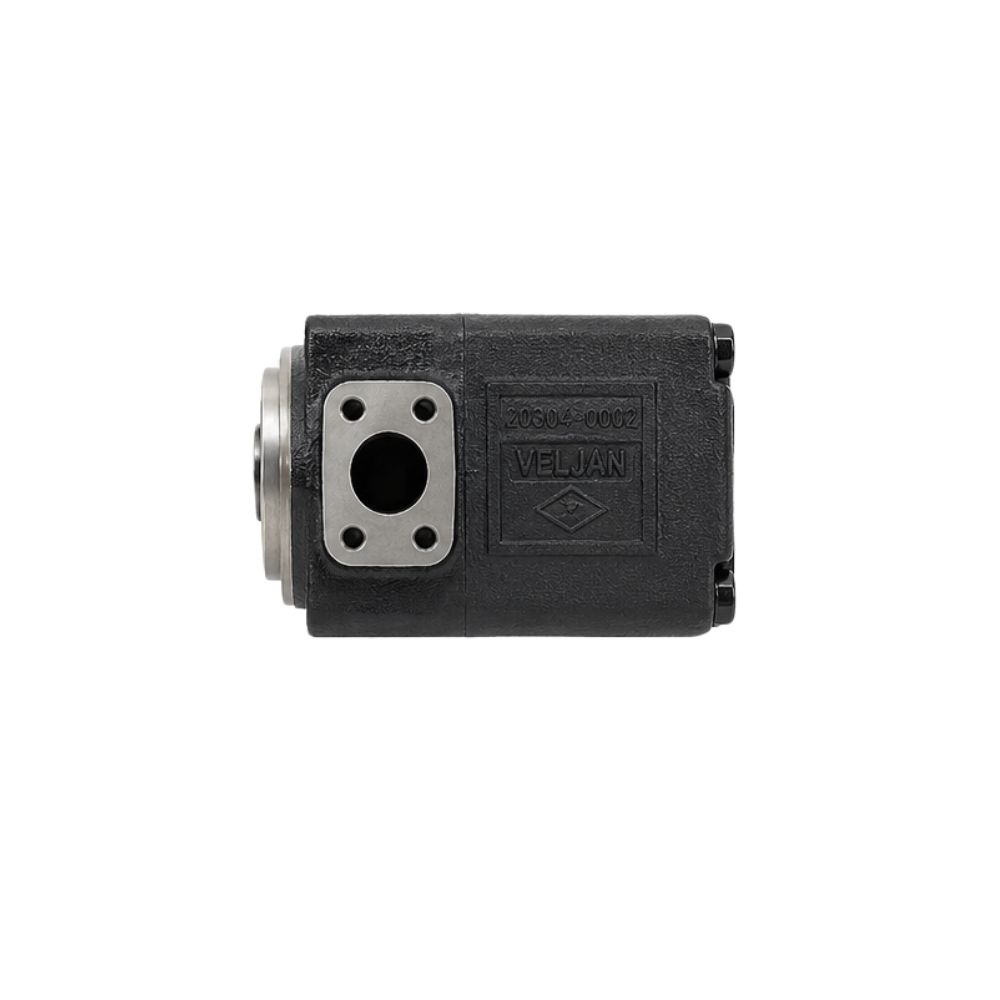

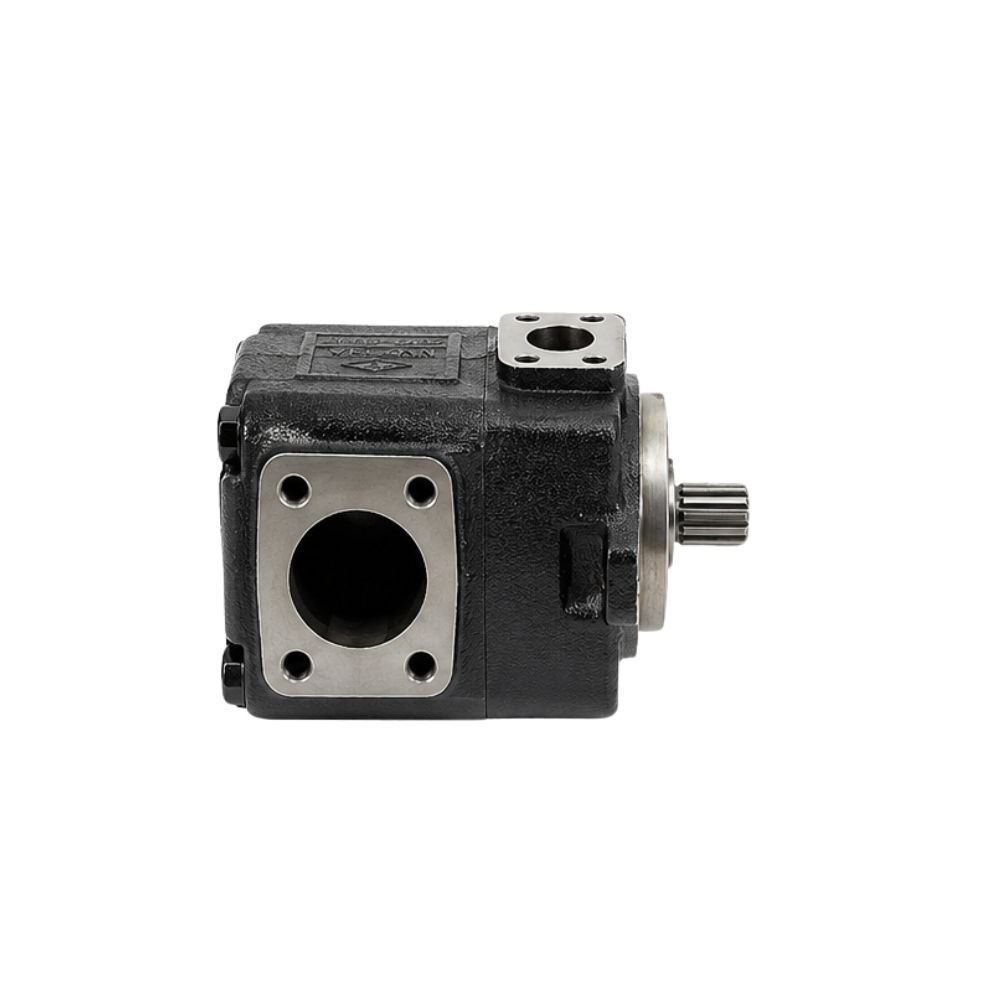

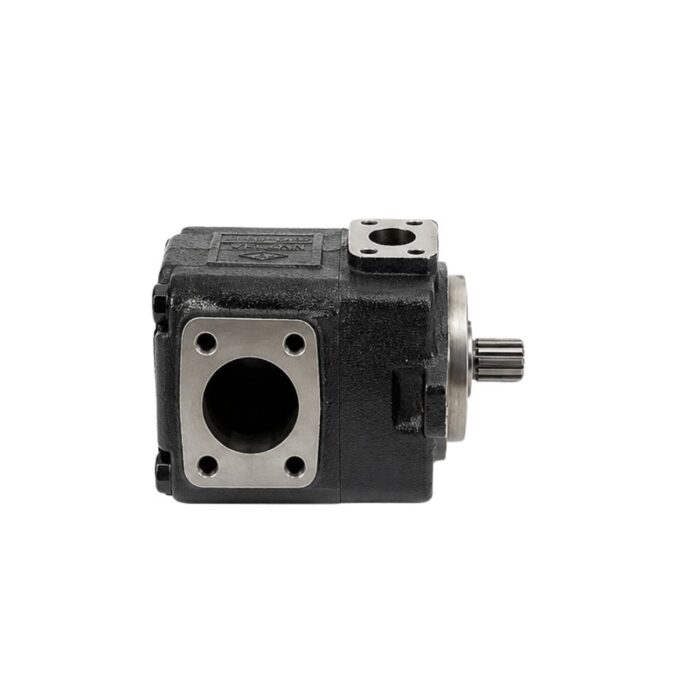

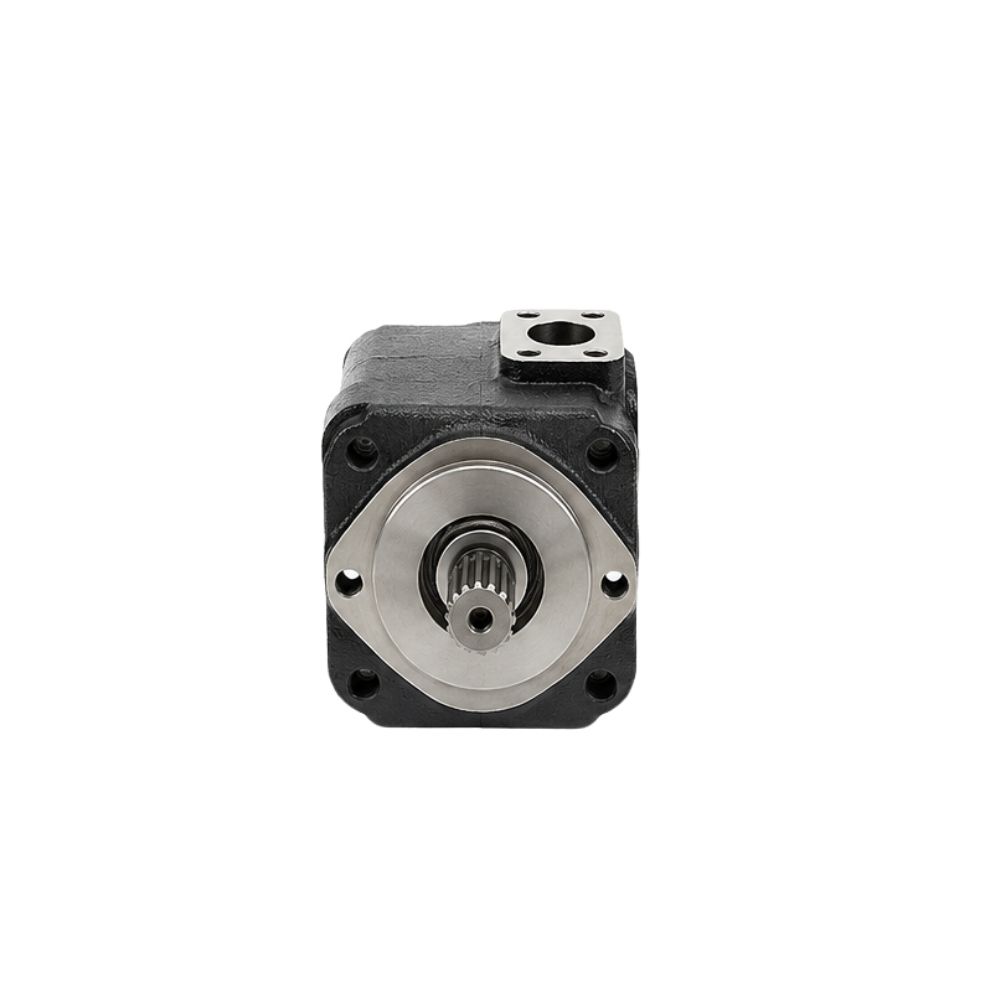

VT6E – Hydraulic Vane Pump
The Veljan VT6E is a heavy-duty, fixed-displacement single vane pump designed for high-pressure industrial and mobile hydraulic systems. It features a hydrostatically balanced pin-vane design that ensures high volumetric efficiency, low noise levels, and a long operating life under harsh conditions.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Veljan VT6E Hydraulic Vane Pump is a heavy-duty, high-performance, fixed displacement single vane pump designed for demanding industrial, agricultural, and manufacturing applications. Manufactured by Veljan Hydrair, it features a hydrostatically balanced pin vane design that offers high power-to-weight ratios, low ripple pressure, and smooth, exceptionally quiet operation. It is globally recognized for being 100% interchangeable and functionally compatible with Parker Denison T6E series pumps.
| Parameter / Feature | Specification Details | Primary Benefit |
|---|---|---|
| Pump Design | Fixed displacement, hydrostatically balanced pin vane | High power-to-weight ratio; low ripple pressure and quiet operation. |
| Max Pressure | 240 bar (3,500 psi) | Supports severe-duty, high-pressure industrial and mobile operations. |
| Displacement Range | 132.3 to 269.7 cm3/rev (8.07 to 16.40 in3/rev) | Wide choice of flow outputs to match specific system requirements. |
| Speed Range | Up to 2,200 RPM | Flexible adaptation to various prime movers and engine speeds. |
| Interchangeability | 100% compatible with Parker Denison T6E series | Drop-in replacement that lowers sourcing costs and downtime. |
| Camring Coating | Dry-lubricant-coated camring surfaces | Prevents cold-start seizure and extends internal cartridge life. |
| Modular Design | Flexible, interchangeable cartridge assemblies | Allows rapid flow capacity modifications within the same pump body. |
| Mounting Standard | SAE-C standard flange; keyed or splined shaft | Simplifies installation across standard industrial and marine gearboxes. |
| Housing Material | High-strength cast iron or steel housing | Resists structural fatigue under heavy shock loads. |
