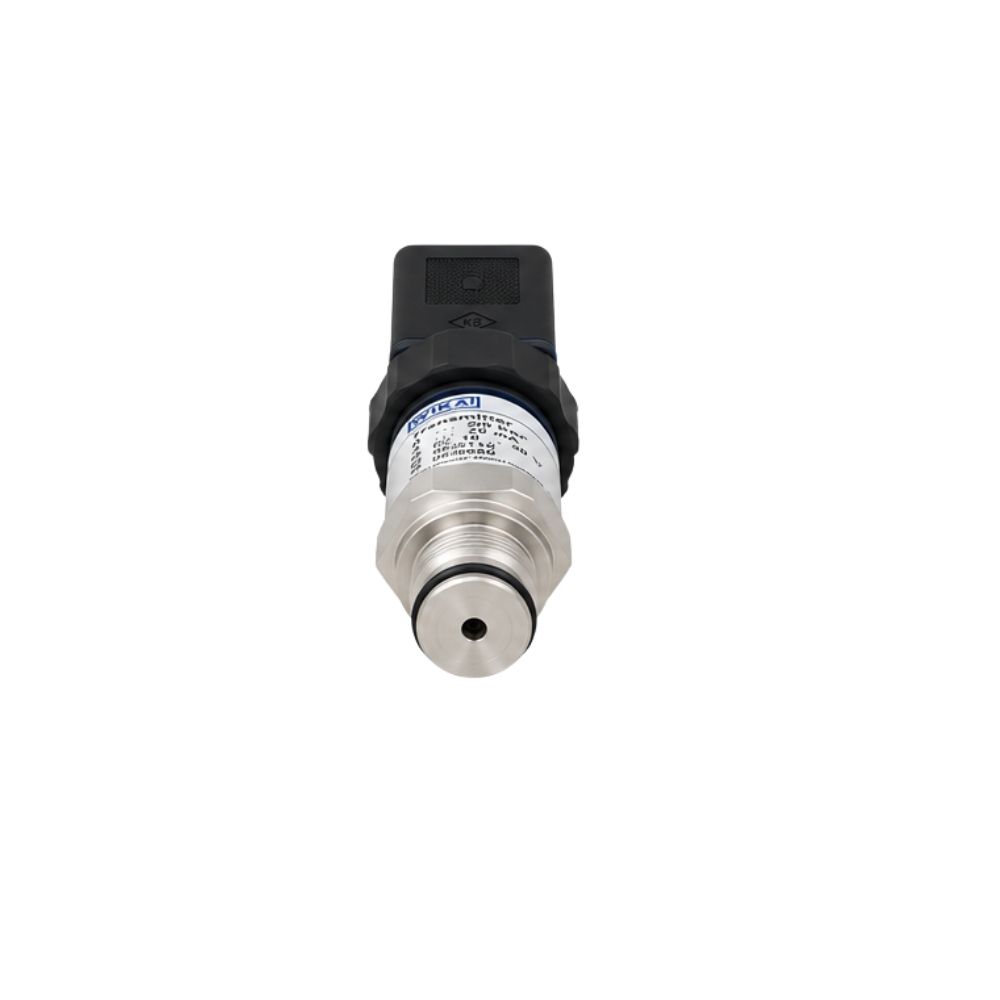

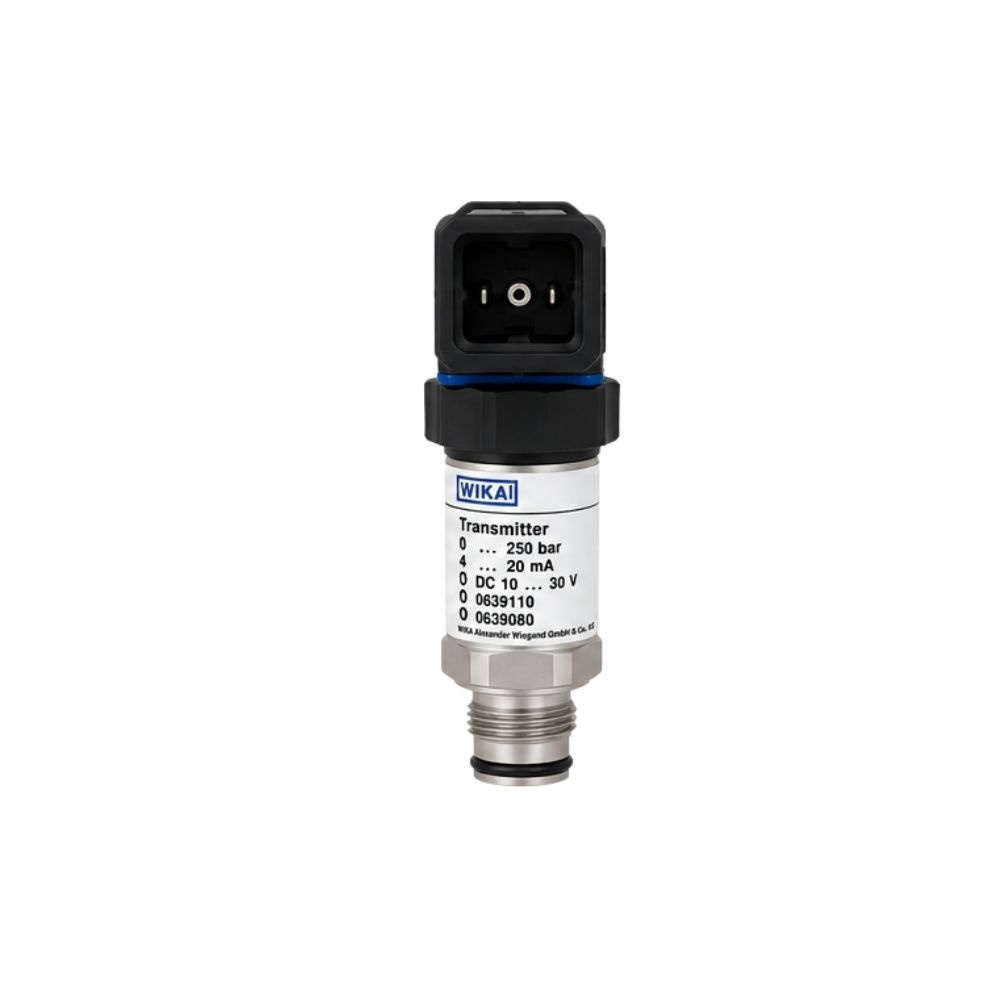

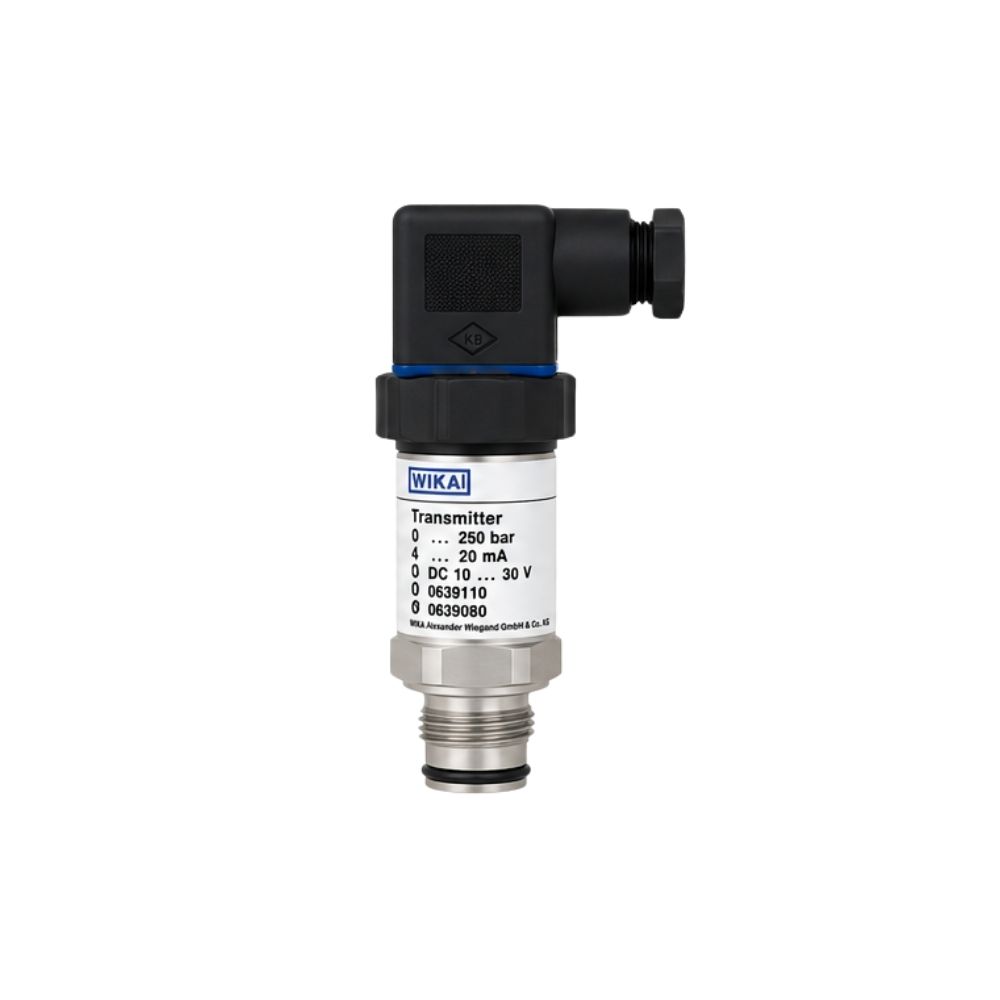

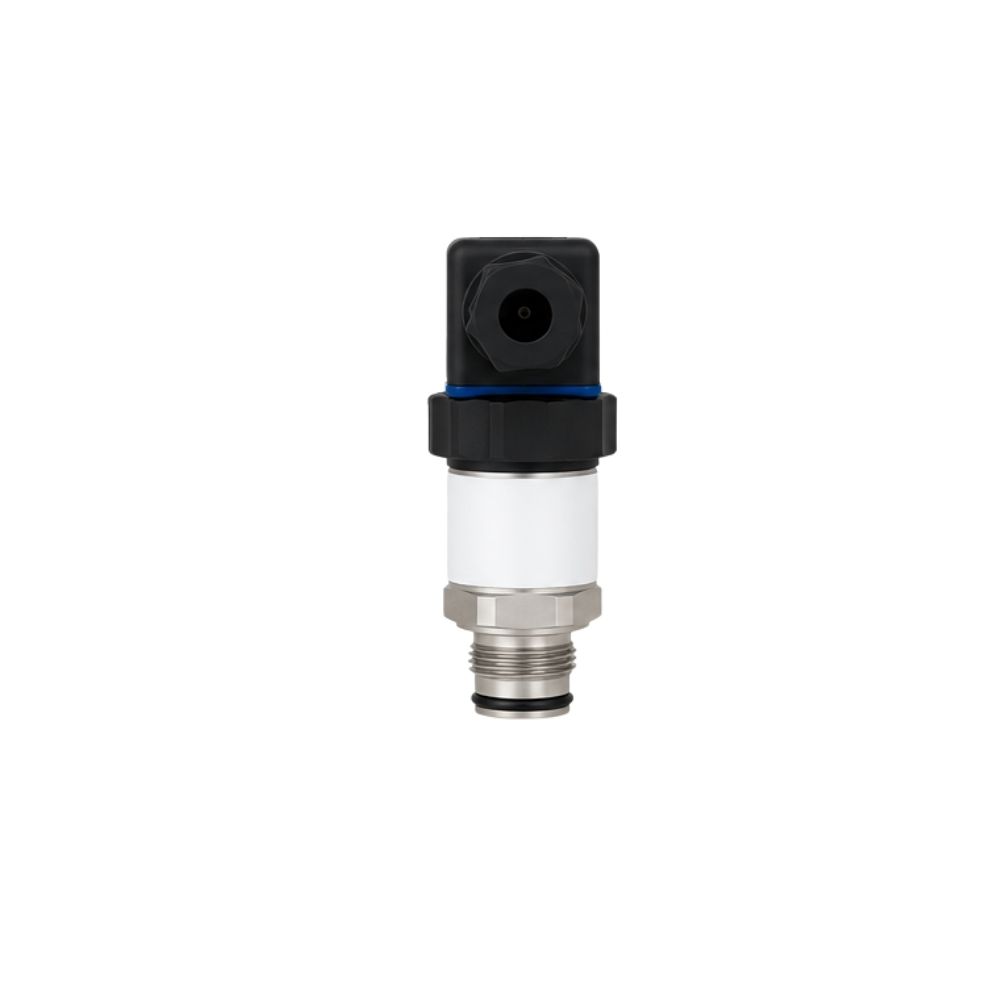

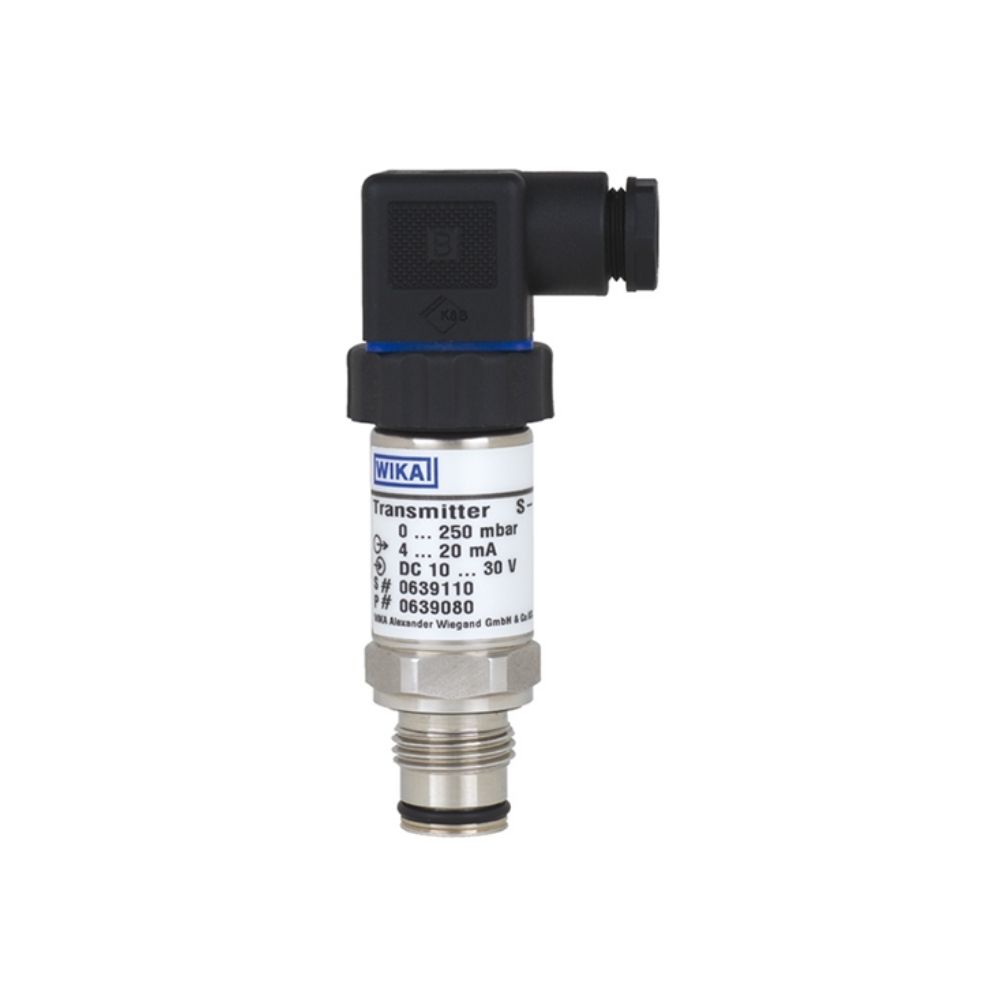

S-11 – Flush Pressure Transmitter
The WIKA S-11 Flush Pressure Transmitter is a robust electronic pressure sensor engineered specifically to measure the pressure of viscous, paste-like, adhesive, crystallising, or particle-laden media. Its specialized flush diaphragm design prevents the clogging and buildup that typical recess-diaphragm transmitters experience in harsh process channels.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The WIKA S-11 is a high-performance electronic pressure transmitter designed specifically for demanding applications involving thick, sticky, or contaminated fluids. Unlike standard sensors that use a recessed cavity where particles can settle, the S-11 features a flat, front-flush diaphragm. This seamless design eliminates dead space, preventing the media from clogging the sensor, hardening inside the port, or contaminating the process line.
| Category | Parameter / Feature | Technical Details & Operational Impact |
|---|---|---|
| Pressure Range | Measuring Ranges | 0…0.1 bar up to 0…1,000 bar (or equivalent psi/kPa). |
| Electronics | Output Signals | 4…20 mA (Standard 2-wire), 0…20 mA, or various V DC options. |
| Electronics | Power Supply | 10…30 V DC or 14…30 V DC (dependent on output signal choice). |
| Performance | Accuracy Profile | ≤ ±0.5% Full Scale (≤ ±0.25% BFSL non-linearity; optional ≤ ±0.25%). |
| Performance | Internal Sensor Technology | Piezoresistive & thin-film technology for long-term signal stability. |
| Durability | Wetted Parts | 316L Stainless Steel; entirely all-welded cell with zero internal soft seals. |
| Durability | Environmental Resilience | High immunity against mechanical shock, process vibration, and pressure spikes. |
| Environment | Operating Temperature | Medium temperature limits of −30°C to +100°C (higher ranges available). |
| Environment | Ingress Protection | IP65 (with standard L-connector DIN plug) up to IP68 / NEMA 6P. |
