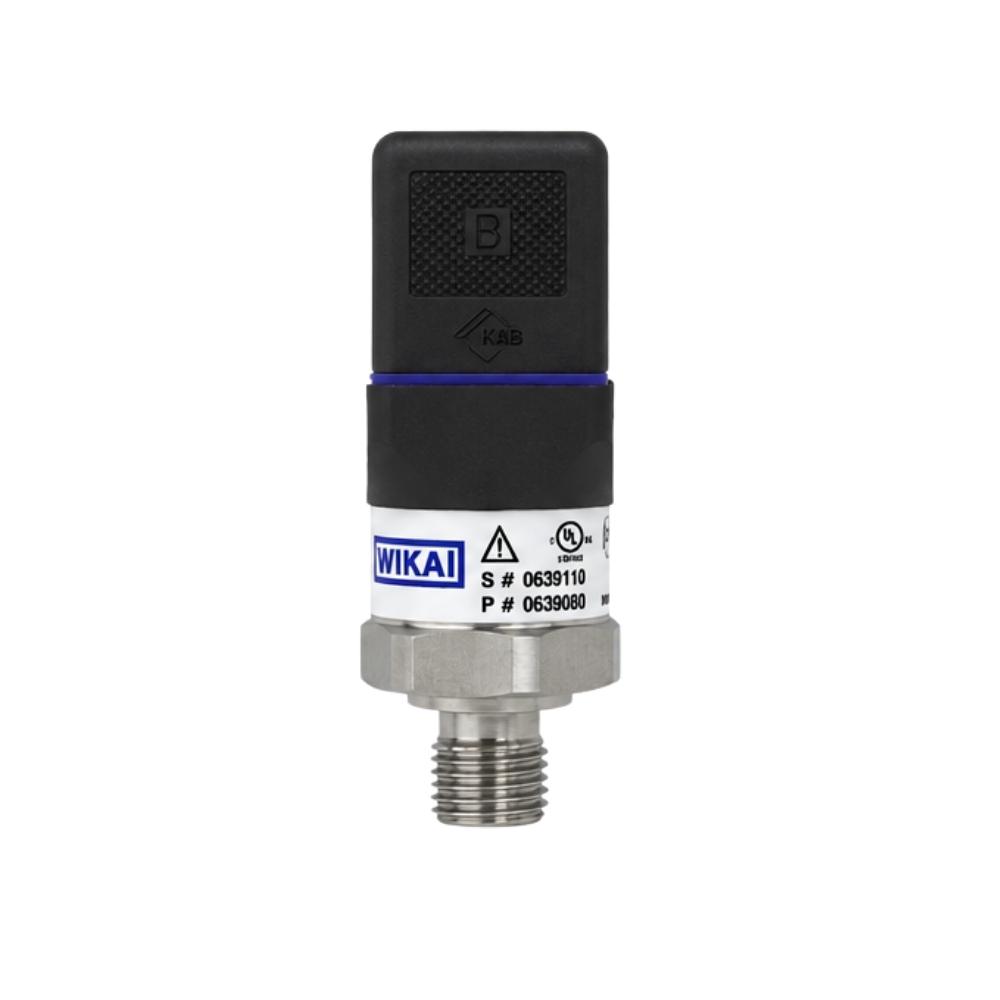

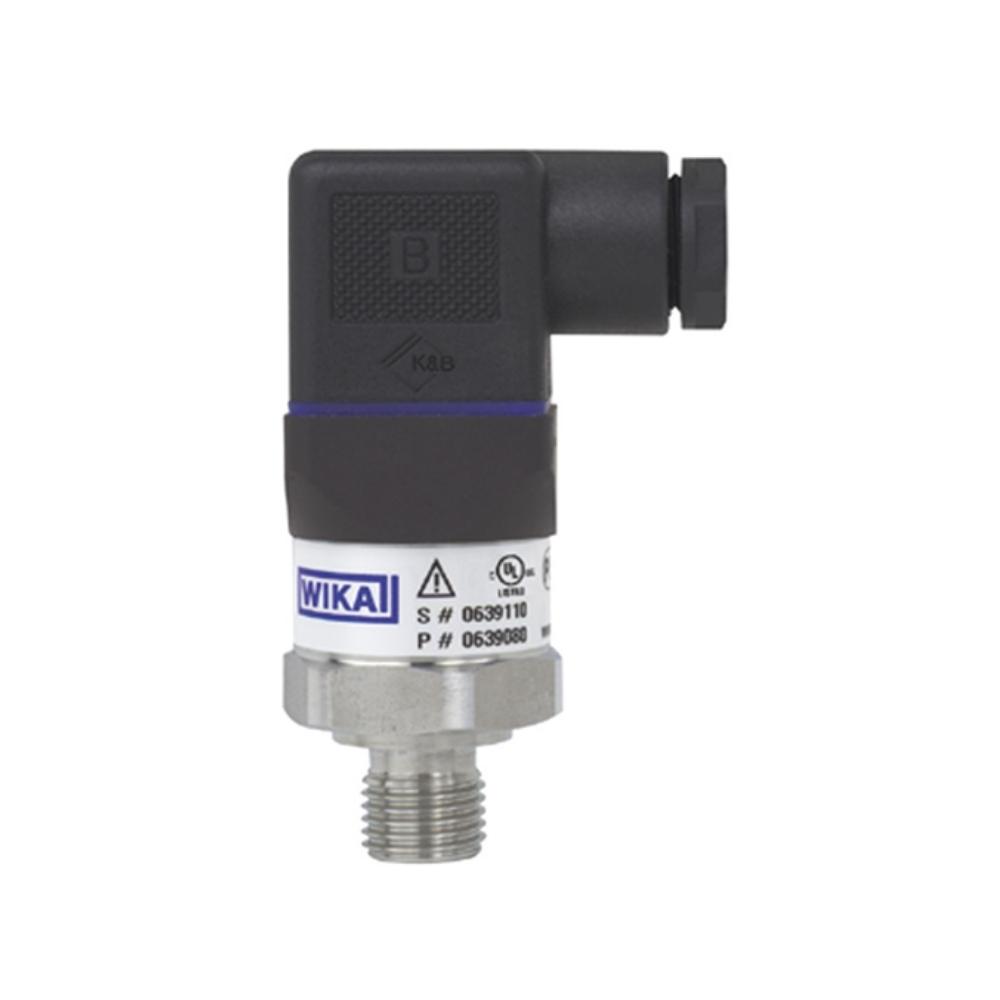

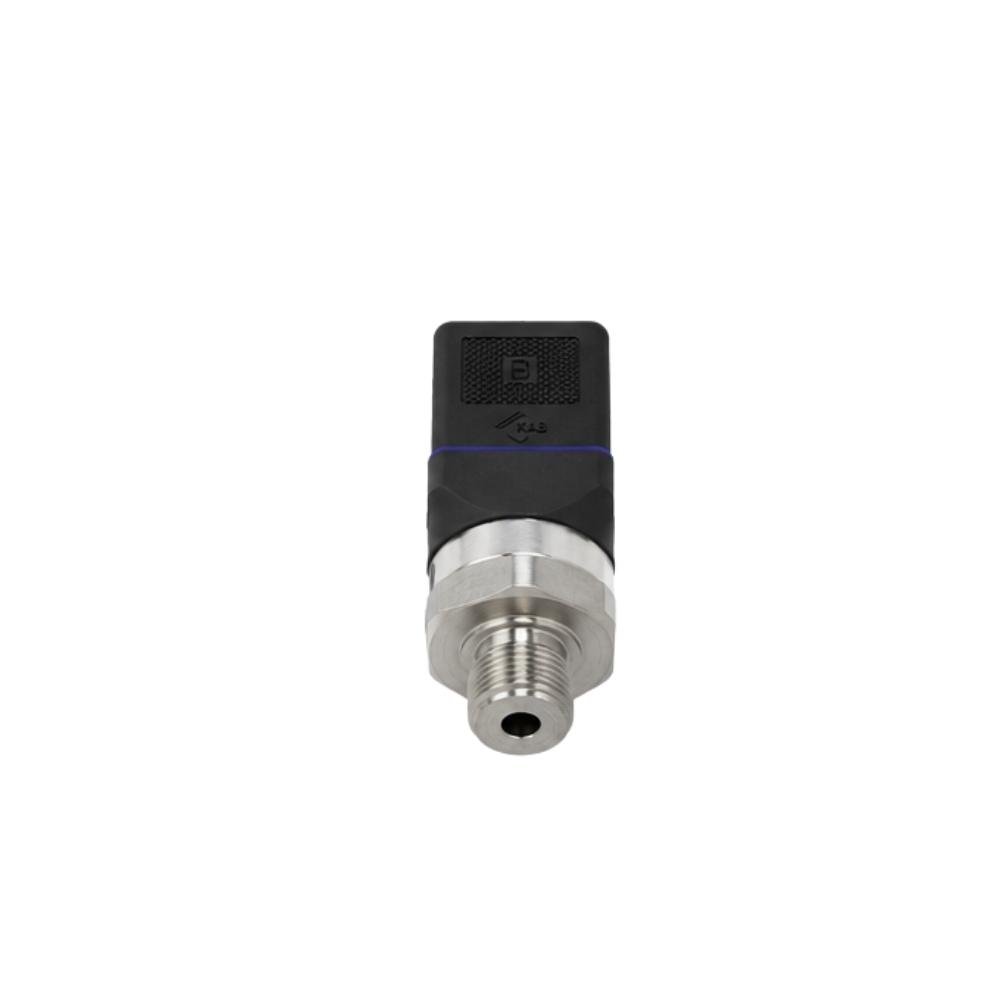

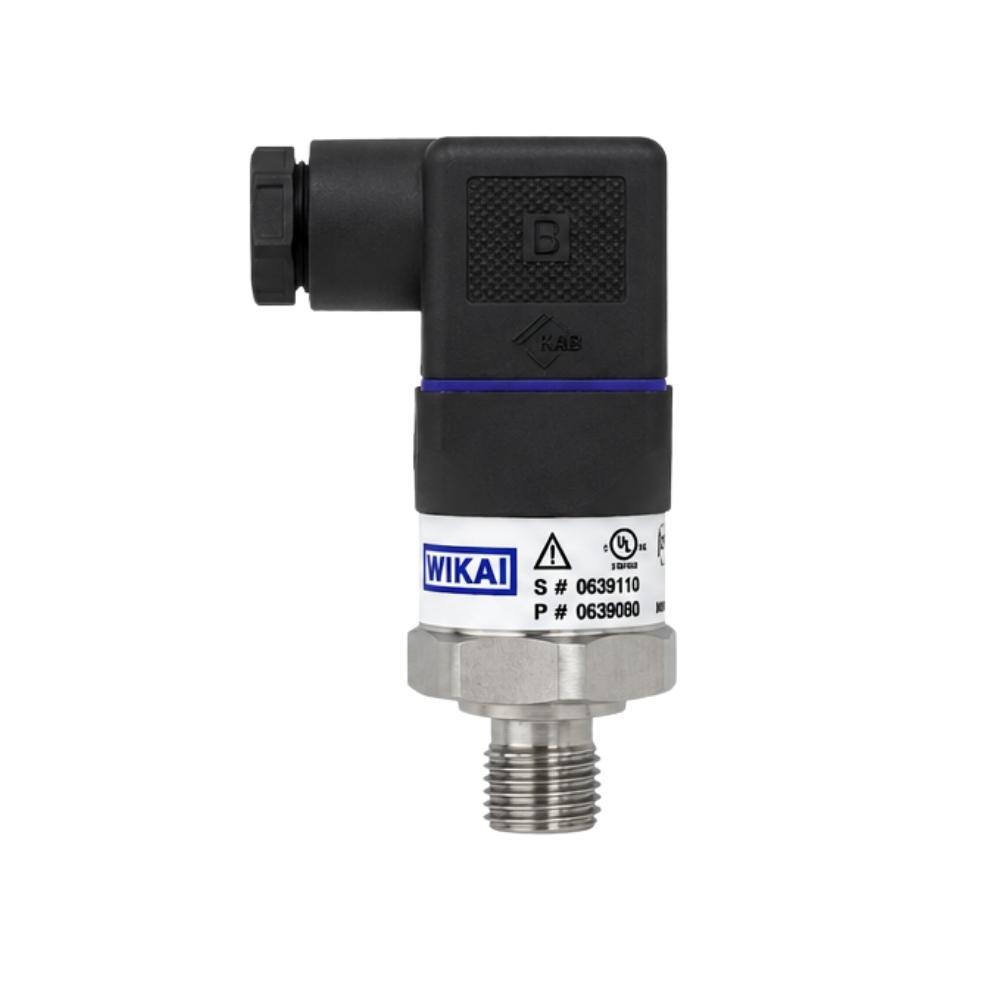

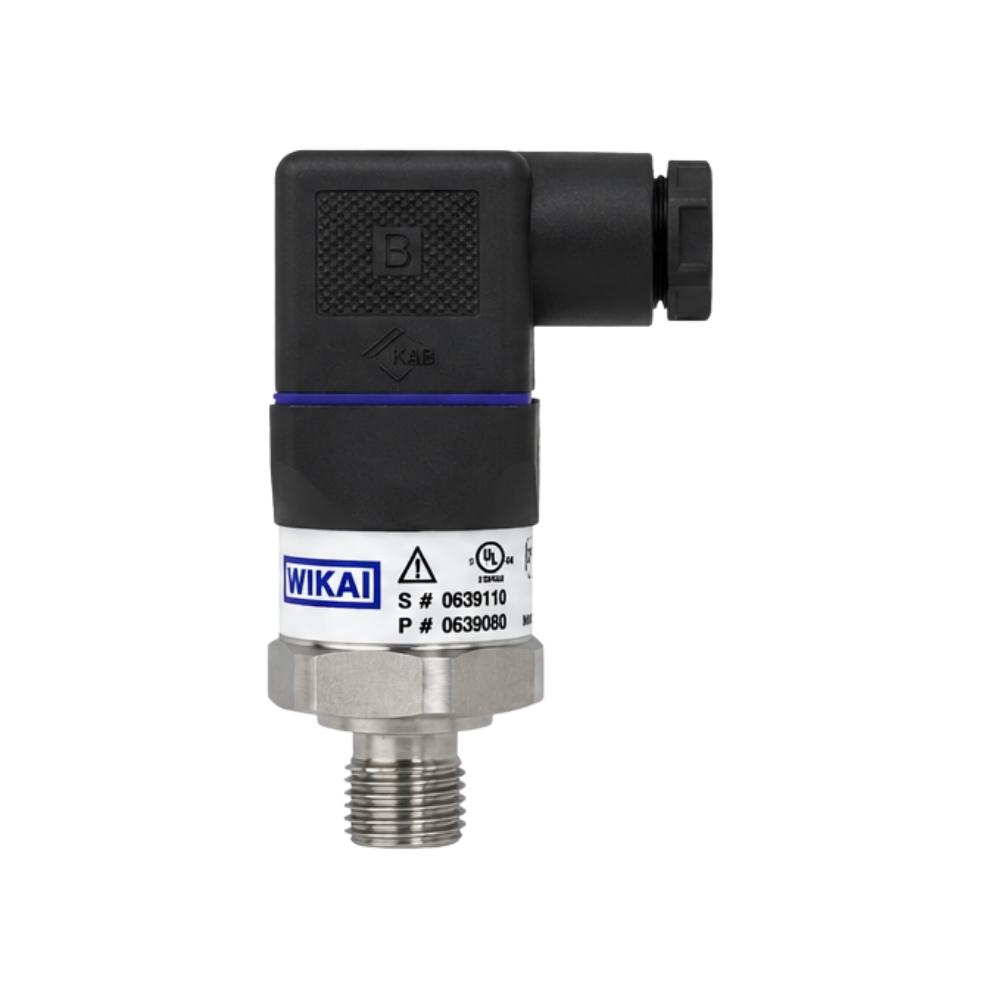

A-10 – Pressure Transmitter
The WIKA A-10 is an industrial-grade, electronic pressure transmitter designed to convert mechanical pressure into a standard electrical signal. Engineered for longevity and cost-efficiency, it serves as a universal “all-rounder” sensor for original equipment manufacturers (OEMs) and general automation.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The WIKA A-10 Pressure Transmitter is a highly compact, robust, and cost-efficient electronic pressure sensor engineered for general industrial and OEM (Original Equipment Manufacturer) pressure measurements. It operates as an all-rounder device, widely utilized for monitoring gauge, vacuum, and absolute pressure.
| Parameter / Element | Technical Specification & Feature Details |
|---|---|
| Measuring Ranges | 0 … 0.05 bar to 0 … 1,000 bar (0 … 15 psi to 0 … 15,000 psi); supports vacuum and absolute pressure |
| Accuracy (Non-linearity) | ≤ ±0.5% BFSL (Standard); optional premium variant available at ≤ ±0.25% BFSL |
| Output Signals | 4 … 20 mA (2-wire), DC 0 … 10 V (3-wire), DC 0 … 5 V (3-wire), DC 1 … 5 V (3-wire), DC 0.5 … 4.5 V ratiometric |
| Power Supply | DC 8 … 30 V (DC 14 … 30 V for DC 0 … 10 V output; DC 5 V for ratiometric) |
| Wetted Materials | 316L Stainless Steel; completely welded design with no internal soft elastomeric seals |
| Case Material | 316L Stainless Steel |
| Process Connections | 1/4 NPT, 1/2 NPT, G 1/4 A DIN 3852-E, R 1/4, G 1/2 B, and more |
| Electrical Connections | Angular connector DIN 175301-803 A or C, Circular connector M12 × 1 (4-pin), or Heavy-duty cable outlet |
| Ingress Protection | IP65 (with DIN plug), IP67 (with M12 × 1 connector), or IP68 (with direct cable outlet) |
| Environmental Safety | High resistance against mechanical shock, continuous system vibration, and RFI / EMI interference |
