PVR Series – Double

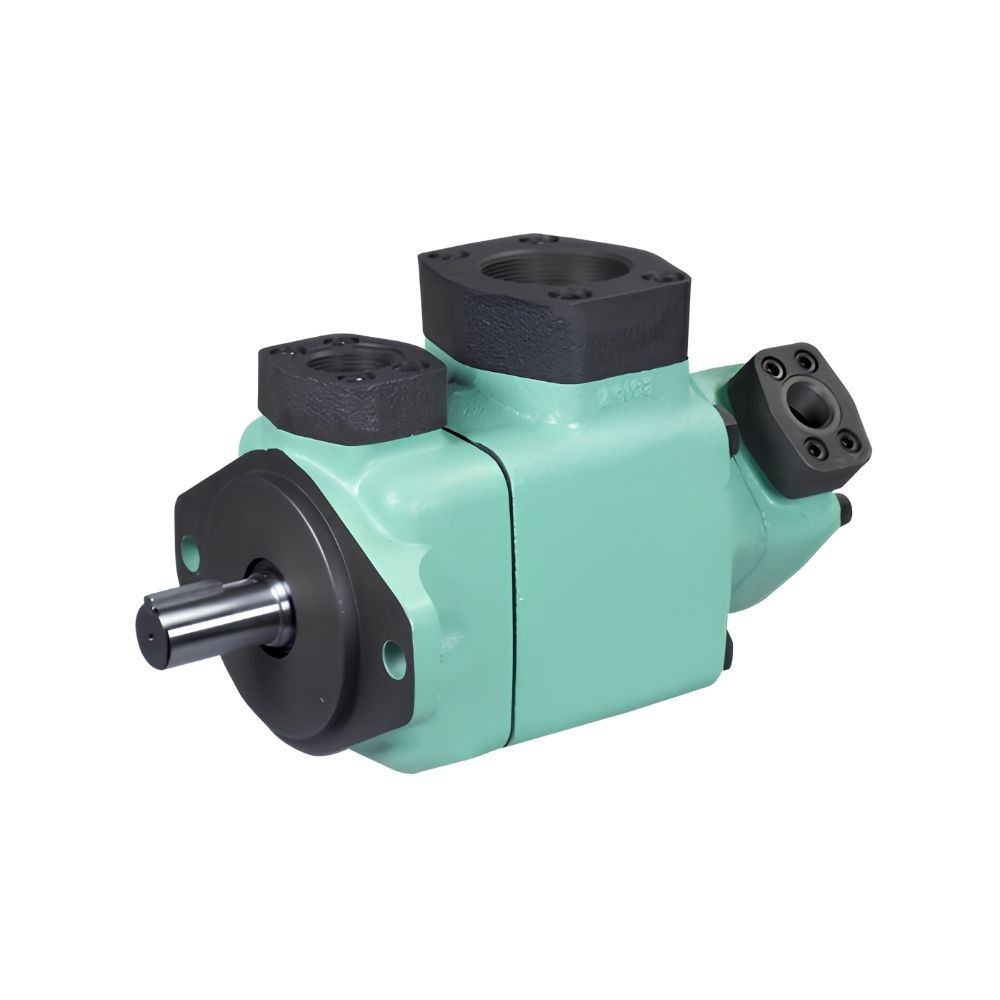

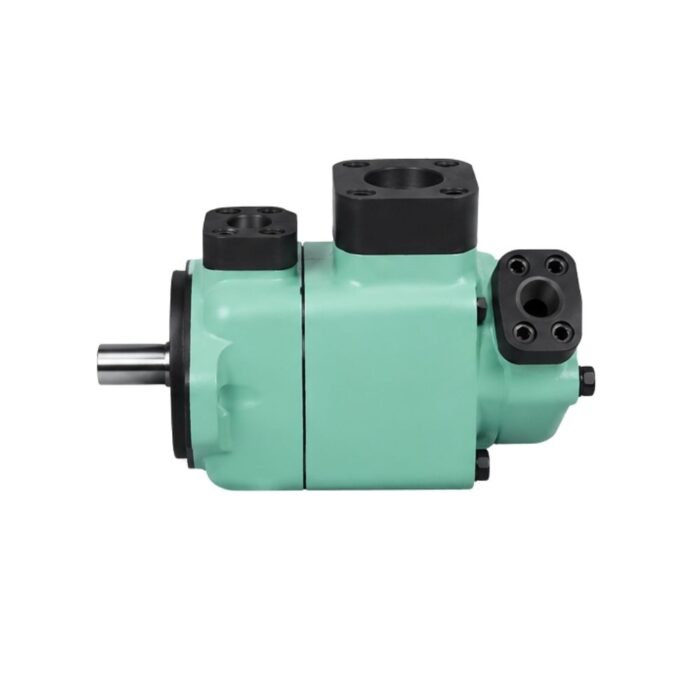

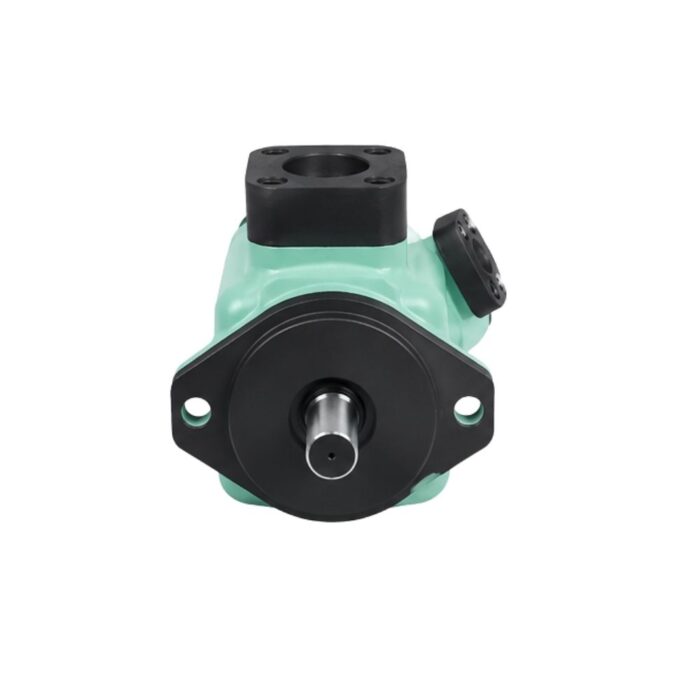

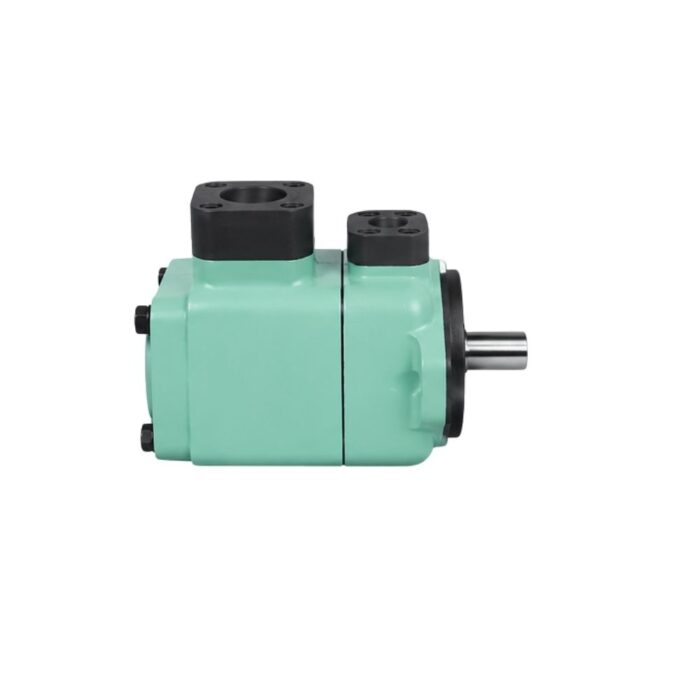

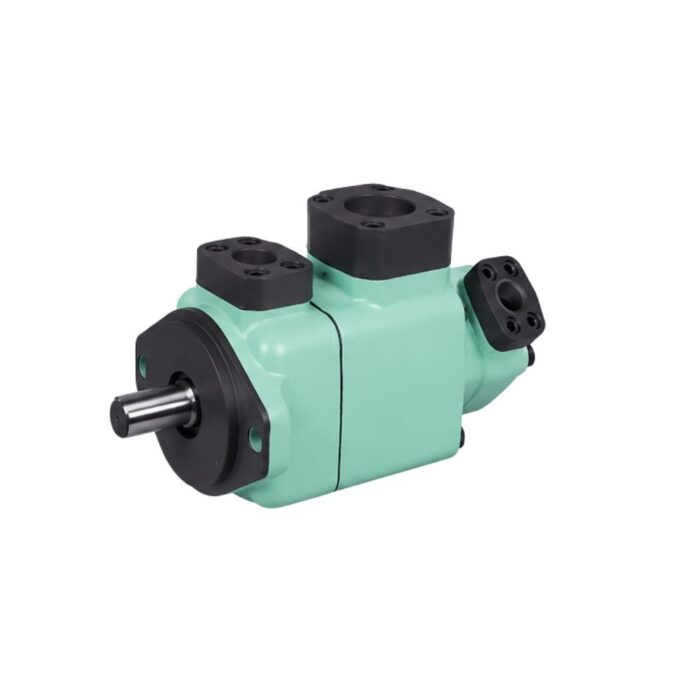

The Yuken PVR Series Double Vane Pumps are high-efficiency, fixed-displacement hydraulic power sources designed primarily for industrial and mobile machinery. They consist of two independent single-stage vane pump cartridges combined in tandem inside a single, compact structural housing and driven by one common input shaft.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Yuken PVR Series Double Vane Pumps are compact, fixed-displacement hydraulic pumps that combine two separate vane pump stages in tandem within a single housing, driven by a common shaft. These high-performance units feature a shared fluid inlet and separate outlets to safely power independent hydraulic circuits.
| Parameter / Feature | PVR1T Series | PVR50 Series | PVR150 Series |
|---|---|---|---|
| Geometric Displacement | 3.5 to 22.0 cm3/rev | 10.5 to 45.0 cm3/rev | 57.0 to 116.0 cm3/rev |
| Max Operating Pressure | Up to 210 kgf/cm2 | Up to 175 kgf/cm2 | Up to 175 kgf/cm2 |
| Operating Speed Range | 750 to 1800 RPM | 600 to 1800 RPM | Up to 1800 RPM |
| Core Design Feature | Low noise levels | Minimal flow pulsation | High-volume delivery |
| Maintenance Mechanism | Replaceable cartridge kit | Replaceable cartridge kit | Replaceable cartridge kit |
| Housing Material | Heavy-duty cast iron | Heavy-duty cast iron | Heavy-duty cast iron |
| Fluid Compatibility | Mineral oil / Phosphate ester | Mineral oil / Phosphate ester | Mineral oil / Phosphate ester |
| Mounting Configurations | Flange or Foot mounting | Flange or Foot mounting | Flange or Foot mounting |
