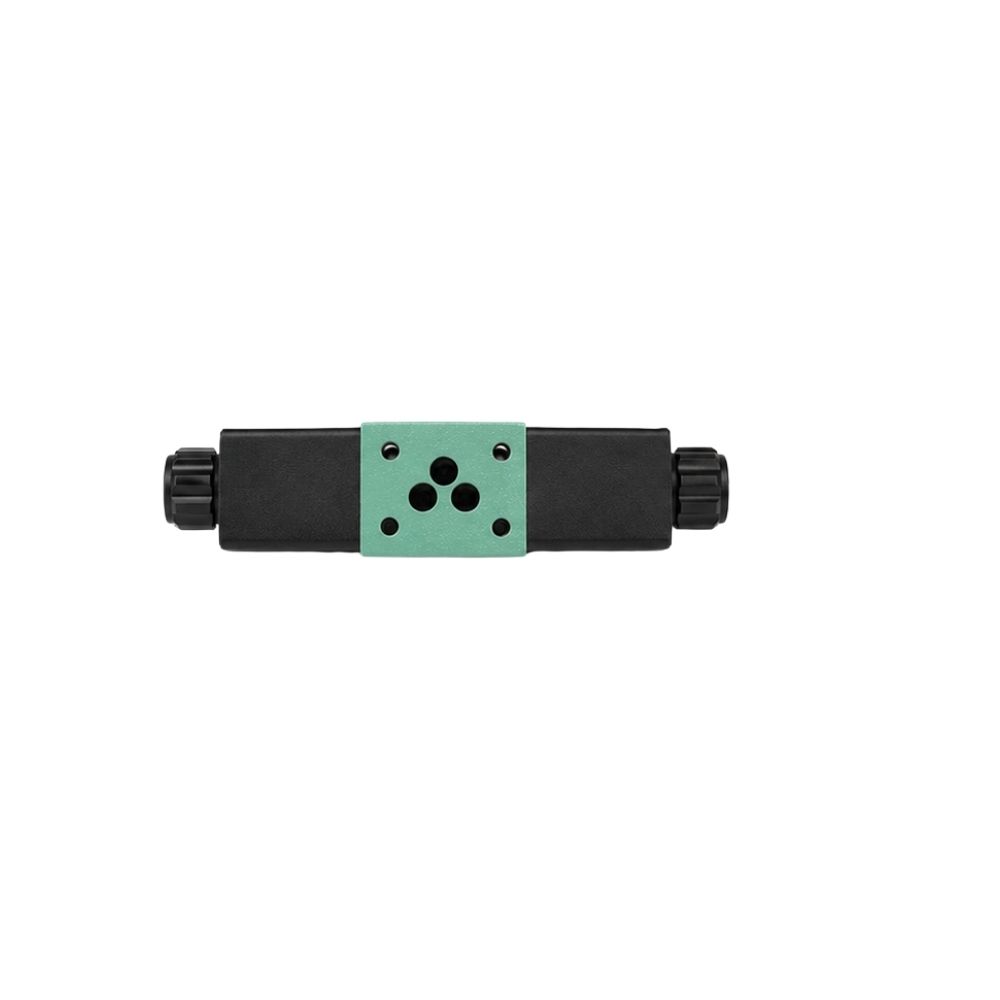

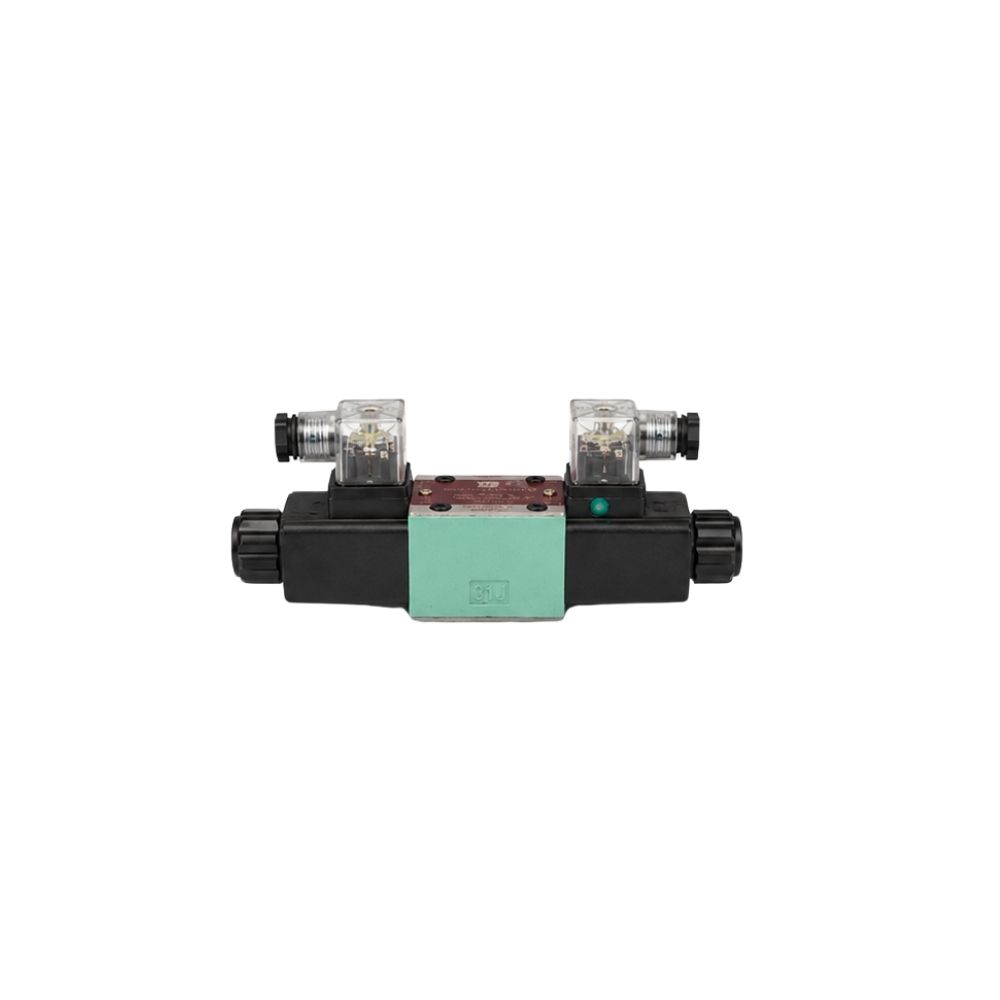

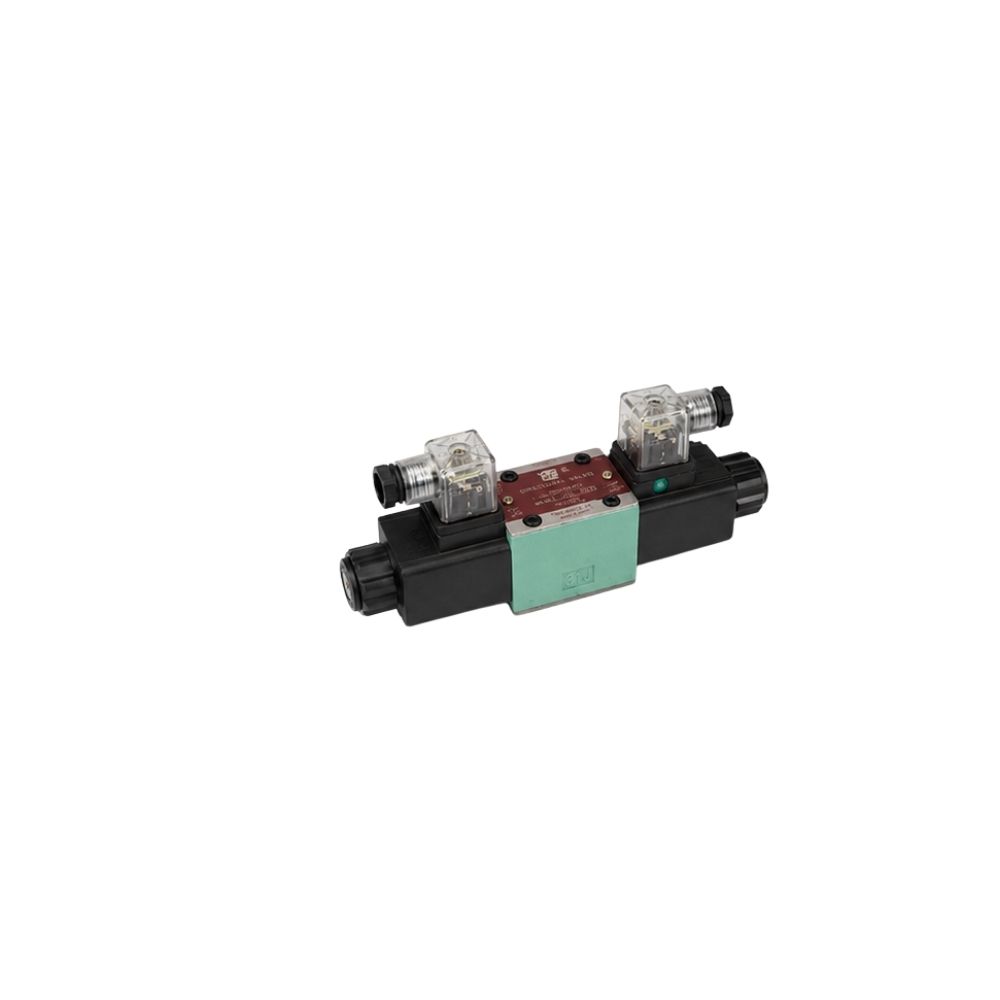

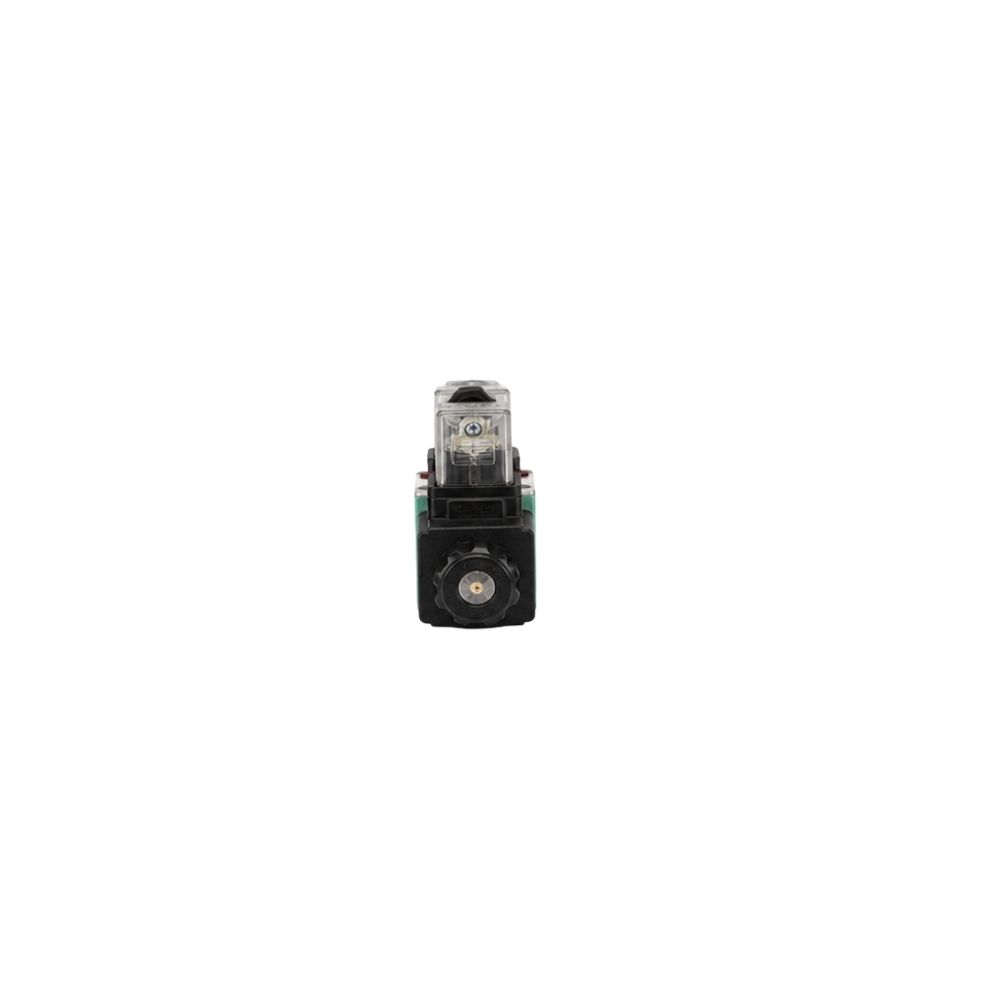

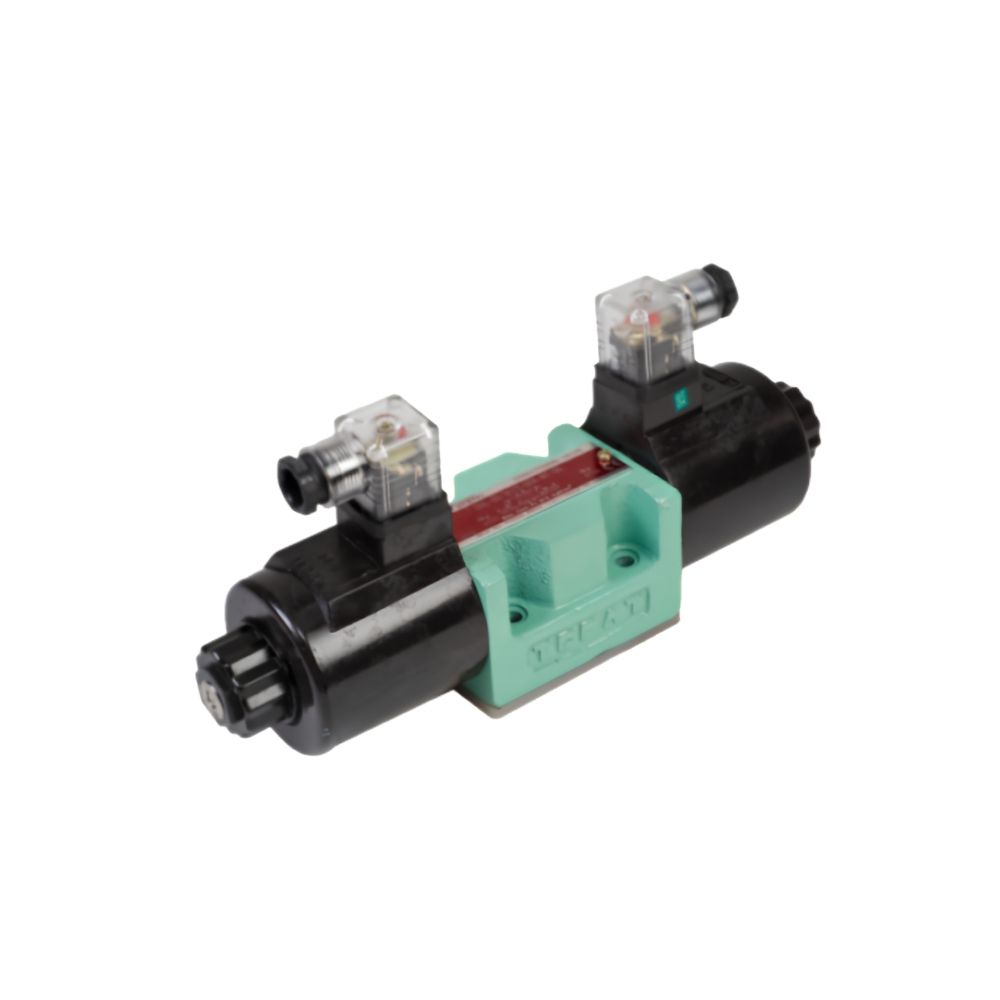

DSG03 Solenoid Operated Directional Valve
The Yuken DSG-03 is a high-performance, wet-type solenoid operated directional control valve designed for industrial hydraulic systems [1]. It features a standard Size 03 (CETOP 5 / NG10) mounting interface, enabling direct installation onto international standard sub-plates and manifolds.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Yuken DSG-03 series is a high-pressure, high-flow, wet-type solenoid operated directional control valve. It features a size 03 (3/8″ or CETOP 5 / NG10 interface) mount. The valve controls the start, stop, and flow direction of hydraulic oil in industrial machinery circuits.
| Technical Property / Feature | Specification Details |
|---|---|
| Valve Series / Size | Yuken DSG-03 Series (Size 03 / CETOP 5 / NG10 Mount) |
| Max Operating Pressure | 31.5 MPa (315 kgf/cm2 / 4570 PSI) |
| Max Tank Line Back Pressure | 16 MPa (160 kgf/cm2 / 2320 PSI) |
| Maximum Flow Rate | Up to 120 L/min (31.7 U.S. GPM) depending on spool configuration |
| Available Coil Voltages | AC: 100V, 120V, 200V, 240V | DC: 12V, 24V, 48V | AC-DC Rectified: 100V, 200V |
| Fluid Compatibility | Standard Mineral Oils (ISO VG32, VG46); Phosphate Ester option available |
| Enclosure Protection Rating | IP65 dust- and water-proof standard |
| Available Configurations | 3-Position Spring Centered (3C), 2-Position Detented (2D), 2-Position Spring Offset (2B) |
| Performance Variants | Standard (High Flow), Shockless (Anti-Vibration), Low Wattage (Energy Saving) |
| Electrical Connections | Terminal Box, Plug-in Connector (N), or Plug-in Connector with LED Light (N1) |
