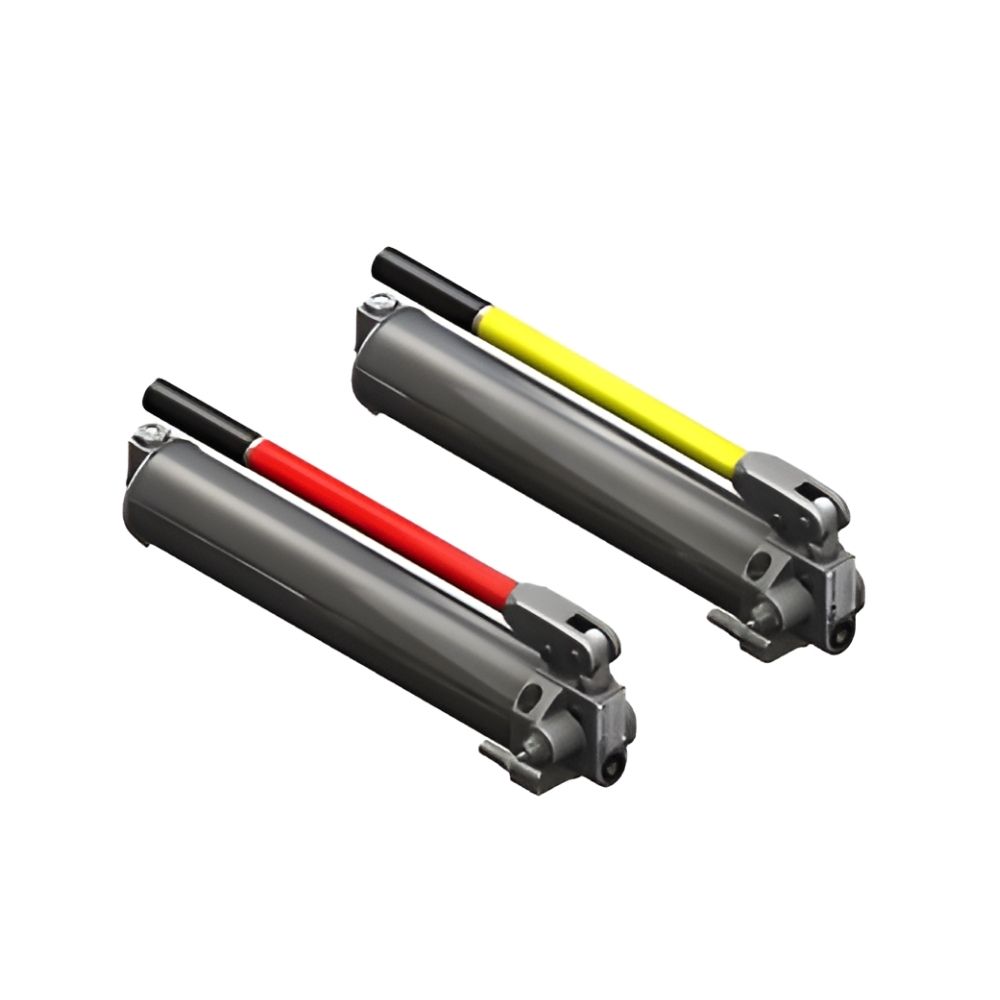

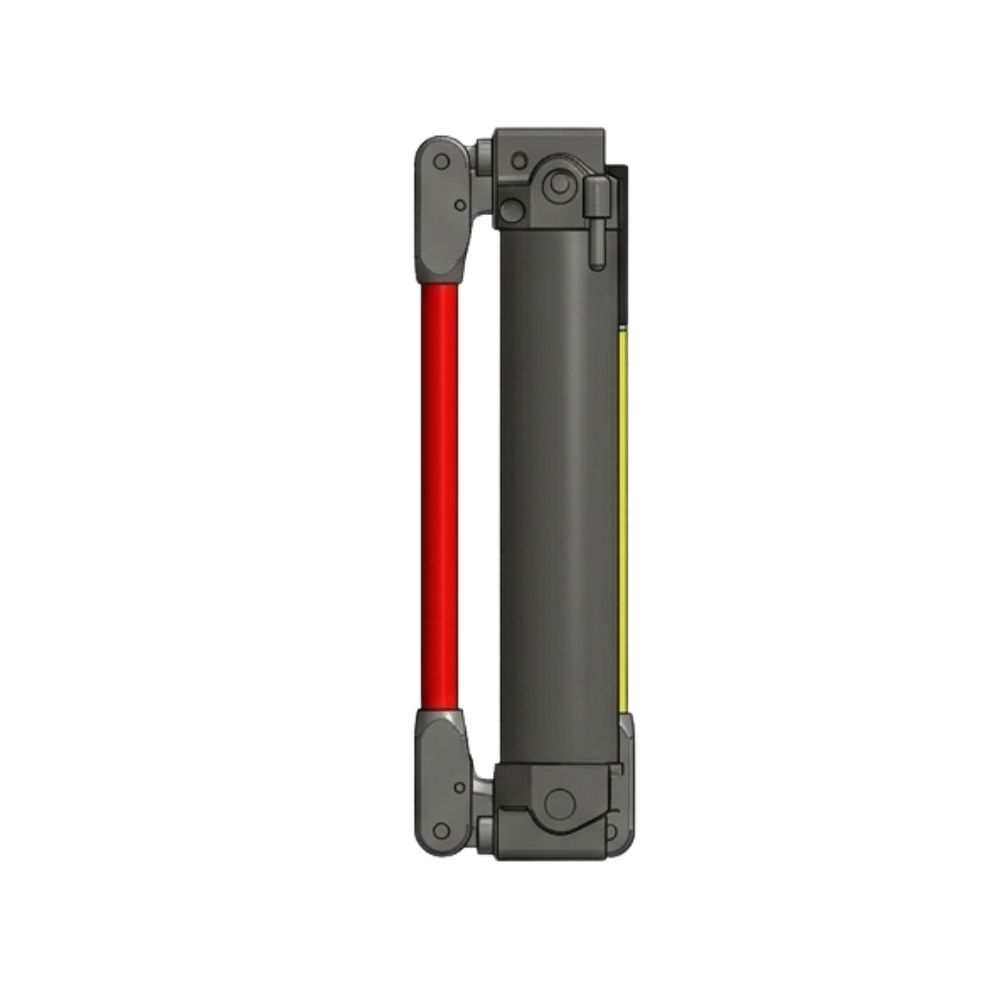

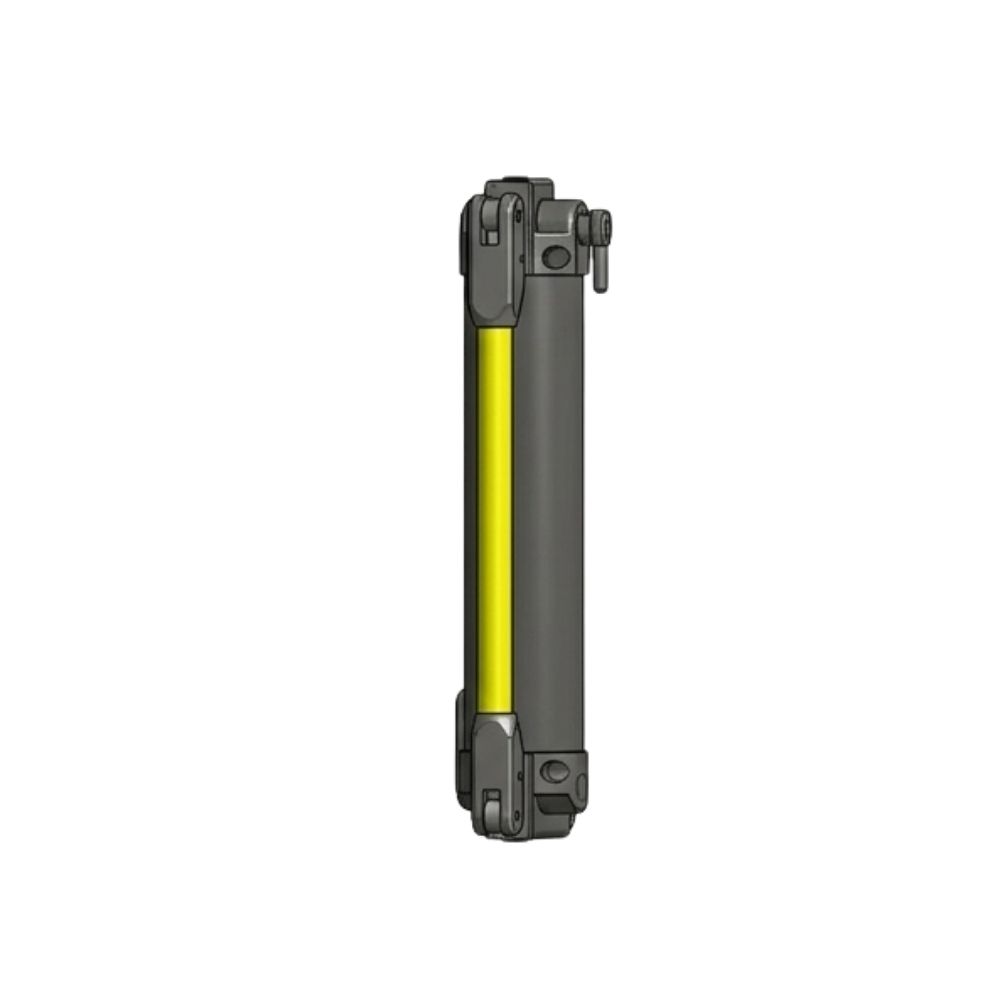

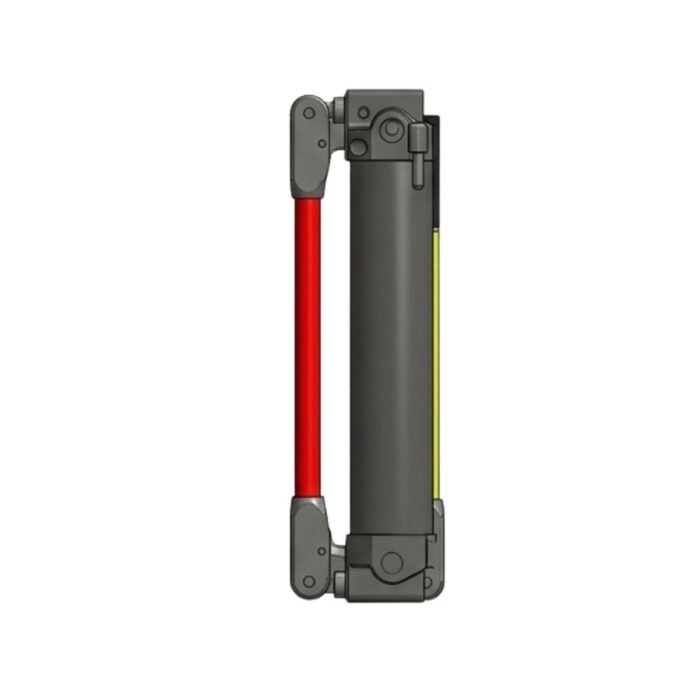

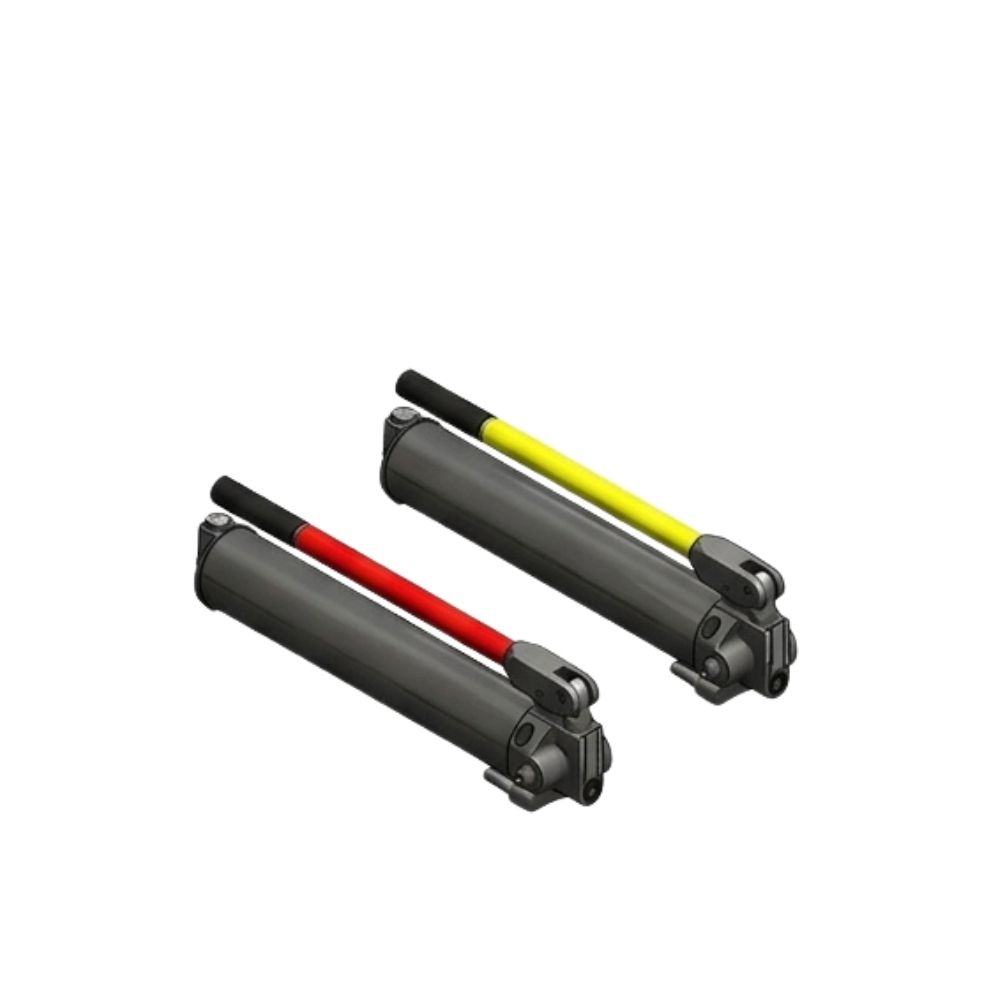

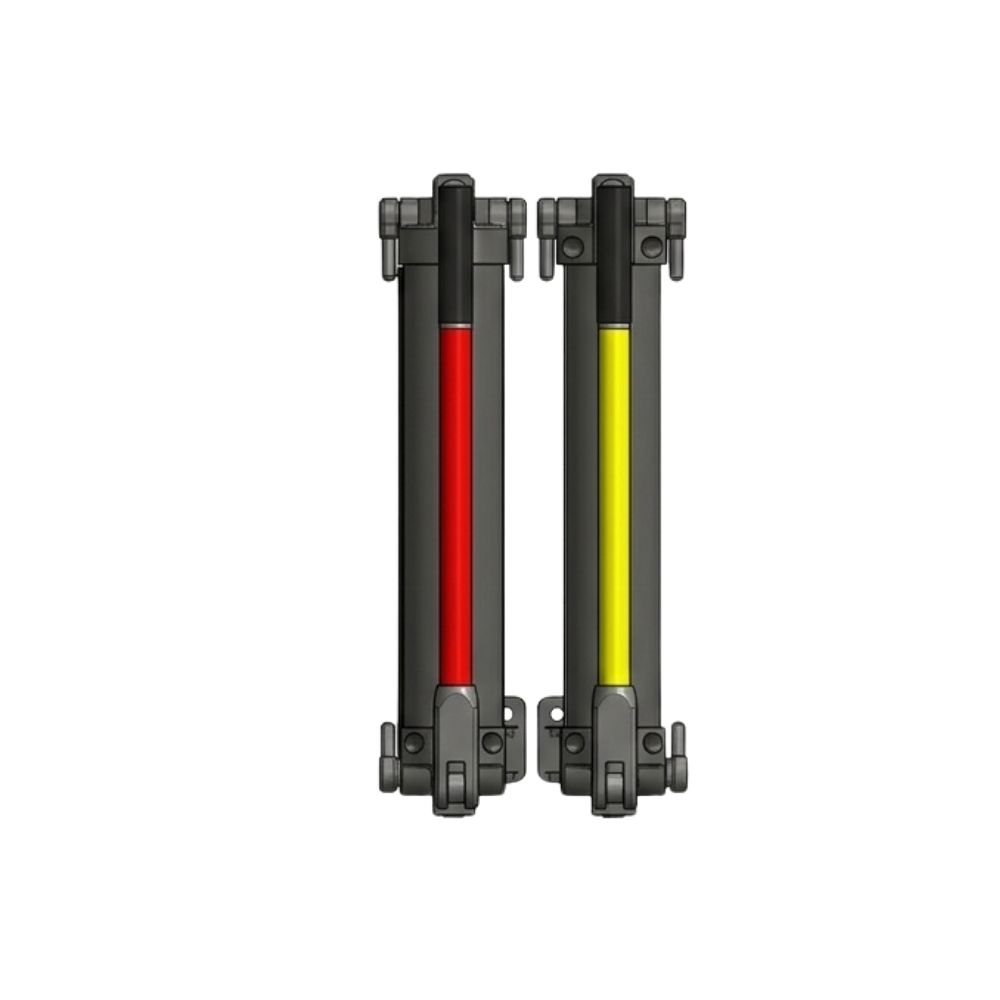

Hand Pump – HP12 & HP16

The Polyhydron HP12 and HP16 are compact, heavy-duty hydraulic hand pumps designed for industrial applications like operating small presses, fixtures, or providing emergency hydraulic power. Manufactured by Polyhydron Pvt. Ltd. in Belgaum, India, these pumps are known for their rugged construction and reliability in demanding environments.

  • Check Mark Operating Pressure : High Performance Range
  • Check Mark Application : Industrial & Mobile Systems

About this item

The Polyhydron Hand Pump – HP12 & HP16 features a heavy-duty construction designed for reliable and long-lasting performance. It allows easy maintenance with renewable internal parts that can be replaced when required. The pump is equipped with integral relief and release valves for safe operation. A collapsible hand movement at low pressure ensures ease of use and operator comfort.

Nominal flow and pressure ratings
Model Max. working pr. (bar) Flow capacity c.c./stroke Oil tank capacity (ltrs.)
HP12 700 2.8 1.2
HP16 350 5
HP12-1000 1000 2.8

Main Features & Benefits

  • Heavy-Duty Build: Features a hardened and ground piston with low-friction seals to ensure a long service life.
  • Ease of Use: Equipped with a collapsible handle that reduces operating force when extended and makes the unit easier to transport when closed.
  • Integrated Safety: Comes with built-in relief and release valves to protect the system from over-pressurisation.
  • Maintenance-Friendly: Internal parts like suction and delivery valves are renewable, allowing for easy onsite repairs.
  • Clean Operation: A special air breather prevents impurities from entering the oil tank, extending the pump’s operational life.
