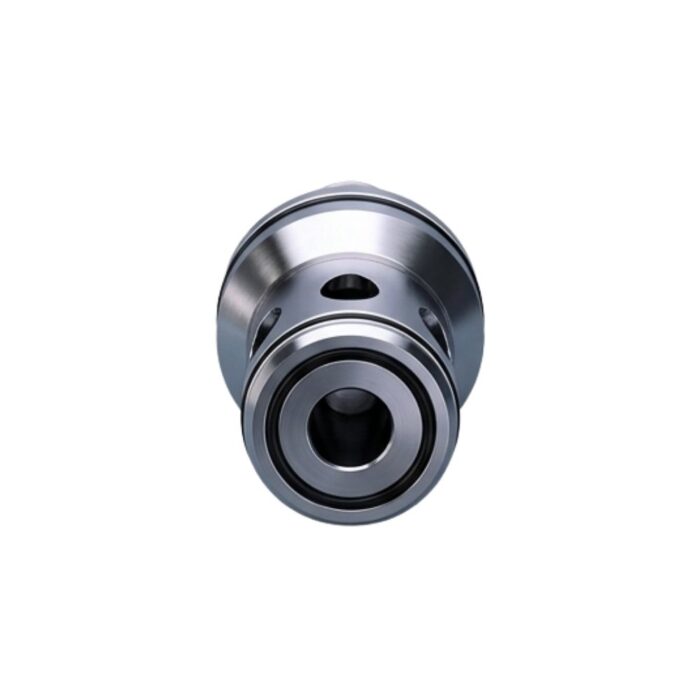

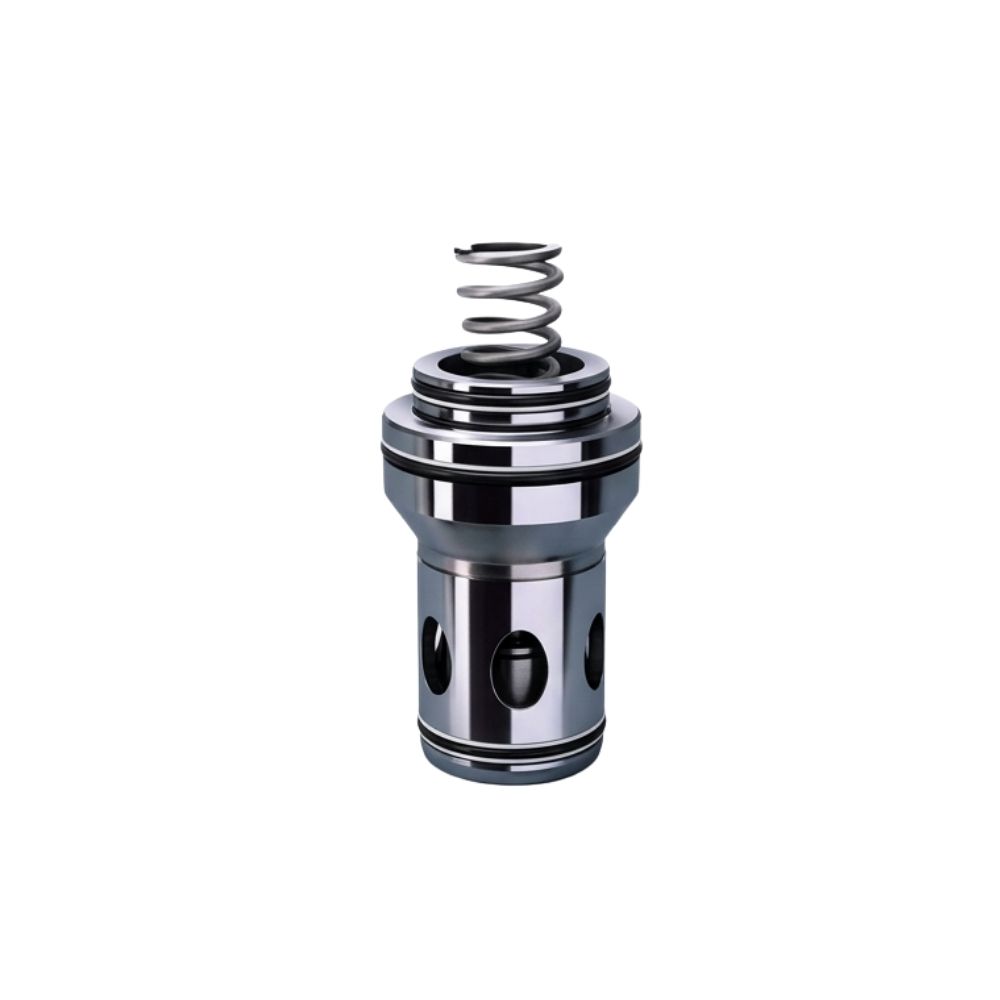

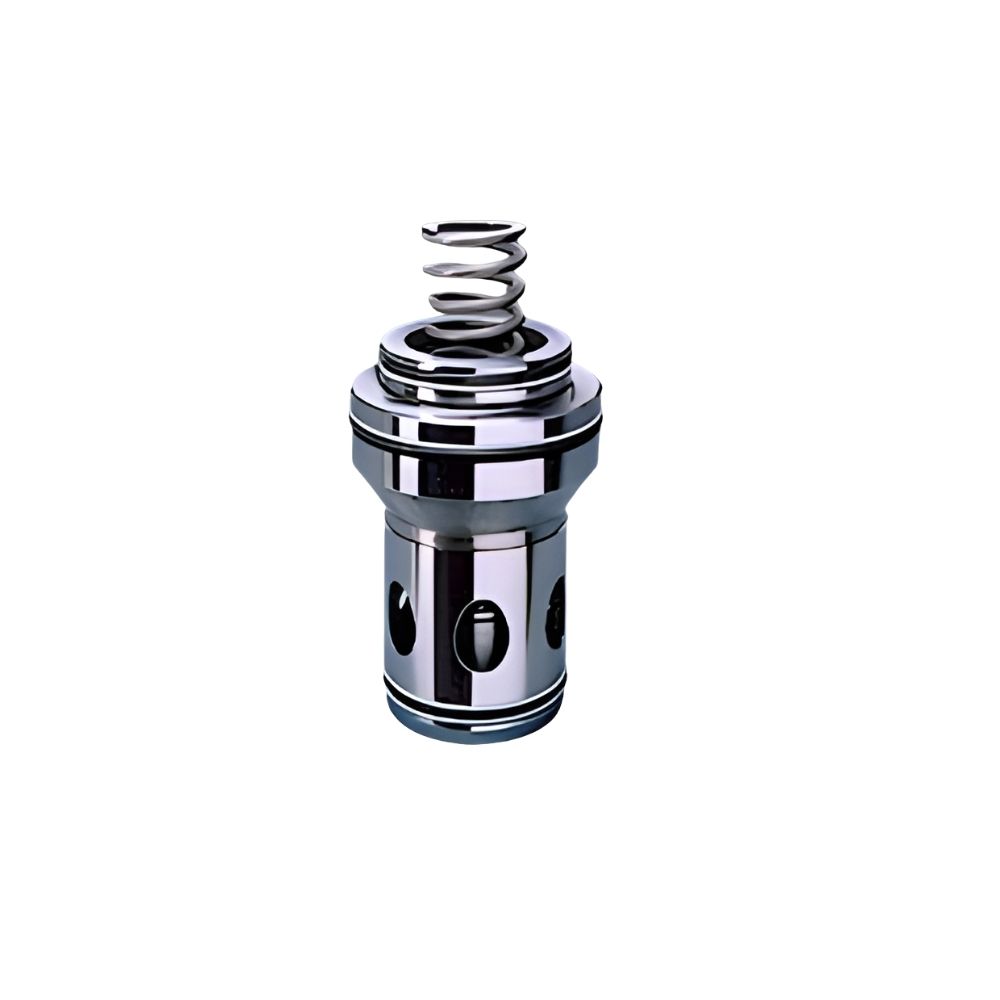

CV 50 to 100 – Two Port Slip-In Cartridges ISO 7368
Polyhydron Two Port Slip-In Cartridges (Model CV) are high-performance hydraulic poppet valves designed for manifold cavities that comply with the ISO 7368 (DIN 24342) standard. These cartridges are used to control flow direction, pressure, or flow rate depending on the control cover selected.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Two Port Slip-In Cartridges ISO 7368 – CV 50 to 100 series slip-in cartridge valves are two-port valves designed for installation in compact manifold control blocks with cavities machined as per ISO 7368 standards. Their function depends on the type of control cover used, allowing them to perform pressure control, directional control, throttling, or a combination of these functions.
These cartridge valves are available with two area ratios and four cracking pressure options, enabling selection based on specific application requirements. Control covers must be ordered separately to achieve the desired functionality.
