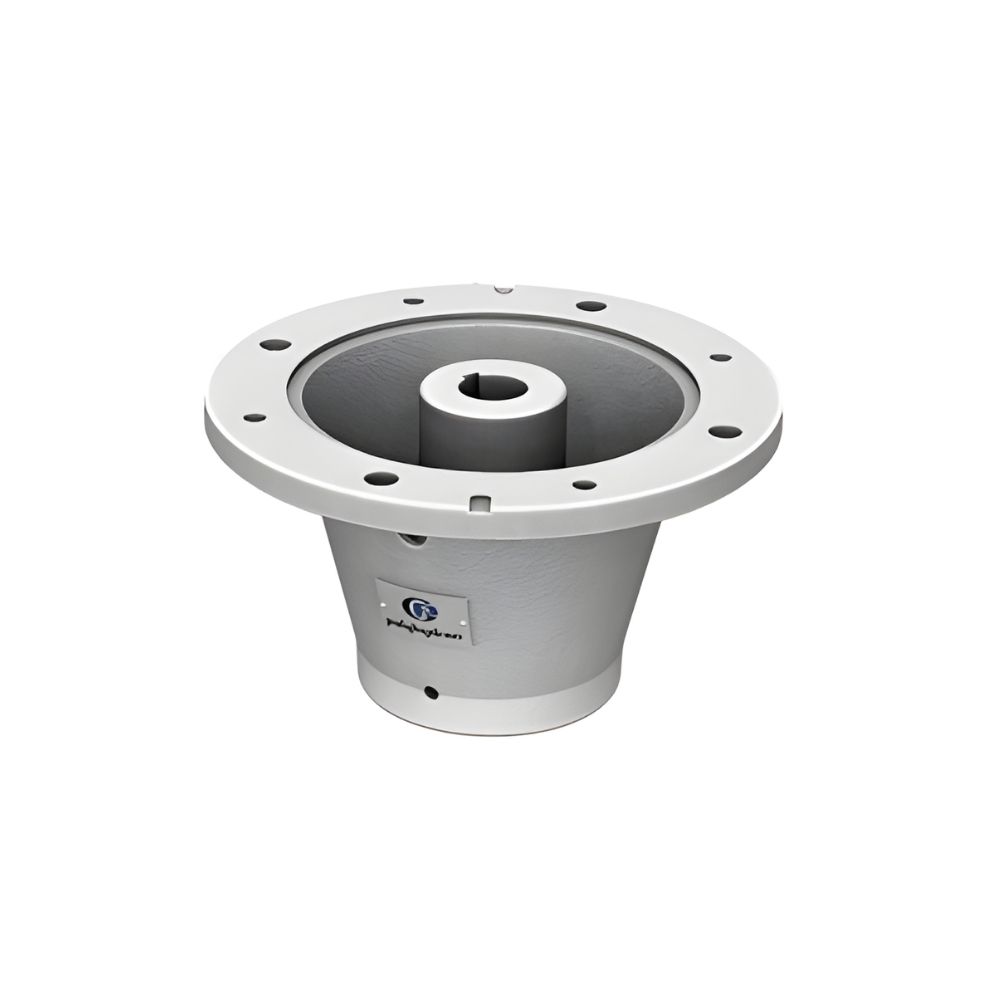

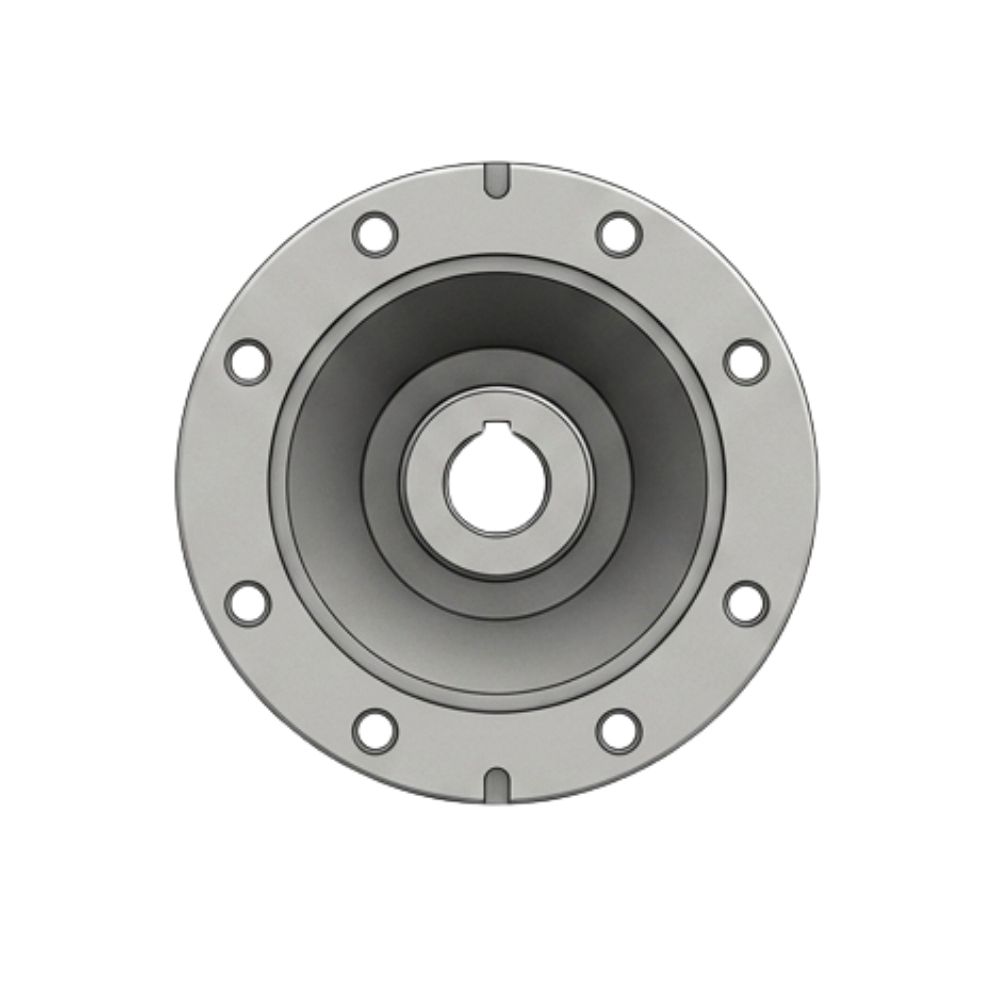

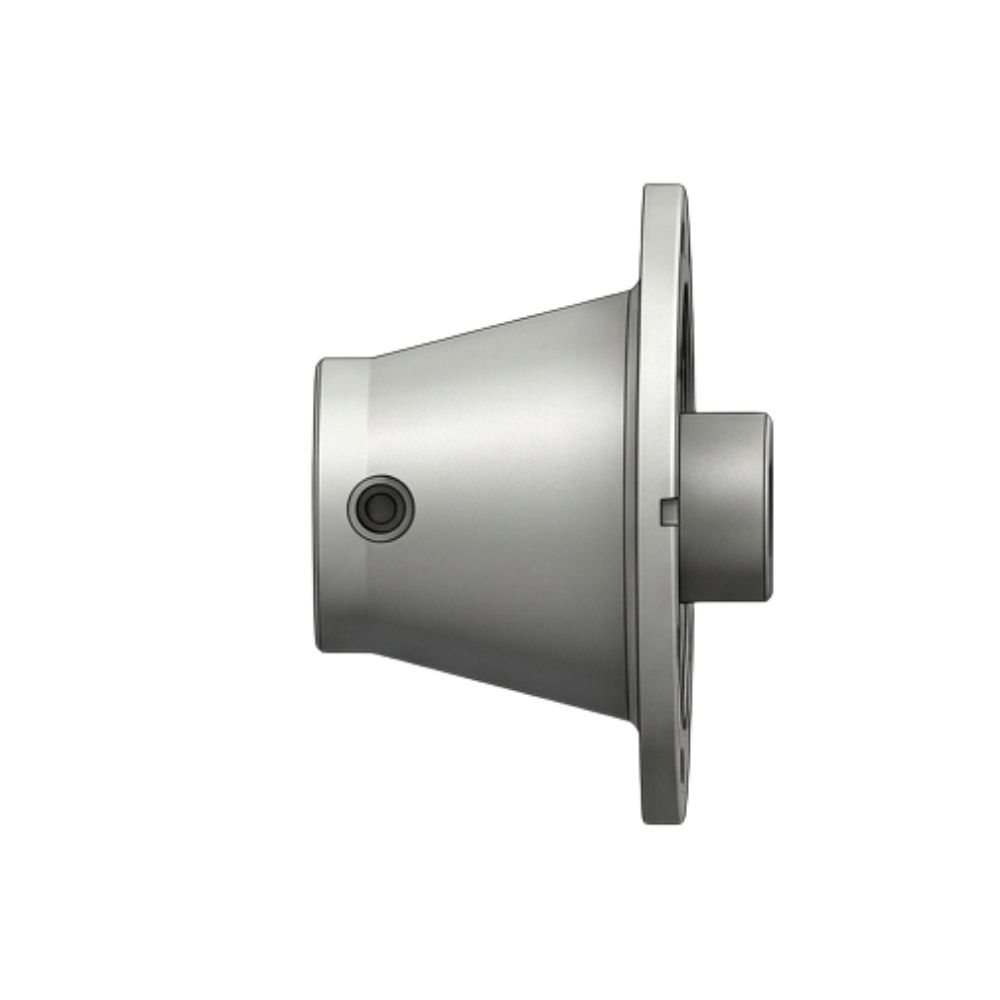

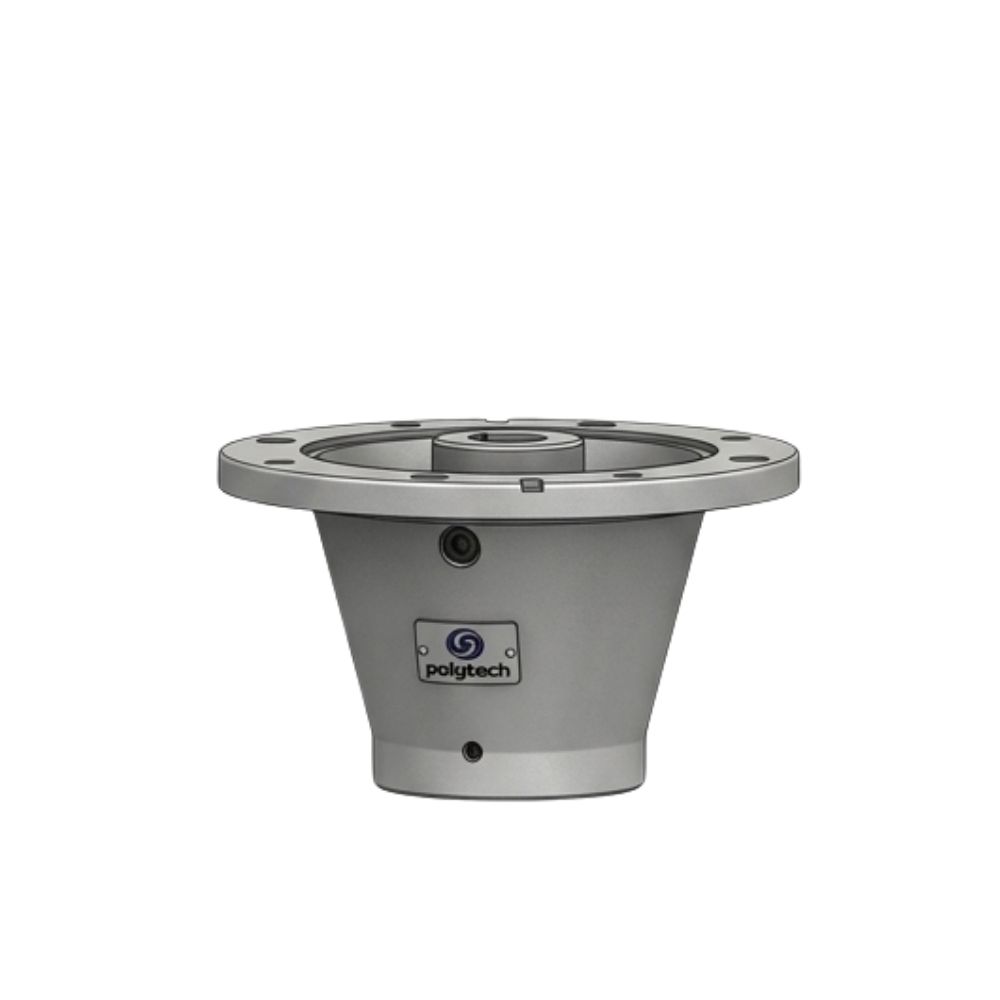

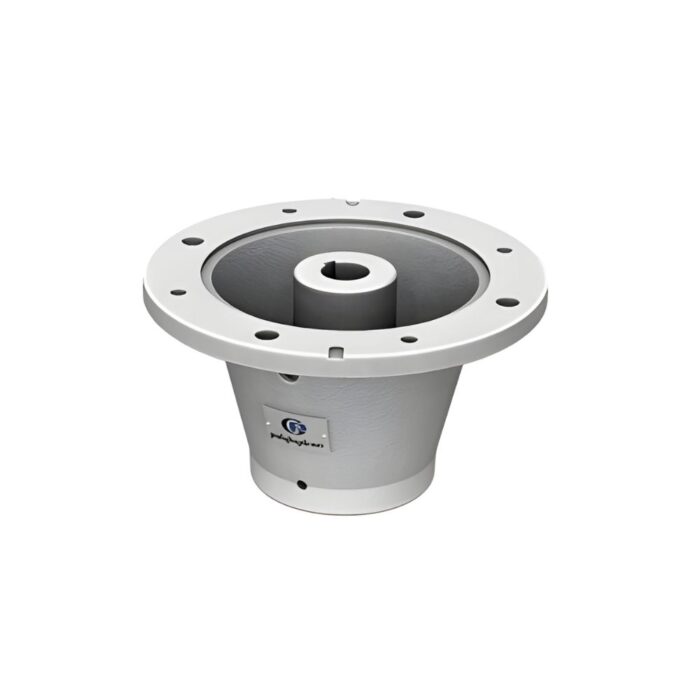

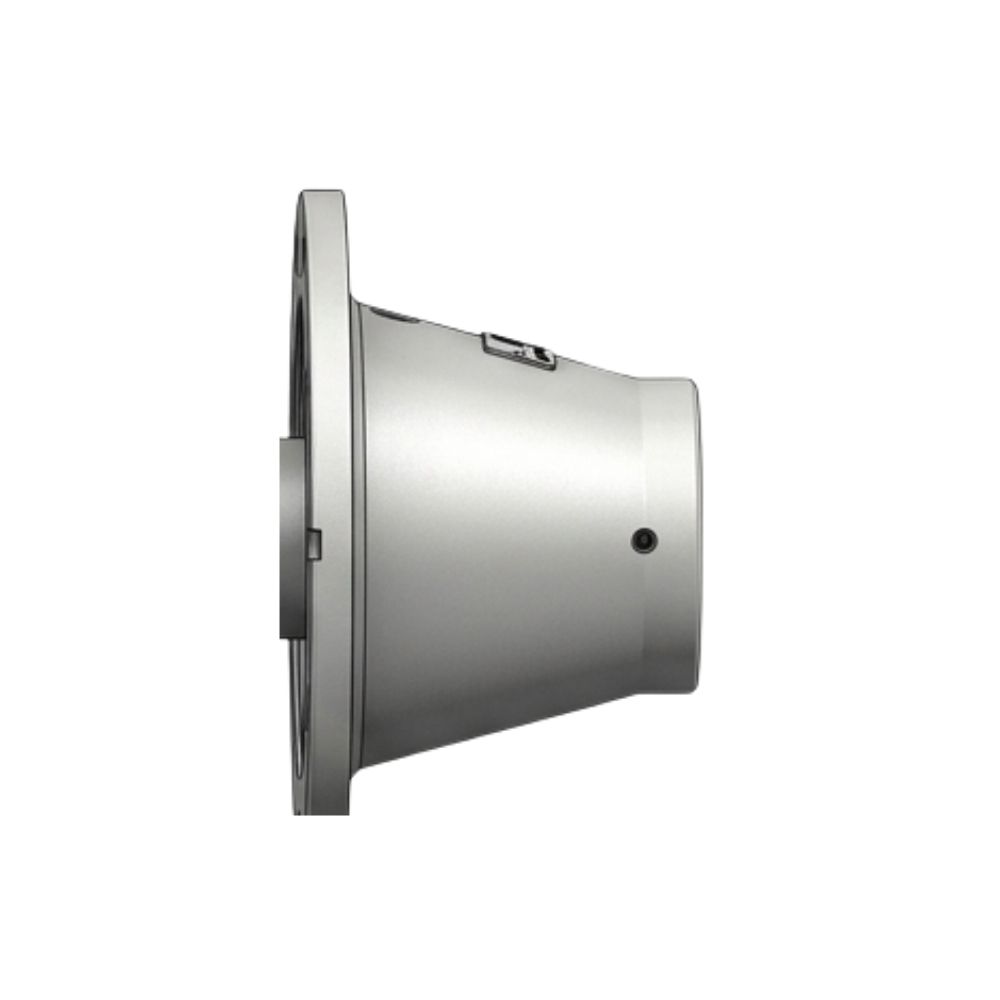

Bell Housing Assembly (Piston pump ) – BHP
The Polyhydron BHP Series Bell Housing Assembly is a factory-standard component designed to couple Polyhydron’s radial piston pumps (Series 1R, 2R, 11R, and 12R) with electric motors that have metric flanges.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Bell Housing Assembly – BHP is designed for coupling hydraulic pumps with flanges to electric motors with metric flanges. It is precisely machined to minimize shaft misalignment, ensuring smooth and efficient operation.
Accurate alignment combined with cushioned power transmission through a resilient spider coupling helps extend the life of pump and motor bearings. The design also significantly reduces noise levels, making it suitable for reliable and quiet performance in hydraulic systems.
| Feature | Specification Details |
|---|---|
| Construction | Partially enclosed cast iron housing |
| Mounting Style | Flange mounting, factory standard |
| Mounting Position | No limitations (can be mounted in any axis) |
| Flexible Coupling | Resilient spider type (included in assembly) |
| Compatible Pumps | Polyhydron Radial Piston Pumps: Series 1R, 2R, 11R, 12R |
| Motor Standard | Compatible with metric flanges as per IS : 2223 or IEC 72-2 |
| Operating Temp. | Standard range: -20°C to +70°C |
| Shaft Alignment | Precisely machined to reduce misalignment and bearing wear |
